A Guide to Replacing Disc Brake Rotors on the 2015-2019 BMW X5
Everything you need to know about choosing the right aftermarket brake rotors for your F15 BMW X5.
- Always verify your X5's specific sub-model and brake package (standard vs. M Sport) before ordering rotors to ensure correct sizing.
- OEM-equivalent brands like Zimmermann and SHW offer the same quality as dealer parts for a lower price.
- Always replace brake pads and rotors at the same time for safe and effective performance.
- Coated rotors are highly recommended to prevent rust and maintain a clean look, especially in winter climates.
Is it Time for New Rotors?
Your BMW X5 is a heavy vehicle, and its brakes work hard. Over time, the rotors wear down and can develop problems. Ignoring these signs can lead to unsafe driving conditions and more expensive repairs down the road.
Key Symptoms of Rotor Failure:
- Vibration or Pulsing: If you feel a pulsing in the brake pedal or a vibration in the steering wheel when you brake, your rotors are likely warped from heat. This is a common issue, sometimes caused by overheating from towing or aggressive driving.
- Grinding or Squealing: Loud grinding noises mean the brake pads are completely worn away and metal is grinding against the rotor, destroying it. Squealing can also indicate worn rotors or hard spots on the pad material.
- Visible Grooves or Damage: Look at the rotor surface through your wheel spokes. Deep grooves, scoring, or bluish "hot spots" are clear signs that the rotors need replacement.

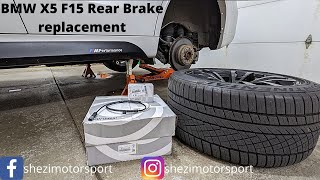

- Brake Warning Light: When your brake pad wear sensor is triggered, it illuminates a light on your dash. This is the time to inspect both your pads and rotors, as rotors are often replaced at the same time as pads. 🎬 See how to replace your rear brake pads and rotors.
A Note on Recalls
There was a significant recall for the integrated brake system on some 2023-2025 BMW models, including the X5. This recall concerns the electronic brake module, not the physical disc brake rotors themselves. However, it highlights the complexity of modern BMW brake systems. 🎬 Learn why some BMW owners report frequent brake system issues. No specific recalls were found for the disc brake rotors on the 2015-2019 F15 X5 models.
Choosing the Right Aftermarket Rotors for Your X5
When replacing rotors, you don't have to buy from the BMW dealer. Many aftermarket brands offer excellent quality, often from the same companies that make the original parts for BMW. Here’s how to choose.
Common Ordering Mistakes
The single biggest mistake is ordering the wrong size. The 2015-2019 X5 was available with different brake packages (standard vs. M Sport) and for different engines (35i, 50i, 35d). M Sport brakes, often identified by blue calipers, use larger rotors. Always verify your specific sub-model and brake package before ordering. Rotor diameters can vary, for example, from 332mm to 348mm for the front axle on non-M models.

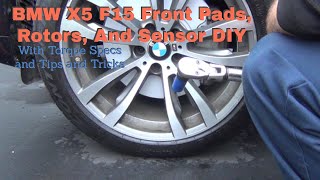

🎬 Watch this DIY walkthrough for replacing front rotors and sensors.Brand Tiers: Good, Better, Best
- Tier 1: OEM-Equivalent & Premium Brands (Zimmermann, SHW, ATE, Pagid, Brembo)
These brands are often the original equipment manufacturers (OEM) for BMW. Choosing a brand like Zimmermann or SHW often means you are getting the exact same part that came on your car from the factory, just without the BMW logo and dealer price markup. They offer guaranteed fitment, excellent quality, and performance that matches the original parts. Many owners report no noticeable difference in performance between Zimmermann or Brembo rotors and the original BMW parts. - Tier 2: Performance & Kit Brands (Powerstop, EBC, Hawk)
These brands are for owners looking for an upgrade. Powerstop offers popular all-in-one kits that include drilled and slotted rotors, low-dust ceramic pads, and all necessary hardware. Drilled and slotted rotors can help dissipate heat and gas for better performance in aggressive driving, but may produce more noise. Powerstop kits are often seen as a good budget-friendly performance upgrade. - Tier 3: Daily Driver Brands (Bosch, Centric, Raybestos)
These brands provide reliable, quality parts that meet or exceed all safety standards for normal daily driving. They are a cost-effective solution for owners who aren't looking for high-performance braking and want a solid replacement for worn-out factory rotors.
Coated vs. Uncoated Rotors
Many premium aftermarket rotors (like those from Zimmermann and others) come with a special coating (e.g., zinc-coated or GeoSpec). This coating helps prevent rust from forming on the non-contact areas of the rotor, like the hub and cooling vanes. This is highly recommended, especially if you live in an area with snow and road salt, as it keeps the rotors looking clean behind your wheels.
Cost of Replacing BMW X5 Brake Rotors
| Part Type | Estimated Cost (Per Pair, Front or Rear) | Notes |
|---|---|---|
| New OEM (Dealer) | $350 - $700+ | Highest cost, but guaranteed original parts. |
| New Aftermarket (Premium) | $200 - $450 | OEM-quality from brands like Zimmermann, SHW, Brembo. Excellent value. |
| New Aftermarket (Value) | $120 - $250 | Good quality for daily driving from brands like Bosch or Centric. |
| Shop Labor | $200 - $400 per axle | Independent shop labor is typically 1.5-2 hours per axle. Dealer labor will be higher. |
Frequently Asked Questions
Should I replace my brake pads and rotors at the same time?
Yes, it is always recommended to replace brake pads when you install new rotors. Installing old, unevenly worn pads on new, perfectly flat rotors will cause poor performance and can damage the new rotors quickly.
What's the difference between drilled and slotted rotors?
Drilled holes and slots on the rotor surface are designed to help vent hot gases and water away from between the pad and rotor, which can improve initial bite in wet conditions and reduce brake fade during very hard use. For most daily driving, a solid, non-drilled rotor (often called 'plain' or 'blank') is more than sufficient and can be quieter and less harsh on brake pads.
What is the rotor 'minimum thickness'?
Every brake rotor has a minimum safe thickness specification, which is usually stamped on the rotor's hub or edge. As rotors wear down, they get thinner. A rotor that is worn below its minimum thickness cannot dissipate heat effectively and is at risk of cracking or failing. It must be replaced.
Do I need to 'bed-in' my new brakes?
Yes. Bedding-in is a process of a few controlled, hard stops to transfer an even layer of friction material from the new pads onto the new rotors. This ensures smooth, quiet, and powerful braking. Most aftermarket brake manufacturers provide specific bed-in procedures for their products.
Helpful Videos
Technical Specifications
OEM Part Numbers: 34116868939 34116868940 34216868943 34216868944 34112284810
Rotor diameter and thickness vary significantly based on the vehicle's specific model (e.g., sDrive35i, xDrive50i) and whether it is equipped with standard or M Sport brakes. Front rotor diameters for non-M models typically range from 332mm to 348mm. It is critical to confirm the exact specifications for your vehicle before purchasing.
