Buy GMC Terrain Side View Mirrors

Quick Summary

The GMC Terrain side mirror-also called the door mirror, wing mirror, or side-view mirror-is a safety-critical part that lets drivers see what's happening beside and behind the SUV. All current Terrain trims come with heated, power-adjustable housings and offer add-ons like LED turn-signal lamps, memory recall, and blind-spot indicators. Knowing the mirror's features, fit years, safety technology, maintenance steps, and common problems helps shoppers choose the right replacement and keep the compact SUV safe on the road.

Part Overview

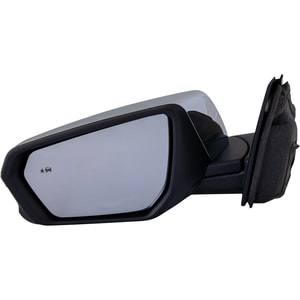

A side mirror is an outside rear-view device bolted to the front doors. It has three main pieces: a plastic cap or "skull," an electric motor plate, and reflective glass. Newer Terrains use convex glass on the passenger side for a wider field of view and may add electro-chromic (auto-dimming) coatings to cut glare (Wikipedia). Inside every housing runs wiring for power adjustment and, on most trims, for turning on the built-in heater pad during cold weather (GMC).

Compatibility

• 2010-2017 first-gen Terrain mirrors bolt up the same, but wiring differs by options (signal lamp, memory).

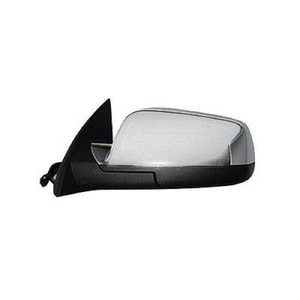

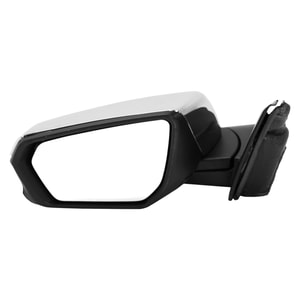

• 2018-2025 second-gen mirrors share the mount with the Chevy Equinox; however, Denali versions have chrome caps, while AT4 uses textured black.
• 2022 models built during the global chip shortage may have blank mirror glass until dealers retrofit Side Blind Zone Alert hardware .

Key Features

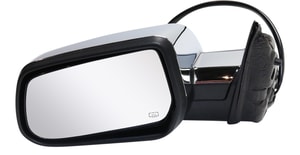

• Heated glass: Activates with the rear defogger button to melt frost .
• Power adjust & manual fold: Standard on every trim; pivoting keeps the wing mirror safe in tight spots .

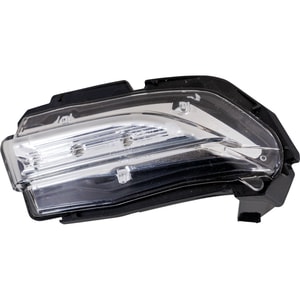

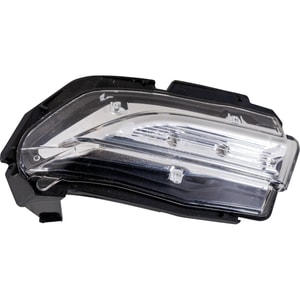

• LED turn-signal repeaters: Flash in sync with the front and rear blinkers to warn other drivers .

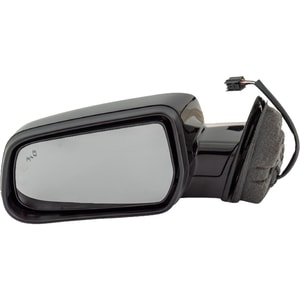

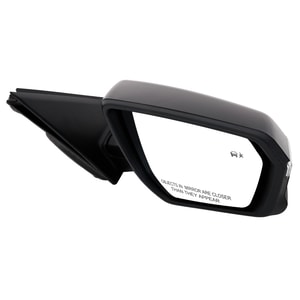

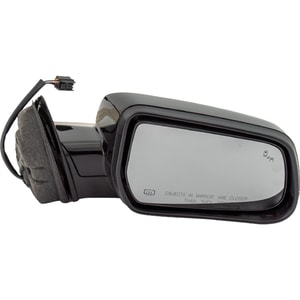

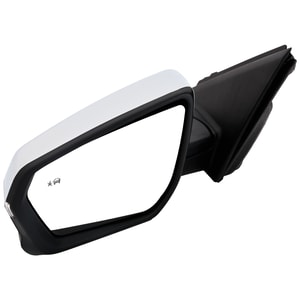

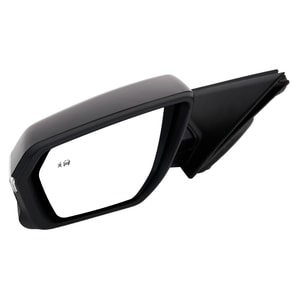

• Blind-spot icon: Amber symbol lights up when radar sensors detect a car in the danger zone (GMC).
• Lane-change alert: Adds reach to the blind-spot system and sounds if you signal toward an occupied lane (GMC).
• Memory recall: Stores mirror positions for two drivers together with the seat module (GMC).

Safety Tech

Blind-spot detection that flashes in the outside mirror cuts lane-change crashes by about 14 percent, according to IIHS studies (IIHS). IIHS also lists mirror-mounted alerts as part of advanced driver-assistance systems that lower insurance losses (IIHS). GMC's Side Blind Zone Alert uses bumper-corner radar and works at everyday speeds; keeping those sensor zones clean of mud or snow is critical (GMC).

Materials

Mirror "shells" are ABS plastic to absorb small hits. Premium caps get paint or chrome film. Glass choices include:

• Flat: driver side on most U.S. SUVs.

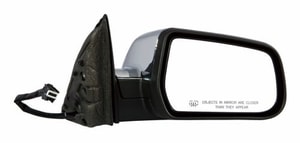

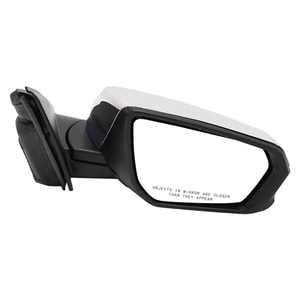

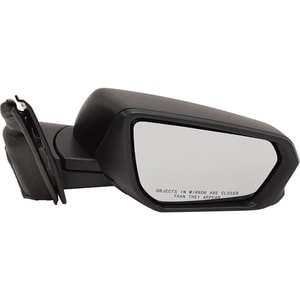

• Convex: passenger side, marked "objects in mirror are closer than they appear."
• Electro-chromic: dims automatically at night to cut glare (Wikipedia).
  Backing plates are nylon; heating grids are thin nichrome wires laminated to the glass.

Installation

1. Pry off the inside sail-panel trim.
2. Unplug the mirror harness.
3. Remove three 10 mm nuts; lift off the old unit.
4. Seat the new side-view mirror, torque nuts to spec, and reconnect wiring.
5. Calibrate memory or blind-spot modules with a scan tool if equipped .
   Average DIY time is 30 minutes; a helper prevents dropping the mirror.

Maintenance

• Wash the glass with mild soap; harsh cleaners scratch coatings.
• Check fold hinge torque yearly; a loose hinge causes vibration.
• Clear ice with the built-in heater, not a scraper, to avoid cracking.
• Keep radar sensor zones at rear bumper clean so blind-spot icons stay reliable (GMC).

Common Problems

← scroll table horizontally →

Driving Tips

AAA recommends setting mirrors wider so the image in the door mirror overlaps the rear-view mirror view; this shrinks blind spots (AAA). Car and Driver shows the same wide-angle method and notes it may feel odd at first but improves safety (Car and Driver). Tilting mirrors 15° farther out also reduces glare from trailing headlights (AAA).

Environmental Notes

Old mirror assemblies contain recyclable plastics and glass. Check local e-waste rules before discarding heater or LED parts, which use small electronic boards.

Frequently Asked Questions

Q: Which Terrain years use the same mirror bolt pattern?
A: All 2010-2025 models share the three-stud pattern; just match wiring options for each trim .

Q: How do I turn on the mirror heater?
A: Press the rear-window defogger button; the mirror heaters come on at the same time (GMC).

Q: What is Lane Change Alert with Side Blind Zone Alert?
A: It lights an icon in the mirror when a car is in your blind spot and may beep if you signal toward it (GMC).

Q: My 2022 Terrain shipped without blind-spot parts-why?
A: A chip shortage delayed the modules; GM is retrofitting affected SUVs for free under program N222381840 .

Q: Can I swap a Denali chrome cap onto my SLE mirror?
A: Yes-the cap snaps off; reuse the same base and wiring.

Q: Do I need to re-program anything after a mirror swap?
A: Only if the SUV has memory, blind-spot, or 360-camera features; otherwise plug-and-play.

Q: How strong is the heater?
A: It clears thin ice in about two minutes at 20 °F but won't melt thick snow-brush off first (GMC).

Q: Is auto-dimming worth it?
A: Gentex electro-chromic glass cuts headlight glare and reduces temporary night blindness (Wikipedia).

Q: How tight should the mounting nuts be?
A: Hand-tight plus one-quarter turn (about 8 N·m) prevents cracking the plastic base.

Q: Can a cracked cap be fixed?
A: Small cracks can be epoxied, but full replacement gives better weather sealing.

Q: Will a wider convex mirror pass inspection?
A: Yes-federal rules allow convex passenger-side mirrors as long as they carry the safety warning (AAA Auto Club South).

Q: Why does the mirror vibrate at highway speed?
A: Most often it's a loose hinge; tighten screws or install new bushings.

Q: Does blind-spot detection work in heavy rain?
A: Performance can drop; keep sensors clean and watch for on-screen alerts about blocked sensors (GMC).

Q: How do I store positions for two drivers?
A: Set the mirror and seat, then press MEM + 1; repeat with MEM + 2 for the second driver (GMC).

Q: Are aftermarket signal mirrors legal?
A: Yes if they meet SAE lighting standards and flash amber or red like factory units.

Q: Can I paint a textured cap?
A: Lightly sand, prime with plastic primer, then spray base-coat and clear-coat to match body paint.

Using the right GMC Terrain side mirror keeps your line of sight clear, supports advanced safety tech, and helps every trip stay safe and comfortable.
