Quick Summary

The Honda Accord grille-sometimes called the front grill, nose panel, or radiator cover-is more than shiny trim. It lets cool air reach the radiator and A/C condenser, shapes the car's face, hides safety sensors, and can even cut wind drag to save fuel. Newer Accords use active shutter doors and radar-transparent plastic emblems, while older models rely on fixed mesh or billet bars. Knowing how the grille works, what materials it uses, and how regulations affect it will help drivers choose, install, and care for a replacement.

What It Does

The main job of any car grille is to admit fresh air so the radiator can shed engine heat. Without that airflow the coolant would overheat, harming the engine and other parts. Most production vehicles mount the radiator directly behind the grille for this reason. (Wikipedia)
Grilles also protect those heat exchangers from rocks and bugs with a sturdy screen while giving the Honda Accord its recognizable "face." (Wikipedia)

Design Features

Honda designers use the grille as a brand signature. On the 2023-2025 eleventh-generation Accord the opening sits lower and wider, flanked by slim LED headlamps for a cleaner look called "Modern Solid." (Car and Driver)
Aerodynamic tricks hide inside: active shutter doors close at highway speeds to smooth airflow and open when the engine needs cooling. Honda first added this Active Shutter Grille system to the 2018 tenth-generation Accord. (hondanews.com, hondanews.com)

Generational Fit

• 2003-2007 (7th gen): Simple two-bar plastic frame; no sensors.

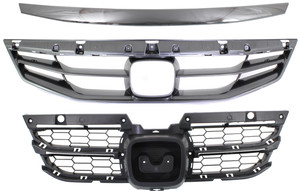

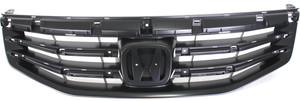

• 2008-2012 (8th gen): Three-slot chrome bezel; fits coupe and sedan differently. (YouTube)

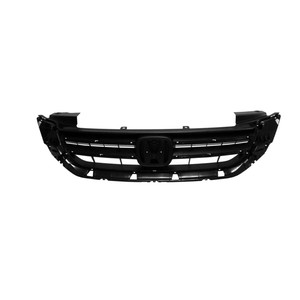

• 2013-2017 (9th gen): Wider "wing" styling with big center emblem; forward-collision radar sits behind emblem on some trims.

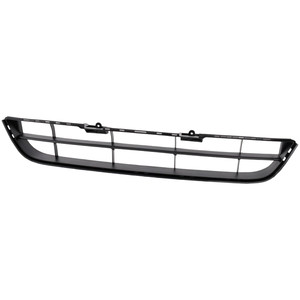

• 2018-2022 (10th gen): Active shutter lower grille plus radar-transparent upper molding for Honda Sensing. (techinfo.honda.com)
• 2023-2025 (11th gen): Larger opening, black hex-mesh, and camera-friendly emblem; shutters standard on all powertrains. (Car and Driver, hondanews.com)

Materials

Most Accord grilles are molded from ABS or ABS/PC alloys because these plastics stay light, resist impacts, and accept paint or chrome well. (EA Journals)
Premium trims add vacuum-plated nickel-chrome for a bright finish that resists corrosion yet weighs far less than metal. (maxnext.io)

Key Benefits

• Cooling & Reliability: A clear opening feeds the radiator, A/C condenser, and (on hybrids) the power-electronics cooler. (Wikipedia)
• Fuel Economy: Closing grille shutters in mild weather can reduce drag and improve mpg on the highway. (Jalopnik)
• Identity & Value: The grille is among the first things shoppers notice, so damage can lower resale. (Wikipedia)

Sensors & Safety

Honda Sensing uses a millimeter-wave radar module hidden right behind the "H" emblem. If an aftermarket grille blocks the radar, collision-mitigation features can shut off and set trouble codes. (techinfo.honda.com, techinfo.honda.com)
Keep the emblem area clean; dirt, snow, or stickers can blind the sensor and disable Adaptive Cruise Control. (techinfo.honda.com, techinfo.honda.com)

Regulations

NHTSA's proposed pedestrian-head protection rule counts the grille and hood front edge as potential impact zones, so modern designs must deform safely and leave room for energy-absorbing foam. (NHTSA, NHTSA)
Automatic Emergency Braking will become mandatory on light vehicles, increasing the need for grille designs that stay transparent to radar and camera beams. (NHTSA)

Installation Tips

1. Open the hood and remove the upper radiator cover clips.
2. Unbolt the grille tabs from the bumper beam.
3. Gently pry free the lower clips; avoid bending painted panels.
4. Transfer the Honda emblem and radar bracket to the new grille.
5. Reverse steps and torque bolts to 6 N·m.
   DIY videos for 2003-2007 and 2018-2020 Accords show the whole swap in under 30 minutes. (YouTube, YouTube)

Care & Maintenance

• Wash bug residue quickly; a coat of spray wax or even a light film of WD-40 before road trips helps insects slide off. (familyhandyman.com)
• Use a soft detailing brush or a bamboo skewer wrapped in microfiber to reach tight mesh. (Popular Mechanics)
• Chrome pieces shine after a gentle rub with non-abrasive polish; avoid steel-wool pads that scratch plastic. (The Wheel Shop)

Styling Ideas

Owners often "black-out" the bright surround with satin-black trim paint, swap in sport-mesh inserts, or add stick-on LED light bars behind the slats-just keep beams clear of the radar window. Mesh plus billet cross-bars can boost protection against rocks while keeping airflow strong. (EA Journals)
Partial grille blocks, often used by eco-modders, cover unused openings in winter to warm the engine faster and cut drag. (Wikipedia)

Common Problems

• Cracks & Chips: Road debris can chip brittle chrome coating; replace cracked panels promptly to keep radiator safe.
• Oxidation: Sunlight dulls un-painted ABS; periodic UV-protectant spray helps.
• Loose Clips: Plastic push-pins can fatigue after many removals-swap them for new ones during any bumper work.

Frequently Asked Questions

Q: Why did my Accord's radar cruise stop working after a grille swap?
A: The replacement grille or emblem may block the radar sensor or use the wrong plastic thickness. Choose radar-compatible parts and calibrate the sensor. (techinfo.honda.com)

Q: Does a broken grille hurt engine cooling?
A: Yes. Missing slats let large debris hit the radiator and disturb directed airflow that engineers designed for even cooling. (Wikipedia)

Q: What is an active shutter grille?

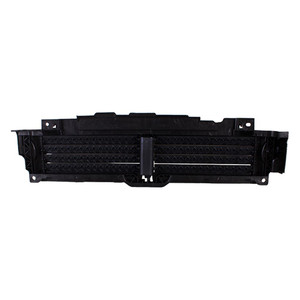

A: It is a set of motorized doors that close behind the opening when cooling demand is low to cut wind resistance and save fuel. Honda added the system on 2018+ Accords. (hondanews.com)

Q: Can I paint a chrome grille black?
A: Yes-sand lightly with 600-grit, clean with isopropyl alcohol, apply plastic primer, then multiple coats of high-temp trim paint. Let it cure fully before washing.

Q: Will mesh inserts affect air-conditioning?
A: If the mesh has similar open area to stock, cooling stays normal. Too-tight mesh can raise condenser temps on hot days.

Q: What materials last longest?
A: ABS/PC alloy with nickel-chrome plating resists UV fade and impacts better than plain ABS or painted polypropylene. (maxnext.io)

Q: How often should I clean the grille?
A: Rinse weekly, deep-clean monthly, and polish chrome every three months to prevent pitting. (Popular Mechanics)

Q: Does grille shape really affect mpg?
A: Yes-closing shutters or shrinking openings can cut drag by up to 5 percent at highway speeds, improving fuel economy. (Jalopnik)

Q: Are there laws about grille design?
A: Upcoming U.S. rules on pedestrian head protection consider grille impact zones, so future designs must cushion hits. (NHTSA)

Q: Why is the "H" emblem plastic, not metal?
A: The emblem hides the radar; metal blocks the signal, so Honda molds it from radar-transparent plastic. (techinfo.honda.com)
