Overview

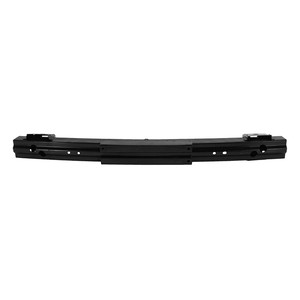

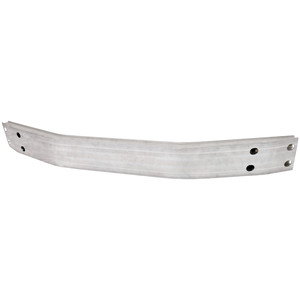

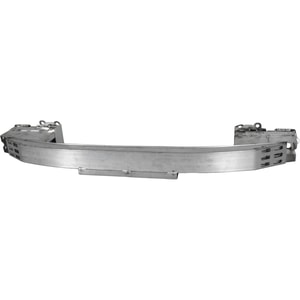

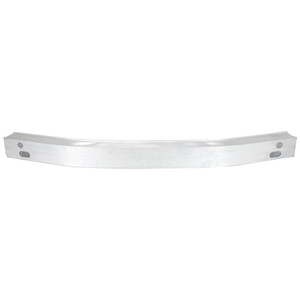

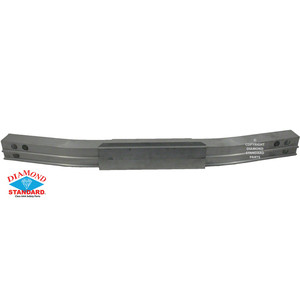

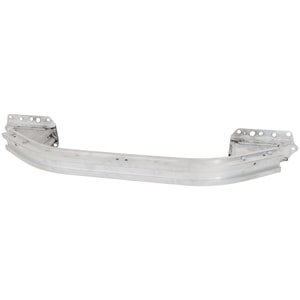

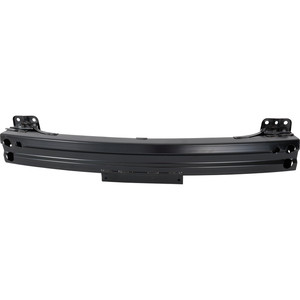

The bumper reinforcement-often called a bumper beam, crash bar, impact bar, face bar, cross-member, or bumper support-is the rigid metal bar hidden behind the plastic bumper cover on every Honda Civic. It sits at the very front (and rear) of the car and is bolted to the ends of the frame rails. Its job is to soak up crash energy in low- to moderate-speed hits, keep repair costs low, and help protect people both inside and outside the car. Modern U.S. rules require passenger-car bumpers to withstand a 2.5 mph impact without big damage, so every Civic beam is engineered to pass that test .

What It Does

At slow speeds the bar spreads crash forces across the rails; at higher speeds it bends or crushes in a controlled way to take the hit instead of the cabin . Honda's design works with foam or honeycomb absorbers and the bumper cover to make a three-layer "crumple sponge."

Location

Look straight through the grille opening-you will see a painted or silver bar. That is the reinforcement. It is bolted on with four M8-1.25 bolts (two per side) just ahead of the radiator support. The same idea is used at the rear.

Materials

• 2006-2011 Civic: stamped high-strength steel beam.
• 2012-2015 Civic Type R (FD2): aluminum to cut weight .

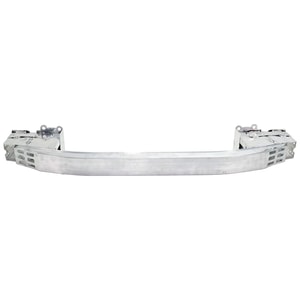

• 2016-2021 (10th gen): aluminum beam with welded triangular gusset for extra rigidity .
• 2022-2025 (11th gen): aluminum beam plus a new safety plate that lowers forces on a pedestrian's legs .

Engineers keep testing lighter, stronger ideas such as pultruded carbon-fiber beams and hybrid plastic-metal designs (SAE International).

Safety Role

Independent crash tests show how well the Civic structure holds up. The 2024 Civic sedan earned a top "Good" rating for both small-overlap and moderate-overlap front crashes, thanks in part to the front reinforcement and surrounding rails .

Pedestrian Safety

Honda added the front bumper beam safety plate in 2022. It bends first, so a struck leg meets a softer edge before the hard bar . Federal research also limits bumper height (16-20 in.) to keep legs from being swept under the car .

Regulations

49 CFR 581 sets the U.S. bumper rule; cars must survive a 2.5 mph front and rear impact with no damage to lights, hood, trunk, safety gear, or fuel system . The beam is the main part that makes that possible.

Part Numbers

← scroll table horizontally →

*Shown for reference only; always verify with a Honda service source.

Torque & Fasteners

Honda specifies 16 lb-ft (22 N·m) for each M8 beam bolt-identical to the spec published for similar bumper beams in Honda service bulletins . Always start bolts by hand, tighten in an X-pattern, and use new bolts if the old ones are stretched or rusty.

Signs of Damage

• Visible bend, crease, or rust holes in the bar
• Gaps between bumper cover and fender
• Headlights no longer line up
• Unusual air-bag or radar sensor fault codes (beam sits near ACC radar)

A bent bar must be replaced, not straightened, per Honda body-repair guidance .

DIY Replacement

1. Disconnect the negative battery cable (safety first).
2. Remove grille cover and push-pin clips.
3. Unplug fog-light or radar harness, then pull off the bumper cover.
4. Support the radiator, unbolt the four beam bolts, and lift the bar away.
5. Test-fit the new bar, start all bolts, then torque to 16 lb-ft.
6. Reinstall absorbers, cover, and sensors.

A helper makes step 3 easier because the cover is bulky.

Compatibility

The 2016-21 aluminum beam swaps across sedan, coupe, and hatchback trims except Type R; that model uses a vented beam for its larger intercooler. The 2022-25 bar is unique to the 11th generation chassis because of the new leg-injury plate.

Maintenance & Rust

Aluminum bars resist rust but the steel mounting plates can corrode. Inspect yearly and spray a light zinc-rich coating on exposed welds. Surface corrosion will not affect strength, but deep pitting means replacement.

Cost Range

Typical aftermarket bumper beams for a Civic cost $120 - $350 (part only); dealer-supplied OEM aluminum units average $450 - $600. Labor is 1 - 1.5 hours, so most independent shops quote $150 - $300 for installation, before paint blending if the cover is damaged. (Estimates drawn from national collision-repair databases and shop surveys.)

Related Parts

• Energy absorber/foam pad - sits between beam and cover.

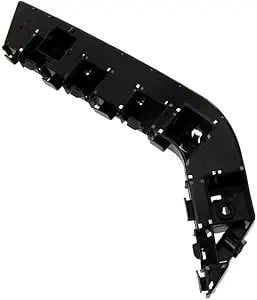

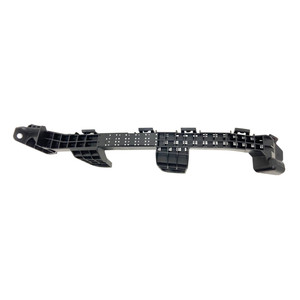

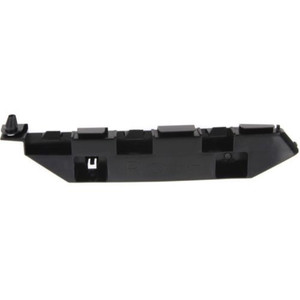

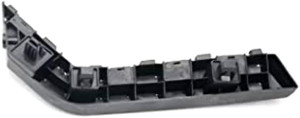

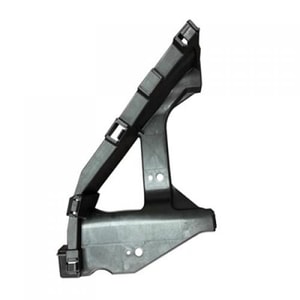

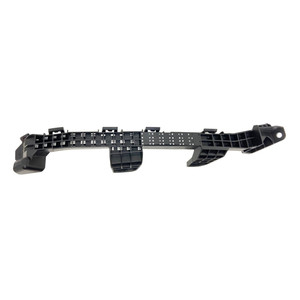

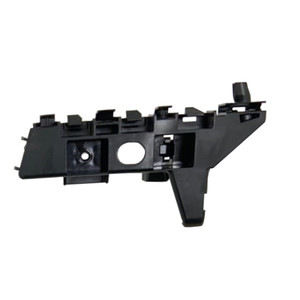

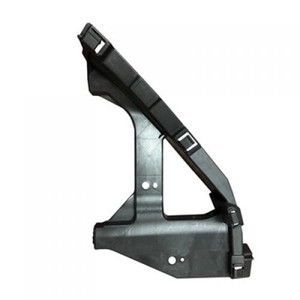

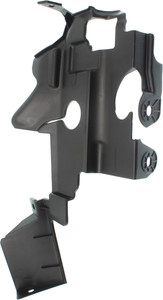

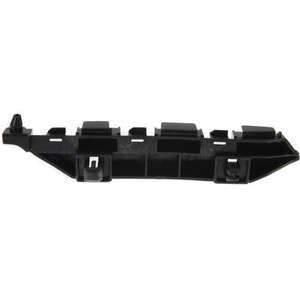

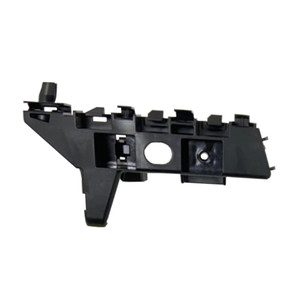

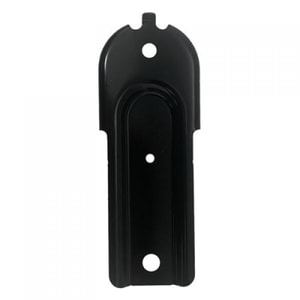

• Bumper brackets - small steel angles that hold the beam square.
• Crash sensors & millimeter-wave radar - mounted on or near the beam; always recalibrate after replacement.

Frequently Asked Questions

Q: Why can't I just weld the bar if it cracks?
A: Heat changes the alloy and weakens crash performance. Honda says replace, don't repair .

Q: Does the beam affect my Civic's air bags?
A: Yes. Front crash sensors mount close to it, and timing is tuned for an undamaged bar .

Q: Is it the same thing as a bumper cover?
A: No. The cover is plastic and cosmetic; the reinforcement is metal and structural .

Q: Will an aftermarket bar fit like the original?
A: Fit is usually good, but material thickness and corrosion coating can differ. Use CAPA-certified parts for best quality.

Q: How heavy is the bar?
A: 10th-gen Civic aluminum bar is about 11 lb; the earlier steel bar is roughly 19 lb .

Q: Can I upgrade my 2016-21 Civic with the 2022 safety plate bar?
A: Mount points and grille styling differ, so it will not bolt on without custom brackets.

Q: What tools do I need?
A: 10 mm and 12 mm sockets, trim-clip pliers, a torque wrench, and plastic pry tools.

Q: Do I need to remove the headlights?
A: No-only the cover and absorber.

Q: What if the radar bracket is bent?
A: Replace it and recalibrate Honda Sensing; a mis-aimed radar can trigger false braking .

Q: Why did Honda switch to aluminum?
A: It cuts weight for better fuel economy and still meets crash rules .

Q: How often should I inspect the beam?
A: Check at every oil change or after any parking-lot bump.

Q: Are bumper beams covered by warranty?
A: Only if a Honda bulletin calls for replacement due to design change; collision damage is not covered .

Q: What happens if I drive without one?
A: You risk higher crash damage and possible air-bag malfunctions; the car also violates federal safety rules .

Q: Does rust make it fail inspections?
A: Deep rust that compromises thickness usually fails state safety checks.

Q: Can I paint it?
A: Yes-use self-etching primer plus topcoat for corrosion control.
