Background Info

Summary

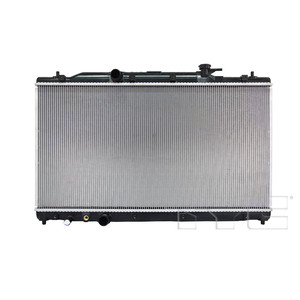

A Honda Civic radiator-also called a cooling radiator, engine cooler, or heat-exchanger-moves heat out of the engine so the car runs at a safe, steady temperature. It does this by sending hot coolant through thin tubes and fins, letting passing air (or an electric fan) pull the heat away. A healthy radiator prevents overheating, protects the head-gasket, and helps heater and A/C systems work well. (Jay Wolfe Honda, HowStuffWorks)

What It Is

What It Is

• Location - Bolted to the front of the engine bay, right behind the grille. (Jay Wolfe Honda)
• Key Parts - Aluminum core, plastic side-tanks, upper and lower hoses, a pressure cap, and often a built-in transmission fluid cooler on automatic or CVT models. (HowStuffWorks)
• Capacity - A typical 1.7- to 1.8-liter Civic holds about 1 US gallon (3.8-4 L) of coolant in the entire cooling loop.

How It Works

How It Works

1. The water pump pushes coolant through the engine where it absorbs heat. (Jay Wolfe Honda)
2. The hot coolant flows into the radiator tubes. Air rushing across the fins (helped by the radiator fan at low speed) steals the heat. (HowStuffWorks)
3. A wax-pellet thermostat stays closed until roughly 88-90 °C (190 °F), then opens and lets coolant circulate through the radiator. (9th Gen Civic, Wikipedia)
4. Cooled fluid returns to the engine, and the cycle repeats.

Warning Signs

Warning Signs

• Temp gauge climbs or "hot" light flashes. (RepairPal.com)
• Sweet-smelling steam or puddles of blue/green fluid under the car. (RepairPal.com)
• Heater stops blowing hot air because coolant isn't circulating.
• Visible cracks in the plastic tank or crushed fins blocking airflow. (Jay Wolfe Honda)

Maintenance

Maintenance

• Coolant interval - Honda's Maintenance Minder usually calls for a flush around 100 k miles or 10 years. (CivicX.com)
• Correct fluid - Use premixed Honda Type 2 (50/50). Other non-silicate formulas are acceptable only in an emergency.
• Bleeding air - After any hose or radiator work, "burp" the system to remove trapped air bubbles. A clear spill-proof funnel kit helps. (YouTube)

Cost To Replace

Cost To Replace

Repair-shop pricing averages $805-$1,086 in the U.S., with roughly 40 % for labor and 60 % for the part itself. (RepairPal.com)
DIY owners often spend less but should budget for new coolant, hose clamps, and maybe a thermostat while the system is open.

Fit Guide

Fit Guide

• Radiators differ by generation (EG, EK, ES, FG/FA, FB/FC, etc.), transmission type, and whether the car has factory turbo or hybrid hardware. Always match the model-year, engine code, and transmission when ordering. (8th Civic)
• Manual-trans Civics lack the built-in transmission cooler found on automatic/CVT units, so the part numbers are not interchangeable. (RepairPal.com)

Design & Materials

Design & Materials

• Modern Civic radiators use an aluminum cooling core that is lightweight and resists corrosion better than old copper-brass units. (HowStuffWorks)
• Plastic side-tanks are crimped to the core; repeated heat cycles eventually make the plastic brittle, explaining most end-tank leaks after 10+ years. (RepairPal.com)
• Fins are purposefully thin; even light impacts bend them and cut airflow-straighten gently with a fin comb. (Jay Wolfe Honda)

Upgrades

Upgrades

• Track-day drivers add full-aluminum performance radiators with larger cores for extra cooling margin; these drop into stock mounts but may require slimmer fans for clearance. (Civic Forums)
• CVT owners who tow or drive in hot climates sometimes add an auxiliary transmission cooler to reduce fluid temperature beyond what the radiator's internal cooler can manage. (CivicX.com)

Environment

Environment

Reusing or recycling a radiator's aluminum saves up to 94 % of the energy needed to smelt new metal and sharply cuts CO₂ output. (Recycling Today, Recycling Today)
Proper disposal also keeps glycol out of groundwater-local hazardous-waste sites accept old coolant for free. (US EPA)

Frequently Asked Questions

Q: How long does a Honda Civic radiator usually last?
A: Many last 8-12 years or about 80 k-150 k miles before leaks or clogs appear. (RepairPal.com)

Q: Can I drive with a small radiator leak?
A: Even a pin-hole can empty coolant fast; shut the engine off and fix the leak to avoid a blown head-gasket. (RepairPal.com)

Q: Why did my temp gauge spike after I changed coolant?
A: Air pockets were likely trapped; bleed the system until a steady stream (no bubbles) flows from the bleed point. (YouTube)

Q: Is tap water okay in an emergency?
A: Yes for short trips, but drain and replace with proper 50/50 premix soon to prevent scale and corrosion.

Q: Does a colder thermostat help the engine run better?
A: Not on a stock Civic; Honda tunes fuel and ignition for the factory 88-90 °C range, and running colder can hurt fuel economy. (9th Gen Civic)

Q: What pressure is the radiator cap rated for?
A: Most Civic caps are 1.1 bar (16 psi). The cap raises coolant boiling point and must hold pressure to stop overheating. (HowStuffWorks)

Q: Can upgrading the radiator improve A/C performance?
A: Indirectly, yes-lower engine-bay temperatures let the A/C condenser shed heat more easily, especially in stop-and-go traffic. (Jay Wolfe Honda)

Q: How do I know if my radiator matches my engine?
A: Check the part number on the tank tag, VIN digits, and transmission type; cross-check with a reliable Honda parts catalog or service manual. (8th Civic)

By understanding how the Honda Civic radiator works, spotting early warning signs, and following simple care tips, you can keep your engine cooler core running smoothly, save repair costs, and help the planet through responsible recycling.
