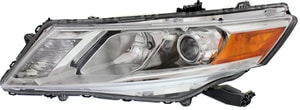

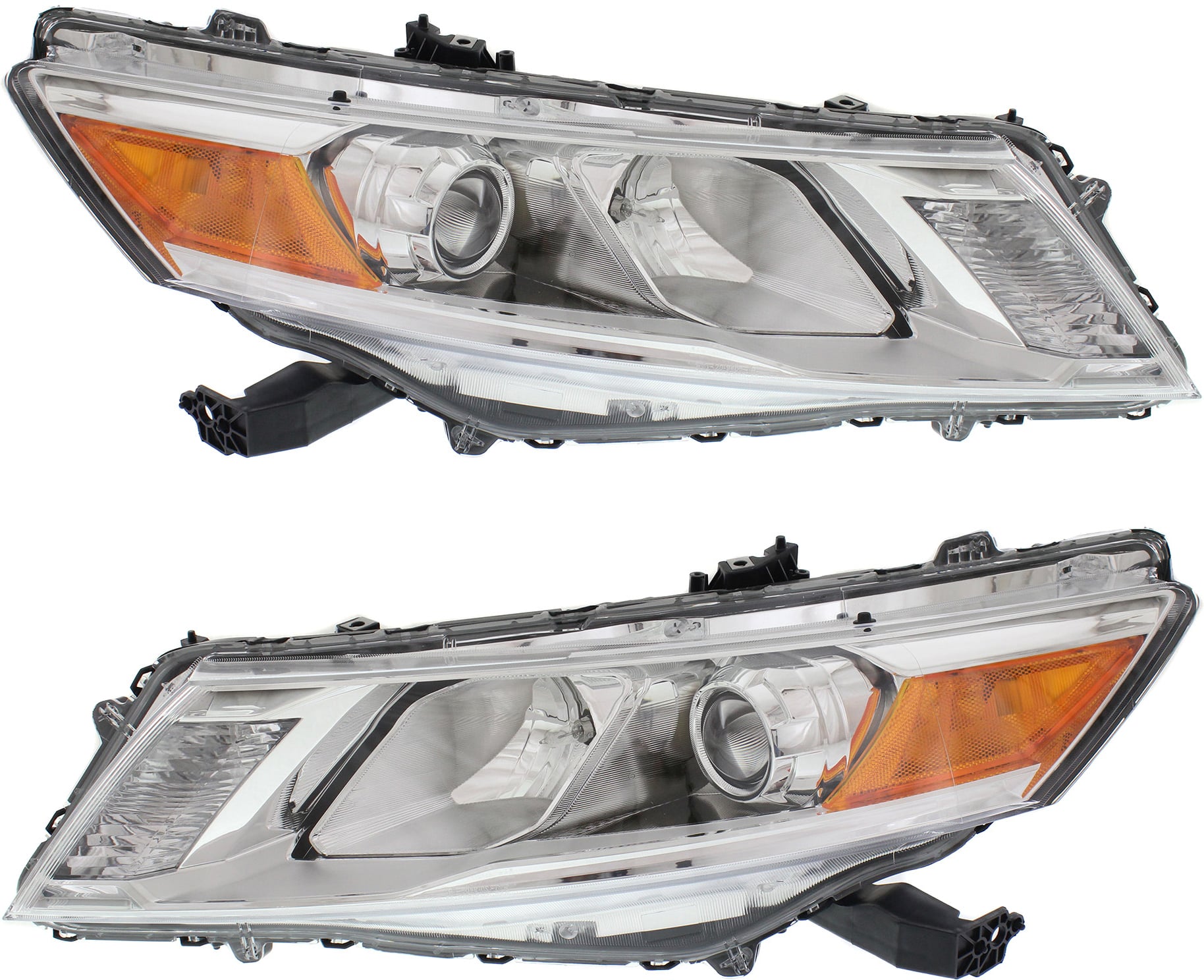

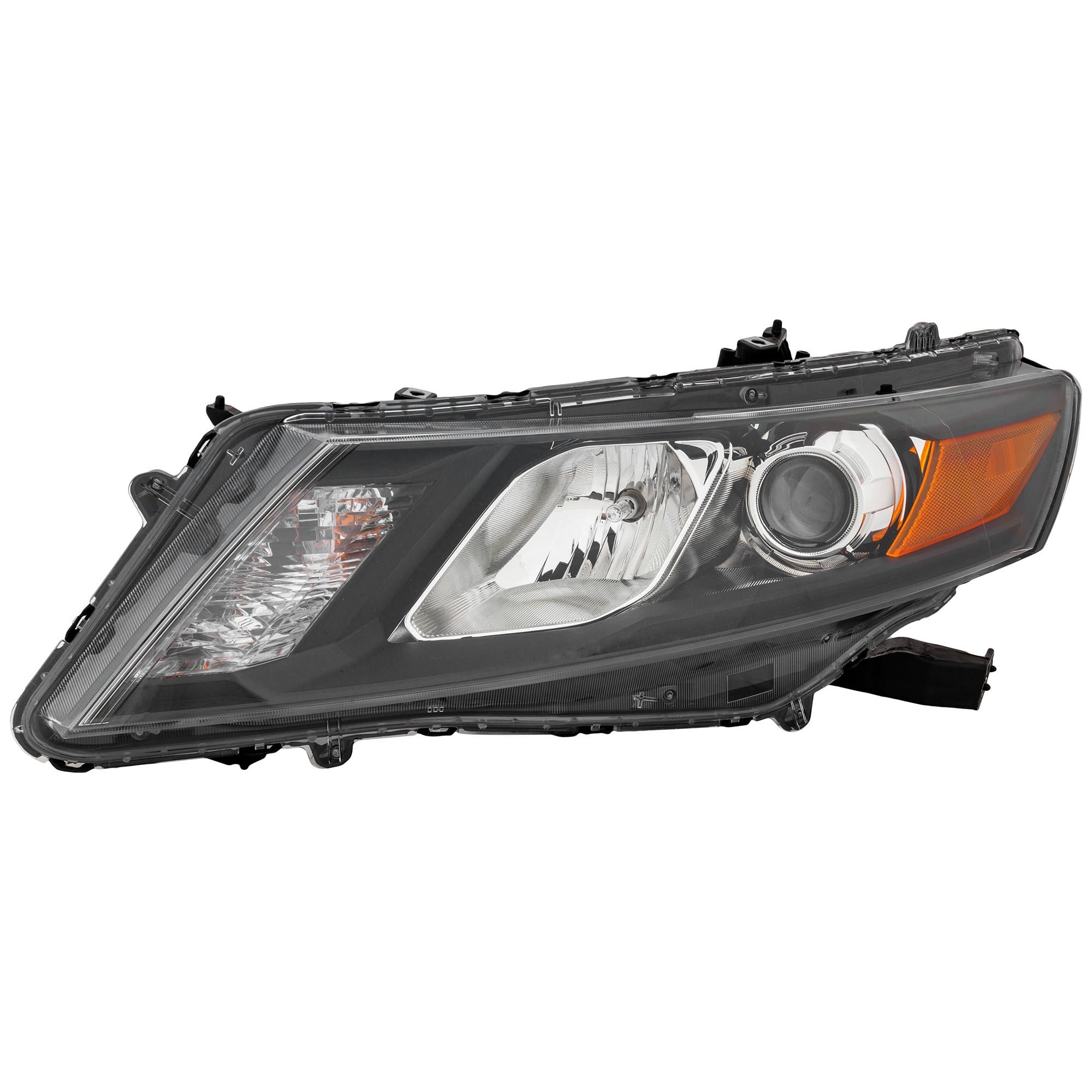

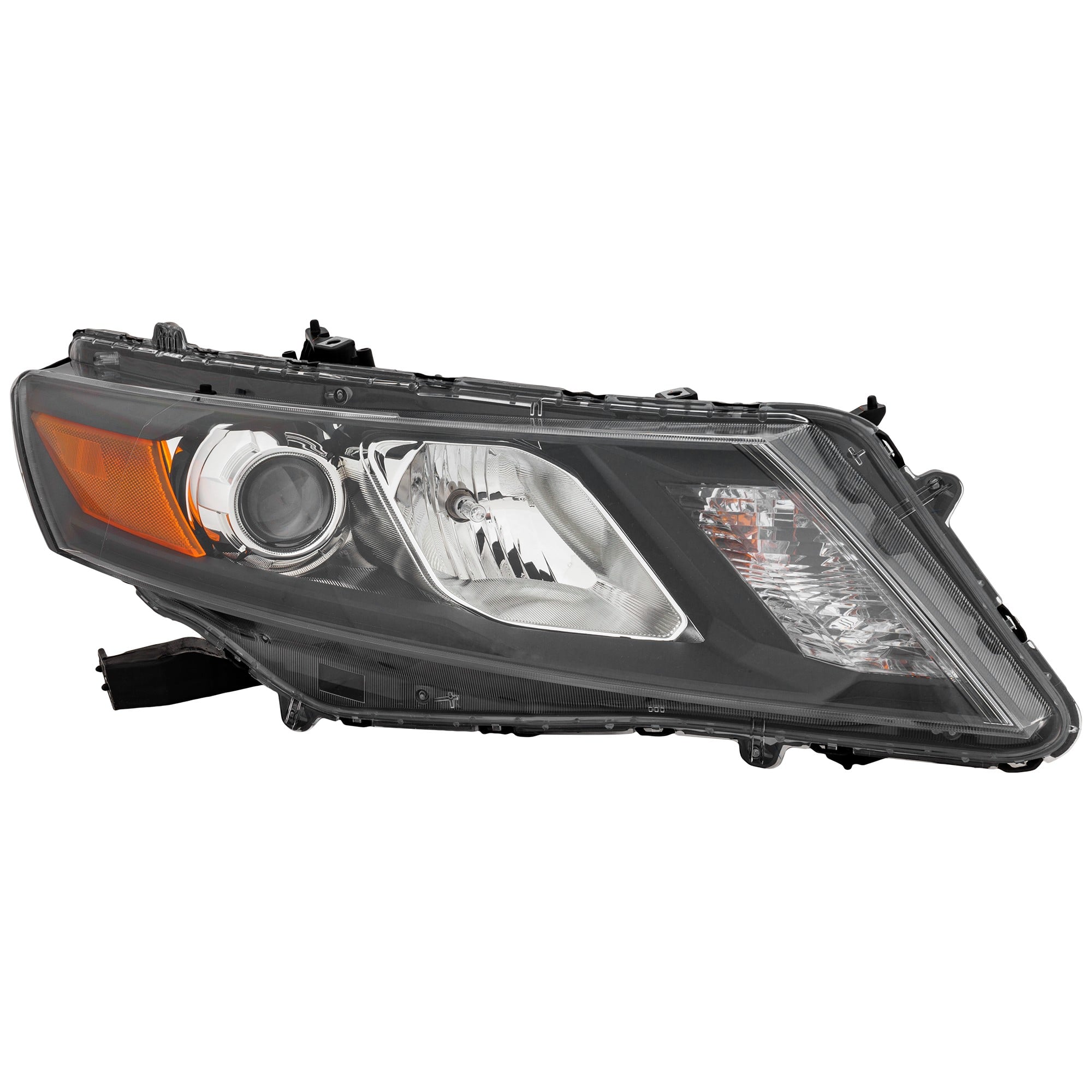

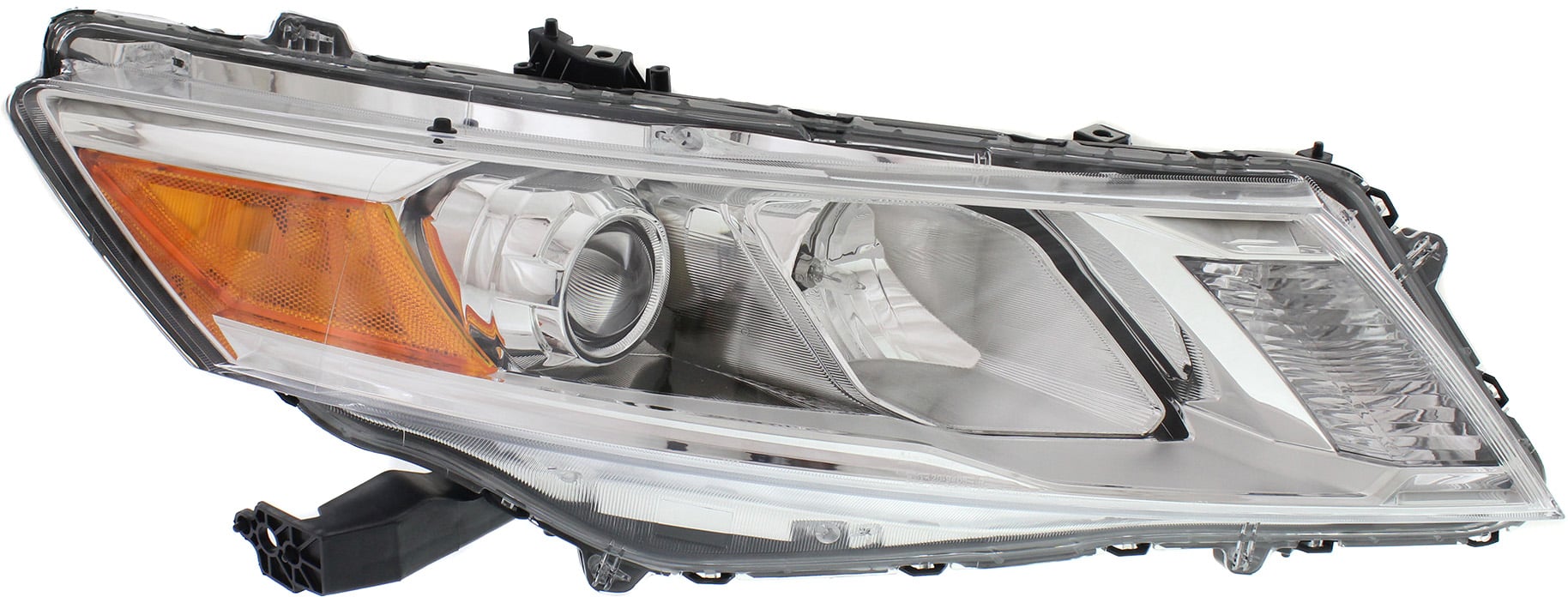

Buy Honda Crosstour Headlight Assembly

The Crosstour shares much of its lighting hardware with the eighth-generation Accord it is based on. (Wikipedia) Every trim (EX, EX-L, V6, and AWD) left the factory with halogen reflector bulbs-H11 for low beams and 9005 (HB3) for high beams. (Cross Tow Owners Club, Cross Tow Owners Club) No factory HID or LED option was ever offered, so any xenon or LED unit you see today is an aftermarket retrofit. Automatic on/off headlights became standard by 2012, adding a light sensor that switches the lamps on at dusk. (Car and Driver)

• Model years covered: 2010, 2011, 2012, 2013, 2014, 2015. (Wikipedia)
• Bulb sizes:
  • Low beam - H11 halogen or H11 LED upgrade (same twist-lock base). (Cross Tow Owners Club)
  • High beam / DRL - 9005 halogen. (Cross Tow Owners Club)
• Socket access points: Low-beam bulbs remove through a round cap in the wheel-well liner; high-beam bulbs require lifting the coolant tank on the passenger side and removing the battery on the driver side.
• Torque spec: Snug the bulb's quarter-turn lock by hand; avoid pliers to protect the O-ring seal.

1. Park & power down - engine off, key out, lights switched off.
2. Turn the front wheel outward for better access to the liner flap. (Cross Tow Owners Club)
3. Remove one clip and one screw on the liner; fold it back.
4. Twist the bulb counter-clockwise; pull straight out. (YouTube)
5. Swap the rubber seal if it looks brittle; this helps keep water out. (Cross Tow Owners Club)
6. Insert the new bulb-avoid touching the glass-and lock it clockwise.
7. Test and re-aim: On level ground 25 ft from a wall, the top of each low-beam cutoff should sit no higher than the lower edge of the Crosstour emblem. (NHTSA)

• Wash and wax the lens monthly to slow oxidation. (AAA)
• Apply a UV-curing hard-coat after polishing to restore clarity for up to two years. (uvebtech.com)
• Use paint-protection film for a physical barrier against stone chips and UV rays. (AAA Club Alliance, Ceramic Pro)
• Check aim twice a year or after heavy cargo trips; mis-aimed beams create glare and reduce your own road view. (AAA)

• LED retrofit kits promise whiter light and lower power draw, but U.S. rules require the finished assembly to meet the same photometry as stock lamps. (Sanderson Auto Repair)
• Projector conversions can sharpen the cutoff line; choose units marked as complying with FMVSS 108 for on-road use. (eCFR)
• Higher-output halogen capsules (e.g., +30 percent) fit the original sockets without extra wiring, making them an easy brightness bump. (Cross Tow Owners Club)

Federal rule FMVSS 108 sets beam height, brightness, and glare limits for all head-lamps sold in the U.S.; mis-aimed or unapproved lights can fail inspection. (eCFR) Some states fine drivers for a single burned-out head-lamp because it hurts visibility and depth perception. (The Sun) Consumer Reports testing shows new-car lamps vary widely, so keeping your Crosstour's reflector clean and bulbs fresh is critical for safe driving. (Consumer Reports)

Halogen bulbs and old plastic housings should be recycled at local hazardous-waste centers; glass and metal can be reclaimed, and the poly-carbonate lens can be re-ground for new products. (AAA) Never toss a cracked lamp in household trash-it may contain traces of metals that leach into soil.

Q: What bulb fits the low beam?
A: Use an H11 halogen or DOT-approved H11 LED. (Cross Tow Owners Club)

Q: What bulb fits the high beam?
A: Use a 9005 (HB3) halogen. (Cross Tow Owners Club)

Q: Do I need to remove the bumper to change bulbs?
A: No; you reach the bulbs through the wheel-well flap or by moving small engine-bay parts. (Cross Tow Owners Club)

Q: Why are my front lights foggy inside?
A: A leaking seal lets moist air condense on cool plastic; reseal or replace the gasket. (Cross Tow Owners Club)

Q: How long do stock bulbs last?
A: About 500-1000 hours, which equals one to two years for most drivers. (Reddit)

Q: Can I aim the lamps myself?
A: Yes; park 25 ft from a wall, then turn the screw on the back of each head-lamp until the cutoff is just below headlight height. (NHTSA)

Q: Is an LED swap legal?
A: Only if the completed assembly still meets FMVSS 108 light pattern tests. (Sanderson Auto Repair)

Q: What causes yellow haze on the lens?
A: UV rays and heat break down the plastic's clear coat. (Reddit)

Q: How can I fix cloudy lenses cheaply?
A: Hand-sand with 1000-2000-grit paper, polish, then seal with a UV hard-coat. (uvebtech.com)

Q: Do automatic headlights adjust aim?
A: No; the auto function only turns the lamps on and off based on light levels. (Car and Driver)

Q: Why does one side burn out first?
A: Vibration and heat vary by side; replacing bulbs in pairs keeps brightness even. (Headlight Revolution Blog)

Q: Are projector headlights brighter?
A: Projectors can focus light better, but output depends on the bulb and lens quality. (Consumer Reports)

Q: Can I drive with one head-lamp out?
A: Laws in many regions fine drivers for a single dead lamp because it harms safety. (The Sun)

Q: How often should I clean the lenses?
A: Wash monthly and inspect twice a year for haze or chips. (AAA)

Q: Where can I learn more about head-lamp rules?
A: See the federal FMVSS 108 lighting standard for details on aim, brightness, and materials. (eCFR)
