Overview

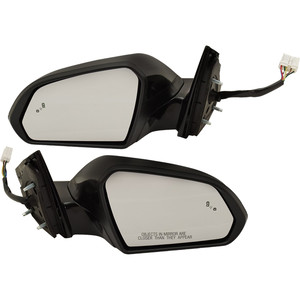

The side, or "wing," mirror on a Hyundai Sonata is a small-but safety-critical-door-mounted part that lets you see traffic beside and behind your car. Modern Sonata mirrors offer heat, power adjustment, memory, turn-signal lamps and even blind-spot warning lights, depending on the trim and model year. (Hyundai News, Hyundai News) These mirrors must meet U.S. field-of-view rules, stand up to weather, and be fixed so they don't block a driver's sight line. (NHTSA, California DMV)

Fit Guide

• Model years (U.S.) - Most 2015-2025 Sonata generations (LF, DN8) share bolt patterns, but wiring plugs vary for options like Blind-Spot Collision-Avoidance Assist (BCA) and auto-fold. Check your VIN or trim before ordering. (NHTSA)
• Left vs. right - Driver and passenger mirrors are not interchangeable; each carries its own wiring, glass curvature, and blind-spot lamp. (ManualsLib)
• Memory-ready - Limited, N Line, and high-spec Hybrid models include an Integrated Memory System (IMS) that stores seat and mirror positions. (Hyundai News)
• Turn-signal versions - From 2018 forward, LED indicators became standard on most trims. (Hyundai News)

Key Features

Power & Heat

Electric motors move the glass up, down, in, and out from a cabin switch, while built-in heaters clear frost. (ManualsLib)

Blind-Spot Lights

Amber LEDs in the wing mirror flash when radar detects a car in the blind zone. This feature can cut lane-change crashes by about 14 percent. (IIHS-HLDI, IIHS-HLDI)

Auto-Fold

Some trims fold the housing inward when you lock the doors, protecting it in tight parking. If yours is manual-fold, push firmly toward the window; you won't break it. (ManualsLib, Reddit)

Camera Trend

Rules still require reflective glass, but industry groups are pushing for camera-only "digital mirrors" to lower drag and save fuel. (WIRED)

Safety & Laws

Federal Motor Vehicle Safety Standard 111 says every passenger car needs a driver-side outside rear-view mirror with a specific field of view. (NHTSA) States like California fine drivers for dangling items that block mirror vision. (California DMV)

Materials

Sonata mirror shells use ABS or PC/ABS plastic. These blends are light, resist heat, and absorb impact, which is why automakers pick them for exterior trim. (ScienceDirect) The glass is unit-magnification to give a true reading of distance. (NHTSA)

Installation

1. Disconnect the door battery ground to avoid air-bag warnings.
2. Pop the interior sail panel and unplug the harness.
3. Remove three 10 mm nuts.
4. Pull off the old assembly and seat the new one.
5. Tighten mounting screws to about 1.76 N·m (15.6 lb-in). (Hyundai Accessories)
6. Reconnect and test all functions.

Maintenance

• Keep it clean - Use mild soap and water; harsh chemicals damage anti-glare coatings. (ManualsLib)
• Check heat wires if only one side defrosts.
• Re-calibrate memory after a dead battery: set seat/mirrors, then press "SET 1." (Hyundai News)

Troubleshooting

← scroll table horizontally →

Upgrades

• Auto-dimming glass reduces nighttime glare on Limited trims. (Hyundai News)
• Sequential LED indicators add style and improve side visibility. (Hyundai News)
• Mirror-mounted cameras (factory on some Hyundais) show the blind-spot view on the dash when you signal. (The US Sun)

Eco & Recycling

Mirrors, like many plastic exterior parts, are on the list of components that can be removed and recycled at end-of-life vehicle centers. (CarTakeBack) Glass and ABS can be ground or melted for re-use, keeping waste out of landfills. (, ScienceDirect)

Frequently Asked Questions

Q: What mirror options does a 2024 Sonata SEL have?
A: It comes with power-adjust, heat, LED turn-signal repeaters, and auto-fold but no memory. (Hyundai News)

Q: Are driver and passenger mirrors flat or curved?
A: The driver's mirror is flat (unit magnification). The passenger side is convex and marked "Objects in mirror are closer." (NHTSA)

Q: My blind-spot light flickers. Is the mirror bad?
A: Not always; a wiring short in the LED circuit can set fault code C120B/D. Inspect harnesses before replacing parts. (NHTSA)

Q: Can I install a mirror with turn-signals on a base trim?
A: Physically yes, but the extra wires may not be present, so the lamp will not work without custom wiring. (ManualsLib)

Q: Do heated mirrors turn on by themselves?
A: On most Sonatas the glass heater runs with the rear-window defroster switch; it turns off automatically after a preset time.

Q: How does memory know where to stop?
A: Position sensors inside the mirror motor send feedback to the Integrated Memory System control unit, which recalls angles when you press a profile button. (Hyundai News)

Q: Are camera-only "digital mirrors" legal yet?
A: Not in the U.S.-federal rules still demand reflective glass, though automakers are lobbying for change. (WIRED)

Q: Will a broken housing fail inspection?
A: Yes, if it can't hold the mirror steady or limits field of view, it violates FMVSS 111 and state laws. (NHTSA, California DMV)

Q: How long does it take to swap a mirror?
A: About 15 minutes with basic tools, because the part bolts on from inside the door. (Hyundai Accessories)

Q: Is it worth buying a manual-fold mirror to save money?
A: Manual versions cost less and weigh slightly less, but auto-fold reduces parking-lot damage and may raise resale value. (ManualsLib)

This guide should give shoppers and DIYers a clear picture-pun intended-of everything tied to the Hyundai Sonata side-view mirror, from safety rules to smart tech and green disposal.
