Snapshot

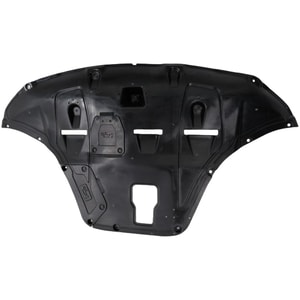

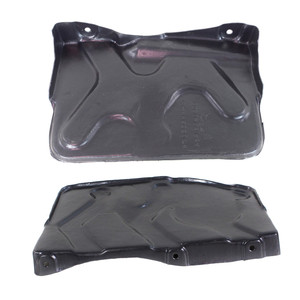

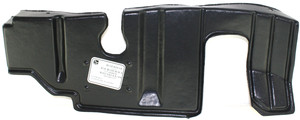

Compact SUVs like the Hyundai Tucson use an engine splash shield-also called a splash guard, engine under cover, belly pan, lower engine cover, or skid plate-to seal the lower part of the motor bay. The panel blocks water, rocks, and road salt, helps the car slice through air, quiets engine noise, and even guides cooling airflow. Studies and manufacturer notes show that a missing or broken shield can raise drag, expose belts and wiring to spray, and let debris strike the radiator.

Core Functions

Protect & Seal

• Stops stones, ice chunks, and stray hardware that tires fling up toward the oil pan and serpentine belt.
• Shields parts from puddles that can cause belt squeal or electrical shorts.
• Catches drips, keeping roads and driveways cleaner.

Aerodynamics & Economy

A flat underside smooths airflow; wind-tunnel data show under-body drag can rise by 23 % when the shield is removed.

Noise & Heat Management

The panel works like a sound blanket and retains a bit of engine warmth in winter for faster warm-ups.

Build & Materials

• Molded thermoplastic (PP/PE blend)-light, cheap, flexible.
• Aluminum alloy-about the same weight as plastic but far stronger and naturally corrosion-resistant, a popular upgrade for off-road trim levels.
• Held by 10 mm bolts and push-clips; most Tucson shields drop with a basic socket set. (YOUCANIC)

Fitment by Year

• 2005-2009 (1st gen)-one-piece plastic guard, four bolts, six clips.
• 2010-2015 (2nd gen)-deeper belly pan; AWD models add a small rear extension.
• 2016-2020 (3rd gen)-improved airflow channels; "skid-plate" styling noted in Hyundai spec sheet.
• 2021-2025 (4th gen)-hybrid versions use extra heat shielding near the battery pack.
  Ground clearance across generations ranges from 7.1 - 8.3 inches, so a low-hung shield is still safe for most ruts.

Damage Signs

• Shield dragging or missing after snowbanks, curbs, or deer guards.
• Rattling under acceleration-often loose 10 mm screws.
• Oil-change tech reports cracked screw posts or torn plastic.

Replacement Steps

1. Lift safely-use ramps or jack stands on level ground.
2. Remove the front row of clips, then back bolts (all 10 mm). (YOUCANIC)
3. Drop panel forward and inspect for leaks or belt wear.
4. Fit new shield; torque small bolts to about 7 ft-lb (84 in-lb)-snug, not tight, to prevent stripping. (YOUCANIC)
5. Verify no interference when steering lock-to-lock.

(A full visual walk-through is available in this short YouTube demo.)

Upkeep Tips

• Inspect the panel at every oil change (5 000-7 500 mi).
• Replace damaged push-clips immediately; loose edges can scoop water.
• Rinse winter salt off with a garden hose to slow corrosion on metal versions.
• Recycle cracked plastic panels at plastics-only drop-offs; most are #5 PP.

Safety & Eco

While no U.S. recalls target the Tucson's splash shield, owners should still run a quick VIN check with the NHTSA tool whenever buying a used shield or vehicle.

Frequently Asked Questions

Q: Can I drive without the shield for a few days?
A: Yes, but debris and rain can hit belts and wiring; replace or re-fasten it as soon as practical.

Q: Is this the same as a skid plate?
A: On the Tucson, the factory "skid plate" is mostly cosmetic plastic. After-market aluminum plates are heavier-duty versions of the same idea.

Q: What tools do I need?
A: A 10 mm socket, flat trim tool, and jack stands cover 90 % of jobs. (YOUCANIC)

Q: Will a metal plate hurt fuel economy?
A: No, mass is small; the smoother surface can even cut drag at highway speed.

Q: Does the shield keep animals out?
A: It helps deter rodents from nesting near warm belts, but it's not a seal; use peppermint spray for extra protection.

Q: How much clearance is left after install?
A: With the shield in place, most recent Tucsons still have 7-8 inches of ground clearance, similar to stock numbers.

Q: Are the bolts reusable?
A: Yes, if threads aren't rusted. Replace missing plastic push-clips; mixed fasteners can rattle loose.

Q: Can I upgrade to aluminum?
A: Yes-several off-road suppliers sell bolt-on aluminum plates that reuse factory holes; weight gain is roughly 5 lb.

Q: Do hybrids need a special shield?
A: Hyundai fits extra insulation near the high-voltage pack, but mounting points stay the same, so standard shields fit.
