Buy Jeep Grand Cherokee Headlight Assembly

Overview

The Jeep Grand Cherokee's headlight-also called a headlamp, front light, or driving beam-has changed a lot since the SUV first appeared in 1993. Older trucks use simple halogen bulbs, while 2025 models come with slim LED projectors, auto-leveling motors, and even adaptive high-beam systems. Knowing which style you have matters for safety, fit, and any upgrade you plan to do. (Car and Driver, Car and Driver)

Fit Guide

• Generations & housing styles

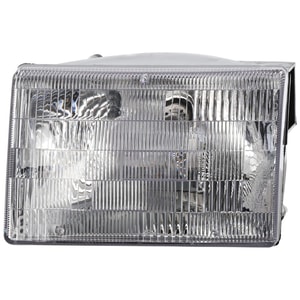

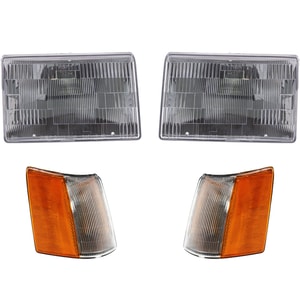

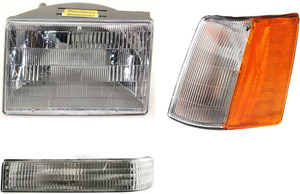

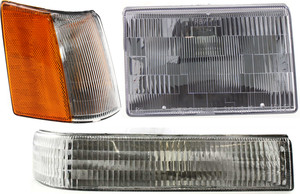

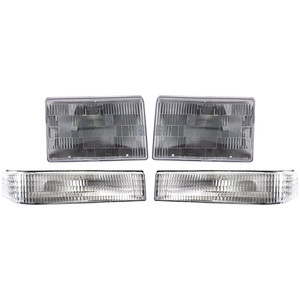

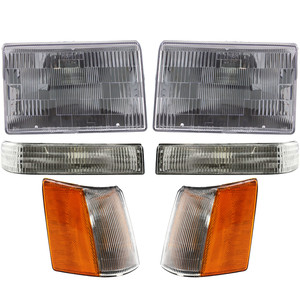

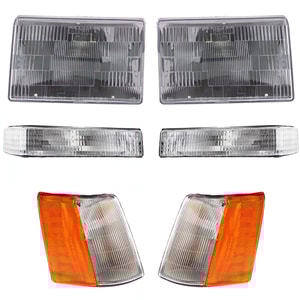

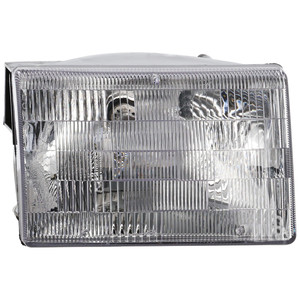

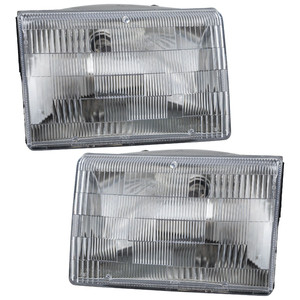

  • 1993-1998 (ZJ): sealed-beam rectangular lamps.

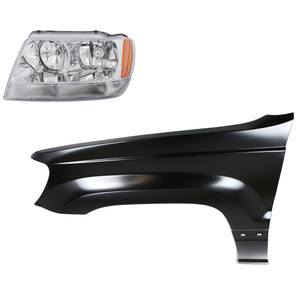

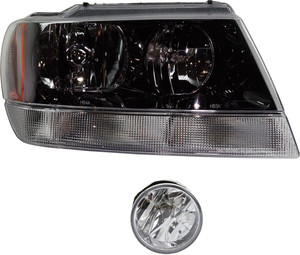

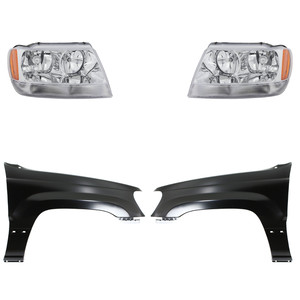

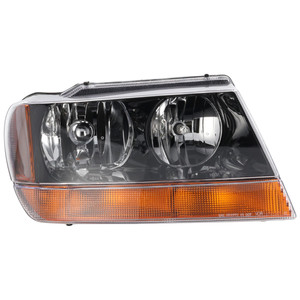

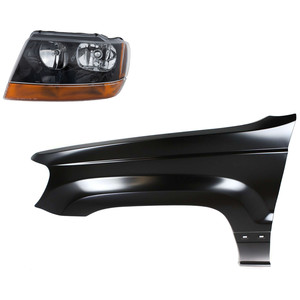

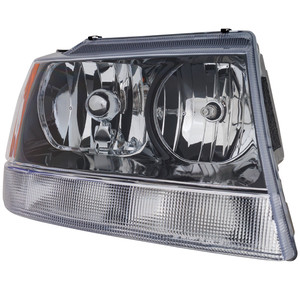

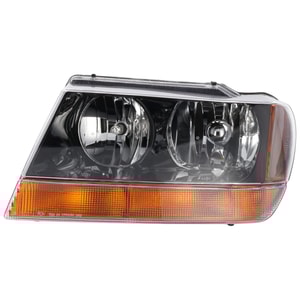

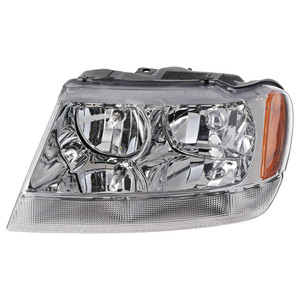

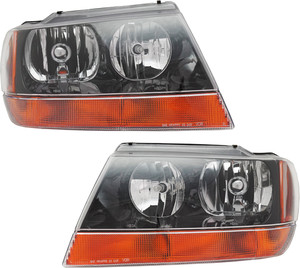

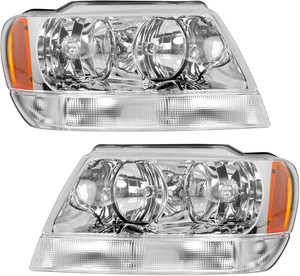

  • 1999-2004 (WJ): composite housings with 9006 low / 9005 high bulbs. (JeepSpecs.com)

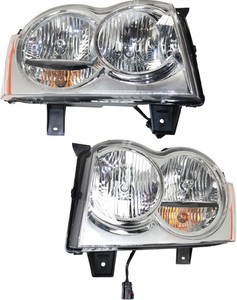

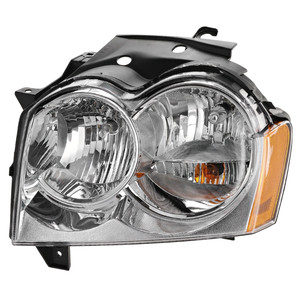

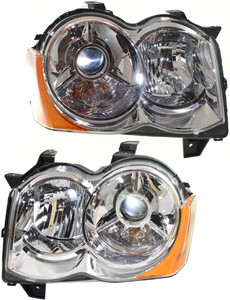

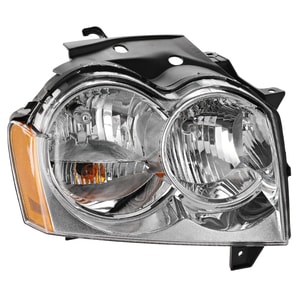

  • 2005-2010 (WK): clear polycarbonate lens, same bulb pair as WJ plus optional HID on Overland.

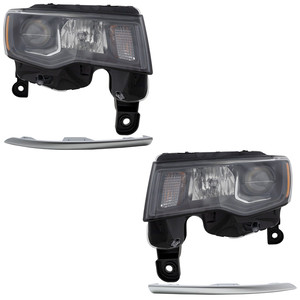

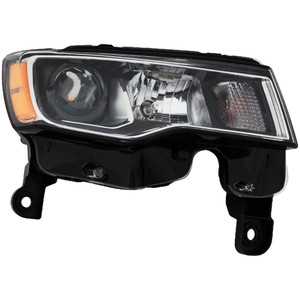

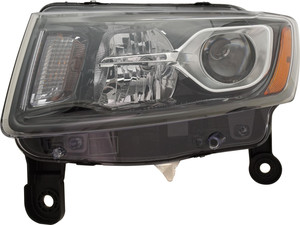

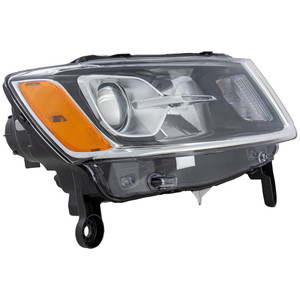

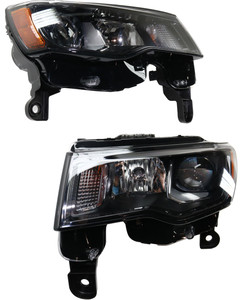

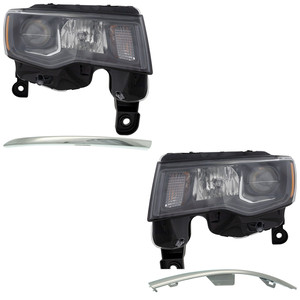

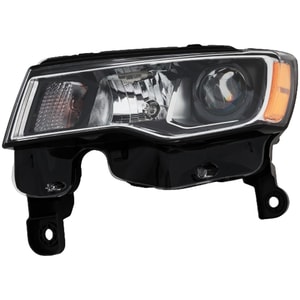

  • 2011-2021 (WK2): switch to projector low beams; some trims add xenon HID D1S capsules.
  • 2022-present (WL): full-LED reflector or projector modules with automatic high-beam assist. (Car and Driver)

Trim cues

Chrome inner bezels mark many Limited and Overland housings, while dark "black-out" bezels show up on Trailhawk and Summit. (MotorTrend)

Bulb Types

← scroll table horizontally →

Upgrades

LED replacement bulbs cut power draw by 50 % yet throw a brighter, whiter beam. Laboratory tests show HID and LED systems shorten driver reaction time versus halogen by up to 0.3 seconds, giving roughly 17 m of extra stopping distance at 60 mph. (SAE Mobilus) Always choose bulbs with the same focal point as factory parts to avoid glare.

Common Problems

• Moisture inside the lens: Owners report fogging after rain or car-wash cycles. Running the lights warm and adding a tiny vent hole at the housing's lowest corner often clears it. (Jeep Garage)
• Cut-off too low or high: Mis-aimed beams reduce reach or blind oncoming traffic. Causes include lifted suspension or worn front springs. (Jeep Cherokee Club)
• Recall 21V-950: Some 2021 models left the factory with one or both beams inoperative; dealers re-programmed the body control module. (NHTSA)

Installation

1. Disconnect the battery.
2. Remove the plastic radiator cover clips.
3. Unbolt the top and side 10 mm screws, then slide the assembly forward. A video walkthrough takes about five minutes per side. (YouTube)
4. Twist the bulb socket counter-clockwise and pull straight back.
5. Reverse to install, checking the rubber gasket seats flat.

Aim & Adjust

Park 25 ft (7.6 m) from a flat wall. Mark the lamp centerlines on the wall with tape at the same height as the lamp centers. Insert a long Phillips screwdriver through the service hole on top of each housing; turn clockwise to raise, counter-clockwise to lower. The top of the low-beam cut-off should sit just under the tape. (JustAnswer, Jeep Cherokee Club)

Safety Rules

All aftermarket and replacement headlights must meet Federal Motor Vehicle Safety Standard 108, which sets minimum and maximum beam intensity plus glare limits. (eCFR) The 2024 rule update also allows adaptive driving-beam tech that can shade portions of the beam to avoid dazzling other drivers. (Federal Register)

Nighttime crashes rise when lamps are dirty or aimed too high. The Insurance Institute for Highway Safety gives the 2023 Grand Cherokee's LED reflectors a "Good" score-the top rating-when aimed correctly. (IIHS HLDI)

Tech Features

Recent Grand Cherokees offer:

• Automatic high-beam control that toggles at speeds over 25 mph. (Car and Driver)
• Cornering fog lamps that follow steering angle on Summit Reserve. (MotorTrend)
• LED daytime running lights that meet U.S. and E.U. visibility rules. (Car and Driver)

Care Tips

Wash the polycarbonate lens with mild soap, then apply a UV sealant to stop yellowing. Replace both bulbs in pairs-mixed brightness can confuse the auto-leveling sensor. Check the 30-amp headlamp fuse F44 inside the cabin if both lights go out. (Jeep Cherokee Club)

Troubleshooting

← scroll table horizontally →

Frequently Asked Questions

Q: What bulb size fits a 2012 Grand Cherokee Laredo low beam?
A: H11 halogen. (JeepSpecs.com)

Q: Can I swap halogen bulbs for LEDs without new housings?
A: Yes, but use LED bulbs designed for projector optics to keep the beam pattern legal. (SAE Mobilus)

Q: Why do my new LEDs look blindingly bright?
A: Blue-rich LEDs appear brighter to human eyes and can create more glare if not aimed correctly. (Vox)

Q: How do I dry condensation?
A: Remove the rear cap, park in sunlight, or run the lamps for 30 minutes to evaporate moisture. (Jeep Garage)

Q: Does the 2025 Grand Cherokee have adaptive headlights?
A: Summit and Summit Reserve trims include adaptive driving-beam LEDs that dim specific zones. (jeep)

Q: What is FMVSS 108?
A: It is the federal rule that sets brightness and aim limits for all U.S. vehicle headlights. (eCFR)

Q: How often should I clean the lens?
A: Once a month or after any off-road trip. Dust scatters light and cuts range by up to 20 %. (IIHS HLDI)

Q: My high beam works but low beam doesn't. What next?
A: Inspect the separate low-beam relay; high and low circuits use different relays on many models. (JustAnswer)

Q: Are HID capsules still legal?
A: Yes, as long as they carry "DOT" marks and match the D-series number listed in the owner's manual. (jeep)

Q: Do I need to remove the bumper to change bulbs?
A: No. You only remove a few top screws and slide the housing out. (YouTube)
