Jeep Wrangler Fender: Key Takeaways
A fender-also called a wheel arch panel, wing, or mudguard-is the curved body panel over each tire that shields your Jeep and nearby traffic from rocks, mud, and water. Modern Wrangler fenders come in steel, aluminum, or UV-stable thermoplastic; they attach with bolts and plastic clips and can usually be swapped in under an hour with basic hand tools. Beyond protection, properly sized fenders keep the vehicle street-legal, improve aerodynamics, and create space for larger off-road tires.

Overview

Wrangler fenders cover the gap between the bumper and the door, protecting brakes, suspension parts, and paint from road debris. They also buckle in a minor collision-hence the term "fender-bender." (CARSTAR, Fix Auto USA) A fender's lip directs water and grit downward, a detail first seen on earlier CJ models and refined on today's JL and JT flares. (MotorTrend) In everyday driving this limits spray that could hit pedestrians or damage following vehicles. (Wuling)

Model Fit

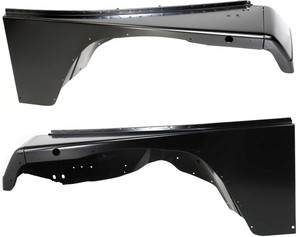

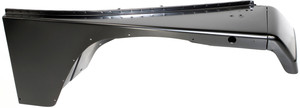

• YJ (1987-1995) and TJ (1997-2006) fenders bolt to the tub with an inner support brace.

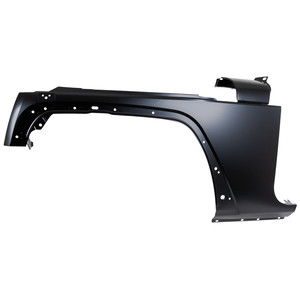

• JK/JKU (2007-2018) fenders are mostly thermoplastic and feature easy-release clips for trail repairs.

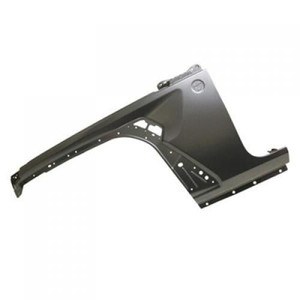

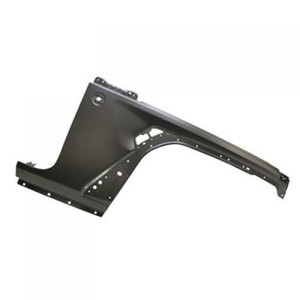

• JL/JLU (2018-present) use modular two-piece flares-high-clearance "Rubicon" versions add 1.5 in. more up-travel and can clear 35-in. tires with no lift. (Road & Track)
• JT Gladiator pickups share JL front fenders but have longer rear bedsides.
  Mixing generations rarely works because bolt patterns, hood lengths, and marker-light shapes differ.

Materials & Construction

• Thermoplastic Olefin (TPO) - lightweight, flexible, and UV-stable; common on Sport and Sahara trims. (CARSTAR)
• Stamped Steel - optional on Rubicon X and many aftermarket "flat" or "tube" kits; resists trail rash but needs rust-proof coating. (JL Wrangler Forums)
• Aluminum - saves up to 10 lb per corner and won't rust; popular on high-line aftermarket sets. (JL Wrangler Forums)

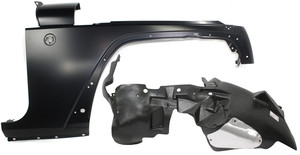

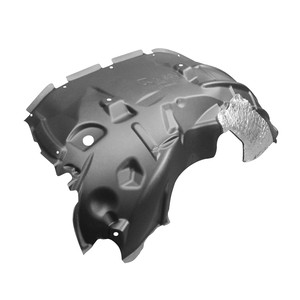

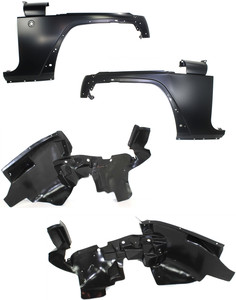

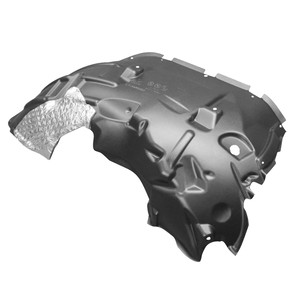

  Inside every outer panel sits a removable fender liner that shields wiring, washer tanks, and turbo intercoolers from grit. Trail users often swap thin factory liners for vented aluminum versions. (JL Wrangler Forums)

Functions Beyond Protection

A fender reduces aerodynamic drag by smoothing turbulent air around the tire. (Fix Auto USA) It also provides a rigid mounting point for LED daytime-running lamps that boost on-road visibility. (Rostra) High-profile flares improve approach angles and let you run larger rubber without a body lift, useful on rock-strewn trails and snow ruts. (Road & Track)

Legal & Safety Notes

Federal guidance treats fenders as part of overall vehicle width; extensions that stick more than 3 in. past the tire must be counted in that width. (NHTSA) Some U.S. states also require the tire tread to be fully covered when viewed from above-check local rules before trimming flares or running spacers. Many European and Australian jurisdictions issue fines if the wheel protrudes past the arch.

Installation Tips

1. Disconnect side-marker and DRL connectors.
2. Remove the six upper push-pins and four lower bolts; pull straight outward to release hidden clips (JK/JL).
3. Swap the plastic liner or trim for high-clearance style if desired.
4. Re-install using new plastic rivets; torque steel bolts to 7 N·m to avoid cracking plastic mounts.
   A helper prevents paint scratches, but the job is well within DIY reach-numerous owners film a 20-minute JK removal with only a trim tool and 10 mm socket. (YouTube)

Care & Longevity

• Wash after salt or mud runs; grit trapped behind the liner accelerates corrosion. (NOVA Jeepers)
• Protect black plastic with 303 Aerospace Protectant or similar UV conditioner every few months to stop fading. (Reddit)
• Rust Treatment - sand bubbles to bare metal, apply rust converter, then primer and paint; cover with textured bed-liner to hide future chips. (Wrangler Forum)

Common Upgrades

• Flat or tube flares for 3-4 in. more tire clearance; some stay ~8 in. wide to keep road-legal. (JL Wrangler Forums)
• Heat-extractor vents cut into the fender top reduce under-hood temps on slow climbs. (Stellantis Media)
• Integrated LED DRL kits fit unused flare space on 2007-2018 JKs. (Rostra)
• Inner liners in powder-coated aluminum shield sensitive parts and add color-matched style. (JL Wrangler Forums)

Troubleshooting

• Loose or rattling flare - replace missing clips; over-tightening distorts plastic.
• Greyed plastic - gentle heat-gun pass or trim-restoration coating revives color. (Jeep Gladiator Forum)
• Flare gap after lift - check body mounts; a 1-in. body lift leaves a visible seam that may need filler panel.

Frequently Asked Questions

Q: What does a Wrangler fender actually do?
A: It blocks rocks, sand, and water from the wheels and keeps nearby drivers and your paint safer. (CARSTAR)

Q: Will a JL fender fit my JK?
A: No. The hood, marker-light, and mounting points changed for 2018; choose JK-specific parts or adapters.

Q: How wide are factory JL Rubicon flares?
A: About 11 in. at the arch; add-on flare caps can widen the rear edge to roughly 1.75 in. past stock. (JL Wrangler Forums)

Q: Can I clear 35-in. tires with stock fenders?
A: A JL with factory high-clearance flares can run 35s at stock ride height if bump-stops are tuned. (Road & Track)

Q: Are steel fenders worth the weight?
A: Steel resists trail dents but needs primer and paint to stop rust. Aluminum saves weight; plastic flexes instead of bending. (JL Wrangler Forums)

Q: Do I really need inner liners?
A: Yes-liners keep debris off wiring and the washer tank and reduce heat soak; aluminum versions add strength. (JL Wrangler Forums)

Q: How do I stop rust bubbles?
A: Sand to bare metal, apply converter, prime, paint, and topcoat with bed-liner for extra chip resistance. (Wrangler Forum)

Q: Can I paint plastic flares?
A: Yes; scuff, use a plastic adhesion promoter, then flexible primer and paint rated for TPO. (3M)

Q: Are LED fender lights plug-and-play?
A: Kits for 2007-2018 JKs include a dedicated harness that taps the park-lamp circuit and dim automatically with headlights. (Rostra)

Q: Do wider flares hurt aerodynamics?
A: Minimal; they mainly direct airflow around larger tires, though very wide flat flares can add drag at highway speeds.

Q: What torque spec should I use?
A: Plastic retainer bolts tighten to 7 N·m (62 lb-in.). Metal aftermarket fenders often list 18-20 N·m for mounting brackets.

Q: Will removing flares improve off-road clearance?
A: Yes but it exposes wiring and is illegal on most public roads because tread remains uncovered. (NHTSA)

Q: Are fenders side-specific?
A: Yes-left and right panels mirror each other; swapping sides misaligns the marker light and liner holes.

Q: Can I install fenders alone?
A: It's easier with a helper, but many Jeep owners film solo installs in under 30 minutes with basic tools. (YouTube)

Q: How often should I re-treat black plastic?
A: Every two to three months with a UV protectant if the vehicle sits in full sun. (Reddit)

By understanding fitment, materials, regulations, and care, you can choose the right Jeep Wrangler fender and keep your rig ready for both daily driving and trail adventures.
