Buy Mazda CX-9 Fender Liner Or Splash Shield

Overview

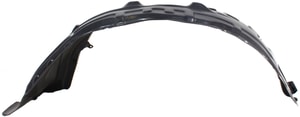

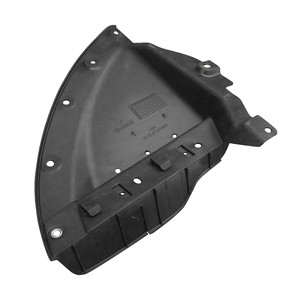

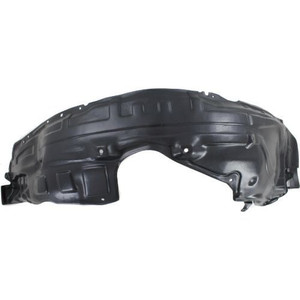

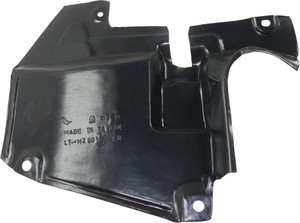

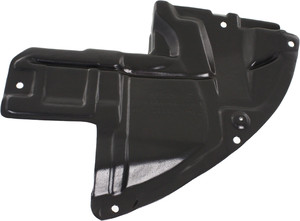

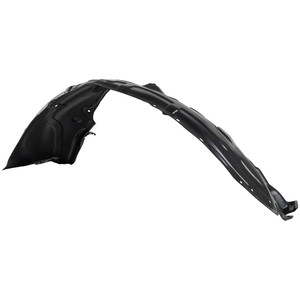

The fender liner-also called an inner fender, wheel-well liner, splash shield, or splash guard-is a plastic or composite panel that lines the inside of each front (and, on many SUVs, rear) wheel arch of your Mazda CX-9. Its main job is simple: block water, mud, rocks, salt, and engine-bay grime so those nasty things cannot corrode metal pieces, jam sensors, or fray wiring. A sound liner also helps quiet road noise and nudge air around the tire for smoother airflow. Missing or broken liners may not strand you today, but they speed up rust, damage electronics, and raise cabin noise tomorrow .

What It Does

• Shield key parts. The liner sits between the spinning tire and vulnerable parts like the headlamp wiring, washer tank, and A/C lines .
• Guide rainwater. Its molded channels send water safely down and out of the wheel arch instead of into harness connectors .
• Trim wind drag. Researchers show that smooth under-body and splash-guard panels can cut turbulence and trim fuel use by 1-5 percent on large vehicles .
• Soften sound. Mazda outfits many CX-9 front liners with factory foam to deaden gravel "ping" and tire roar .

Materials & Design

Most modern liners use high-density polyethylene (HDPE) or talc-filled polypropylene (PP). These plastics bend rather than shatter, resist salt, and weigh little . Engineers increasingly mix in recycled PP without hurting strength . Mazda fastens each liner with plastic clip pins and a handful of 8 mm screws; no adhesives are used .

Signs Of Trouble

• Cracks, tears, or holes you can see inside the wheel arch.
• A flapping sound above 25 mph-often the liner rubbing the tire .
• Extra cabin roar after driving on gravel-foam backing may have fallen off .
• Engine bay is dirtier than usual after rain-liner gap lets in spray.

Replacement Basics

DIY swap time is roughly 30-60 minutes per side if you can remove one front wheel . The abbreviated steps:

1. Lift and secure the CX-9, then remove the wheel.
2. Pop the clips with a trim-panel tool; save any still good .
3. Undo three to five screws along the bumper edge .
4. Peel the old liner out, watching for sensor wiring .
5. Seat the new panel against the fender lip; reinstall clips and screws.
   A torque wrench is not critical-Mazda specs those screws at only 6-8 N·m .

Compatibility

• First generation (2007-2015). Uses two-piece front liners; early years (07-09) share part numbers .
• Second generation (2016-2025). Single-piece design with thicker acoustic felt .
  Rear liners are molded into the bumper cover on both generations; only the front pieces are serviceable separately .

Cost & Value

A price-tracking guide shows individual liners start under $10 and rise to about $730 for full four-corner kits, depending on material and included insulation . An enthusiast poll of body-shop invoices quotes 1 hour of labor-roughly $75 to $150-per side . Compared with corrosion repairs that can top four figures, timely liner replacement is cheap insurance.

Performance & Safety

Beyond corrosion control, the liner keeps loose stones from striking aluminum A/C condensers and brake hoses, reducing sudden leaks . EPA-verified aerodynamic splash guards on larger trucks proved measurable drag cuts; while the CX-9 sees smaller gains, every bit of smoother airflow helps highway mileage . Keeping the liner intact also protects lane-departure sensors and wiring looms near the wheel arch .

Maintenance Tips

• Rinse monthly. A low-pressure hose flushes away road salt trapped behind the liner .
• Inspect clips. Replace broken push-pins each time you rotate tires; 8 mm nylon clips are inexpensive.
• Add damping. For extra quiet, owners sometimes stick butyl or closed-cell foam to the liner's cabin side-just keep padding thin so it doesn't rub the tire .
• Recycle old plastic. Many community yards accept PP/HDPE liners for re-processing .

Environmental Note

Lightweight PP liners weigh a fraction of stamped-steel splash panels Mazda used decades ago, improving fuel economy and reducing CO₂ . Eco-focused studies confirm that post-industrial recycled PP keeps liners strong while slashing material emissions .

Frequently Asked Questions

Q: What's the difference between a fender liner and an engine splash shield?
A: The liner hugs the wheel arch; the splash shield (sometimes called the belly pan) bolts flat under the engine. Both keep dirt out, but they protect different zones .

Q: Can I drive without the liner for a few weeks?
A: You can, but water and stones will pepper wiring and coolant hoses. Long-term, it speeds up rust and may trip sensor errors .

Q: Do I have to remove the bumper to change the liner?
A: No. On the CX-9, only the wheel and the row of screws at the bumper edge need removal; the bumper stays on .

Q: What tools do I need?
A: Jack, wheel-lug wrench, 8 mm socket, flat trim-clip tool, and safety glasses cover almost every step .

Q: Will an aftermarket liner fit like the original?
A: As long as it lists the correct year range and trim, the mounting holes line up. Double-check for foam backing if you want OEM-like noise control .

Q: How often should liners be replaced?
A: They have no fixed interval. Replace when cracked, missing clips, or after minor collisions scrape holes in the plastic .

Q: Does a liner improve fuel economy?
A: Indirectly, yes-any smooth panel that guides airflow under the car can cut drag. Government tests on larger vehicles show up to 5 percent savings with optimized splash guards .

Q: Can I repair a small tear?
A: Yes. HDPE and PP respond well to plastic-welding or zip-tie stitching for temporary fixes .

Q: Are liners recyclable?
A: Most municipal plastic recyclers accept clean PP/HDPE parts. Check the #2 or #5 resin code stamped on the panel .

Q: Will adding sound-deadeners trap moisture?
A: If you use closed-cell foam and keep drain slots clear, moisture buildup is minimal .
