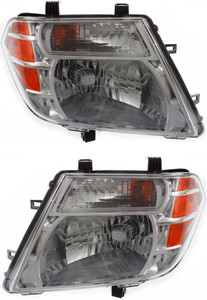

Buy Nissan Pathfinder Headlight Assembly

Quick Overview

The Nissan Pathfinder's front lights-also called headlights, headlamps, or front beams-have evolved from simple halogen bulbs to sealed LED units. Fourth-generation trucks (2013-2020) use H11 low-beam and HB3 (9005) high-beam bulbs, while the newest (2022-2025) Pathfinders come with non-serviceable LED modules built into the lamp housing. (Nissan USA, Nissan USA) Keeping these lights clear, correctly aimed, and wired to the right fuses is vital for night-time safety and legal compliance, because cloudy lenses can cut light output to about 20 percent, and mis-aimed aftermarket LEDs can draw tickets. (AAA Newsroom, Reddit)

Fitment Years

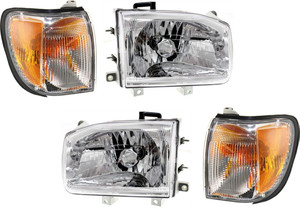

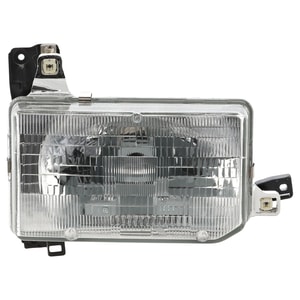

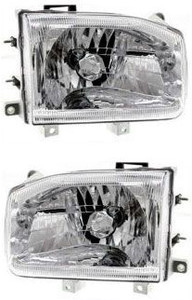

• 1996-2004 (R50): glass-lens composite lamps, mostly 9004/9005 bulbs and separate corner lamps (check owner's manual for exact trim).

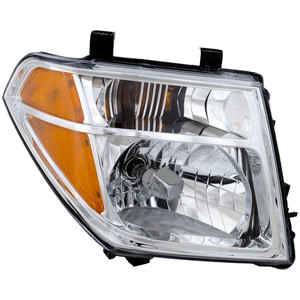

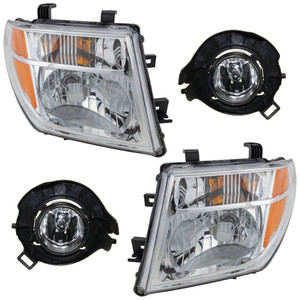

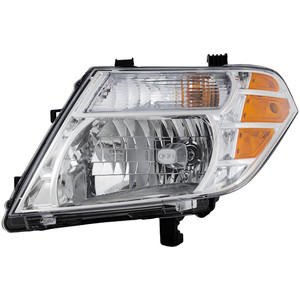

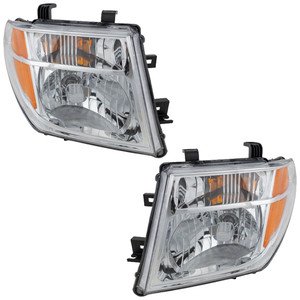

• 2005-2012 (R51): plastic housings with replaceable halogen bulbs; low-beam H11, high-beam 9005, plus individual 15 A fuses for each filament. (StartMyCar)

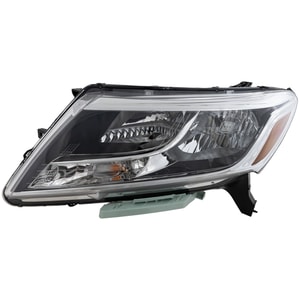

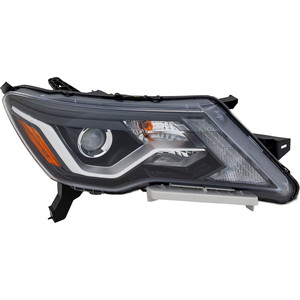

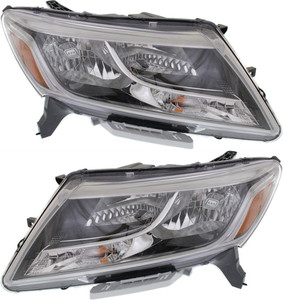

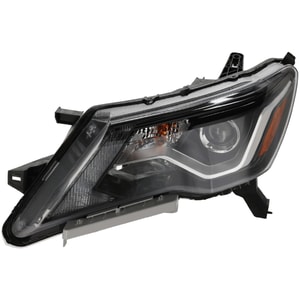

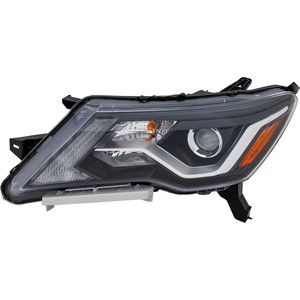

• 2013-2020 (R52): aerodynamic "projector" headlamps; CarCareKiosk lists model support 2013-2020. (CarCareKiosk)
• 2022-2025 (R53): factory LEDs and LED daytime-running lights (DRL) with no bulb numbers shown in the 2023 owner's manual chart. (Nissan USA)

Bulb Chart

← scroll table horizontally →

LED vs Halogen

• AAA testing shows adaptive-driving-beam (ADB) LEDs can add up to 86 % more roadway light than U.S. low beams. (AAA Newsroom)
• Standard high beams already boost forward light about 28 %, yet 64 % of U.S. drivers rarely use them. (living.acg.aaa.com)
• U.S. Federal Standard 108 requires every headlamp to carry a "DOT" mark certifying its beam pattern and glare limits. (NHTSA)
• Aftermarket LED or colored bulbs placed in stock halogen housings are illegal on public roads in many states; OEM LEDs are legal. (Reddit)

Learn more about DOT lighting rules and AAA's adaptive-beam study.

Common Problems

• Moisture or fogging-usually a bad seal. Owners report baking the lamp, cleaning it, and resealing with silicone to fix it. (Nissan Pathfinders)
• Cloudy plastic cuts usable light to 20 % of original output. (AAA Newsroom)
• Dim low beams on 2017-2019 halogen trucks can stem from old bulbs or scratched inner reflectors.
• Fuse trips-each low- and high-beam filament on 2005-2012 models has its own 15 A fuse (slots 16-17 and 22-23). (StartMyCar)

Maintenance Tips

• Wash the lens often and park with lights facing away from the sun to slow yellowing. (living.acg.aaa.com)
• Headlight-restoration kits can double light output and cut scatter 60 %.
• Never touch the glass part of a halogen bulb; skin oil causes hot spots and early failure. (CarCareKiosk)
• Replace bulbs in pairs so brightness matches.

DIY Replacement

1. Open the hood, unplug the wiring connector, then twist the bulb counter-clockwise.
2. On 2013-2020 trucks, removing the front bumper and grille gives room to slide the whole lamp housing out-expect many clips and 10 mm screws. (Pathfinder Talk)
3. Re-seat the weather seal firmly to keep moisture out.
4. Re-aim lights against a flat wall: the low-beam cutoff should hit just below headlight center height at 25 ft.

Fuse & Wiring

• Pathfinder R51 fuse box:
  • H/LAMP LO RH = 15 A slot 16
  • H/LAMP LO LH = 15 A slot 17
  • H/LAMP HI LH = 10 A slot 22
  • H/LAMP HI RH = 10 A slot 23 (StartMyCar)
• If one side goes dark, swap the same-size fuse first.
• Later models use an Intelligent Power Distribution Module (IPDM) relay block under the hood; test with a multimeter before replacing costly LED modules.

Interactive fuse diagrams can help you find the exact slot.

Safety & Laws

• Check your VIN for open lighting recalls on the NHTSA recall portal.
• Many states ticket blue, pink, or other tinted headlamps, and some enforce penalties for any non-DOT bulb. (Reddit)
• Always aim lights after heavy loads; mis-aimed beams cause glare that NHTSA identifies as a top public complaint. (NHTSA)

Cleaning & Upgrades

• For hazy lenses, sand lightly with 600-grit, polish, and seal with UV-clear coat. Results restore up to 70 % of lost light output. (AAA Newsroom)
• LED conversion kits that carry a true DOT mark and include projector retrofit hardware can cut glare, but they must still pass local inspection.
• Adaptive Driving Beam systems are now legal for 2024 + models after NHTSA's 2022 rule change, allowing smarter Pathfinder lights in future updates. (living.acg.aaa.com)

Frequently Asked Questions

Q: What bulb does a 2014 Pathfinder use for low beams?
A: An H11 halogen 55-watt bulb. (Nissan USA)

Q: Can I change the LED headlamp on a 2023 Pathfinder at home?
A: No. The LED module is sealed; Nissan directs owners to a dealer for replacement. (Nissan USA)

Q: My headlamp is foggy after rain-do I need a new lamp?
A: Often not. Dry it, clean inside, and reseal; poor sealing, not the bulb, lets moisture in. (Nissan Pathfinders)

Q: Why do new bulbs burn out fast?
A: Touching the glass leaves oil that overheats the filament-handle by the base only. (CarCareKiosk)

Q: Which fuses protect the 2010 Pathfinder headlights?
A: Slots 16-17 (low beam) and 22-23 (high beam) in the engine fuse panel, each 15 A or 10 A. (StartMyCar)

Q: Are colored LED headlights legal?
A: Colored or aftermarket LEDs in stock housings are illegal on U.S. roads; OEM white LEDs are allowed. (Reddit)

Q: How bright should headlights be?
A: AAA found yellowed lenses give only 20 % of new-lamp light, so aim for clear lenses and correct bulbs. (AAA Newsroom)

Q: Do high beams really help?
A: Yes-up to 28 % more forward light on dark roads; use them when no one is ahead. (living.acg.aaa.com)

Q: What is Adaptive Driving Beam (ADB)?
A: A system that keeps high beams on but masks areas to spare oncoming drivers, boosting light by up to 86 %. (AAA Newsroom)

Q: How often should I polish the lens?
A: Inspect yearly; restore as soon as you see yellowing or reduced night vision. (AAA Newsroom)

Q: Does headlight aim drift?
A: Yes-heavy cargo or bulb swaps can tilt the beam; re-check aim after each repair.

Q: Can I upgrade to HID or LED projectors?
A: Only if the complete assembly meets DOT spec; bulb-only swaps create illegal glare. (NHTSA)

Q: Where can I find exact wiring diagrams?
A: Consult the Pathfinder service manual or interactive fuse/relay charts linked above.

Q: What safety checks should I do before a road trip?
A: Clean lenses, test all beams, carry spare fuses, and confirm aim on a flat wall.

With these facts, charts, and tips, you can pick, fix, and upgrade your Nissan Pathfinder headlight assembly with confidence-keeping every night drive bright, legal, and safe.
