Quick Summary

The engine splash shield on a Nissan Sentra-also called a lower-engine cover, belly pan, skid plate, or undertray-forms a light yet tough barrier under the motor. It blocks road splash and rocks, smooths air flow for better cooling and fuel economy, and even mutes cabin noise. When the panel cracks, hangs low, or its plastic push-clips vanish, the car can overheat, lose mpg, or sound like something is dragging. Replacement is inexpensive, uses basic hand tools, and varies slightly by Sentra generation (B15 2000-06, B16 2007-12, B17 2013-19, B18 2020-25).

What It Does

• Keeps dirt and water out. The shield stops mud, salt, and puddle spray from striking belts, pulleys, oxygen-sensor wiring, and the crank pulley seal. (Reddit)
• Guides cooling air. By sealing the engine bay's bottom, airflow is forced through the radiator instead of swirling underneath.
• Improves aerodynamics. A flat underbody cuts drag and can save 2-3 % in highway fuel use. (Knauf Industries Automotive, SAE International)
• Reduces noise. The plastic tray works as a sound insulator against road splash and gravel ping. (Reddit)

For a deeper dive, see the Knauf Automotive article on underbody airflow and this open-access SAE technical paper on drag-reduction panels.

Part Locations

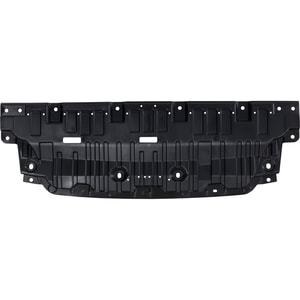

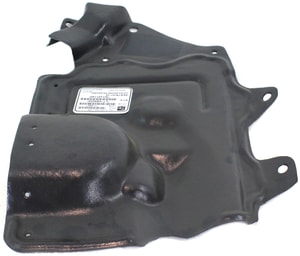

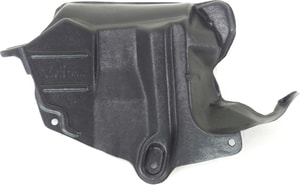

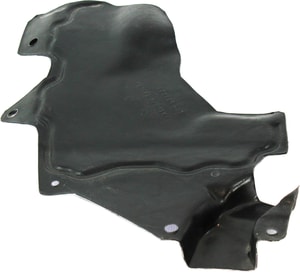

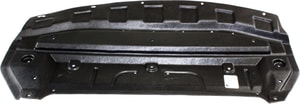

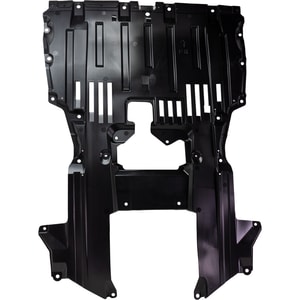

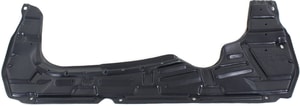

Sentra uses two to three pieces up front: a wide center tray (under engine), smaller left and right side pieces, and on later B18 models, a forward "front under-cover" ahead of the tray. (YouTube, Nissan Parts)
Typical attachment points:

• 6-10 M6 bolts around the sub-frame.
• 20-plus plastic push-pins across the bumper fascia lip. (Car Talk Community)

Generations & Fitment

← scroll table horizontally →

*Part numbers taken from the official Nissan online parts catalog. (Link is informational; no pricing shown.)

Materials

• Reinforced polypropylene (PP-TD20). Light, cheap, recyclable, standard on B17/B18.
• ABS or HDPE blends. Earlier shields (B15) sometimes use ABS for impact toughness.
• Stamped aluminum upgrades. Aftermarket "skid plates" exist for rally use but weigh more. (Wrench Mobile Mechanics)

Common Problems

← scroll table horizontally →

Maintenance Tips

1. Inspect at every oil change-look for cracks and missing hardware.
2. Replace all damaged push-pins. Universal nylon pins are inexpensive; follow 7 ft-lb torque on M6 bolts (from Factory Service Manual). (NICOclub)
3. Wash gently. A hose removes caked mud; avoid pressure-wash close-up.
4. Recycle old plastic. The PP shield can go to most #5 polypropylene streams.

The provides full torque charts and exploded views.

DIY Replacement

Tools: jack/stands, 10 mm socket, trim-clip pliers, flashlight. Time: 20 minutes.
Steps (B18 example):

1. Lift front safely; chock rear wheels.
2. Remove 8 bolts and 25 clips holding tray. (Car Talk Community)
3. Slide shield rearward, then drop.
4. Transfer foam seals to new part.
5. Align pins, hand-start all bolts, then torque evenly.
   Tip: Pry the center pin of each two-piece clip first; the shell then pops free. (Nico Club)
   Video walkthrough: 2022 Sentra tray removal.

Performance & Aerodynamics

Wind-tunnel studies show a flat under-engine panel can cut drag coefficient (Cd) by 0.008-0.015, worth roughly 0.2 L/100 km (≈2 mpg) at highway speed. (SAE International, SAE International)
On city routes the gain is smaller but still measurable, especially in rain where water drag is reduced. (SAE International)

Safety & Warranty

Driving without the guard can expose crankshaft and CVT speed sensors to splash, triggering warning lights. (NICOclub)
Intentional removal or cutting holes may let a dealer deny related claims under federal emissions or powertrain warranty. (Car Talk Community)
Always reinstall the shield after service to keep factory airflow and sensor protection intact.

Frequently Asked Questions

Q: What is an engine splash shield?
A: It's a plastic or metal plate under the motor that blocks water, rocks, and dirt while smoothing airflow. (Wrench Mobile Mechanics)

Q: Can I drive without it?
A: You can, but you risk damage to belts, wiring, and sensors, plus more drag and noise. (Reddit, Reddit)

Q: Does it really help fuel economy?
A: Yes-studies on underbody panels show a small but measurable highway savings of about 2 %. (SAE International)

Q: How do I know mine is bad?
A: Look for cracks, hanging corners, or scraping sounds on bumps. (YouTube)

Q: Are all Sentra shields the same?
A: No; B17 and B18 models use different shapes and part numbers than older cars. (Nissan Parts, Nissan Parts)

Q: What fasteners do I need?
A: Nylon push-pins (Nissan #01553-09321) and M6-1.0 x 20 bolts cover most locations. (NICOclub)

Q: What tools remove the clips?
A: A trim-clip plier or flat screwdriver; pry up the center pin, then pull the shell. (Nico Club)

Q: Will a skid plate fit instead?
A: Aftermarket aluminum pans exist, but check ground clearance and cooling airflow before installing. (Wrench Mobile Mechanics)

Q: Can the shield melt?
A: Rarely; if it contacts a hot exhaust pipe the PP plastic can distort. Inspect after bottom-outs. (Reddit)

Q: Is the shield recyclable?
A: Yes, most are #5 polypropylene; clean before recycling.
