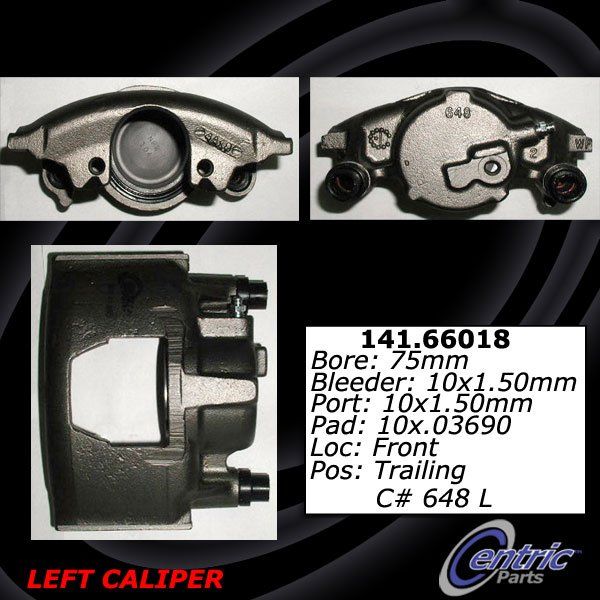

| Attribute | Value |
|---|---|
| Abutment Clips Included | Yes |
| Air Gap [orely] | 100.5mm |
| Attribute ID (Type) | California Proposition 65 |
| Bleeder Screw Included | Yes |
| Bleeder Screw Included [cntrc] | Yes |
| Bleeder Screw Thread Diameter | 10.000, M10x1.5 |
| Bleeder Screw Thread Size | M10-1.50 |
| Bore Size(s) Millimeters | 75 |
| Bracket # [cntrc] | Na |
| Bracket Included | No |
| Bracket Mounting Bolts Include | No |
| Bracket Required (Y/N) | No |
| Bracket Required [cntrc] | No |

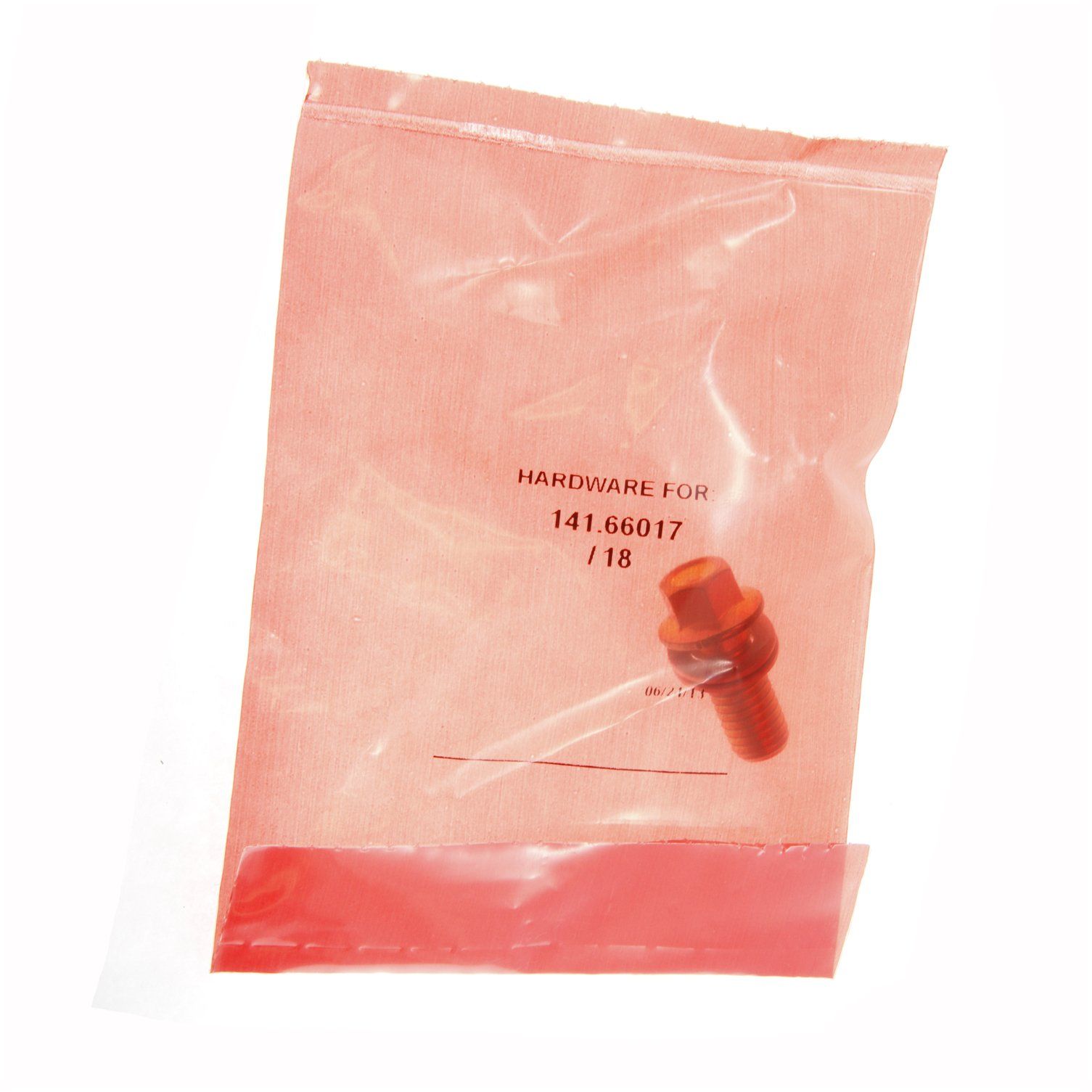

| Caliper & Pad Hardware Include | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.66006 |
| Caliper Color | Gray |
| Caliper Type | Floating |
| Casting Number | 648; |
| Color | Gray |
| Disc Brake Caliper Casting Material | Cast Iron |
| Finish | Rust Preventative |
| Finish [cntrc] | Rust Preventative |
| Friction Materials Standards Institute Pad Number | 10x.03690 |
| Hardware Kit# [cntrc] | 117.62022 |
| Inlet Fitting Type | Banjo |
| Inlet Thread Diameter | 10.000, M10x1.5 |
| Inlet Thread Size | M10-1.50 |
| Mounting Hardware Included | No |
| New Or Ramanufactured [cntrc] | Remanufactured |
| New Or Remanufactured | Remanufactured |
| Pad Wear Sensor Included | No |
| Pads Included | No |
| Piston Diameter | 2.953, 75.000 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Product Grade [cntrc] | Premium |
| Published Bore Size [cntrc] | 75 |
| Root Core# [cntrc] | 66018 |
| Rust Preventative Coating | Yes |
| Rust Preventative Coating [cntrc] | Yes |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Extended Cargo Van | 1990 | L4 2.5L | AWD/RWD Automatic |
| Base | Extended Cargo Van | 1990 - 2002 | V6 4.3L | AWD/RWD Automatic |
| Base | Extended Passenger Van | 1997 - 2002 | V6 4.3L | AWD/RWD Automatic |
| Base | Standard Cargo Van | 1990 | L4 2.5L | AWD/RWD Automatic |
| Base | Standard Cargo Van | 1990 - 2002 | V6 4.3L | AWD/RWD Automatic |
| Base | Standard Passenger Van | 1997 - 2002 | V6 4.3L | AWD/RWD Automatic |
| CL | Extended Passenger Van | 1990 - 1995 | V6 4.3L | AWD/RWD Automatic |
| CL | Standard Passenger Van | 1990 - 1995 | V6 4.3L | AWD/RWD Automatic |
| CS | Extended Passenger Van | 1990 - 1995 | V6 4.3L | AWD/RWD Automatic |
| CS | Standard Passenger Van | 1990 - 1995 | V6 4.3L | AWD/RWD Automatic |
| LS | Extended Passenger Van | 1996 - 2002 | V6 4.3L | AWD/RWD Automatic |
| LS | Standard Passenger Van | 1996 - 2002 | V6 4.3L | AWD/RWD Automatic |
| LT | Extended Passenger Van | 1990 - 2002 | V6 4.3L | AWD/RWD Automatic |
| LT | Standard Passenger Van | 1990 - 2002 | V6 4.3L | AWD/RWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Autospecialty | 4086018 |
| Autospecialty | 4186018 |
| BBB Industries | 87X17263B |
| Beck/Arnley | 0795141 |
| Bendix | L55501 |
| Bendix | L55501FM |
| Bendix | L55501M |
| Bendix | L55501SUV |
| BrakeBest Brake Calipers | 18-4300 |
| CARDONE Reman | 184300 |
| CARDONE Reman | 184300XB |
| CARDONE Reman | 184300XR |
| CARDONE Reman | 18P4300 |
| CARDONE Reman | 4300 |
| Casting Numbers | 648 |
| Cookie Dough Bites | C4300 |
| Dana Auto-tech | DAT4287 |
| Dana Auto-tech | DATC4287 |
| Delco-Remy | 18FR746 |
| Delta | 114007 |
| Delta | 154007 |
| Delta | 4007 |
| Fenco | C554 |
| Fenco | SLC554 |
| Formula Blue Hydraulic Brake Parts | E146-71-023 |
| Formula Blue Hydraulic Brake Parts | E14671023 |
| King Kalipers | KINK6254 |
| Mid Illinois | 18561 |
| Mighty Distributing System | S94272 |
| NAPA Brake Calipers | 2422138 |
| Nastra | 11-4266 |
| Nastra | 11-4535 |
| Nastra | 114266 |
| Nastra | 114535 |
| Nugeon | 22-7263.0.L |
| Nugeon | 2217263L |
| Nugeon | 2272630L |
| Nugeon | 9717263B |
| OEM Part Number | 1721431 |
| OEM Part Number | 18014744 |
| OEM Part Number | 4746367 |
| OEM Part Number | 52009671 |
| Quality Rebuilders Corporation | 67488 |
| Raybestos Brakes | FRC4418 |
| Raybestos Brakes | RC4418 |
| Raybestos Brakes | RC4418QS |
| Raybestos Brakes | RC4418SS |
| Raybestos Brakes | RWC4418 |
| UCX | 104008 |
| UCX | 104008S |
| Wagner Brake | L116292 |
| Wagner Brake | S116292 |
Fits Years: 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002
Fits Models: Astro
