2008, 2007, 2006, 2005, 2004 Chrysler Pacifica Disc Brake Rotor
View 1
View 2
View 3
View 4
View 5

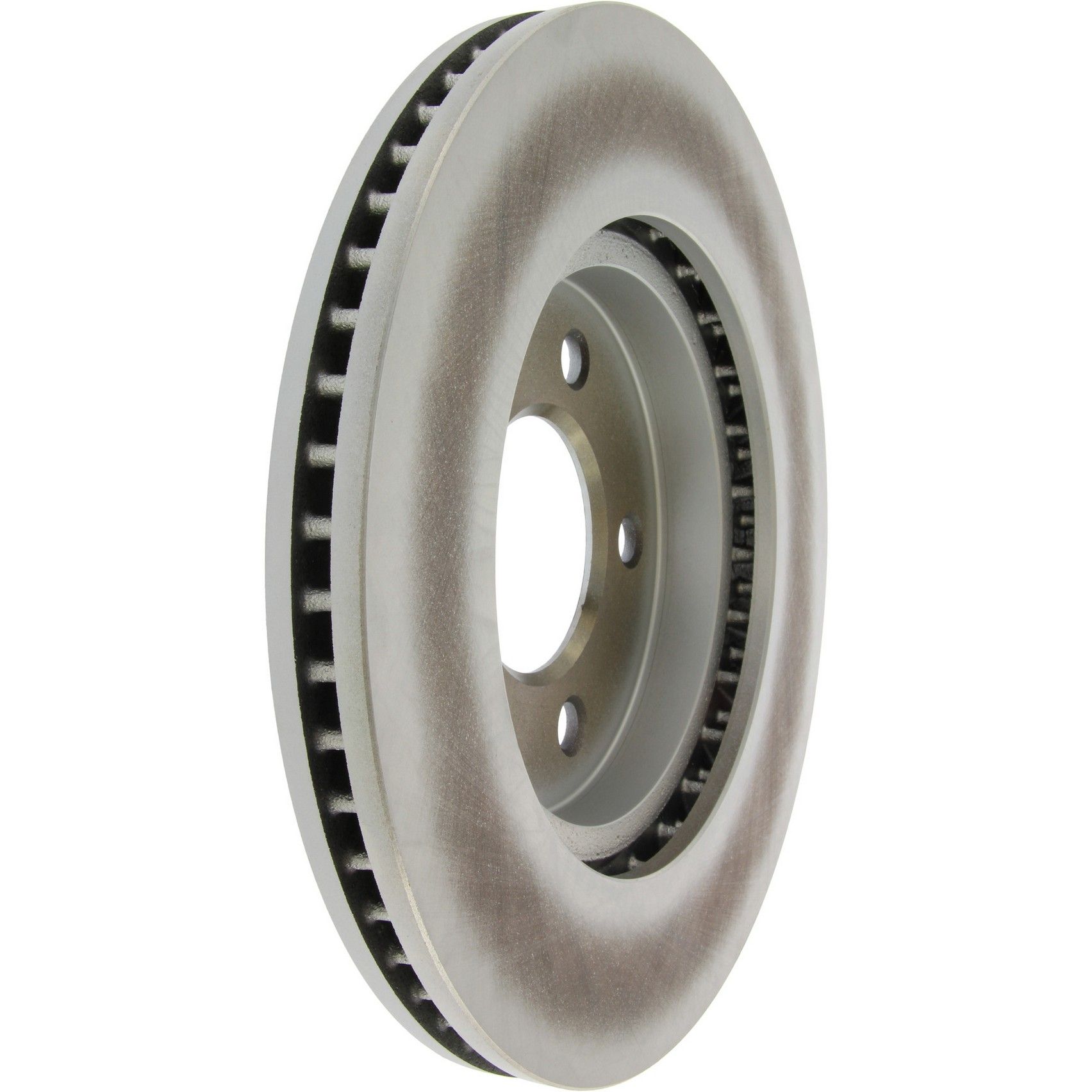

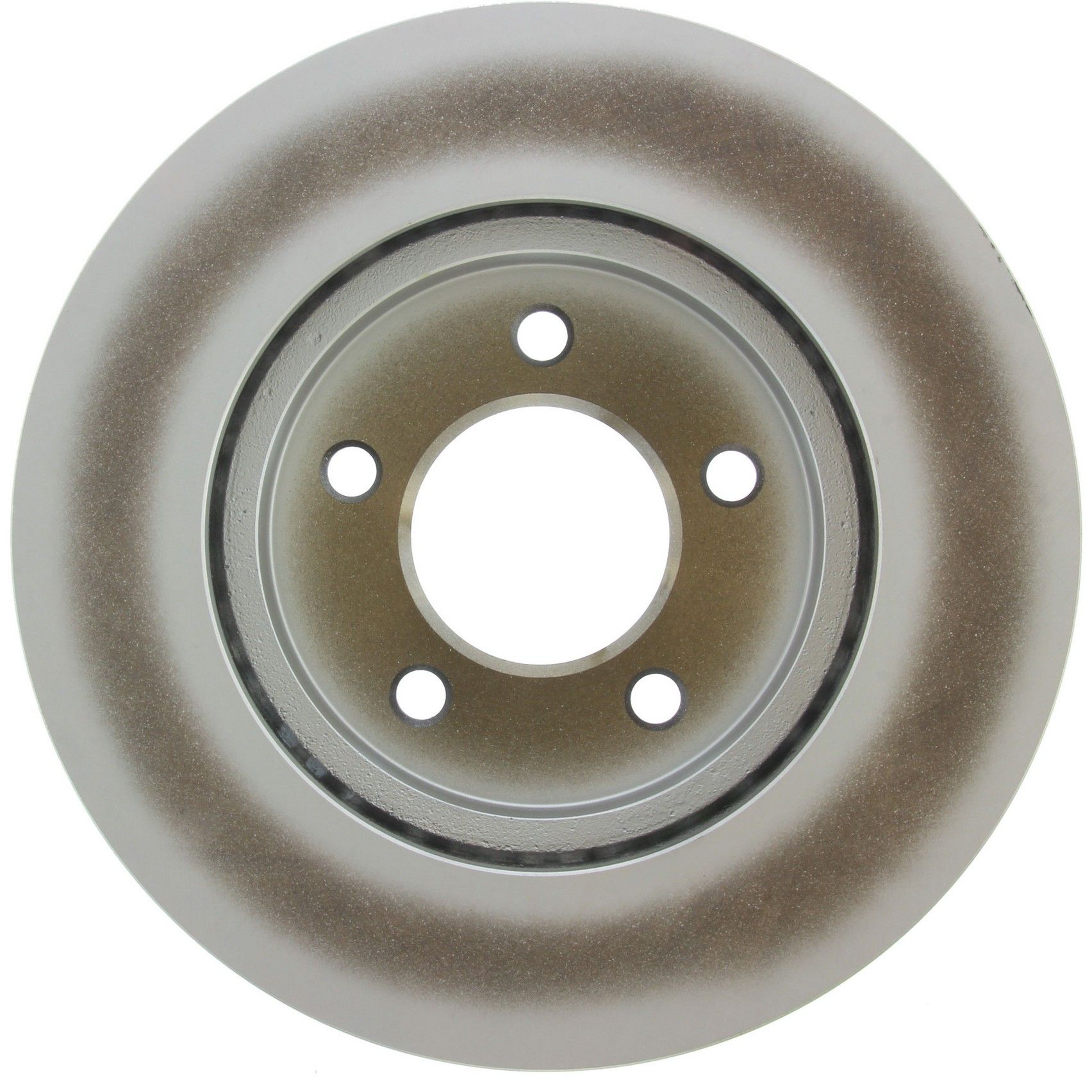

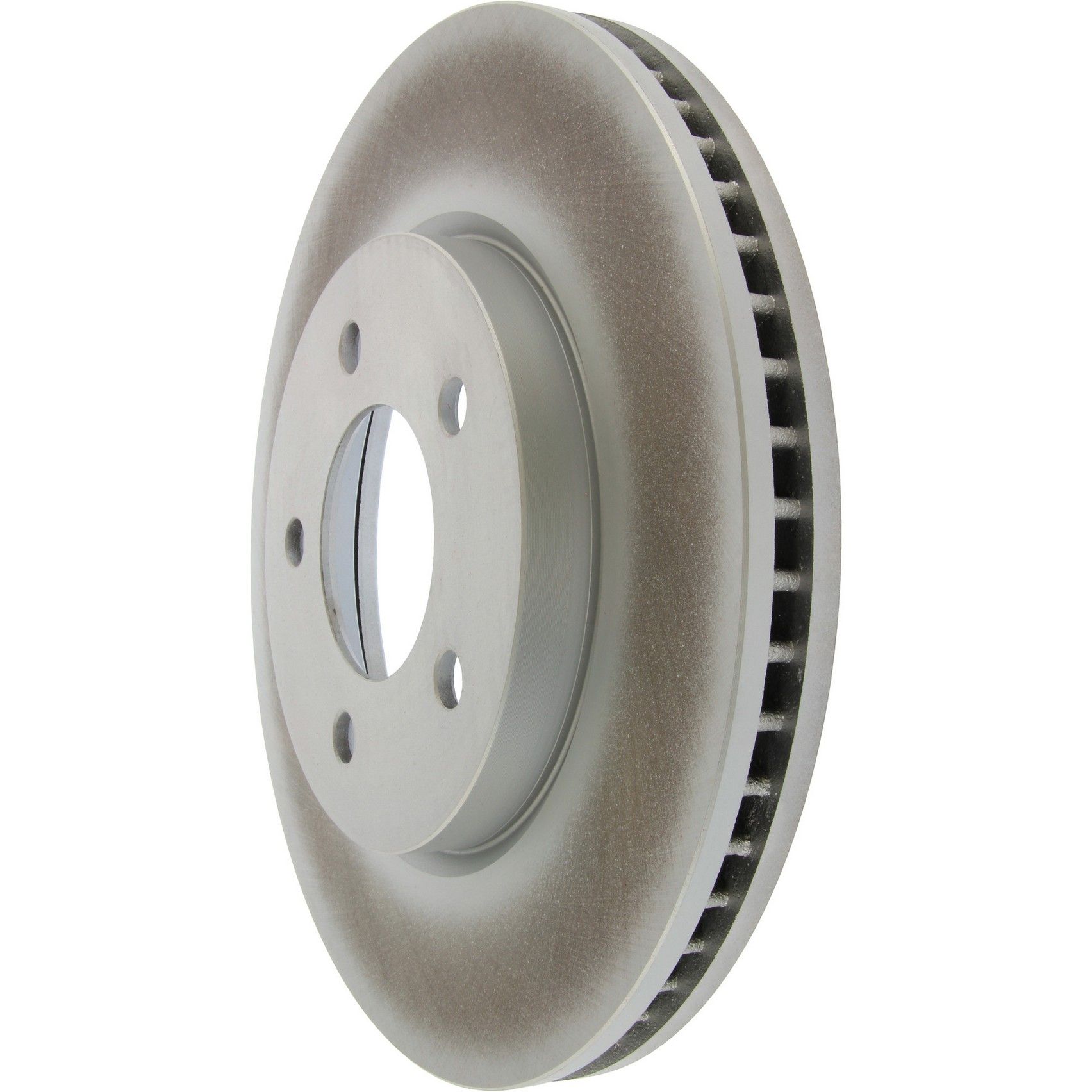

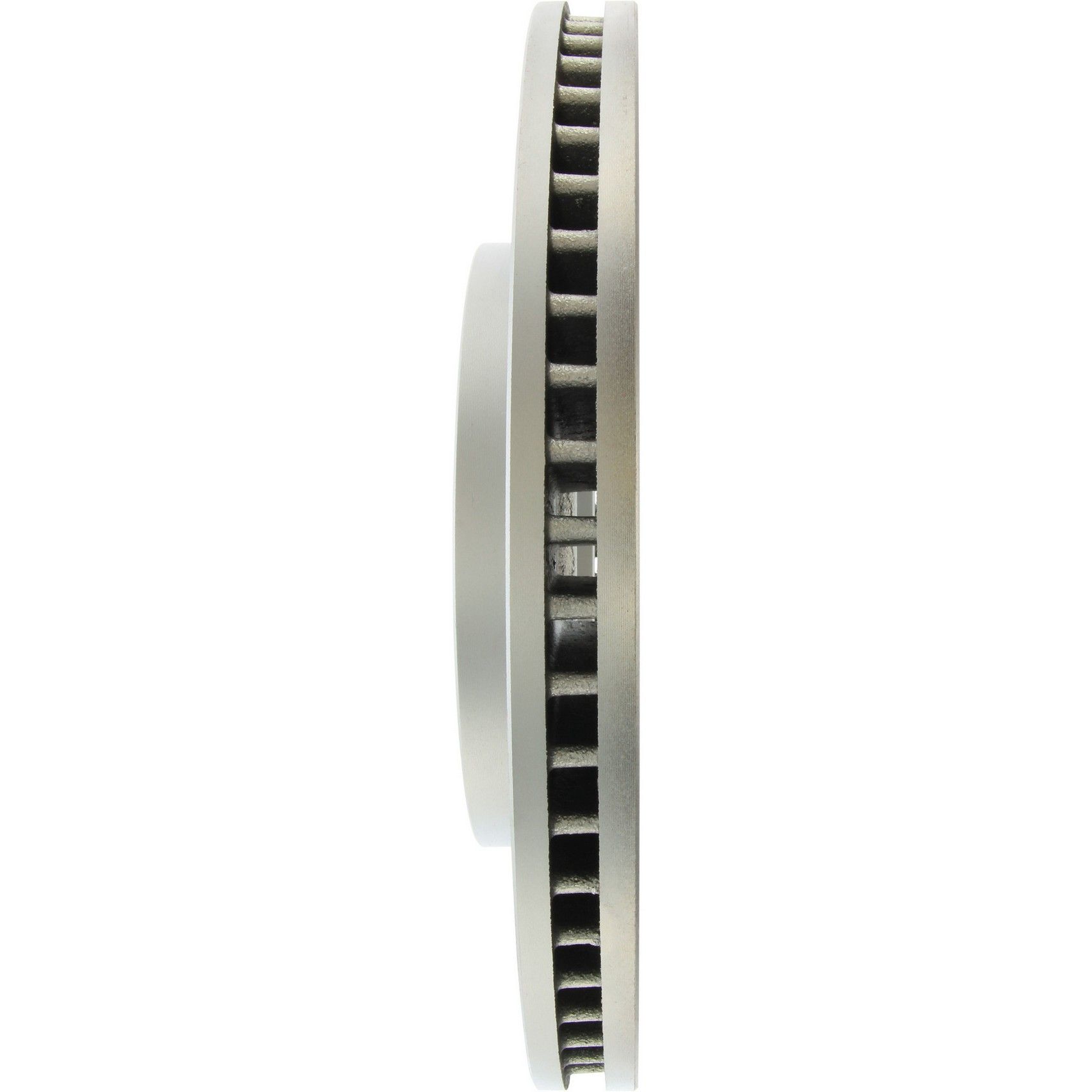

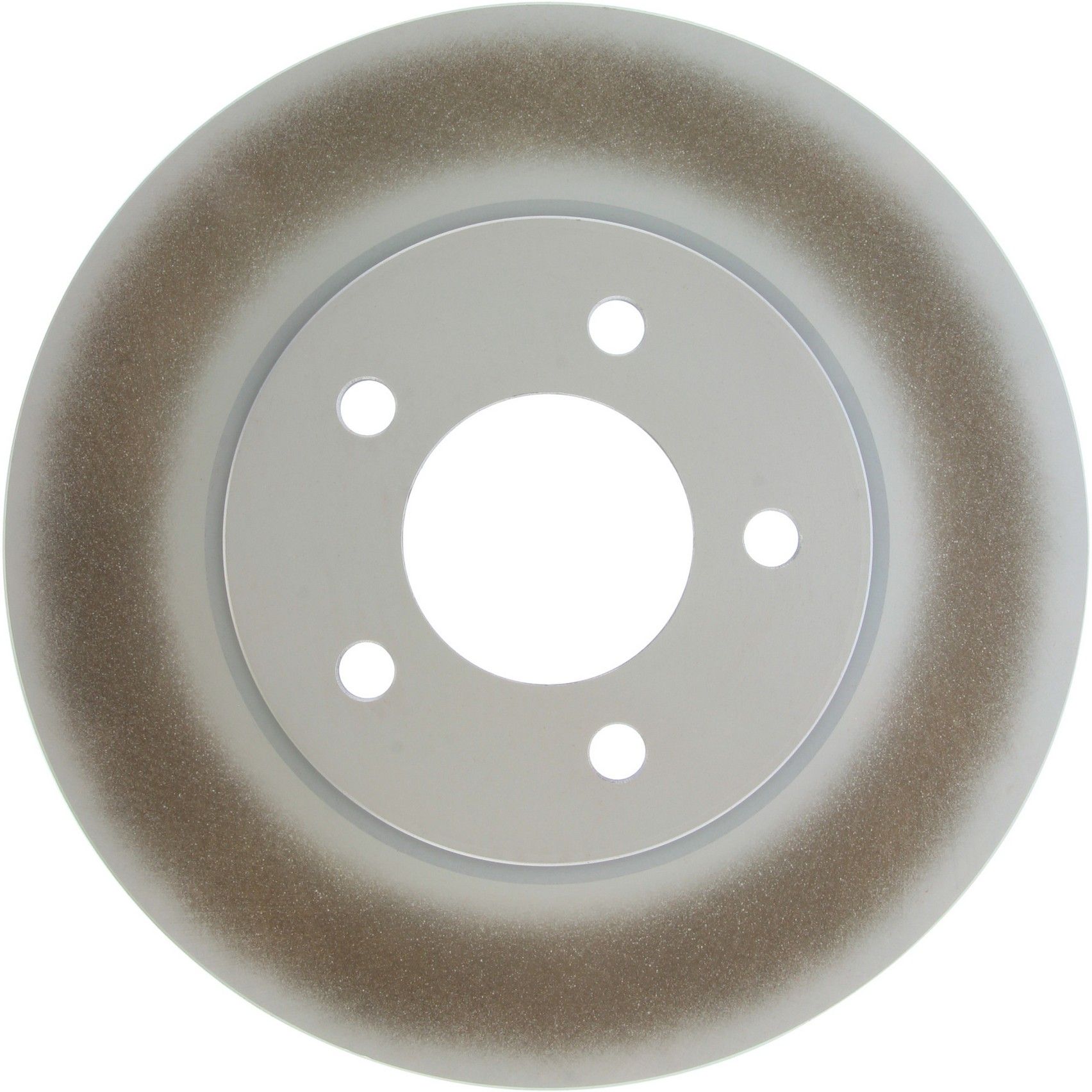

2004 - 2008 Chrysler Pacifica Disc Brake Rotor - Front (Centric) NEW

$ 83 .95
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Position: Front
⚠️ Most jobs typically require 2 of this item.

Centric GCX Elemental Protection Disc Brake Rotors - Partial Coating
GCX and the new GCX FC Disc Brake Rotors arespecifically engineered to match OE performanceand provide superior protection from rust and corrosion.Coated with Centric’s advanced RS200 finishon all non-mating surfaces; GCX premium rotorsdeliver extended life and great looks over the life ofthe vehicle.What makes GCX application specific?Coating pattern; GCX coatings are applied in twopatterns. Each pattern compliments the brake padfriction type.Rotor Metallurgy; Centric’s metallurgical formulationsare the best in the industry; consisting ofG11H18 Enhanced Carbon or G12H17 High Carbonalloys; perfectly matching each vehicle’s OEM metallurgicalprofile. Centric ensures you get the perfectrotor for your car every time.With over 1000 SKUs; and growing; you are coveredfor more than 98% of the vehicles on the road today.
Brand: Centric
Condition: New
See Other Chrysler Pacifica Disc Brake Rotors
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
127
ABS Tone Ring Included No
Attribute ID (Type) California Proposition 65
Bearings Included No
Bolt Hole Quantity 5
California Proposition 65 Site [basic] Https://www.p65warnings.ca.gov/
California Proposition 65 Text [cntrc] Warning: Cancer And Reproductive Harm
Center Hole Diameter 3.228, 82.000
Disc Finish Partially Coated
Disc Mounting [cntrc] Floating
Discard Thickness 1.043, 26.5, 26.500
Hat Finish Coated
Hub Hole/Whl Reg Mm 82
Misc Holes [cntrc] 0
Mounting Bolt Hole Circle Diameter 127.000, 5.000
Mounting Type Floating
Nominal Thickness 1.102, 28, 28.000
Overall Height 1.870, 47.500
Product Grade [cntrc] Premium
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Diameter 0.606, 15.400
Stud/Lug Hole Quantity 5
Surface Type Smooth
Vane Style Straight
Vane Style [cntrc] Straight
Weight [cntrc] Kgs 9.090
Weight [cntrc] Lbs 20.000

Vehicle Fitment Guide

This part fits the following vehicles:

Chrysler 1 model (tapclick to expand)(tapclick to hide)
Pacifica 2004-2008 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 2007 V6 4.0L AWD/FWD Automatic
Base SUV 2005 - 2007 V6 3.8L AWD/FWD Automatic
Base SUV 2004 - 2006 V6 3.5L AWD/FWD Automatic
Equipada SUV 2005 - 2006 V6 3.5L FWD Automatic
LX SUV 2008 V6 3.8L AWD/FWD Automatic
LX SUV 2008 V6 4.0L AWD/FWD Automatic
Limited SUV 2007 - 2008 V6 4.0L AWD/FWD Automatic
Limited SUV 2005 - 2006 V6 3.5L AWD Automatic
Limited SUV 2005 V6 3.5L FWD Automatic
Touring SUV 2007 - 2008 V6 4.0L AWD/FWD Automatic
Touring SUV 2005 - 2006 V6 3.5L AWD/FWD Automatic
Touring Equipada SUV 2007 - 2008 V6 4.0L FWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
GCX and the new GCX FC Disc Brake Rotors arespecifically engineered to match OE performanceand provide superior protection from rust and corrosion.Coated with Centric’s advanced RS200 finishon all non-mating surfaces; GCX premium rotorsdeliver extended life and great looks over the life ofthe vehicle.What makes GCX application specific?Coating pattern; GCX coatings are applied in twopatterns. Each pattern compliments the brake padfriction type.Rotor Metallurgy; Centric’s metallurgical formulationsare the best in the industry; consisting ofG11H18 Enhanced Carbon or G12H17 High Carbonalloys; perfectly matching each vehicle’s OEM metallurgicalprofile. Centric ensures you get the perfectrotor for your car every time.With over 1000 SKUs; and growing; you are coveredfor more than 98% of the vehicles on the road today.

Interchange Parts

Brand Part Number
Raybestos Brakes 780175FZN

Fits Years: 2004 2005 2006 2007 2008

Fits Models: Pacifica
