2012, 2011, 2010 Ford Escape Catalytic Converter
View 1
View 2
View 3
View 4

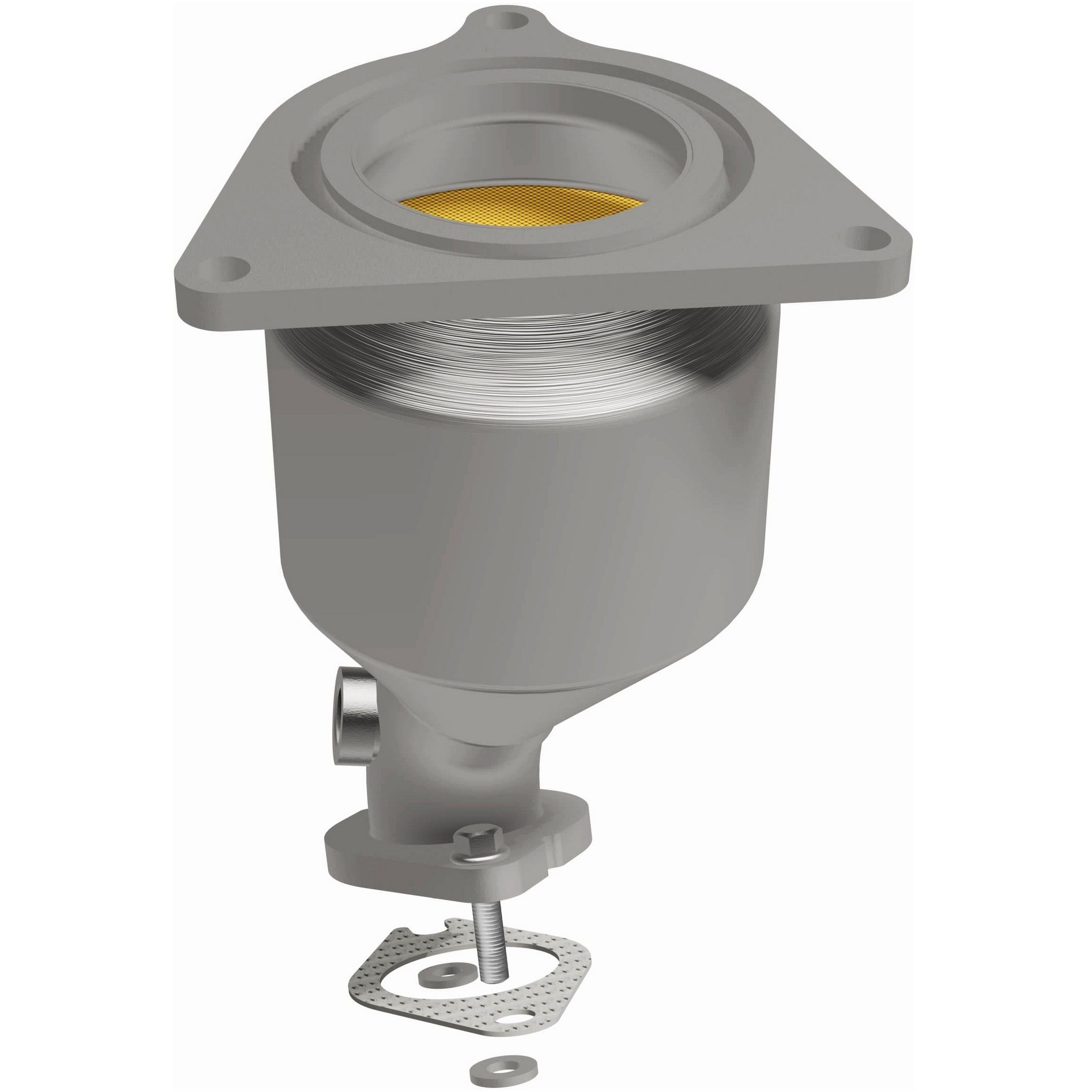

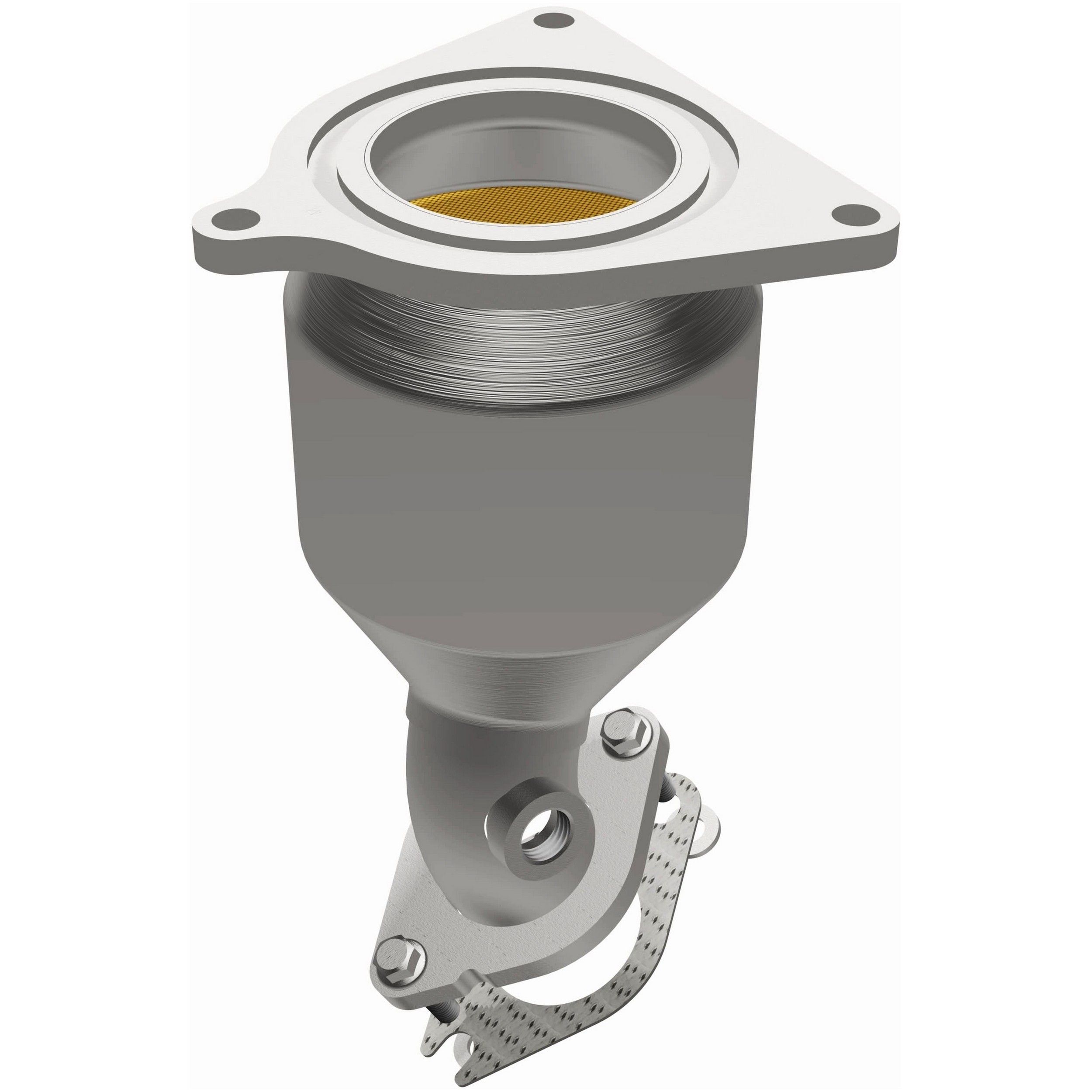

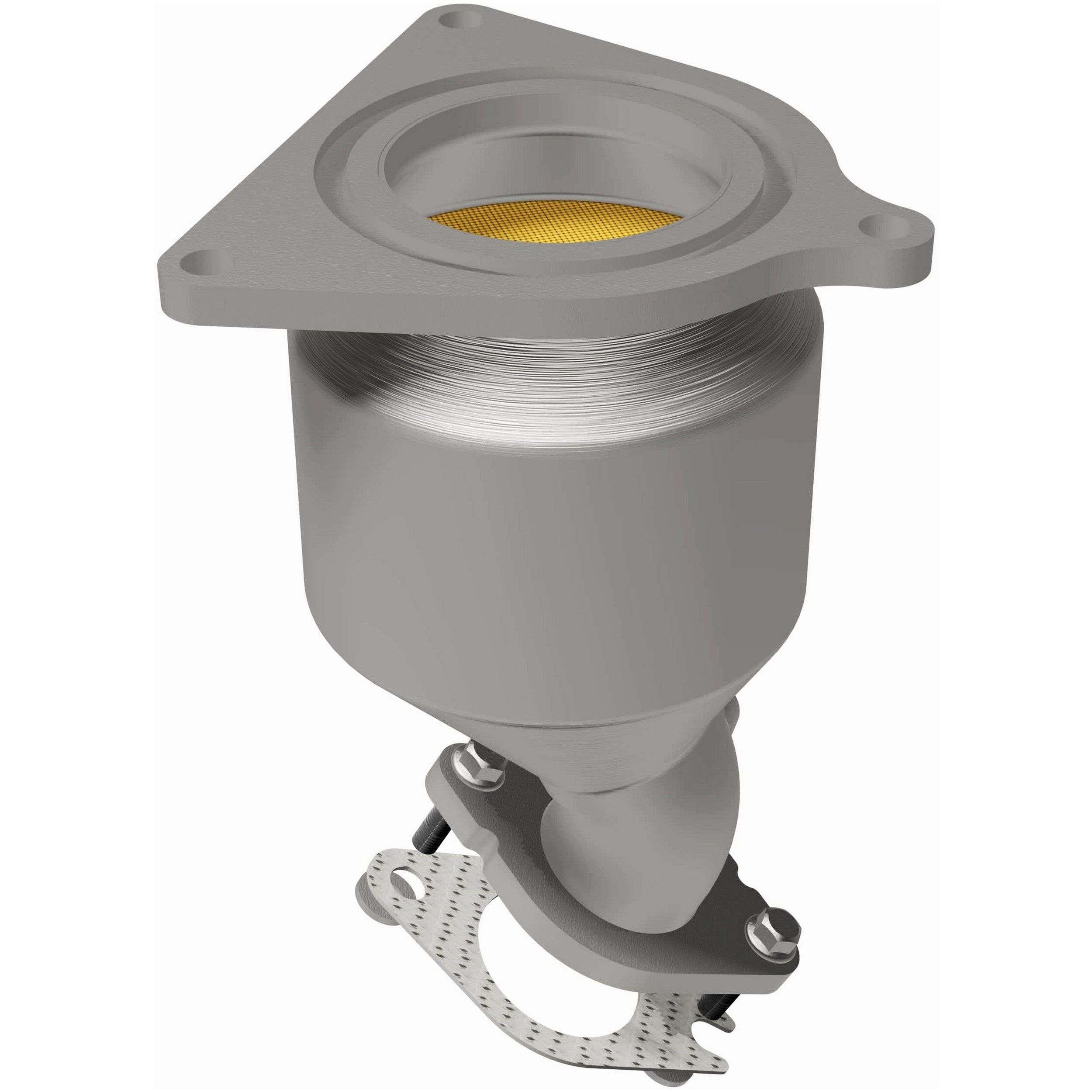

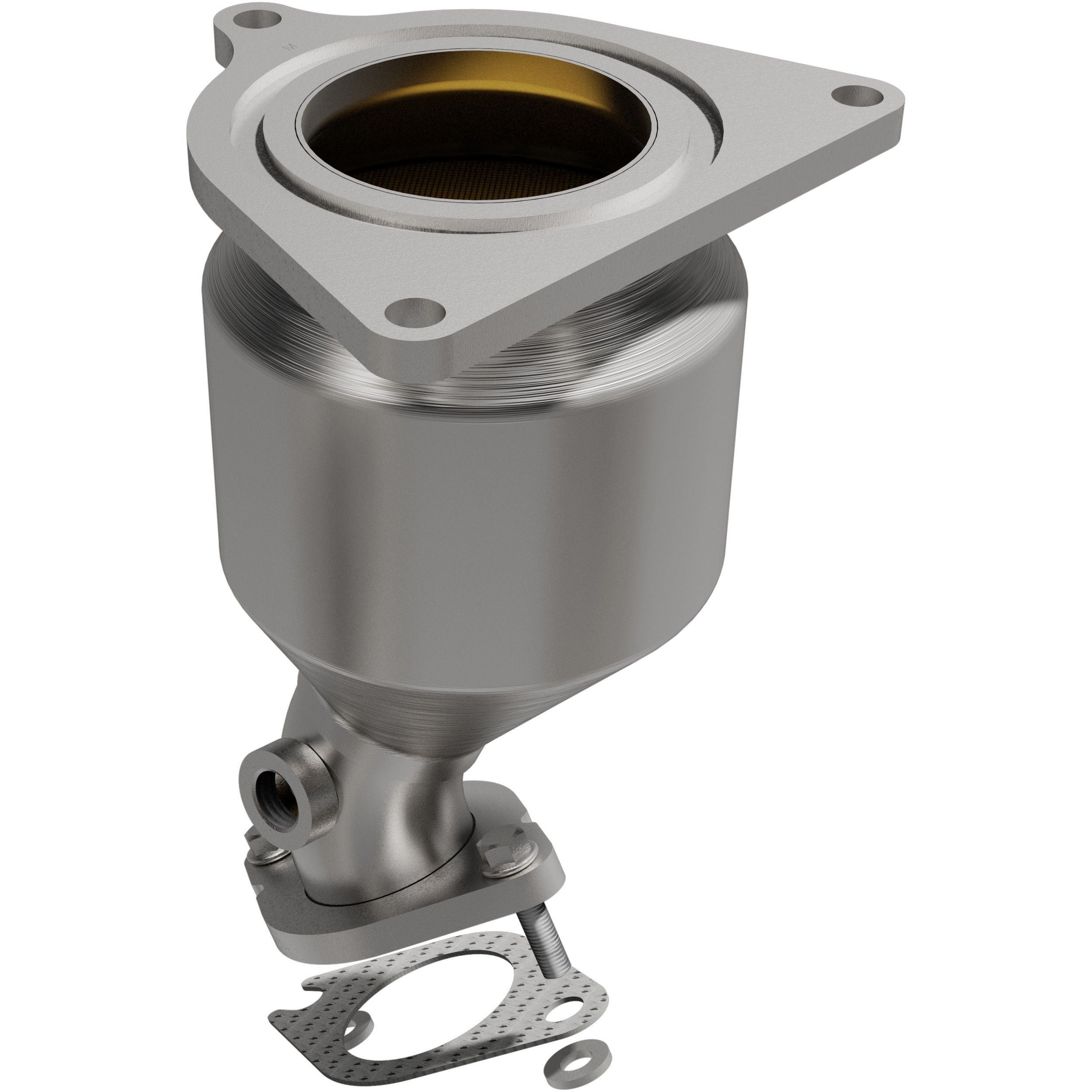

2010 - 2012 Ford Escape Catalytic Converter - Front Right (Magnaflow) NEW

Out of Stock
$ 1,389 .00

Product Notes

Position: Front Right (Passenger Side)
CARB Executive Order D-193-148 Engine Family Number (EFN) AFMXT03.01DE Engine Family Number (EFN) AFMXT03.01DG Legal For Sale In All 50 States Including California, Colorado and New York (CARB Certified)

Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5582686. DIY installation is easy with the proper tools (no cutting or welding required). With features including mandrel-bent tubing to eliminate flow restrictions and stainless steel construction to resist corrosion, you can have confidence in the quality of this catalytic converter. Using state-of-the-art 3D scanning systems in the design process, the MagnaFlow metrology department ensures this new part to fit and function like the original equipment. This direct-fit catalytic converter is designed to fit the 2010-2012 Ford Escape and 2010-2011 Mercury Mariner. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Brand: Magnaflow
Condition: New
See Other Ford Escape Catalytic Converters
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Air Tube Count 0
Body Material Stainless Steel
CARB Executive Order Number D-193-148
California Air Resources Board (CARB) Certified Yes
Clamps Included No
Finish Stainless Steel
Grade Type Regular
Hangers Included No
Heat Shield Attached No
Inlet Gasket Included No
Inlet Mounting Hardware Included No
Outlet Gasket Included Yes
Outlet Mounting Hardware Included Yes
Oxygen Sensor Location Post Converter
Prop 65 Y/N No
Sensor Port Count 1
Series California
Substrate Material Ceramic
Title Magnaflow California Grade Carb Compliant Direct-fit Catalytic Converter 5582686
Tube Material Stainless Steel

Vehicle Fitment Guide

This part fits the following vehicles:

Ford 1 model (tapclick to expand)(tapclick to hide)
Escape 2010-2012 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Hybrid SUV 2010 - 2012 L4 2.5L FULL HYBRID EV-GAS (FHEV) FWD/4WD Automatic CVT
Limited SUV 2010 - 2012 L4 2.5L FWD/4WD Automatic
Limited SUV 2010 - 2012 V6 3.0L FWD Automatic
Limited SUV 2010 - 2012 V6 3.0L FLEX FWD/4WD Automatic
Limited Hybrid SUV 2010 - 2012 L4 2.5L FULL HYBRID EV-GAS (FHEV) FWD/4WD Automatic CVT
Limited Plus SUV 2011 - 2012 V6 3.0L FWD Automatic
XLS SUV 2010 - 2012 L4 2.5L FWD/4WD Automatic & Manual
XLS SUV 2010 V6 3.0L FWD Automatic
XLT SUV 2010 - 2012 L4 2.5L FWD/4WD Automatic
XLT SUV 2010 V6 3.0L FWD Automatic
XLT SUV 2010 - 2012 V6 3.0L FLEX FWD/4WD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5582686. DIY installation is easy with the proper tools (no cutting or welding required). With features including mandrel-bent tubing to eliminate flow restrictions and stainless steel construction to resist corrosion, you can have confidence in the quality of this catalytic converter. Using state-of-the-art 3D scanning systems in the design process, the MagnaFlow metrology department ensures this new part to fit and function like the original equipment. This direct-fit catalytic converter is designed to fit the 2010-2012 Ford Escape and 2010-2011 Mercury Mariner. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.

Fits Years: 2010 2011 2012

Fits Models: Escape
