| Attribute | Value |
|---|---|
| Abutment Clips Included | Yes |
| Attribute ID (Type) | California Proposition 65 |
| Axle Leading/Trailing [cntrc] | Trailing |
| Bare Bracket Weight [cntrc] Lbs | 2.65 |
| Bleeder Install Thread Count [cntrc] In | 4.5 |
| Bleeder Screw Included | Yes |
| Bleeder Screw Included [cntrc] | Yes |
| Bleeder Screw Thread Diameter | 0.375, 3/8"-24 |
| Bleeder Screw Thread Size | 3/8"-24 |
| Bore Size(s) Millimeters | 54/54 |
| Bracket # [cntrc] | 743.65095 |
| Bracket Included | Yes |
| Bracket Mounting Bolts Include | No |
| Bracket Required (Y/N) | Yes |
| Bracket Required [cntrc] | Yes |

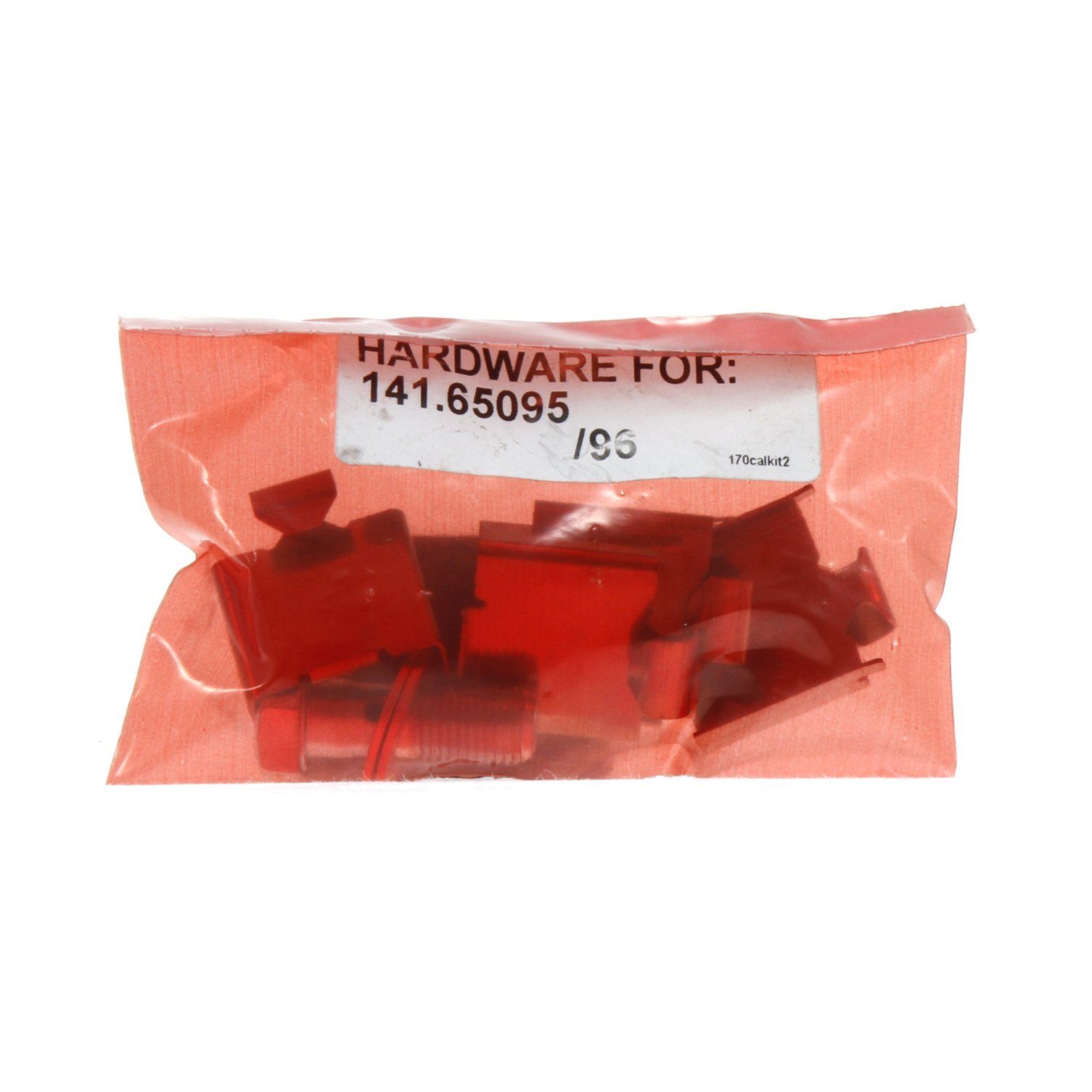

| Caliper & Pad Hardware Include | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.65033 |
| Caliper Color | Gray |
| Caliper Manufacturer [cntrc] | Fomoco |
| Caliper Type | Floating |
| Car Position [cntrc] | Left Front |
| Casting Material | Cast Iron |
| Casting Number | 16905101; 2b120/1; |
| Color | Gray |
| Disc Brake Caliper Casting Material | Cast Iron |
| Finish | Rust Preventative |
| Finish [cntrc] | Rust Preventative |
| Friction Materials Standards Institute Pad Number | 10x.14140 |
| Hardware Kit# [cntrc] | 117.65034 |
| Inlet Fitting Type | Banjo |
| Inlet Thread Diameter | 0.375, 3/8"-24 |
| Inlet Thread Size | 3/8"-24 |
| Mount Thread Size [cntrc] Mm | M16-1.50 |
| Mounting Hardware Included | No |
| New Or Ramanufactured [cntrc] | Remanufactured |
| New Or Remanufactured | Remanufactured |
| Pad Wear Sensor Included | No |
| Pads Included | No |
| Piston Diameter | 2.126, 54.000 |
| Piston Material | Phenolic |
| Piston Quantity | 2 |
| Product Grade [cntrc] | Premium |
| Published Bore Size [cntrc] | 54 |
| Root Core# [cntrc] | 65096 |
| Rust Preventative Coating | Yes |
| Rust Preventative Coating [cntrc] | Yes |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| EL Eddie Bauer | SUV | 2010 | V8 5.4L FLEX | RWD/4WD Automatic |
| EL King Ranch | SUV | 2015 - 2017 | V6 3.5L Turbo | RWD/4WD Automatic |
| EL King Ranch | SUV | 2010 - 2014 | V8 5.4L FLEX | RWD/4WD Automatic |
| EL Limited | SUV | 2015 - 2017 | V6 3.5L Turbo | RWD/4WD Automatic |
| EL Limited | SUV | 2010 - 2014 | V8 5.4L FLEX | RWD/4WD Automatic |
| EL Platinum | SUV | 2015 - 2017 | V6 3.5L Turbo | RWD/4WD Automatic |
| EL SSV | SUV | 2016 - 2017 | V6 3.5L Turbo | 4WD Automatic |
| EL XL | SUV | 2015 - 2017 | V6 3.5L Turbo | RWD/4WD Automatic |
| EL XL | SUV | 2011 - 2014 | V8 5.4L FLEX | RWD/4WD Automatic |
| EL XLT | SUV | 2015 - 2017 | V6 3.5L Turbo | RWD/4WD Automatic |
| EL XLT | SUV | 2010 - 2014 | V8 5.4L FLEX | RWD/4WD Automatic |
| Eddie Bauer | SUV | 2010 | V8 5.4L FLEX | RWD/4WD Automatic |
| King Ranch | SUV | 2015 - 2017, 2020 - 2021 | V6 3.5L Turbo | RWD/4WD Automatic |
| King Ranch | SUV | 2010 - 2014 | V8 5.4L | RWD Automatic |
| King Ranch | SUV | 2010 - 2014 | V8 5.4L FLEX | RWD/4WD Automatic |
| Limited | SUV | 2016 | V6 3.5L Turbo | AWD Automatic |
| Limited | SUV | 2015 - 2021 | V6 3.5L Turbo | RWD/4WD Automatic |
| Limited | SUV | 2010 - 2014 | V8 5.4L | RWD Automatic |
| Limited | SUV | 2010 - 2014 | V8 5.4L FLEX | RWD/4WD Automatic |
| Max Eddie Bauer | SUV | 2010 | V8 5.4L FLEX | 4WD Automatic |
| Max King Ranch | SUV | 2020 - 2021 | V6 3.5L Turbo | RWD/4WD Automatic |
| Max King Ranch | SUV | 2010 - 2011 | V8 5.4L FLEX | 4WD Automatic |
| Max Limited | SUV | 2015 - 2021 | V6 3.5L Turbo | RWD/4WD Automatic |
| Max Limited | SUV | 2015 - 2016 | V6 3.5L Turbo | AWD Automatic |
| Max Limited | SUV | 2014 | V8 5.4L FLEX | RWD Automatic |
| Max Limited | SUV | 2013 - 2014 | V8 5.4L | RWD Automatic |
| Max Limited | SUV | 2010 - 2014 | V8 5.4L FLEX | 4WD Automatic |
| Max Platinum | SUV | 2018 - 2021 | V6 3.5L Turbo | RWD Automatic |
| Max Platinum | SUV | 2016 - 2021 | V6 3.5L Turbo | 4WD Automatic |
| Max SSV | SUV | 2018 - 2021 | V6 3.5L Turbo | RWD/4WD Automatic |
| Max XL | SUV | 2018 - 2019 | V6 3.5L Turbo | 4WD Automatic |
| Max XL | SUV | 2015 - 2019 | V6 3.5L Turbo | RWD Automatic |
| Max XL | SUV | 2014 | V8 5.4L | RWD Automatic |
| Max XL | SUV | 2011 | V8 5.4L FLEX | 4WD Automatic |
| Max XLT | SUV | 2018 - 2021 | V6 3.5L Turbo | RWD/4WD Automatic |
| Platinum | SUV | 2015 - 2021 | V6 3.5L Turbo | RWD/4WD Automatic |
| SSV | SUV | 2018 - 2021 | V6 3.5L Turbo | RWD Automatic |
| SSV | SUV | 2016 - 2021 | V6 3.5L Turbo | 4WD Automatic |
| XL | SUV | 2015 - 2019 | V6 3.5L Turbo | RWD/4WD Automatic |
| XL | SUV | 2011 - 2014 | V8 5.4L FLEX | RWD/4WD Automatic |
| XLT | SUV | 2015 - 2021 | V6 3.5L Turbo | RWD/4WD Automatic |
| XLT | SUV | 2010 - 2014 | V8 5.4L FLEX | RWD/4WD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| BBB Industries | 89X17970B |
| BBB Industries | AI17970L |
| CARDONE Reman | 185237 |
| CARDONE Reman | 18B5237 |
| CARDONE Reman | 5237 |
| Casting Numbers | 169048 |
| Casting Numbers | 16905101 |
| Casting Numbers | 2B120/1 |
| Casting Numbers | AL3Z2B292A |
| Casting Numbers | CL3Z2B292B |
| Cookie Dough Bites | C5237 |
| Delco-Remy | 18FR2738 |
| Ford Genuine Parts | BRCLF52 |
| Formula Blue Hydraulic Brake Parts | E146-70-101 |
| Formula Blue Hydraulic Brake Parts | E14670101 |
| King Kalipers | 6934 |
| NAPA Brake Calipers | 24275788A |
| Nugeon | 2217970L |
| Nugeon | 9917970B |
| OEM Part Number | AL3Z2B121A |
| OEM Part Number | AL3Z2B121AA |
| OEM Part Number | AL3Z2B121B |
| OEM Part Number | AL3Z2B121C |
| OEM Part Number | JL1Z2B121A |
| Quality Rebuilders Corporation | 69862 |
| Raybestos Brakes | FRC12170 |
| Raybestos Brakes | RC12170 |
| UCX | 1013392 |
| UCX | 10339293 |
| UCX | 103392S |
| Wagner Brake | CRB141375 |
Fits Years: 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
Fits Models: Expedition
