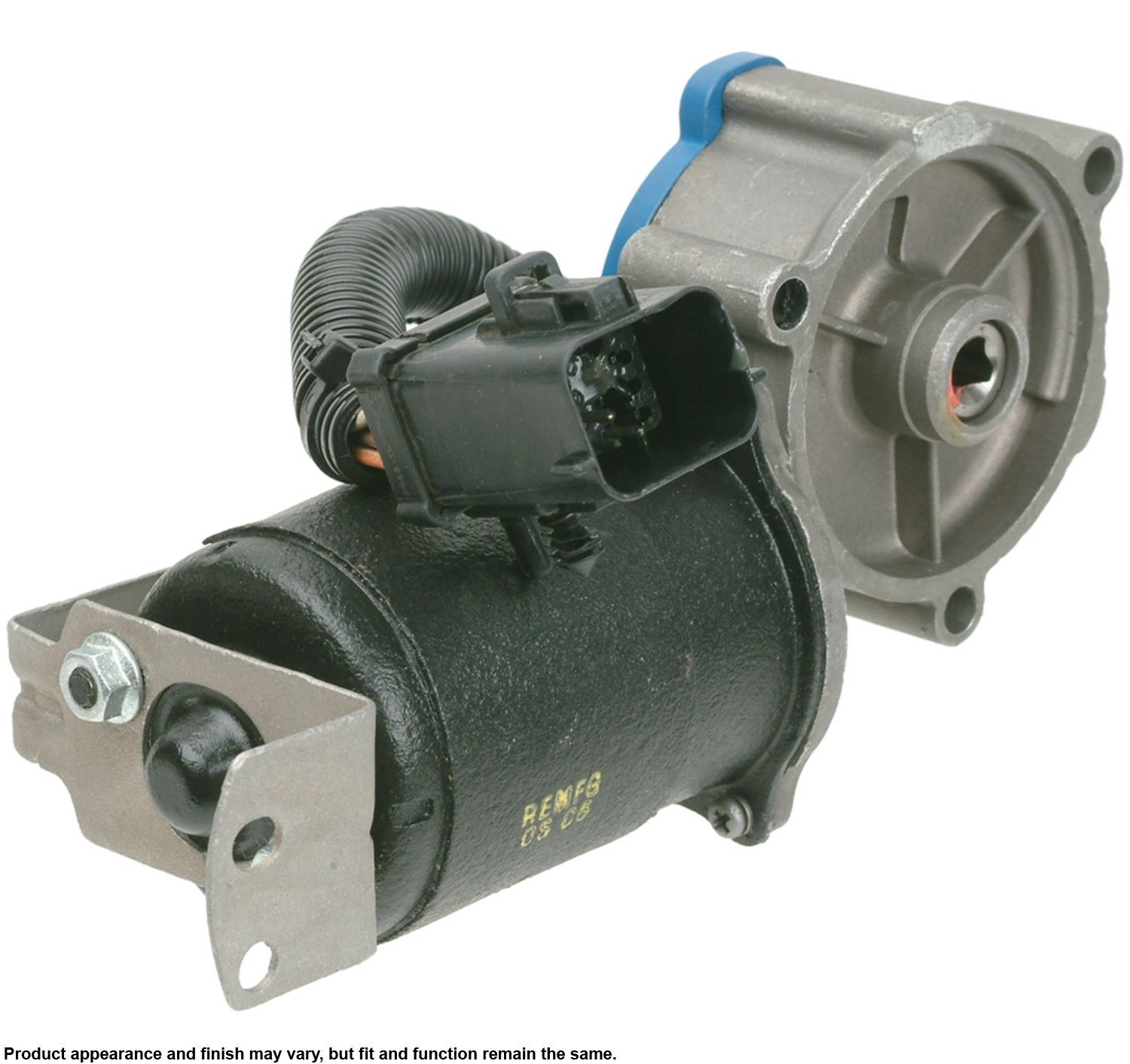

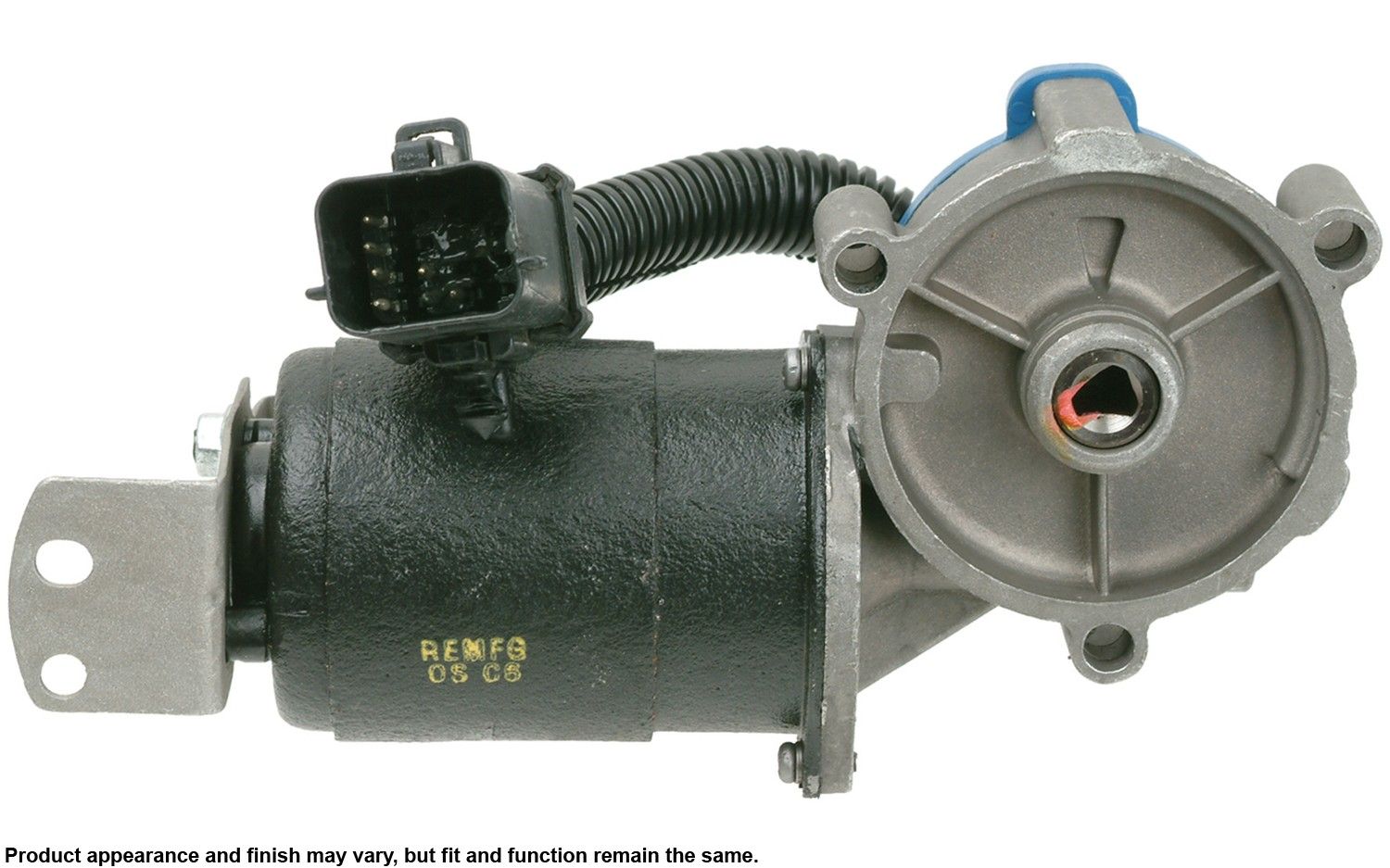

1996 - 2004 Ford F-150 Transfer Case Motor (Cardone) NEW

Price today
$219.17
− $16.20 core refund
YOUR NET COST
$202.97
after returning your old part

Product Notes

with 7 Pin Connector with Rectangular Plug
Remanufactured Transfer Case Motor
CARDONE Remanufactured Transfer Case Motors are designed to meet or exceed O.E. performance. Reverse engineering provides insight into how and why the unit originally failed, allowing our engineers to identify and correct original design weaknesses. Each unit is 100% computer tested at three points during the remanufacturing process to ensure reliability. CARDONE is committed to getting your vehicle back to peak performance with our direct-replacement transfer case motors.
Brand: Cardone
Condition: New
See Other Ford F-150 Transfer Case Motors
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Connector Gender Female
Connector Quantity 1
Connector Shape Rectangle
Contains Electronic Components No
Does It Require SDS No
FAA A1 Do Not Operate The Motor While It Is Off The Transfer Case. This Can Damage The Motor And Set An Error Code That Must Be Cleared Before The Motor Will Operate Again. Shift The Transfer Case Into The Position Of The Motor To Install.
FAA A2 Yes, The Transfer Case Should Be Manually Shifted Into The Two-wheel Drive Position At The Shift Shaft Before The Installation Of The Replacement Motor. Typically The Positions Are Spring-loaded And Can Be Rotated Manually.
FAA A3 A Crescent Wrench Can Be Used For This Operation.
FAA A4 The Replacement Motor Drive Is Factory-set In The 2 Wheel Drive Position.
FAA A5 This May Be Caused By A Transfer Case Control Module Calibration Issue. Check For Dtc's And Calibration Version ? There May Be A Software Update From The Original Equipment Manufacturer.
FAQ Q1 The Replacement Motor Drive Is In A Different Position, Can I Reposition Before Installing?
FAQ Q2 Can I Install The Replacement Motor If My Transfer Case Motor Failed In 4 Wheel Drive Low Or High?
FAQ Q3 What Tool Can I Use To Manually Shift The Transfer Case Into The Two-wheel Drive Position Before I Install The Replacement Motor?
FAQ Q4 What Drivetrain Position Is The Replacement Motor Drive Placed In?
FAQ Q5 The Service 4wd Light Is On And/or The 4wd Is Inoperative. What Could Cause This Condition?
FAQ Q6 If The Motor Attempts To Shift, But Sounds Weak, Check The Front Axle Lock Actuator. If The Axle Lock Does Not Engage, The Motor Cannot Complete Its Engagement.
Gear Of Chain Type Gear
Grade Type Performance
Is Item A Chemical No
Is Or Contains A Battery No
Is Or Contains A Bulb No
Is Prop Sixty Five Affected No
Is The Item CARB Affected No
Mounting Hardware Included No
Mounting Hole Quantity 3
Product Condition Remanufactured
Shift Operation Type Electronic
Sprocket Tooth Quantity 3
Terminal Gender Male
Terminal Quantity 7
Terminal Type Pin
Wire Quantity 7
Wiring Harness Included Yes
Wiring Harness Length 10.5, 266.7
