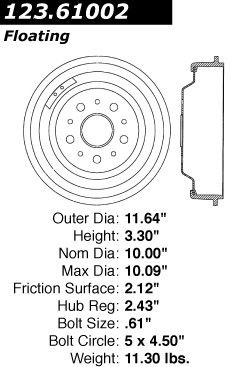

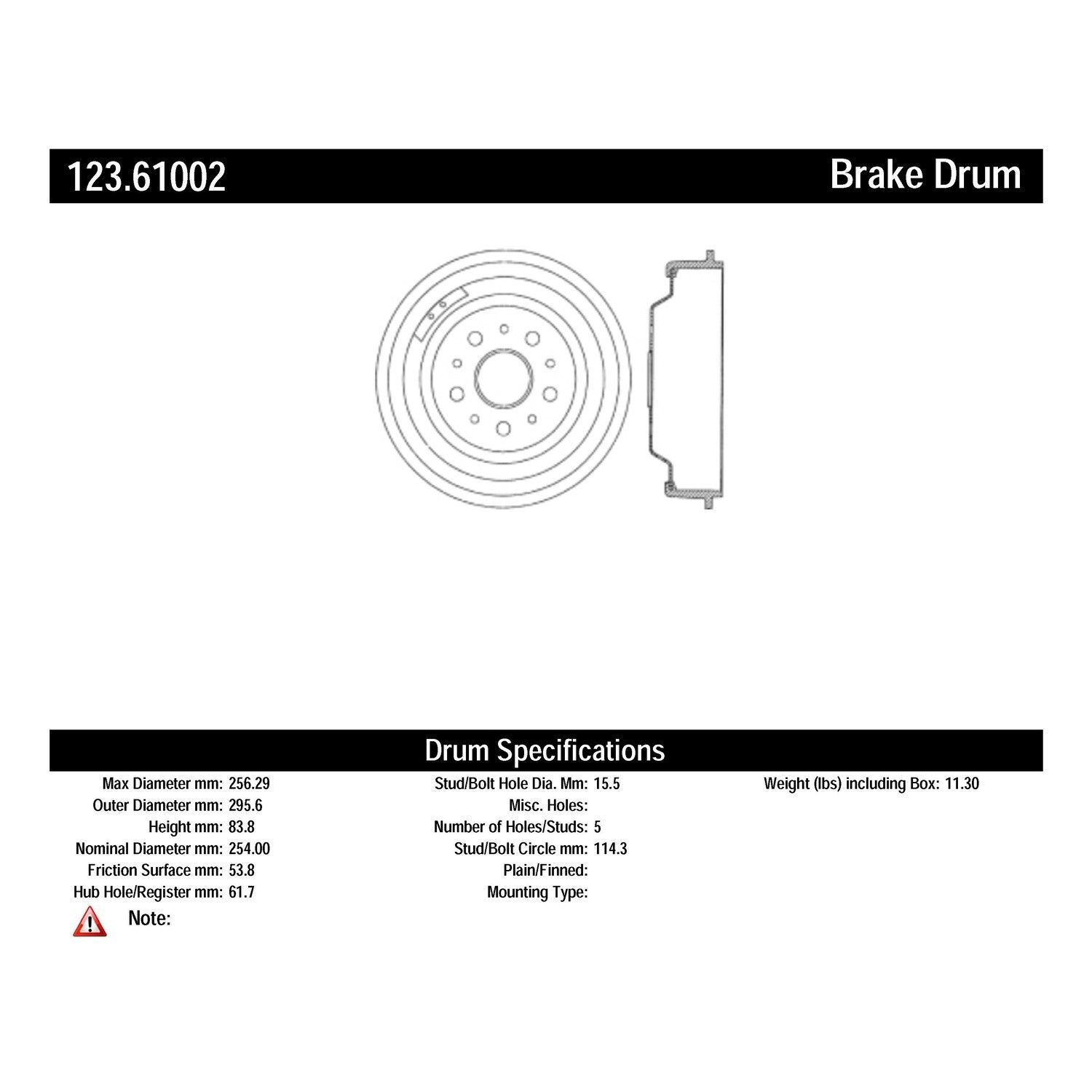

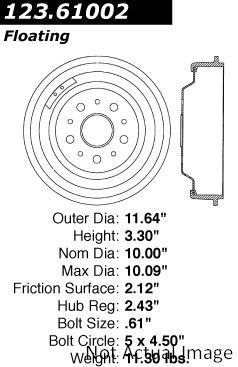

| Attribute | Value |
|---|---|
| 114.3 | |
| Attribute ID (Type) | California Proposition 65 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Hole Quantity | 5 |
| Friction Surface Width [cntrc] In | 2.120 |
| Friction Surface Width [cntrc] Mm | 53.848 |
| Friction Surface Mm | 53.8 |
| Height [cntrc] In | 3.300 |
| Height [cntrc] Mm | 83.820 |
| Hub Hole / Register [cntrc] In | 2.430 |
| Hub Hole / Register [cntrc] Mm | 61.722 |
| Maximum Brake Diameter (Discard) | 10.090, 256.29, 256.300 |
| Mounting Hole Diameter | 0.610, 15.494 |
| Mounting Type [cntrc] | Floating |
| Nominal Drum Diameter | 10.000, 254.00, 254.000 |
| Outer Cooling Fins | No |
| Product Grade [cntrc] | Standard |
| Weight [cntrc] Kgs | 5.136 |
| Weight [cntrc] Lbs | 11.300 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Standard Cab Pickup | 1965 | V8 4.7L | RWD Automatic & Manual & U/K |
| Base | Standard Cab Pickup | 1964 - 1965 | L6 3.3L | RWD Automatic & Manual & U/K |
| Base | Standard Cab Pickup | 1963 - 1964 | L6 2.4L | RWD Automatic & Manual & U/K |
| Base | Standard Cab Pickup | 1963 - 1965 | L6 2.8L | RWD Automatic & Manual & U/K |
| Base | Standard Cab Pickup | 1963 - 1964 | V8 4.3L | RWD Automatic & Manual & U/K |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Autospecialty | AD8102E |
| Bendix | 140127 |
| BrakeBest | 2623DGS |
| Brembo | 23038 |
| Canadian Tire | 123.61002 |
| Delco-Remy | 177 76 |
| Delco-Remy | 17776 |
| Delta | 78-34002 |
| Delta | 7834002 |
| Delta | 78834002 |
| EIS Brakes | D2623 |
| GWB | 87002 |
| IAP/Kuhltek Motorwerks | BD8193 |
| IPI | 874 |
| Midas | BD1096 |
| Mighty Distributing System | 8193 |
| OEM Part Number | C2OZ1126A |
| OEM Part Number | C3OZ1126B |
| Pep Boys | 8193G |
| Raybestos Brakes | 102623 |
| Raybestos Brakes | 2623 |
| Raybestos Brakes | 2623R |
| Universal | 202930 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X21031 |
| Wagner Brake | 52-60058 |
| Wagner Brake | 5260058 |
| Wagner Brake | BD60058 |
Fits Years: 1963 1964 1965
Fits Models: Ranchero
