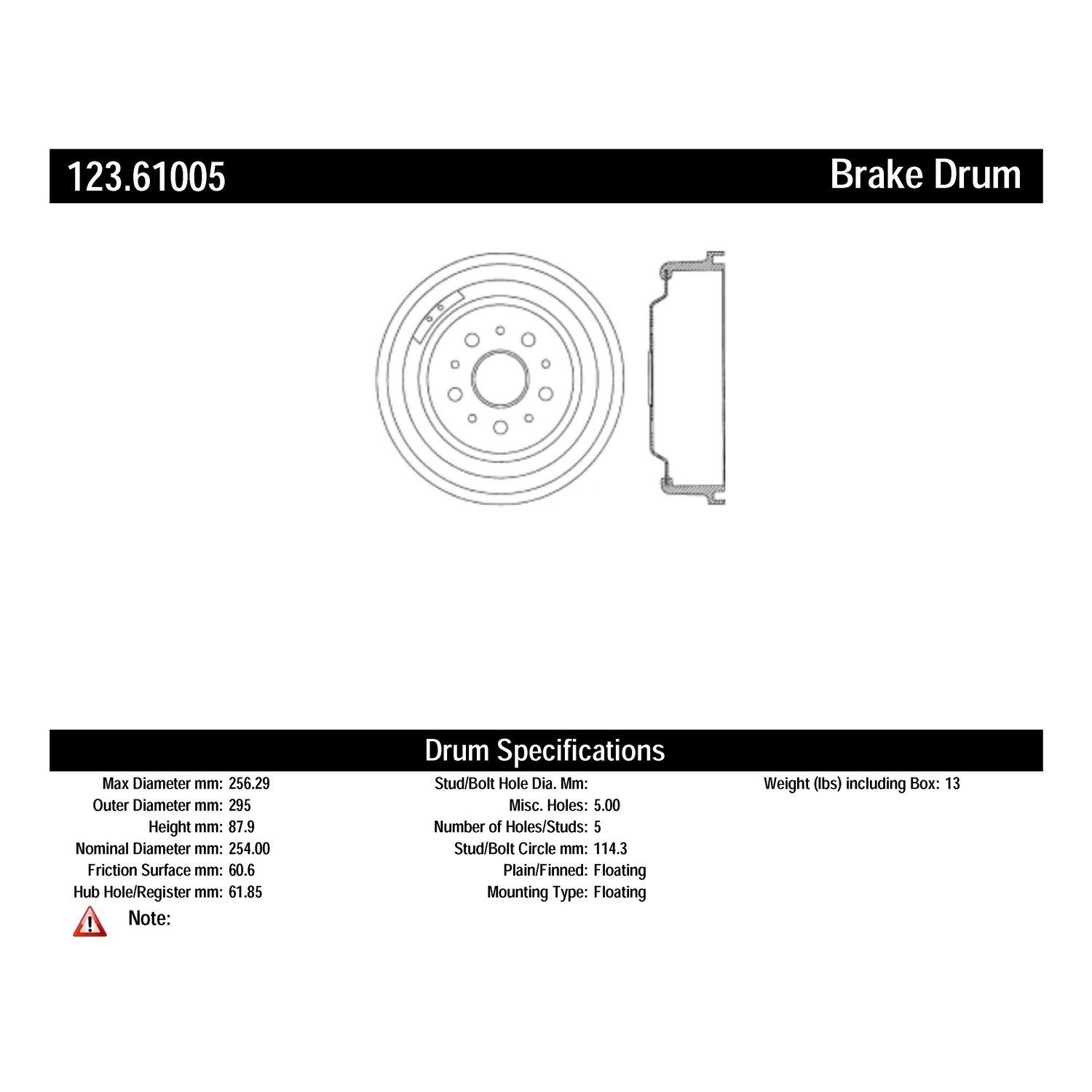

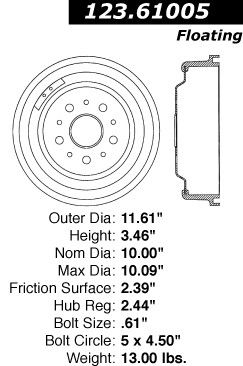

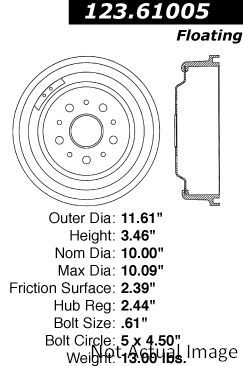

| Attribute | Value |
|---|---|
| 114.3 | |
| Attribute ID (Type) | California Proposition 65 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Hole Quantity | 5 |
| Friction Surface Width [cntrc] In | 2.390 |
| Friction Surface Width [cntrc] Mm | 60.706 |
| Friction Surface Inches | 2.39 |
| Friction Surface Mm | 60.6 |
| Height [cntrc] In | 3.460 |
| Height [cntrc] Mm | 87.884 |
| Hub Hole / Register [cntrc] In | 2.440 |
| Hub Hole / Register [cntrc] Mm | 61.976 |
| Maximum Brake Diameter (Discard) | 10.090, 256.29, 256.300 |
| Misc Holes [cntrc] | 5 |
| Mounting Hole Diameter | 0.61, 0.610, 15.494 |
| Mounting Type [cntrc] | Floating |
| Nominal Drum Diameter | 10.000, 254.00, 254.000 |
| Outer Cooling Fins | No |
| Product Grade [cntrc] | Standard |
| Weight [cntrc] Kgs | 5.909 |
| Weight [cntrc] Lbs | 13.000 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 500 | Standard Cab Pickup | 1970 - 1971 | L6 4.1L | RWD U/K |
| 500 | Standard Cab Pickup | 1969 | -- -L | RWD U/K |
| 500 | Standard Cab Pickup | 1969 - 1971 | V8 5.8L | RWD U/K |
| 500 | Standard Cab Pickup | 1968 - 1971 | V8 5.0L | RWD U/K |
| 500 | Standard Cab Pickup | 1968 - 1971 | V8 7.0L | RWD U/K |
| 500 | Standard Cab Pickup | 1967 - 1968 | L6 3.3L | RWD U/K |
| 500 | Standard Cab Pickup | 1967 | V8 4.7L | RWD U/K |
| 500 | Standard Cab Pickup | 1967 - 1969 | V8 6.4L | RWD U/K |
| 500 XL | Standard Cab Pickup | 1967 | L6 3.3L | RWD U/K |
| 500 XL | Standard Cab Pickup | 1967 | V8 4.7L | RWD U/K |
| 500 XL | Standard Cab Pickup | 1967 | V8 6.4L | RWD U/K |
| Base | Standard Cab Pickup | 1969 - 1971 | L6 4.1L | RWD Automatic & Manual & U/K |
| Base | Standard Cab Pickup | 1968 - 1971 | V8 5.0L | RWD Automatic & Manual & U/K |
| Base | Standard Cab Pickup | 1968 - 1971 | V8 7.0L | RWD Automatic & Manual & U/K |
| Base | Standard Cab Pickup | 1967 - 1969 | V8 6.4L | RWD Automatic & Manual & U/K |
| Base | Standard Cab Pickup | 1966 - 1968 | L6 3.3L | RWD Automatic & Manual & U/K |
| Base | Standard Cab Pickup | 1966 - 1967 | V8 4.7L | RWD Automatic & Manual & U/K |
| Base | Standard Cab Pickup | 1966 - 1967, 1969 - 1971 | V8 5.8L | RWD Automatic & Manual & U/K |
| Custom | Standard Cab Pickup | 1966 | L6 3.3L | RWD U/K |
| Custom | Standard Cab Pickup | 1966 | V8 4.7L | RWD U/K |
| GT | Standard Cab Pickup | 1969 - 1971 | L6 4.1L | RWD U/K |
| GT | Standard Cab Pickup | 1969 - 1971 | V8 5.8L | RWD U/K |
| GT | Standard Cab Pickup | 1968 | L6 3.3L | RWD U/K |
| GT | Standard Cab Pickup | 1968 - 1971 | V8 5.0L | RWD U/K |
| GT | Standard Cab Pickup | 1968 - 1969 | V8 6.4L | RWD U/K |
| GT | Standard Cab Pickup | 1968 - 1971 | V8 7.0L | RWD U/K |
| Squire | Standard Cab Pickup | 1970 - 1971 | L6 4.1L | RWD U/K |
| Squire | Standard Cab Pickup | 1970 - 1971 | V8 5.0L | RWD U/K |
| Squire | Standard Cab Pickup | 1970 - 1971 | V8 5.8L | RWD U/K |
| Squire | Standard Cab Pickup | 1970 - 1971 | V8 7.0L | RWD U/K |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Autospecialty | AD8105 |
| Autospecialty | AD8105E |
| Bendix | 140136 |
| Bendix | PDR0136 |
| BrakeBest | 2637DGS |
| Canadian Tire | 123.61005 |
| Canadian Tire | 8736 |
| Carquest | YH140136 |
| Delco-Remy | 177100 |
| Delta | 78834005 |
| Delta | 8834005 |
| EIS Brakes | D2637 |
| Formula Blue Hydraulic Brake Parts | E127-66-010 |
| Formula Blue Hydraulic Brake Parts | E12766010 |
| Formula Blue Hydraulic Brake Parts | E128-66-010 |
| GWB | 87005 |
| IAP/Kuhltek Motorwerks | BD8736 |
| IPI | 850 |
| Midas | BD1099 |
| OEM Part Number | C2OZ1126B |
| OEM Part Number | D2OZ1126A |
| Pep Boys | 8736G |
| Raybestos Brakes | 102637 |
| Raybestos Brakes | 2637 |
| Raybestos Brakes | 2637R |
| Universal | 202360 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X21368 |
| Wagner Brake | BD60127 |
Fits Years: 1966 1967 1968 1969 1970 1971
Fits Models: Ranchero
