2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005, 2004 GMC Canyon Suspension Shock Absorber

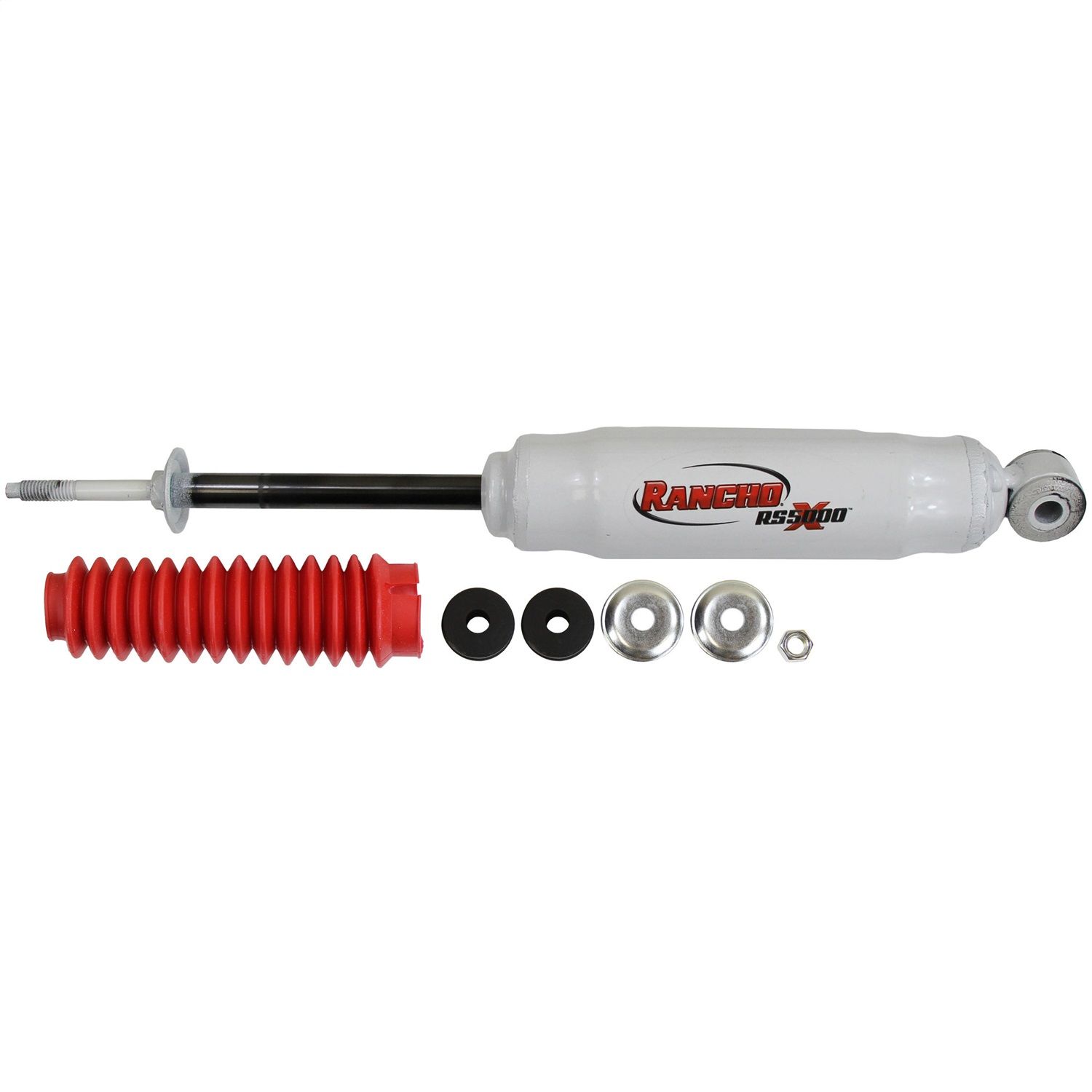

2004 - 2012 GMC Canyon Suspension Shock Absorber - Front (Rancho) NEW

Out of Stock
$ 98 .12
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Position: Front
⚠️ Most jobs typically require 2 of this item.
with Front Raised Height 1.0 (in) to 2.5 (in) Not for use with aftermarket shock spacers or relocation brackets.
RS5000X
Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.
Brand: Rancho
Condition: New
See Other GMC Canyon Suspension Shock Absorbers
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Active Or Passive Suspension Passive
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Adjustable Ride Height No
Air Adjustable No
Air Ride Suspension No
Bearing Plate Included No
Bladder Heavy Duty Crimping Rings Included No
Bladder Sleeve(s) Included No
Bladder(s) Included No
Body Color White
Body Diameter 2.25, 57.2
Body Material Steel
Boot Included Yes
Coil Over Springs Included No
Coil Spring Insulator(s) Included No
Compressed Length 10.28, 261.1
Cylinder Color White
Cylinder Finish Painted
Cylinder Material Steel
Cylinder Outside Diameter 2.25, 57.2
Dust Shield Color Red
Dust Shield Diameter 2.99, 75.946
Dust Shield Included Yes
Dust Shield Material Rubber
Extended Length 16.12, 409.4
Gas Charged Yes
Grade Type Performance
Hydraulic Lockout No
Includes Bump Stop No
Internal Construction Type Twin Tube
Internal Rebound Bumper Yes
Internal Rebound Spring No
Lower Mount Code Ls38
Lower Mount Type Loop Bushing And Sleeve Mount - 1/2" Sleeve Id X 1.1/2" Sleeve Oal
Maximum Ride Height Lowering Distance 0
Maximum Ride Height Raising Distance 0
Mounting Hardware Included Yes
Parts Pack(s) P01135
Remote Reservoir No
Rod Diameter 0.622, 15.8
Self Leveling No
Shaft Material Nitrocarburized
Shock Absorber Body End Measuring Point Base Of Stem
Shock Absorber Bore Size 1.3779527559055118, 35
Shock Absorber Rod End Measuring Point Center Of Loop
Shock Stroke 148.3, 5.84
Spring Included No
Spring Isolators Included No
Spring Seat Included No
Strut Mount Insulator(s) Included No
Travel Length 148.3, 5.84
Upper Mount Code S42
Upper Mount Type Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Valving Type Progressive

Vehicle Fitment Guide

This part fits the following vehicles:

GMC 1 model (tapclick to expand)(tapclick to hide)
Canyon 2004-2012 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Crew Cab Pickup 2008 - 2012 L5 3.7L 4WD Automatic
Base Crew Cab Pickup 2007 L5 3.7L AWD Automatic
SL Crew Cab Pickup 2004 L4 2.8L RWD/4WD Automatic & Manual
SL Crew Cab Pickup 2004 L5 3.5L RWD/4WD Automatic & Manual
SL Extended Cab Pickup 2007 - 2008 L4 2.9L RWD/4WD Automatic & Manual
SL Extended Cab Pickup 2004, 2006 L4 2.8L RWD/4WD Automatic & Manual
SL Extended Cab Pickup 2004 L5 3.5L RWD/4WD Automatic & Manual
SL Standard Cab Pickup 2007 - 2008 L4 2.9L RWD/4WD Automatic & Manual
SL Standard Cab Pickup 2004, 2006 L4 2.8L RWD/4WD Automatic & Manual
SL Standard Cab Pickup 2004 L5 3.5L RWD/4WD Automatic & Manual
SLE Crew Cab Pickup 2009 - 2012 V8 5.3L RWD/4WD Automatic & Manual
SLE Crew Cab Pickup 2007 - 2012 L4 2.9L RWD/4WD Automatic & Manual
SLE Crew Cab Pickup 2007 - 2012 L5 3.7L RWD/4WD Automatic & Manual
SLE Crew Cab Pickup 2004, 2006 L4 2.8L RWD/4WD Automatic & Manual
SLE Crew Cab Pickup 2004, 2006 L5 3.5L RWD/4WD Automatic & Manual
SLE Extended Cab Pickup 2009 - 2012 V8 5.3L RWD/4WD Automatic & Manual
SLE Extended Cab Pickup 2007 - 2012 L4 2.9L RWD/4WD Automatic & Manual
SLE Extended Cab Pickup 2007 - 2012 L5 3.7L RWD/4WD Automatic & Manual
SLE Extended Cab Pickup 2004, 2006 L4 2.8L RWD/4WD Automatic & Manual
SLE Extended Cab Pickup 2004, 2006 L5 3.5L RWD/4WD Automatic & Manual
SLE Standard Cab Pickup 2009 - 2012 V8 5.3L RWD/4WD Automatic & Manual
SLE Standard Cab Pickup 2007 - 2012 L4 2.9L RWD/4WD Automatic & Manual
SLE Standard Cab Pickup 2007 - 2012 L5 3.7L RWD/4WD Automatic & Manual
SLE Standard Cab Pickup 2004, 2006 L4 2.8L RWD/4WD Automatic & Manual
SLE Standard Cab Pickup 2004, 2006 L5 3.5L RWD/4WD Automatic & Manual
SLT Crew Cab Pickup 2009 - 2012 V8 5.3L RWD/4WD Automatic & Manual
SLT Crew Cab Pickup 2008 - 2009, 2012 L4 2.9L RWD/4WD Automatic & Manual
SLT Crew Cab Pickup 2007 - 2012 L5 3.7L RWD/4WD Automatic & Manual
SLT Crew Cab Pickup 2006 L5 3.5L RWD/4WD Automatic & Manual
SLT Extended Cab Pickup 2009 - 2012 V8 5.3L RWD/4WD Automatic & Manual
SLT Extended Cab Pickup 2008 - 2009, 2012 L4 2.9L RWD/4WD Automatic & Manual
SLT Extended Cab Pickup 2007 - 2012 L5 3.7L RWD/4WD Automatic & Manual
SLT Extended Cab Pickup 2006 L5 3.5L RWD/4WD Automatic & Manual
WT Extended Cab Pickup 2007 - 2012 L4 2.9L RWD/4WD Automatic & Manual
WT Extended Cab Pickup 2007 - 2012 L5 3.7L RWD/4WD Automatic & Manual
WT Extended Cab Pickup 2006 L4 2.8L RWD/4WD Automatic & Manual
WT Extended Cab Pickup 2006 L5 3.5L RWD/4WD Automatic & Manual
WT Standard Cab Pickup 2007 - 2012 L4 2.9L RWD/4WD Automatic & Manual
WT Standard Cab Pickup 2007 - 2012 L5 3.7L RWD/4WD Automatic & Manual
WT Standard Cab Pickup 2006 L4 2.8L RWD/4WD Automatic & Manual
WT Standard Cab Pickup 2006 L5 3.5L RWD/4WD Automatic & Manual
Z71 Fleet Crew Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z71 Fleet Crew Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z71 Fleet Extended Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z71 Fleet Extended Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z71 Fleet Standard Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z71 Fleet Standard Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z71 SL Crew Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z71 SL Crew Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z71 SL Extended Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z71 SL Extended Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z71 SL Standard Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z71 SL Standard Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z71 SLE Crew Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z71 SLE Crew Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z71 SLE Extended Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z71 SLE Extended Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z71 SLE Standard Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z71 SLE Standard Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z85 SL Crew Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z85 SL Crew Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z85 SL Extended Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z85 SL Extended Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z85 SL Standard Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z85 SL Standard Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z85 SLE Crew Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z85 SLE Crew Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z85 SLE Extended Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z85 SLE Extended Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Z85 SLE Standard Cab Pickup 2004 - 2005 L4 2.8L RWD/4WD Automatic & Manual
Z85 SLE Standard Cab Pickup 2004 - 2005 L5 3.5L RWD/4WD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.

Interchange Parts

Brand Part Number
Rancho RS5375

Fits Years: 2004 2005 2006 2007 2008 2009 2010 2011 2012

Fits Models: Canyon
