2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005 Subaru Outback Disc Brake Rotor
View 1
View 2
View 3

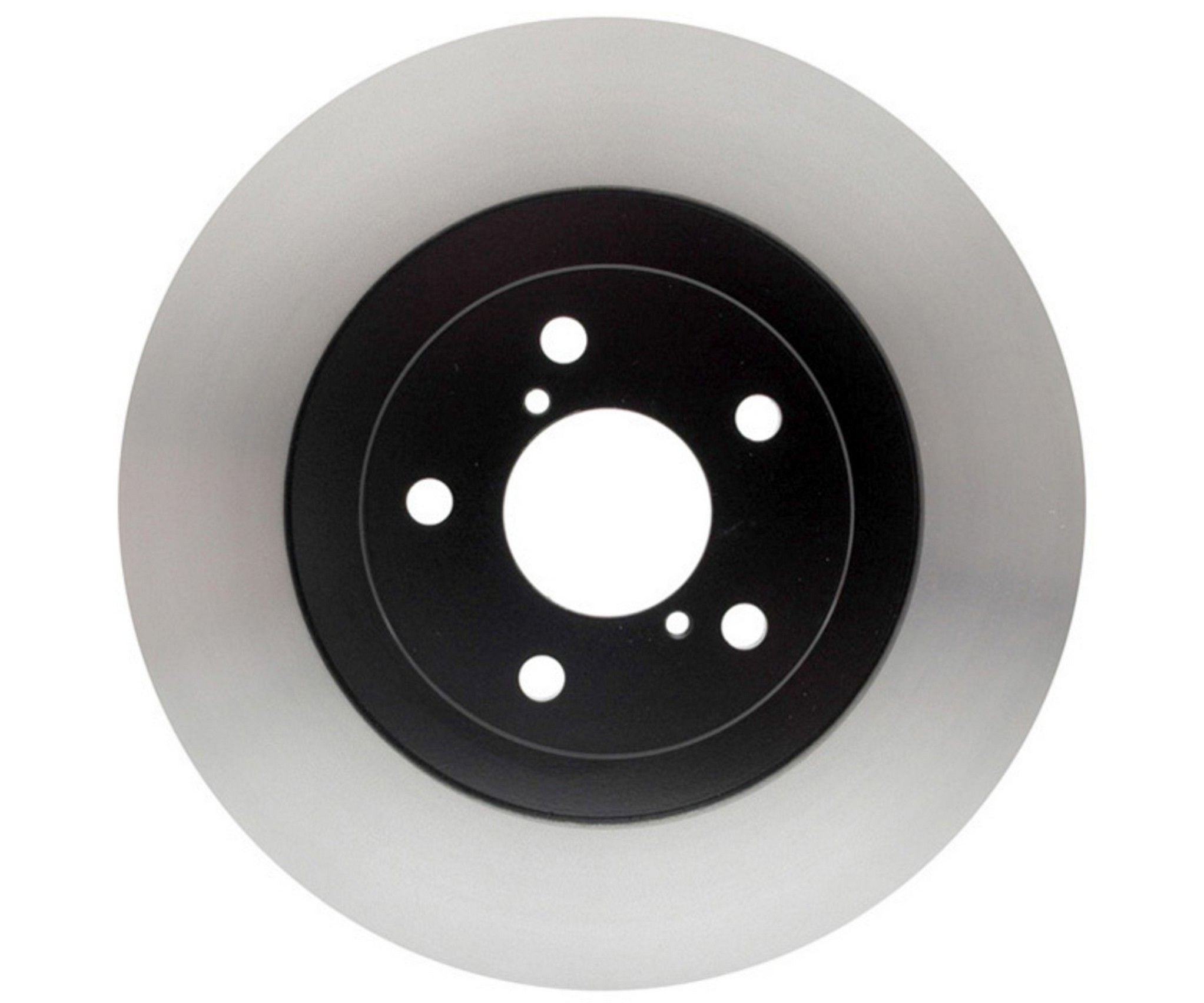

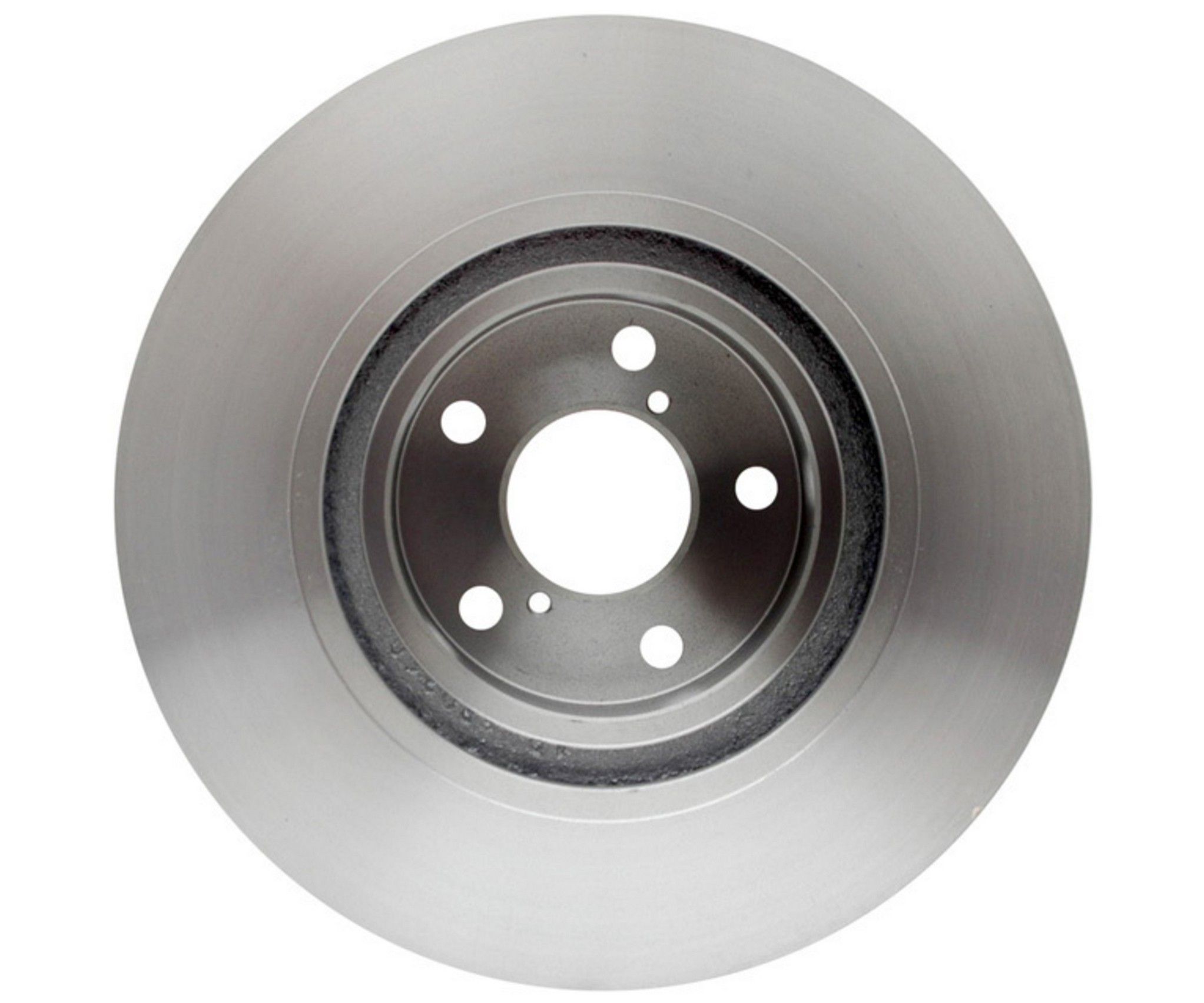

2005 - 2014 Subaru Outback Disc Brake Rotor - Front (Raybestos) NEW

$ 94 .97

Product Notes

Position: Front
⚠️ Most jobs typically require 2 of this item.

Raybestos Specialty - Street Performance

Brand: Raybestos
Condition: New
See Other Subaru Outback Disc Brake Rotors
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
ABS Tone Ring Included No
Center Hole Diameter 2.283, 58
Conventional Or Drum In Hat Type Rotor Conventional
Directional Or Non Directional Brake Surface Non-directional
Discard Thickness 0.866
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 3.93, 99.8
Mounting Bolt Hole Diameter 0.495, 12.55
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.945, 24
Overall Height 2.23, 56.65
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Vehicle Fitment Guide

This part fits the following vehicles:

Subaru 1 model (tapclick to expand)(tapclick to hide)
Outback 2005-2014 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
2.5 XT Wagon 2008 H4 2.5L Turbo AWD Automatic & Manual
2.5i Wagon 2010 - 2014 H4 2.5L AWD Automatic CVT
2.5i Wagon 2006 - 2014 H4 2.5L AWD Manual
2.5i Wagon 2006 - 2009, 2014 H4 2.5L AWD Automatic
2.5i Basic Wagon 2007 H4 2.5L AWD Automatic & Manual
2.5i Convenience Wagon 2014 H4 2.5L AWD Manual
2.5i Convenience Wagon 2013 - 2014 H4 2.5L AWD Automatic CVT
2.5i L.L. Bean Edition Wagon 2008 H4 2.5L AWD Automatic
2.5i Limited Sedan 2007 H4 2.5L AWD Automatic
2.5i Limited Wagon 2010 - 2014 H4 2.5L AWD Automatic CVT
2.5i Limited Wagon 2006, 2008 - 2009 H4 2.5L AWD Automatic
2.5i Limited Wagon 2006 H4 2.5L AWD Manual
2.5i Limited L.L. Bean Edition Wagon 2008 H4 2.5L AWD Automatic
2.5i Premium Wagon 2010 - 2014 H4 2.5L AWD Automatic CVT & Manual
2.5i Special Edition Wagon 2009 H4 2.5L AWD Automatic
2.5i Sport Wagon 2010 H4 2.5L AWD Automatic CVT & Manual
2.5i Touring Wagon 2012 - 2014 H4 2.5L AWD Automatic CVT & Manual
3.0 R Wagon 2007 - 2008 H6 3.0L AWD Automatic
3.0 R Limited Wagon 2009 H6 3.0L AWD Automatic
3.0 R Premier Wagon 2009 H6 3.0L AWD Automatic
3.6R Wagon 2010 - 2014 H6 3.6L AWD Automatic
3.6R Limited Wagon 2010 - 2014 H6 3.6L AWD Automatic
3.6R Premium Wagon 2010 - 2012 H6 3.6L AWD Automatic
Base Wagon 2010 - 2013 H6 3.6L AWD Automatic
Base Wagon 2008, 2010 - 2013 H4 2.5L AWD Automatic
Base Wagon 2008 H4 2.5L AWD Manual
Limited Wagon 2005, 2008, 2010 - 2014 H4 2.5L AWD Automatic
Limited Wagon 2005 H4 2.5L AWD Manual
Premier Wagon 2008 H4 2.5L AWD Automatic
R Sedan 2005 H6 3.0L AWD Automatic
R Wagon 2006 H6 3.0L AWD Automatic
R L.L. Bean Edition Sedan 2006 - 2007 H6 3.0L AWD Automatic
R L.L. Bean Edition Wagon 2005 - 2008 H6 3.0L AWD Automatic
R VDC Limited Wagon 2006 H6 3.0L AWD Automatic
Touring Wagon 2008 H4 2.5L AWD Automatic
VDC Limited Wagon 2005 H6 3.0L AWD Automatic
XT Wagon 2005 - 2008 H4 2.5L Turbo AWD Automatic
XT Wagon 2005 - 2006 H4 2.5L Turbo AWD Manual
XT Limited Wagon 2005 - 2009 H4 2.5L Turbo AWD Automatic & Manual
i Wagon 2005 H4 2.5L AWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Interchange Parts

Brand Part Number
Advance Auto Parts YH145657
Advance Auto Parts YH145657C
Advance Auto Parts YH145657P
Autoxtra AX900496
AutoZone 44306
AutoZone 44306DG
AutoZone 44306DL
Bendix 145657
Bosch 48011475
BrakeBest 980360
BrakeBest 980360FZN
BrakeBest 980360PER
BrakeBest 980360R
BrakeBest 980360RGS
Casting Numbers 211732-C
Centric Parts 120.47021
Centric Parts 121.47021
Centric Parts 126.47021CSL
Centric Parts 126.47021CSR
Centric Parts 126.47021SL
Centric Parts 126.47021SR
Centric Parts 127.47021CL
Centric Parts 127.47021CR
Centric Parts 127.47021L
Centric Parts 127.47021R
Centric Parts 128.47021CL
Centric Parts 128.47021CR
Centric Parts 128.47021L
Centric Parts 128.47021R
Centric Parts 227.47021L
Centric Parts 227.47021R
Centric Parts 320.40060
Centric Parts 320.47021
Dura Corp BR31407
Dura Corp BR900496
Dura Corp BR900496-02
Dura Corp BR90049602
DuraGo 900496
Dynamic Friction Company 604-13034
Newtek Automotive USA 31407
PowerStop JBR1165EVC
Promax 14-31407
Promax 20-31407
Subaru 26300AG01A
Subaru 26300SA000
Subaru 26300SA001
UAP 2031407
VIPAR - Vehicle Indusrty Parts & Manufacturing X51786
WABCO - Archived PS126192
Wagner Brake BD126192
Wagner Brake BD126192E
Winhere 6620624

Fits Years: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
