| Attribute | Value |
|---|---|
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.29, 58.15 |
| Conventional Or Drum In Hat Type Rotor | Drum-in-hat |
| Directional Or Non Directional Brake Surface | Non-directional |
| Discard Thickness | 0.335, 8.5 |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93, 99.8 |
| Mounting Bolt Hole Diameter | 0.511, 13 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 |
| Overall Height | 2.65, 67.3 |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Wagon | 2000 - 2004 | H4 2.5L | AWD Automatic & Manual |
| H6 | Sedan | 2002 - 2004 | H6 3.0L | AWD Automatic |
| H6 | Sedan | 2002 - 2003 | H6 3.0L | AWD Manual |
| H6 | Wagon | 2003 - 2004 | H6 3.0L | AWD Automatic |
| H6 | Wagon | 2003 | H6 3.0L | AWD Manual |
| H6 35th Anniversary Edition | Wagon | 2004 | H6 3.0L | AWD Automatic |
| H6 VDC | Sedan | 2004 | H6 3.0L | AWD Automatic |
| H6 VDC | Wagon | 2004 | H6 3.0L | AWD Automatic |
| L.L. Bean | Wagon | 2001 - 2004 | H6 3.0L | AWD Automatic |
| L.L. Bean | Wagon | 2001 - 2003 | H6 3.0L | AWD Manual |
| Limited | Sedan | 2000 - 2004 | H4 2.5L | AWD Automatic & Manual |
| Limited | Wagon | 2000 - 2004 | H4 2.5L | AWD Automatic & Manual |
| VDC | Sedan | 2002 - 2003 | H6 3.0L | AWD Automatic & Manual |
| VDC | Wagon | 2001 - 2003 | H6 3.0L | AWD Automatic & Manual |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Advance Auto Parts | N1000322279APO |
| Advance Auto Parts | YH145298 |
| Advance Auto Parts | YH145298C |
| Advance Auto Parts | YH145298P |
| American Remanufactured | 89-18017 |
| Autospecialty | JBR945 |
| Autospecialty | JBR945E |
| Autoxtra | 8096937 |
| Autoxtra | AX31273 |
| AutoZone | 31273DG |
| Beck/Arnley | 083-2867 |
| Bendix | 145298 |
| BrakeBest | 48011190 |
| BrakeBest | 96937 |
| BrakeBest | 96937FZN |
| BrakeBest | 96937R |
| BrakeBest | 96937RGS |
| Brembo | 08.9093.10 |
| Brembo | 08.9093.85 |
| Brembo | 25651 |
| Casting Numbers | 211289-C |
| Casting Numbers | 325523 |
| Centric Parts | 120.47017 |
| Centric Parts | 120.47017CRY |
| Centric Parts | 121.47017 |
| Centric Parts | 126.47017CSL |
| Centric Parts | 126.47017CSR |
| Centric Parts | 126.47017SL |
| Centric Parts | 126.47017SR |
| Centric Parts | 127.47017CL |
| Centric Parts | 127.47017CR |
| Centric Parts | 127.47017L |
| Centric Parts | 127.47017R |
| Centric Parts | 128.47017CL |
| Centric Parts | 128.47017CR |
| Centric Parts | 128.47017L |
| Centric Parts | 128.47017R |
| Centric Parts | 227.47017L |
| Centric Parts | 227.47017R |
| Centric Parts | 320.47017 |
| Centric Parts | 321.47017 |
| Continental-ContiTech | CW10711 |
| Dura Corp | BR31273 |
| Dura Corp | BR3127302 |
| DuraGo | BR31273X |
| Guardian | 52-125755 |
| Guardian | 52-126175 |
| Mighty Distributing System | 31273 |
| NAPA BRAKES | TSR657 |
| Omnicraft | QBRR18 |
| Parts Master | 126175 |
| Pep Boys | 31273G |
| PowerStop | JBR945EVC |
| Promax | 14-31273 |
| Quality Brand | Q507 |
| Subaru | 26700AE04A |
| Subaru | 26700AE04B |
| Subaru | 26700AE04C |
| TruStar | 477230 |
| TRW | DF7329S |
| Ultra Brake | SU-797 |
| Universal | 104404 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51344 |
| WABCO - Archived | PS126175 |
| Wagner Brake | BD125755 |
| Wagner Brake | BD126175 |
| Wagner Brake | BD126175E |
| Winhere | 661417 |
Fits Years: 2000 2001 2002 2003 2004

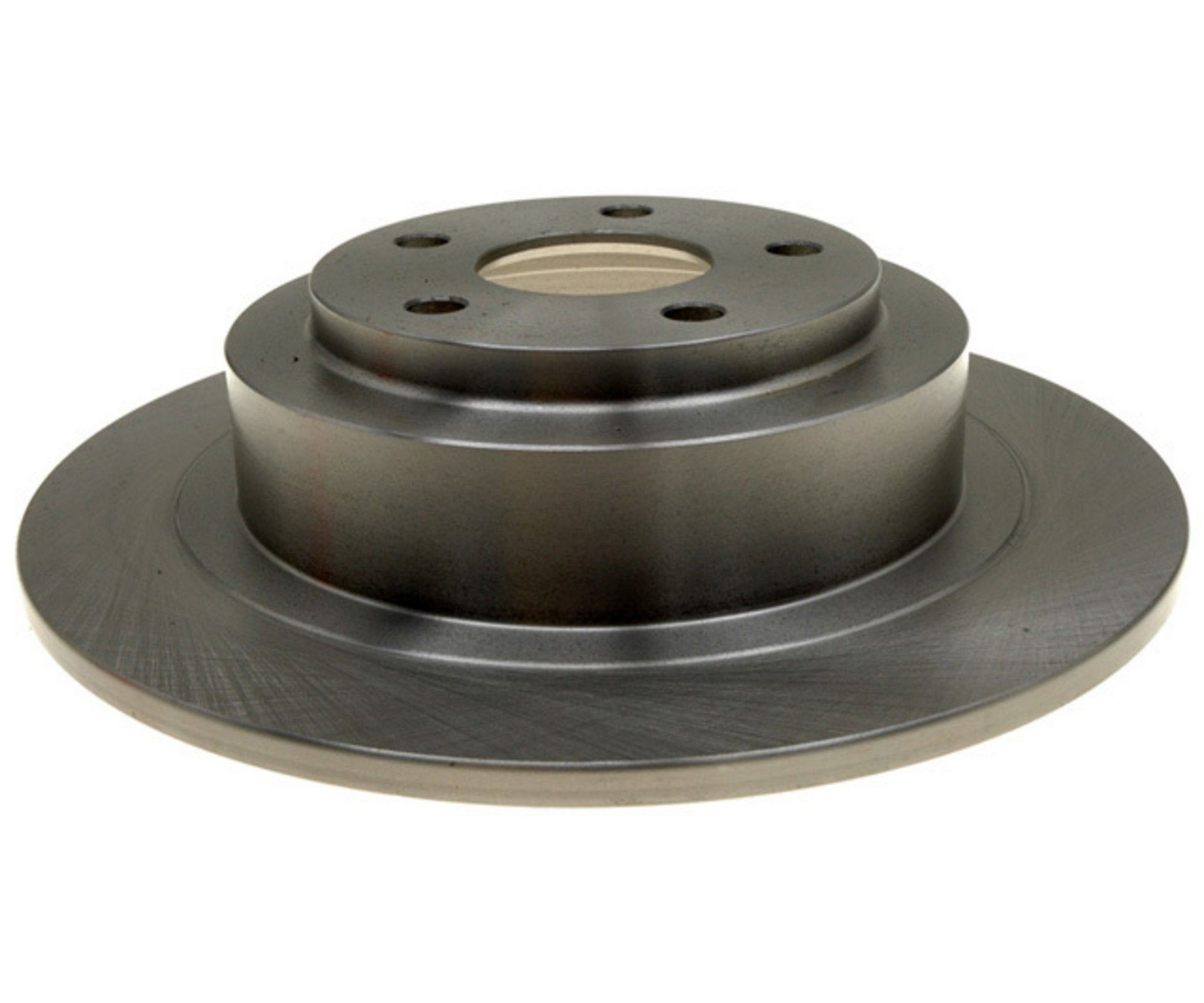

Fits Models: Outback
