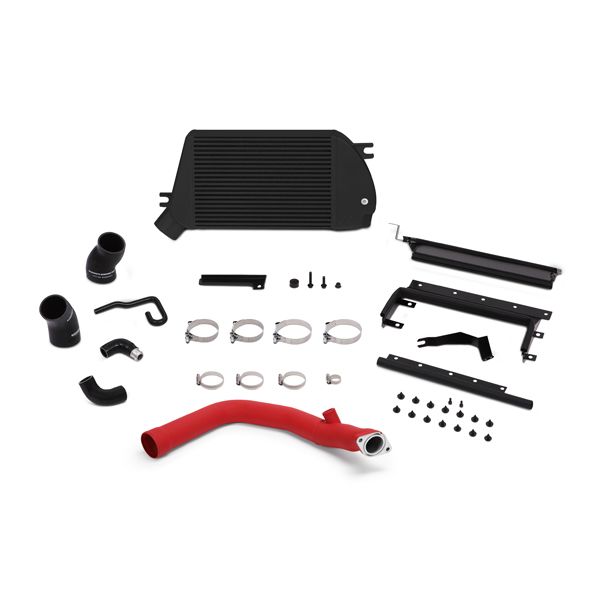

2021, 2020, 2019, 2018, 2017, 2016, 2015 Subaru WRX Turbocharger Intercooler

2015 - 2021 Subaru WRX Turbocharger Intercooler (Mishimoto) NEW

Out of Stock
$ 1,205 .95

Product Notes

Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support your vehicle from stock up to 500 whp. This WRX intercooler endured rigorous testing, showing a 35?F temperature drop as well as a 15 whp and 8 wtq bolt-on power increase for our test vehicle equipped with a Mishimoto 2015-2021 Subaru WRX downpipe and stage 2 EcuTek tune. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 1 hour. Included with this top-mount intercooler is Mishimoto's innovative 2015-2021 Subaru WRX charge-pipe, utilizing a one-piece construction without the need for several couplers and clamps. An application-specific air splitter is included with the top-mount intercooler to help divert the maximum amount of air into your Mishimoto 2015-2021 Subaru WRX top-mount intercooler. The WRX top-mount intercooler kit also includes a new charge-pipe to intercooler hose, an intercooler to throttle body hose, and a new bypass valve hoses. These 2015-2021 Subaru WRX parts negate the need to gather supplies for installation, and they ensure years of reliable servi
Brand: Mishimoto
Condition: New
See Other Subaru WRX Turbocharger Intercoolers
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
CARB EO Number D-759
Install Difficulty 3
Installation Difficulty 3
Prop 65 (C, R Or CR) Cr
SellingPoint01 Direct Fit For The 2015-2021 Subaru Wrx
SellingPoint02 Provides 35 F Temperature Drop Compared To Stock Intercooler On A Stage 2 Tune
SellingPoint03 Proven 15 Whp And 8 Wtq Bolt-on Power Increase On A Stage 2 Tune
SellingPoint04 100-percent Aluminum Construction With Durable Cast End Tanks Tig-welded To A Highly Efficient Bar-and-plate Core
SellingPoint05 Tig-welded To A Highly Efficient Bar-and-plate Core
SellingPoint06 Intercooler Core Designed For Maximum Cooling Efficiency And Minimal Pressure Drop
SellingPoint07 Includes Larger Air Duct Designed To Provide Optimal Airflow To The Mishimoto Intercooler Core
SellingPoint08 Includes The Mishimoto Intercooler Charge-pipe For Maximum Airflow And Power Capability
SellingPoint09 Includes New Bpv Hoses, Hot Side Coupler, And Silicone Throttle Body Hose
SellingPoint10 Comes With All Necessary Hardware, Clamps, And Brackets For An Easy Installation
SellingPoint11 Pre-marked Area For Npt Sensor
SellingPoint12 Cooler Available In Durable Powder-coated Sleek Silver Or Stealth Black Finish
SellingPoint13 Mishimoto Lifetime Warranty
SellingPoint14 N/a
SellingPoint15 N/a
TechSpec Applications 2015-2021 Wrx--2014-2018 Forester Xt
TechSpec Centerline Radius N/a
TechSpec Chassis Codes Va
TechSpec Core Height (in) N/a
TechSpec Core Length (in) N/a
TechSpec Core Thickness (in) 4
TechSpec Core Type Bar-and-plate
TechSpec Engine Codes Fa20dit
TechSpec Includes (1) Bar-and-plate Intercooler--(1) Optional Charge-pipe--(1) Intercooler Mounting Bracket--(1) Air Diverter With Attached Rubber Gaskets--(1) Charge-pipe To Intercooler Hose--(1) Intercooler To Throttle Body Hose--(3) Bypass Valve Hoses--(2) 3-in T-bolt C
TechSpec Inlet (in) 2.5
TechSpec Installation Notes 22 In-lbs (2.5nm) Recommended For All Worm Gear Clamps. These Clamps Have An Operating Range Of 18-27 In-lbs (2-3nm). Do Not Exceed The Maximum Torque Rating Of 27 In-lbs (3nm).
TechSpec Maximum Recommended Boost Pressure (PSI) 35
TechSpec Maximum Recommended Horsepower 450
TechSpec Note This Kit Is Rated For 300-450 Whp With Maximum Limits Of Approximately 500 Whp, Or 35 Psi Of Turbo Boost. Exceeding That Horsepower Or Pressure Limit May Require A Larger Front-mount Intercooler.----tuning Is Not Necessary After Installing Our Top-mount I
TechSpec Outlet (in) 3
TechSpec Overall Length (in) 24
TechSpec Overall Width (in) 5
TechSpec Pipe Diameter N/a
TechSpec Pipe Length N/a
TechSpec Pipe Shape N/a
TechSpec Weight (lbs) 24.5

Vehicle Fitment Guide

This part fits the following vehicles:

Subaru 1 model (tapclick to expand)(tapclick to hide)
WRX 2015-2021 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
6 Man Sedan 2018 - 2021 H4 2.0L Turbo AWD Manual
Base Sedan 2015 - 2021 H4 2.0L Turbo AWD Manual
Base Sedan 2015 - 2017, 2019 - 2020 H4 2.0L Turbo AWD Automatic CVT
CVT Sedan 2018 - 2021 H4 2.0L Turbo AWD Automatic CVT
EyeSight Sedan 2021 H4 2.0L Turbo AWD Automatic CVT
Limited Sedan 2015 - 2021 H4 2.0L Turbo AWD Automatic CVT & Manual
Premium Sedan 2015 - 2021 H4 2.0L Turbo AWD Automatic CVT & Manual
Raui Edition Sedan 2019 H4 2.0L Turbo AWD Manual
STI Sedan 2015 - 2016 H4 2.5L Turbo AWD Manual
Sport Sedan 2019 - 2021 H4 2.0L Turbo AWD Automatic CVT
Sport Sedan 2017 - 2021 H4 2.0L Turbo AWD Manual
Sport-tech Sedan 2019 - 2021 H4 2.0L Turbo AWD Automatic CVT
Sport-tech Sedan 2017 - 2021 H4 2.0L Turbo AWD Manual
Sport-tech RS Sedan 2019 - 2020 H4 2.0L Turbo AWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support your vehicle from stock up to 500 whp. This WRX intercooler endured rigorous testing, showing a 35?F temperature drop as well as a 15 whp and 8 wtq bolt-on power increase for our test vehicle equipped with a Mishimoto 2015-2021 Subaru WRX downpipe and stage 2 EcuTek tune. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 1 hour. Included with this top-mount intercooler is Mishimoto's innovative 2015-2021 Subaru WRX charge-pipe, utilizing a one-piece construction without the need for several couplers and clamps. An application-specific air splitter is included with the top-mount intercooler to help divert the maximum amount of air into your Mishimoto 2015-2021 Subaru WRX top-mount intercooler. The WRX top-mount intercooler kit also includes a new charge-pipe to intercooler hose, an intercooler to throttle body hose, and a new bypass valve hoses. These 2015-2021 Subaru WRX parts negate the need to gather supplies for installation, and they ensure years of reliable servi

Fits Years: 2015 2016 2017 2018 2019 2020 2021

Fits Models: WRX
