| Attribute | Value |
|---|---|
| Abutment Clips Included | No |
| Adhesive Backed Pad Shim | Yes |
| Article Number Of Recommended Accessories | 8dz 355 201-471 |
| Assy/Disassy By Qualified Personnel Required! | . |
| Brake Lubricant Included | No |
| Brake System | Teves |
| California Proposition 65 Required | No |
| Chamfered Edges | Yes |
| ECE R90 Certified | Yes |
| Friction Material Composition | Low-metallic |
| Grade Type | Standard Replacement |

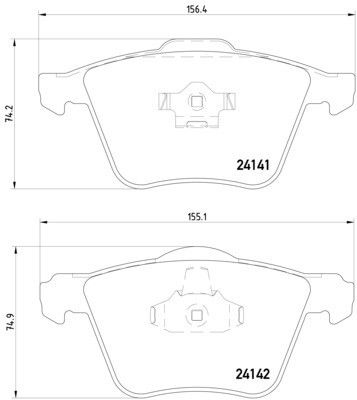

| Height 1 [mm] | 74,9, 74.9 |
| Height 2 [mm] | 74,2, 74.2 |
| Inner Pad Friction Material Thickness | 20.6 |
| Inner Pad Height | 74.9 |
| Inner Pad Width | 156.6 |
| Mounting Hardware Included | No |
| Outer Pad Friction Material Thickness | 19.1 |
| Outer Pad Height | 74.9 |
| Outer Pad Width | 156.6 |
| Pad Quantity | 4 |
| Pad Shims Included | Yes |
| Pad Wear Sensor Included | No |
| Prepared For Pad Wear Sensor | Yes |
| Slotted | No |
| Technical Information Number | T1488 |
| WVA Number | 24141 |
| Wear Warning Contact | Excl. Wear Warning Contact |
| Weight [kg] | 2.202 |
| Width 1 [mm] | 155,1, 155.1 |
| Width 2 [mm] | 156,6, 156.6 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 2.5T | SUV | 2004 - 2007 | L5 2.5L Turbo | AWD Automatic |
| 2.5T | SUV | 2004 - 2006 | L5 2.5L Turbo | FWD Automatic |
| 3.2 | SUV | 2007 - 2014 | L6 3.2L | AWD/FWD Automatic |
| 3.2 R-Design | SUV | 2012 - 2014 | L6 3.2L | FWD Automatic |
| 3.2 R-Design | SUV | 2009, 2012 - 2014 | L6 3.2L | AWD Automatic |
| 3.2 Sport | SUV | 2008 | L6 3.2L | AWD Automatic |
| Base | SUV | 2010 | L6 3.2L | AWD Automatic |
| Base | SUV | 2003, 2011 - 2012 | L5 2.5L Turbo | AWD Automatic |
| Base | SUV | 2003 | L5 2.5L Turbo | FWD Automatic |
| Luxury | SUV | 2011 - 2014 | L5 2.5L Turbo | AWD Automatic |
| R-Design | SUV | 2014 | L5 2.5L Turbo | AWD Automatic |
| R-Design | SUV | 2010 | V8 4.4L | AWD Automatic |
| T6 | SUV | 2003 - 2006 | L6 2.9L Turbo | AWD Automatic |
| T6 Premier | SUV | 2005 | L6 2.9L Turbo | AWD Automatic |
| T6 R-Design | SUV | 2013 | L5 2.5L Turbo | AWD Automatic |
| V8 | SUV | 2005 - 2011 | V8 4.4L | AWD Automatic |
| V8 Ocean Race | SUV | 2006 | V8 4.4L | AWD Automatic |
| V8 Premier | SUV | 2006 | V8 4.4L | AWD Automatic |
| V8 R-Design | SUV | 2009 | V8 4.4L | AWD Automatic |
| V8 Sport | SUV | 2007 - 2008 | V8 4.4L | AWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Akebono | AN4609K |
| Akebono | AN4609KE |
| Akebono | EUR1003 |
| AMC | FO698081 |
| Ashuki | P11236 |
| ATE | 13046071882 |
| ATE | 13047071882 |
| ATE | 607188 |
| ATE | LD7188 |
| Bendix | 510426 |
| Bendix | 573143B |
| Bendix | DB1661 |
| Bendix | DB16614WD |
| Bendix | DB1661EURO |
| Blue Print | ADF124227 |
| Borg & Beck | BBP1928 |
| Bosch | 0 986 494 159 |
| Bosch | 0 986 TB2 862 |
| Brake Engineering | PA1583 |
| Brembo | P86018 |
| Brembo | P86018N |
| Cifam | 8225990 |
| Delphi | LP1821 |
| Delphi | LP2577C |
| DON | PCP2234 |
| EBC Brakes | DP1690 |
| EBC Brakes | DP41690R |
| EBC Brakes | DP61690 |
| EBC Brakes | PLK1899 |
| EBC Brakes | PLK1901 |
| Febest | 2701XC90F |
| Febi-Bilstein | 16505 |
| Ferodo | FCP1631H |
| Ferodo | FDB1631 |
| Ferodo | FQT1631 |
| Ferodo | FSL1631 |
| FMSI Automotive Hardware | D1003 |
| FMSI Automotive Hardware | D1003-7904 |
| FREMAX BRAKE ROTORS AND DRUMS | FBP1503 |
| FTE | 9010591 |
| FTE | BL2006A1 |
| Girling | 6115652 |
| Hella Pagid | 8DB355011721 |
| Japan Parts | PA0352AF |
| JapKo | 500352 |
| JP Group A/S | 4963604110 |
| Jurid | 573143J |
| Jurid | 573143JAS |
| Jurid | 573143JC |
| Key Parts | KBP1903 |
| LPR | 05P1237 |
| Magneti Marelli | 363700201488 |
| Magneti Marelli | 363702161400 |
| Magneti Marelli | T1488MM |
| Mapco | 6976 |
| MaXgear | 191429 |
| METELLI | 2205990 |
| MEYLE | 0252414119PD |
| Mintex | MDB2576 |
| NK Autoparts | 224826 |
| Optimal | 12273 |
| Optimal | BP12273 |
| Quinton Hazell | 7585 |
| Quinton Hazell | 7619 |
| Quinton Hazell | BP1548 |
| Remsa | 104300 |
| Roadhouse | 2104300 |
| Roulunds | 698081 |
| Textar | 2414101CP |
| Textar | 2414103 |
| Textar | 2414119805 |
| Textar | TX0743 |
| Tridon | 811027012 |
| TRW | GDB1565 |
| TRW Steering and Suspension Parts | TRH1003 |
| Valeo | 301657 |
| Valeo | 598657 |
| Valeo | 670657 |
| Volvo | 2743310-0 |
| Volvo | 3 120 183 9 |
| Volvo Truck | 274331 |
| Volvo Truck | 30769125-0 |
| Volvo Truck | 31201839 |
| Volvo Truck | 31201839-0 |
| Volvo White | 274331-0 |
| Wagner | MX1003 |
| Wagner | OEX1003 |
| Wagner | WBP24141A |
| Wagner | ZD1003 |
| Wagner | ZX1003 |
| Zimmermann | 241411951 |
Fits Years: 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
Fits Models: XC90
