| Attribute | Value |
|---|---|
| Abutment Clips Included | No |
| Adhesive Backed Pad Shim | No |
| Article Number Of Recommended Accessories | 8dz 355 201-161 |
| Assy/Disassy By Qualified Personnel Required! | . |
| Brake Lubricant Included | No |
| Brake System | Teves |
| California Proposition 65 Required | No |
| Chamfered Edges | Yes |
| ECE R90 Certified | Yes |
| Friction Material Composition | Low-metallic |
| Grade Type | Standard Replacement |

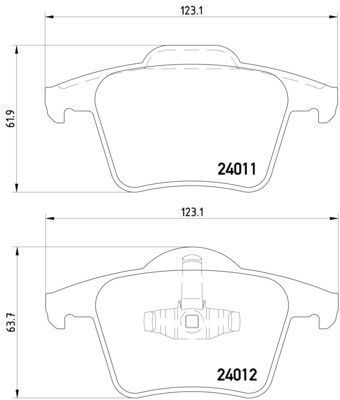

| Height 1 [mm] | 61,9, 61.9 |
| Height 2 [mm] | 63,7, 63.7 |
| Inner Pad Friction Material Thickness | 17.7 |
| Inner Pad Height | 63.7 |
| Inner Pad Width | 123.4 |
| Mounting Hardware Included | No |
| Outer Pad Friction Material Thickness | 17.7 |
| Outer Pad Height | 63.7 |
| Outer Pad Width | 123.4 |
| Pad Quantity | 4 |
| Pad Shims Included | No |
| Pad Wear Sensor Included | No |
| Prepared For Pad Wear Sensor | Yes |
| Slotted | No |
| Technical Information Number | T1394 |
| WVA Number | 24011 |
| Wear Warning Contact | Excl. Wear Warning Contact |
| Weight [kg] | 1.2 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 2.5T | SUV | 2004 - 2007 | L5 2.5L Turbo | AWD Automatic |
| 2.5T | SUV | 2004 - 2006 | L5 2.5L Turbo | FWD Automatic |
| 3.2 | SUV | 2007 - 2014 | L6 3.2L | AWD/FWD Automatic |
| 3.2 R-Design | SUV | 2012 - 2014 | L6 3.2L | FWD Automatic |
| 3.2 R-Design | SUV | 2009, 2012 - 2014 | L6 3.2L | AWD Automatic |
| 3.2 Sport | SUV | 2008 | L6 3.2L | AWD Automatic |
| Base | SUV | 2010 | L6 3.2L | AWD Automatic |
| Base | SUV | 2003, 2011 - 2012 | L5 2.5L Turbo | AWD Automatic |
| Base | SUV | 2003 | L5 2.5L Turbo | FWD Automatic |
| Luxury | SUV | 2011 - 2014 | L5 2.5L Turbo | AWD Automatic |
| R-Design | SUV | 2014 | L5 2.5L Turbo | AWD Automatic |
| R-Design | SUV | 2010 | V8 4.4L | AWD Automatic |
| T6 | SUV | 2003 - 2006 | L6 2.9L Turbo | AWD Automatic |
| T6 Premier | SUV | 2005 | L6 2.9L Turbo | AWD Automatic |
| T6 R-Design | SUV | 2013 | L5 2.5L Turbo | AWD Automatic |
| V8 | SUV | 2005 - 2011 | V8 4.4L | AWD Automatic |
| V8 Ocean Race | SUV | 2006 | V8 4.4L | AWD Automatic |
| V8 Premier | SUV | 2006 | V8 4.4L | AWD Automatic |
| V8 R-Design | SUV | 2009 | V8 4.4L | AWD Automatic |
| V8 Sport | SUV | 2007 - 2008 | V8 4.4L | AWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| AISIN | BPVO2003 |
| Akebono | AN4608K |
| Akebono | AN4608KE |
| Akebono | EUR980 |
| AMC | FO692181 |
| ATE | 13046071892 |
| ATE | 607189 |
| Bendix | 500092 |
| Bendix | 510400 |
| Bendix | 573236B |
| Bendix | DB1659 |
| Bendix | DB16594WD |
| Bendix | DB1659EURO+ |
| Bendix | DB1659HD |
| Blue Print | ADF124224 |
| Borg & Beck | BBP2136 |
| Bosch | 0 986 494 102 |
| Bosch | 0 986 TB2 863 |
| Brake Engineering | PA1630 |
| Brembo | P86019 |
| Brembo | P86019N |
| Cifam | 8226880 |
| Delphi | LP1504 |
| Delphi | LP1835 |
| Delphi | LP1835N18B1 |
| DON | PCP2233 |
| Dynamic Friction Company | 1310-0980-00 |
| Dynamic Friction Company | 1310-0980-01 |
| Dynamic Friction Company | 1311-0980-00 |
| Dynamic Friction Company | 1311-0980-01 |
| Dynamic Friction Company | 1551-0980-00 |
| Dynamic Friction Company | 1551-0980-01 |
| Dynamic Friction Company | 1600-0980-00 |
| Dynamic Friction Company | 1600-0980-01 |
| EBC Brakes | DP1680 |
| EBC Brakes | PLK1898 |
| EBC Brakes | PLK1899 |
| EBC Brakes | PLK1901 |
| EBC Brakes | PLK1902 |
| Febest | 2701XC90R |
| Febi-Bilstein | 16508 |
| Ferodo | FDB1632 |
| Ferodo | FSL1632 |
| FMSI Automotive Hardware | D980 |
| FMSI Automotive Hardware | D980-7883 |
| FREMAX BRAKE ROTORS AND DRUMS | FBP1505 |
| FTE | 9010498 |
| FTE | BL1909A1 |
| Girling | 6115662 |
| Hella Pagid | 8DB355010801 |
| Japan Parts | PP0318AF |
| JP Group A/S | 4963700310 |
| Jurid | 573236J |
| Jurid | 573236JC |
| Key Parts | KBP2136 |
| LPR | 05P1234 |
| Magneti Marelli | 363700201394 |
| Magneti Marelli | 36370216140 |
| Magneti Marelli | 363916060837 |
| Magneti Marelli | T1394MM |
| Mapco | 6977 |
| MaXgear | 191426 |
| METELLI | 2206880 |
| MEYLE | 0252401118 |
| Mintex | MDB2613 |
| NK Autoparts | 224825 |
| Optimal | 12187 |
| Optimal | BP12187 |
| Quinton Hazell | 7526 |
| Quinton Hazell | BP1471 |
| Remsa | 104400 |
| Roadhouse | 2104400 |
| Textar | 2401101 |
| Textar | 2401101CP |
| Textar | 2401117705 |
| Triscan | 811027011 |
| TRW | GDB1566 |
| TRW Steering and Suspension Parts | TRH0980 |
| VAICO | V950152 |
| Valeo | 301829 |
| Valeo | 598829 |
| Volvo | 274330 |
| Volvo | 274330-0 |
| Volvo | 2743300-0 |
| Volvo | 274512 |
| Volvo | 2745120-0 |
| Volvo | 274528 |
| Volvo | 274528-0 |
| Volvo | 2745280-0 |
| Volvo | 30793093-0 |
| Volvo White | 274512-0 |
| Wagner | WBP24011A |
| Wagner | ZX980 |
| Werner Metzger GmbH | 1044.00 |
| Zimmermann | 240111771 |
Fits Years: 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
Fits Models: XC90
