Spark Plug (NGK) for 1974-2007 Honda, Kawasaki, & Yamaha NEW

$ 10 .86

Product Notes

Race Kart Gap 0.028"

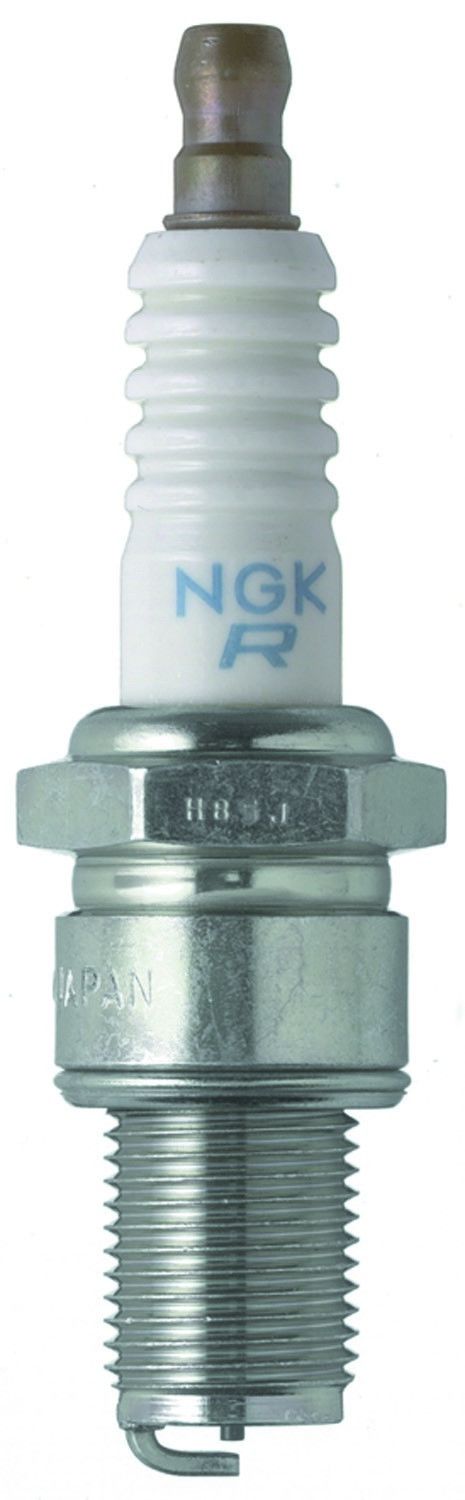

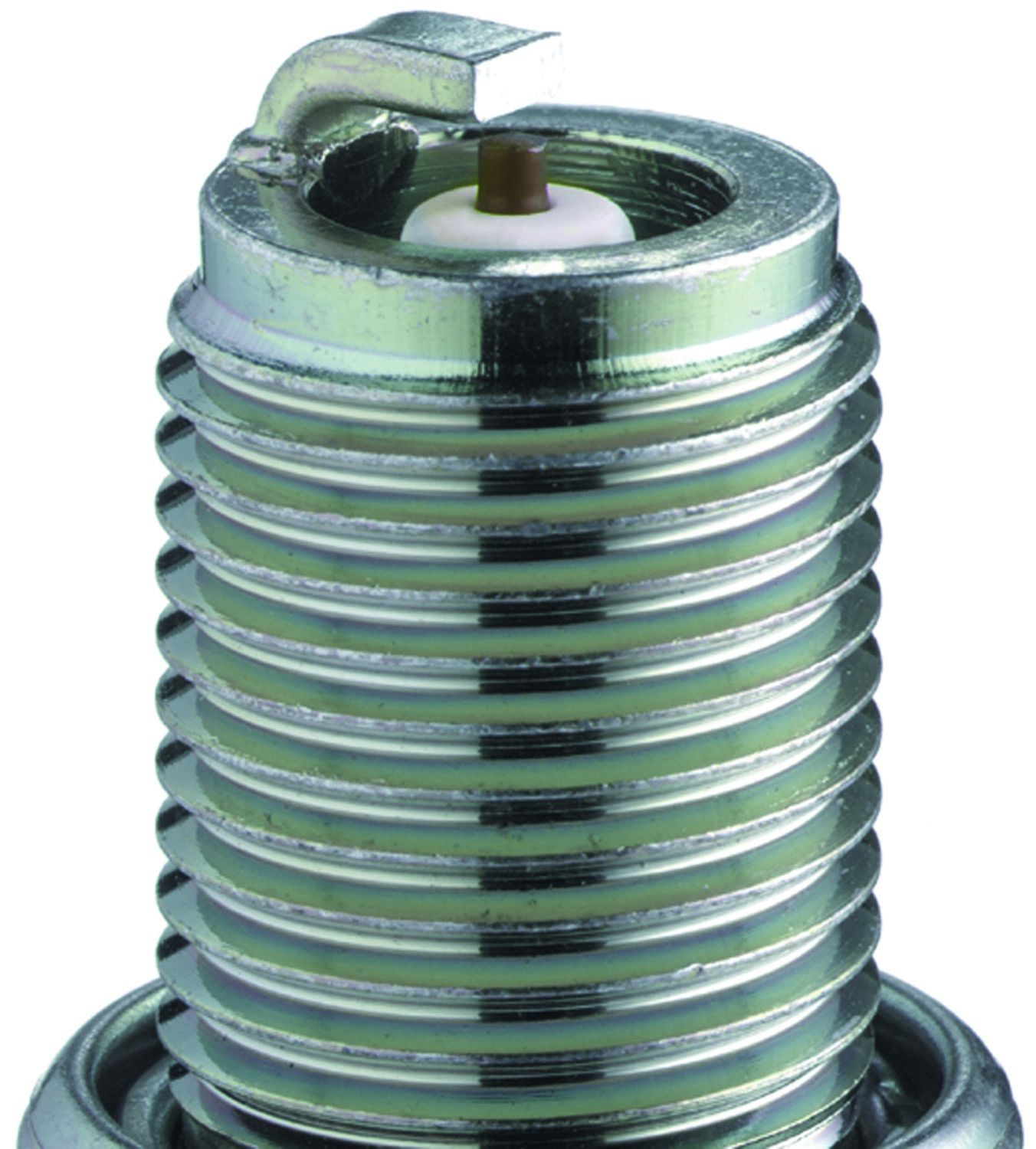

Racing Spark Plug
NGK Racing spark plugs are designed with extreme use in mind and meant to withstand the most grueling racing conditions. NGK Spark Plugs have been powering racing champions and can be found in every racing venue throughout the world. The center electrode of the NGK Racing spark plugs has special configurations and designs to ensure durability and ignitability. NGK Racing plugs bring ultra high performance in a variety of heat ranges. Special configurations are used for a wide variety of racing applications.
Brand: NGK
Condition: New

See All Other Spark Plugs

LIFE
TIME

Lifetime Warranty Included

This part is backed by our industry-leading lifetime warranty. Shop with total confidence.

Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info

Attribute	Value
Center Electrode Core Material	Copper
Center Electrode Design	Fine Wire
Center Electrode Insulator Tip Projection	0.04, 1.0
Center Electrode Projection	Non-projected
Center Electrode Tip Material	Nickel
Electrical Terminal Type	Non-removable Nut
Grade Type	Performance
Ground Configuration	J-gap
Ground Electrode Core Material	Nickel
Ground Electrode Quantity	1
Ground Electrode Tip Design	Standard
Ground Electrode Tip Material	Nickel
Hex Size	13/16"
Insulator Height	2.12, 53.8
Insulator Material	Ceramic
Material Grade	Nickel/copper
Part Number	Br10eg Solid
Pre Gap Size	.024, 0.6
Reach	0.750, 19.0
Resistance	5000.0
Resistor Type	Yes
Seat Type	Flat
Service Number	Br10eg Solid
Short Style Spark Plug	No
Skirt	No
Skirt Length	0.0
Stock Number	3993
Thread Diameter	0.551, 14.0
Washer Included	Yes
Washer Type	Crush

Vehicle Fitment Guide

This part fits the following vehicles:

Honda 5 models (tapclick to expand)(tapclick to hide)

CR125R 1979-2007 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	U/K	1979 - 2007	-- -L	U/K U/K

CR250R 1978-2007 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	U/K	1978 - 2007	-- -L	U/K U/K

CR80R 1986-2002 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	U/K	1986 - 2002	-- -L	U/K U/K

CR85R 2003-2007 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	U/K	2003 - 2007	-- -L	U/K U/K

CR85RB Expert 2003-2006 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	U/K	2003 - 2006	-- -L	U/K U/K

Kawasaki 2 models (tapclick to expand)(tapclick to hide)

KX125 1974-2005 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	U/K	1974 - 2005	-- -L	U/K U/K

KX250 1974-2007 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	U/K	1974 - 1976, 1978 - 2007	-- -L	U/K U/K

Yamaha 2 models (tapclick to expand)(tapclick to hide)

YZ80 1984-2001 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	U/K	1984 - 2001	-- -L	U/K U/K

YZ85 2002-2004 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	U/K	2002 - 2004	-- -L	U/K U/K

Years	Make	Model	Submodel	Body Style	Engine	Attributes
1979 - 2007	Honda	CR125R	Base	U/K	-- -L	U/K U/K
1978 - 2007	Honda	CR250R	Base	U/K	-- -L	U/K U/K
1986 - 2002	Honda	CR80R	Base	U/K	-- -L	U/K U/K
2003 - 2007	Honda	CR85R	Base	U/K	-- -L	U/K U/K
2003 - 2006	Honda	CR85RB Expert	Base	U/K	-- -L	U/K U/K
1974 - 2005	Kawasaki	KX125	Base	U/K	-- -L	U/K U/K
1974 - 1976, 1978 - 2007	Kawasaki	KX250	Base	U/K	-- -L	U/K U/K
1984 - 2001	Yamaha	YZ80	Base	U/K	-- -L	U/K U/K
2002 - 2004	Yamaha	YZ85	Base	U/K	-- -L	U/K U/K

Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

Ships to all countries via US Postal Service Priority Mail.
Most orders ship within 1 business day.
Delivery time: 1-4 business days after shipment.
International shipping available, including APO/FPO addresses.
Tracking information provided for all shipments.
Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

120-Day Returns - Return any part within 120 days from date of receipt.
Must obtain RMA (Return Merchandise Authorization) number before returning.
Parts must be in original condition, uninstalled, unaltered, and in original packaging.
Important: Electrical parts are not returnable if unsealed.
Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

Shipping costs or labor expenses.
Installation errors.
Parts used for racing.
Commercial vehicle parts.

NGK Racing spark plugs are designed with extreme use in mind and meant to withstand the most grueling racing conditions. NGK Spark Plugs have been powering racing champions and can be found in every racing venue throughout the world. The center electrode of the NGK Racing spark plugs has special configurations and designs to ensure durability and ignitability. NGK Racing plugs bring ultra high performance in a variety of heat ranges. Special configurations are used for a wide variety of racing applications.

Fits Years: 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007

Fits Models: CR125R, CR250R, CR80R, CR85R, CR85RB Expert, KX125, KX250, YZ80, YZ85
