Quick Summary

The engine splash shield-also called an engine splash guard, under-cover, belly pan, or skid plate-is a flat panel that bolts to the bottom of a Toyota Avalon's front end. It keeps water, rocks, and road salt away from vital parts, trims wind drag, and muffles noise. When the shield is cracked, loose, or missing, the engine is left open to damage and extra dirt, and the car can get louder and less fuel-efficient.

What It Is

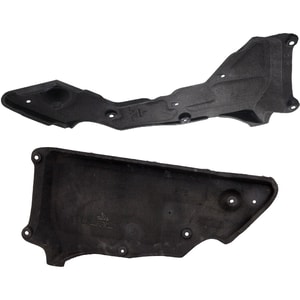

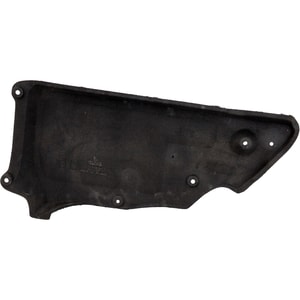

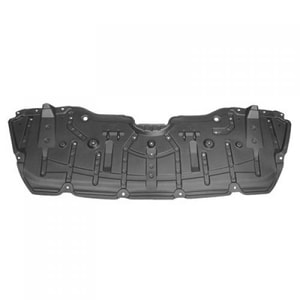

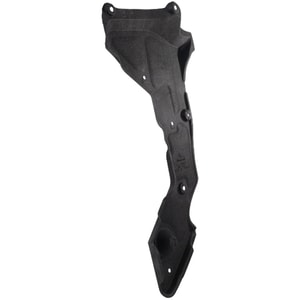

An engine splash shield is a molded plastic or thin metal plate that fits beneath the oil pan and front sub-frame. It blocks spray and debris kicked up by the tires and stops them from striking belts, pulleys, wiring, and sensors. (Painted Auto Body Parts, Olathe Toyota Parts)
Toyota engineers also use the shield to guide air smoothly under the sedan, cutting aerodynamic drag and wind noise. (Knauf Industries Automotive, WardsAuto)

Key Benefits

• Protection: Stops stones, ice, and puddle splash from hitting the crank pulley, serpentine belt, and alternator. (Olathe Toyota Parts)
• Cleaner Engine Bay: Less mud means slower rust and easier leak spotting. (Reddit)
• Better Aerodynamics: Underbody panels can trim about 30 % of a car's total drag, boosting highway mpg. (WardsAuto, toyotacarlsbad.com)
• Quieter Ride: The shield and attached sound-deadening felt reduce engine and road noise. (ScienceDirect, 3M Multimedia)

Materials Used

Most Avalon shields are injection-molded polypropylene, chosen for low weight and corrosion resistance. (Wrench)
Some drivers upgrade to stamped aluminum versions for extra strength on gravel roads. (ASFIR 4x4)

Signs Of Trouble

• Panel scraping the pavement or dragging after hitting a parking curb. (YouTube)
• Cracks or missing push-pins visible during an oil change. (Olathe Toyota Parts)
• Louder wind rush or mpg drop that starts right after the shield falls off. (Facebook)

Fit & Compatibility

Avalon shields vary by model year, bumper style, and whether the car is hybrid or V6. Using the correct part number-such as 51441-07040 for many 2016-2018 sedans-ensures bolt-hole alignment with factory brackets. (Toyota Parts)

Maintenance Tips

1. Check the panel at every oil change; tighten loose clips. (Olathe Toyota Parts)
2. Rinse winter salt with a garden hose; salt eats plastic over time. (Painted Auto Body Parts)
3. Replace broken plastic push-pins with stainless steel bolts and washers for a longer-lasting fix. (YouTube)

Replacement Steps

A do-it-yourself install takes about 20 minutes:

1. Set the parking brake and raise the front with jack stands.
2. Remove damaged shield by undoing 10 mm bolts and push-pins. (YouTube, YouTube)
3. Test-fit the new shield, lining up tabs behind the bumper lip.
4. Insert fasteners finger-tight, then snug with a quarter-turn.

Torque specs are light-only about 35 in-lb-so avoid over-tightening.

Cost Factors

• Material: Plastic shields cost less than metal versions. (Wrench)
• Labor: Shops charge 0.3-0.5 labor hours; DIY is free. (YouTube)
• Missing Hardware: Add a small kit of clips and screws if the originals are rusted. (YouTube)

Safety Notes

A hanging shield can catch on the road and rip off at speed, creating a road hazard. Replace damaged panels promptly. (Olathe Toyota Parts)
Retaining the shield also helps preserve brake and power-steering hoses from grit, supporting overall vehicle safety. (NHTSA)

Environmental Points

Polypropylene is recyclable; many municipal programs accept #5 plastics. Check local rules before disposal. (US EPA)
Keeping the shield intact also lowers fuel use by smoothing airflow-every 1 % drag cut can save up to 0.3 % in fuel. (Icartea, espanol.refresh.tcuv.tms.aws.toyota.com)

Frequently Asked Questions

Q: What does an engine splash shield actually do?
A: It blocks water and debris, lowers wind drag, and quiets the cabin. (Olathe Toyota Parts, Knauf Industries Automotive)

Q: Is the splash guard the same as a skid plate?
A: For most passenger cars, yes. People use terms like belly pan, skid plate, and under-cover to mean the same protective panel. (Painted Auto Body Parts)

Q: Can I drive without this part?
A: The car will start and move, but vital parts stay exposed. Road spray can corrode belts and wiring, and a loose wire can lead to bigger repairs later. (Reddit)

Q: How often should I inspect it?
A: Peek at it during every oil change or whenever you hear scraping sounds. (Olathe Toyota Parts)

Q: Plastic vs. metal-what is better?
A: Metal resists impacts better but weighs more and costs extra. Plastic is lighter, cheaper, and won't rust. Choose based on your road conditions. (ASFIR 4x4, Wrench)

Q: Are there aerodynamic gains?
A: Yes. Underbody panels can reduce drag by up to one-third, giving a small but real boost in mpg and a quieter ride. (WardsAuto, toyotacarlsbad.com)

Q: Will a missing shield fail inspection?
A: In most places, no formal test exists, but some state safety checks note loose parts. It is best to keep the area secure for safety. (NHTSA)

Q: What tools do I need to swap it?
A: A 10 mm socket, trim-clip pliers, and a flat screwdriver handle most Avalon shields. (YouTube, YouTube)

Q: Do I have to remove it to change oil?
A: On Avalon models with a service door, no. Others need five screws removed; total extra time is two minutes. (Toyota Parts)

Q: Why does my new shield have a felt pad?
A: That felt is acoustic insulation that absorbs engine noise without adding much weight. (ScienceDirect, 3M Multimedia)

Q: How do I recycle the old panel?
A: Wash off grease, cut large pieces to fit in a #5 plastics bin, or drop it at a local plastics recycler. (US EPA)

Q: Could a loose shield trigger a check-engine light?
A: Not directly, but if debris hits a sensor wire, the light can appear. Keeping the guard intact lowers that risk. (Facebook)

Q: Does it help on rough, gravel roads?
A: Absolutely. A metal skid plate shields the oil pan from stone impacts and prevents punctures. (ASFIR 4x4)

Q: What is the torque spec for the bolts?
A: Around 35 inch-pounds-just snug. Over-tightening can strip the plastic fittings. (YouTube)

Keeping the engine splash shield on your Toyota Avalon in good shape is cheap insurance against expensive repairs and helps the car stay smooth, quiet, and efficient.
