Buy Toyota Camry Engine Splash Shield

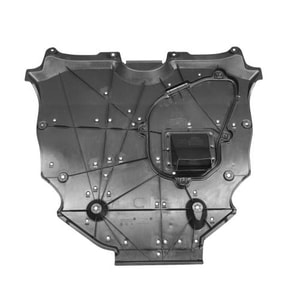

Toyota Camry engine splash shield (also called the engine undercover, lower engine cover, belly pan, under-tray, splash guard, or skid plate).

Quick Take

The shield is the flat panel under the Camry's engine. It blocks water, sand, and rocks, cuts wind drag, and helps air flow for cooling and better gas mileage. When it cracks or hangs loose, owners hear flapping noises, lose mpg, and risk costly damage to the oil pan or wiring. Replacing it is an easy driveway job that uses simple clips and 10 mm bolts. (Wrench Mobile Mechanics, Community Auto, DOI)

Splash Shield Basics

• The panel sits between the front bumper and the sub-frame, sealing the engine bay from below. (Wrench Mobile Mechanics)
• Toyota lists it in parts books as "engine under cover." Mechanics also call it a belly pan or lower engine guard. (Toyota Nation)

See Toyota's official owner-manual layout (PDF).

Key Benefits

1. Stops splashes and grit from striking belts, sensors, and the oil pan. (Wrench Mobile Mechanics)
2. Aerodynamics - Under-tray studies show drag can drop 4 %-14 %, saving fuel on the highway. (DOI, SAE International, Edmunds)
3. Cooling control - Directs air around the radiator and transmission for steadier temps. (Reddit)
4. Noise reduction - Blocks road roar and keeps the cabin quieter. (Reddit)

Materials & Design

• Reinforced plastic (PP-GF) is light and cheap but can crack on big impacts. (ASFIR 4x4)
• Some owners swap to aluminum skid plates for off-road use; they're stronger but weigh more.

Damage Signs

← scroll table horizontally →

Driving for long with a loose shield can even trip a check-engine light if water hits ignition coils. (Reddit)

Maintenance Tips

• Peek under the bumper at every oil change; replace worn push-clips early. (Community Auto)
• Use OEM-style nylon "scrivets" - they shear safely in a curb hit and cost pennies in bulk. (Reddit)
• Clean with mild soap; chemicals like brake cleaner make plastic brittle. (ASFIR 4x4)

DIY Replacement

A full swap takes 20-30 minutes on jack stands: (YouTube, YouTube)

1. Remove 10 mm bolts and plastic clips.
2. Slide old shield forward and down.
3. Test-fit the new cover; align oil-drain door if present.
4. Start bolts by hand, then snug to 35-45 in-lb (hand tight).
5. Shake the panel; zero movement means done.

Watch a step-by-step video guide.

Fasteners & Torque

• Front edge: six M6 x 1.0 bolts.
• Sides: push-pin clips; Toyota part number 90467-07201-22. (Toyota Nation)
• Rear lip: two coarse-thread screws into the sub-frame.
• Torque spec: 4-5 N·m prevents stripping. (Toyota Assets)

Fit by Model Year

← scroll table horizontally →

*Codes from Toyota EPC; check VIN for exact match. (DLJ Auto Parts)

Fuel & Eco Impact

Lowering drag by just 0.01 Cd can boost sedan mpg by 0.2 MPG according to aerodynamic testing. (Edmunds) Camry road tests confirm its flat floor helps mid-size cars reach 31 MPG highway. (MotorTrend)

Rules & Safety

Most state safety inspections-and NHTSA guidelines-require body panels to be secure and not dragging; loose under-trays can fail the visual check. (NHTSA)

Related Parts

• Front fender liners - seal wheel arches.
• Radiator deflector - small plastic dam ahead of the cover.
• Exhaust heat shields - separate panel; rattles often confused with splash-shield noise. (Reddit)

Frequently Asked Questions

Q: What does an engine splash shield do?
A: It keeps water, rocks, and road salt from hitting the bottom of the engine and reduces wind drag for better gas mileage. (Wrench Mobile Mechanics, DOI)

Q: Can I drive without it?
A: Yes, but debris can damage belts or sensors, and you may lose 1-2 MPG on the highway. (Community Auto, SAE International)

Q: Why is mine flapping at 40 mph?
A: One or more plastic clips probably broke; replace the clips and inspect for cracks. (Toyota Nation)

Q: Is metal better than plastic?
A: Aluminum plates are tougher off-road but weigh more and can transmit road noise; most street Camrys use reinforced plastic. (ASFIR 4x4)

Q: Does the shield help cooling?
A: Yes. Toyota tuned the airflow with the cover in place, so removing it can raise under-hood temps on hot days. (Reddit)

Q: How often should I check it?
A: Peek underneath at every oil change and anytime you hear new rattles. (Community Auto)

Q: What tools do I need to replace it?
A: 10 mm socket, flat trim-clip tool, and jack stands. (YouTube)

Q: Will a loose shield trigger a check-engine light?
A: Not directly, but water from road spray can short ignition coils and set misfire codes. (Reddit)

Q: Are fasteners reusable?
A: The metal bolts are; the nylon push-pins should be replaced once they lose tension. (Reddit)

Q: Where is the oil-change flap?
A: On XV50 and newer Camrys, a hinged door sits under the oil drain plug to speed service. (YouTube)
