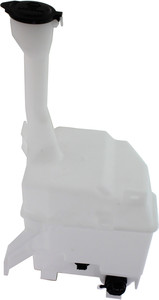

Buy Toyota Camry Windshield Washer Fluid Tank / Reservoir

Quick Summary

The windshield-washer fluid tank-also called the washer bottle, wiper-fluid reservoir, or washer tank-stores the blue cleaning liquid that sprays onto your Toyota Camry's front glass. Most modern Camry models hold about 4.8 liters (1.3 gallons) of washer fluid (Toyota Club). Keeping this container healthy means clear vision, safer driving, and fewer costly repairs.

Part Basics

• Job: Sends fluid to the washer nozzles so the wiper blades can wipe away dirt.
• Location: Front left inner-fender on most Camry generations (Toyota).
• Material: High-density polyethylene (HDPE) plastic that resists road salt and small rocks.
• Key features: Fill neck with cap, molded mounting points, ports for fluid-level sensor and washer pump.

Fitment Years

The reservoir design changed as the Camry evolved:

← scroll table horizontally →

Capacity & Specs

• Factory fill: Enough to reach the MAX mark-about 4.8 L on XV50 hybrids and similar on XV70 (Toyota Club).
• Temperature rating: Use all-season fluid good to -20 °C (-4 °F) or winter mix down to -40 °C in snow regions (Toyota Assets).
• Sensor: A simple float switch lights the washer-level dash icon.
• Pump voltage: 12 V DC, protected by a 15 A "WIP" fuse (YouTube).

Common Problems

1. Cracks & pin-holes-Most often from curb debris or long-term UV exposure (Toyota Nation).
2. Leaky grommets-Old rubber shrinks and lets fluid drip behind the bumper.
3. Frozen fluid-Summer mixes can turn to slush, splitting the bottle in cold snaps (Toyota Nation).
4. Clogged filter screen-Hard-water sediment blocks the pump pickup (CarCareKiosk).

Warning Signs

• Washer spray sounds weak or none comes out.
• You notice blue puddles under the left front wheel.
• The washer-level light stays on even after refilling.
• Wipers smear because no fluid reaches the glass.

DIY Replacement

Tools: 10 mm socket, trim-clip pliers, fresh washer pump seal.

1. Disconnect the battery.
2. Remove the left-front wheel and splash shield for clearance.
3. Unplug the pump and sensor.
4. Unbolt the tank (three 10 mm bolts).
5. Swap the pump and grommet to the new reservoir.
6. Reinstall, tighten bolts, and fill with fluid (YouTube).

Stubborn screws? A dab of penetrating oil helps. Tiny crack? Plastic-weld or two-part epoxy can patch small holes (YouTube).

Maintenance Tips

• Top up monthly. You can't over-fill-stop when fluid reaches the neck (CarCareKiosk).
• Use premixed fluid. Tap water can grow algae and clog jets.
• Flush yearly. Empty the tank, add new blend, and run the pump for 10 sec.
• Winter prep: Switch to low-temp washer mix before first freeze (Toyota Assets).

Safety & Environment

Drain old washer fluid into a sealable jug and drop it at a local hazardous-waste center-never pour it down a storm drain (US EPA). Storing leftover fluid? Keep it out of children's reach; it contains methanol.

Troubleshooting

← scroll table horizontally →

If the fuse looks good yet the pump still won't run, check the wiring for corrosion; Reddit users note the harness can loosen on 2019 models (Reddit).

Related Parts

• Washer pump motor-pressurizes fluid.
• Fluid-level sensor-turns dash light on/off.
• Washer hose & nozzles-route and spray fluid.
• Wiper blades & arms-wipe the windshield clean.

Frequently Asked Questions

Q: How much fluid does the Camry washer bottle really hold?
A: About 4.8 L (1.3 gal) on 2012-2017 models; earlier generations are similar (Toyota Club).

Q: Can I add plain water in a pinch?
A: Water works short-term, but it can freeze, grow algae, and streak. Use proper washer fluid whenever possible (CarCareKiosk).

Q: My washer tank keeps freezing-what should I do?
A: Drain the old mix and refill with winter-grade fluid rated at -40 °C, then cycle it through the lines (Toyota Assets).

Q: The washer warning light stays on even when full-why?
A: The float sensor may be stuck or failed. It clips into the reservoir and is easy to swap during tank replacement (YouTube).

Q: Where is the washer pump fuse located?
A: In the engine-bay fuse box, slot "WIP" (15 A). Lift the cover and use the white fuse puller (YouTube).

Q: Is it okay to reuse old washer fluid?
A: No. Old fluid can carry dirt and bacteria; dispose of it safely at a recycling center (US EPA).

Q: Can I patch a small crack instead of replacing the whole reservoir?
A: Yes-clean the area, rough it up, then plastic-weld or epoxy the hole. This works best on cracks under 2 cm (YouTube).

Q: Does the tank fit hybrid and non-hybrid Camrys?
A: Tanks differ slightly; check the exact part number for your year and powertrain (NHTSA).

Q: How often should I check fluid level?
A: Glance at it monthly or before long trips; top up any time it falls below half full (NHTSA).

Q: What other signs show the tank is bad?
A: You might smell sweet alcohol near the bumper, see blue streaks, or notice the pump sucking air (Toyota Nation).

References

1. Toyota-Club Tech Data - Camry 50 fluids & capacities
2. Toyota 2015 Camry Owner's Manual portal
3. 1A Auto Video - Replace Washer Fluid Tank 2012-2017 Camry
4. EPA - End-of-Life Vehicle Fluid Guide
5. ToyotaNation Forum - Washer Tank Capacity Thread
6. ToyotaNation Forum - Washer Fluid Leaking Discussion
7. NHTSA TSB T-SB-0241-12 - 2013 Camry Pre-Delivery Service
8. YouTube - Fix Leaks and Holes in Washer Tank
9. CarCareKiosk - Add Washer Fluid on 1998 Camry
10. NHTSA TSB 2018 Camry PDS
11. YouTube - Camry Washer Pump Fuse Location
12. Reddit - Camry Washer Fuse Removal Tips
13. Toyota 2015 Camry Quick Reference Guide (PDF)
14. Toyota Owners - Manuals & Warranties Home
15. NHTSA TSB 2019 Camry PDS
