Key Points

Modern Toyota Corolla headlights-also called headlamps, front lamps, or driving lights-use halogen, LED, or HID bulbs to light the road, signal to others, and satisfy safety law. Most 2014-19 models share an easy-to-find 9005 (HB3) bulb for both low- and high-beam positions, while recent trims (2020-25) switch to factory LED modules that last longer and sip less power . Correct aim matters: vehicles with "good" IIHS-rated lights see 19 percent fewer single-vehicle night crashes . Since 2022, U.S. rules even allow adaptive-driving-beam technology that brightens empty road while shielding on-coming traffic (NHTSA). Keeping the lenses clean, sealing out moisture, and replacing worn bulbs in pairs ensure reliable, glare-free light and better visibility.

Part Basics

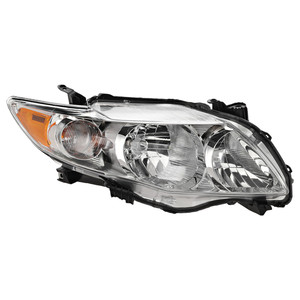

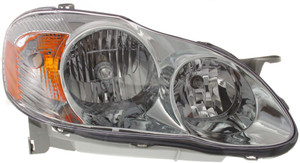

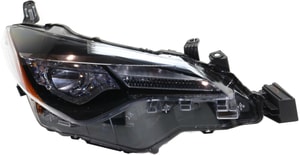

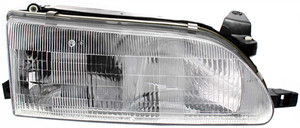

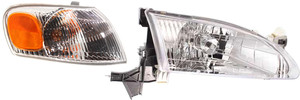

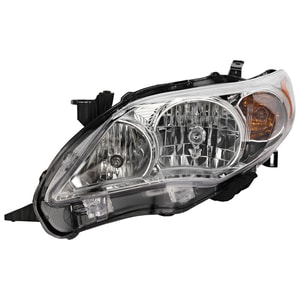

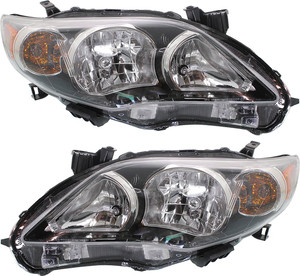

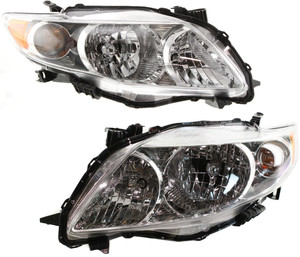

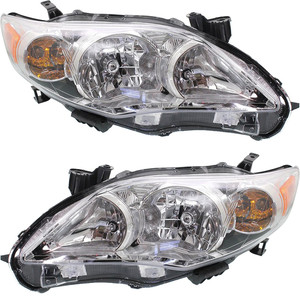

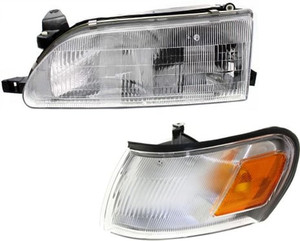

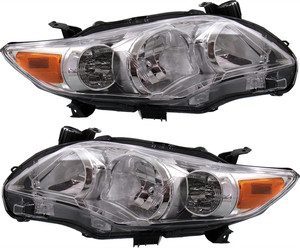

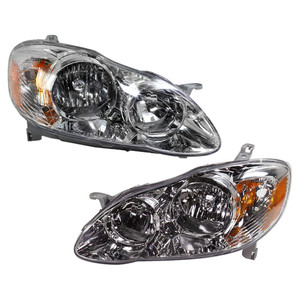

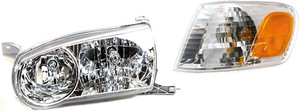

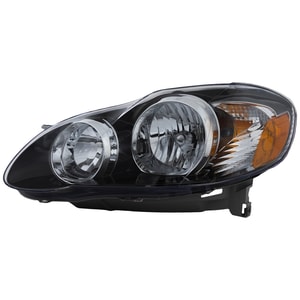

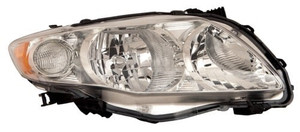

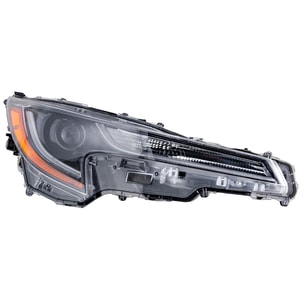

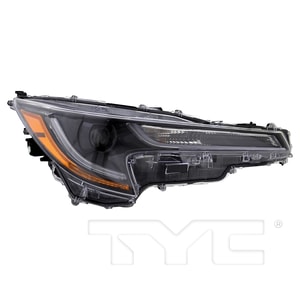

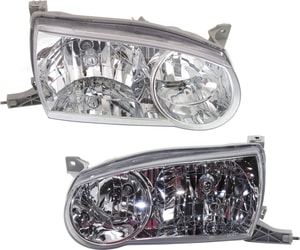

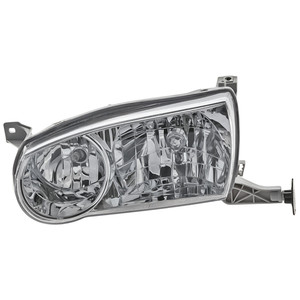

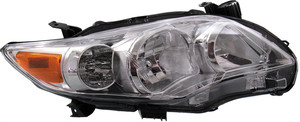

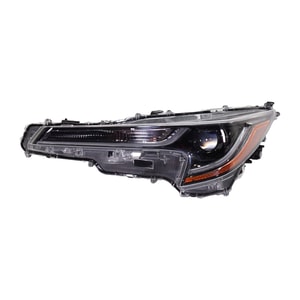

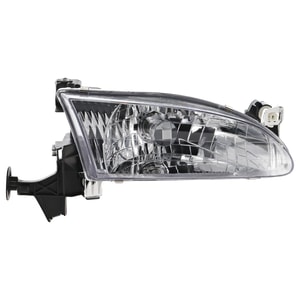

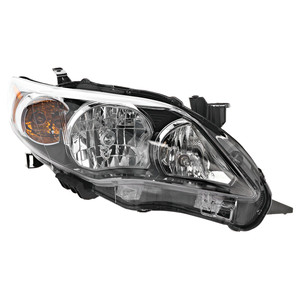

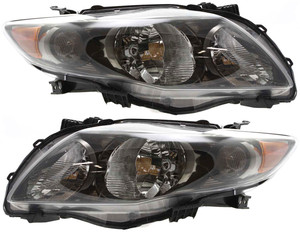

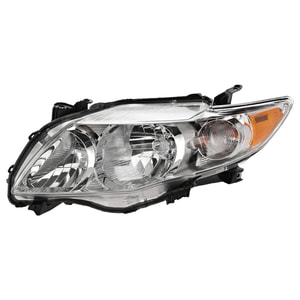

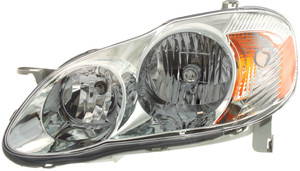

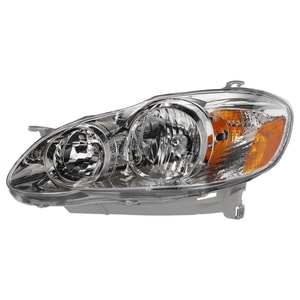

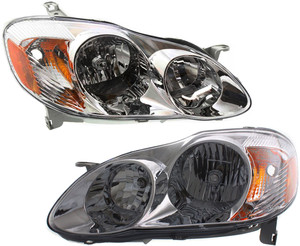

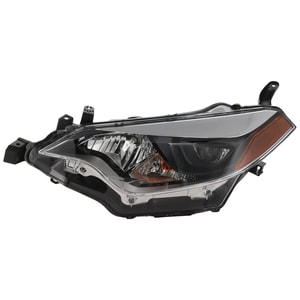

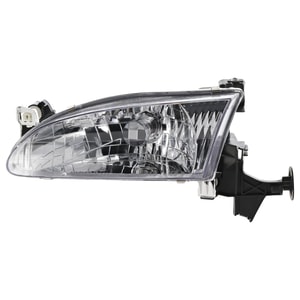

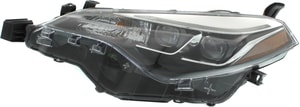

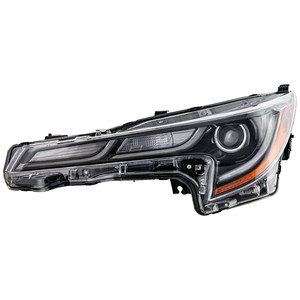

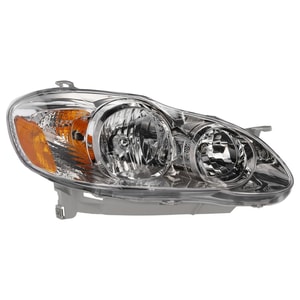

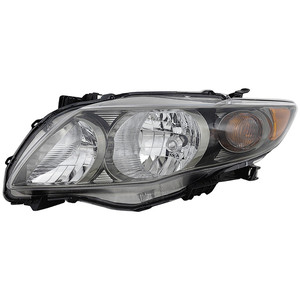

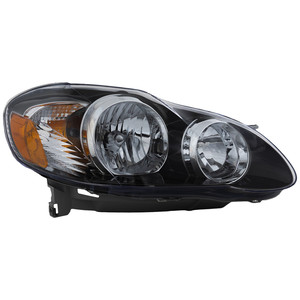

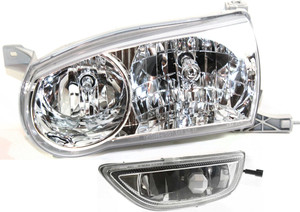

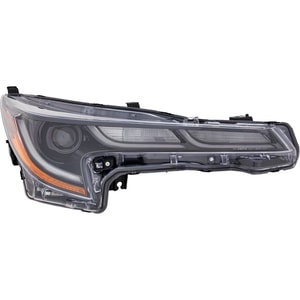

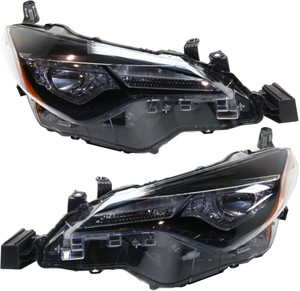

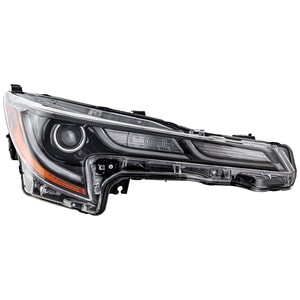

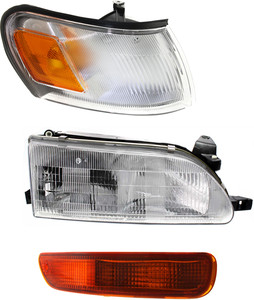

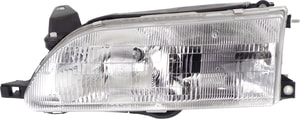

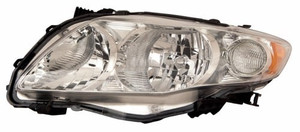

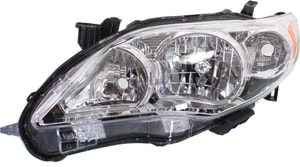

• What it is - The Corolla headlight assembly holds the reflector or projector bowl, bulb or LED chip, wiring harness, and a clear lens. Together they create low-beam and high-beam patterns so you can see and be seen.
• Location - Each lamp sits in the upper front corners of the bumper cover, secured with 3-4 bolts and one electrical plug.
• Dual tasks - On many trims the high-beam filament also powers Daytime Running Lights (DRLs) at lower voltage .
• Important distances - Low beams normally reach about 200 feet; high beams exceed 500 feet when properly aimed .

Bulb Types

• Halogen (H11, 9005, 9006) - Most common on 2003-19 Corollas; inexpensive and easy to swap. Expected life: 450-1,000 hours .
• HID (D4S cartridges) - Optional on some XRS and premium trims 2009-13; bright but need ballasts and warm-up time.

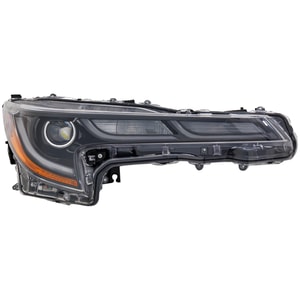

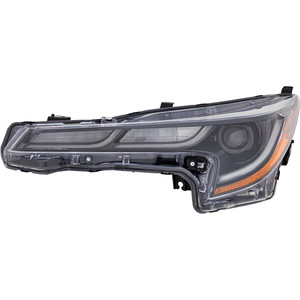

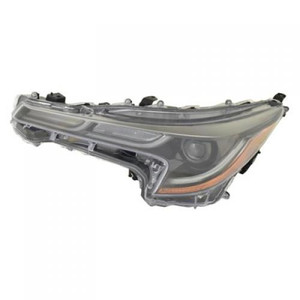

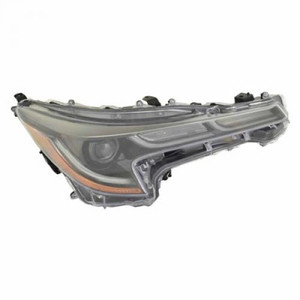

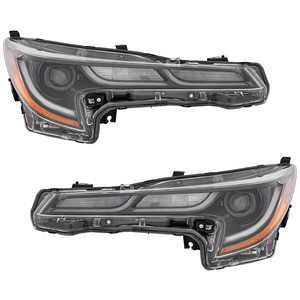

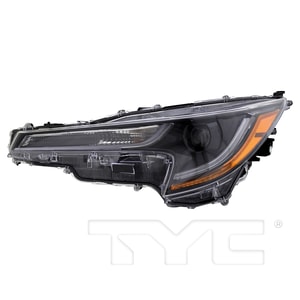

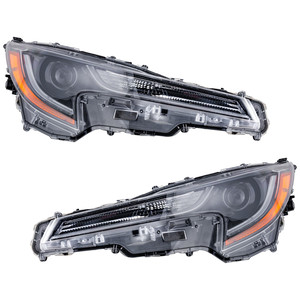

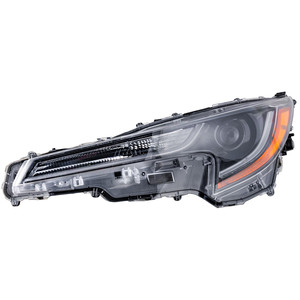

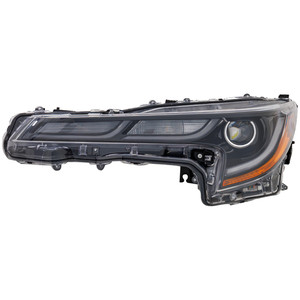

• LED modules - Factory on 2020-25 cars; use up to 75 % less energy than incandescent bulbs and last 20-plus years (DOE Lighting Facts) .
• Aftermarket LED kits - Legal only if they meet FMVSS 108 output and glare rules; the NHTSA interpretation letter clarifies series-wired LEDs are allowed when the whole lamp is certified .

Fit & Compatibility

← scroll table horizontally →

Always confirm with the owner's manual or the bulb chart in the under-hood fuse box before ordering parts (Toyota Owner Resources).

DIY Steps

1. Open the hood and disconnect the negative battery cable for safety.
2. Remove the dust cap behind the lamp. Twist counter-clockwise.
3. Release the bulb clip or turn the bulb a quarter-turn to pull it out.
4. Avoid fingerprints on new glass bulbs-skin oil shortens life.
5. Insert the new bulb, align tabs, and lock it.
6. Test lights before reinstalling the dust cap.
   A detailed walk-through video for 2003-08 cars shows every clip and screw .

Aiming Lights

Toyota provides one vertical adjuster per headlamp-an 8 mm hex screw that you reach from above the housing on 2014-22 models . Park 25 ft (7.6 m) from a flat wall, measure from ground to headlamp center, then set the low-beam cutoff about 2 in (50 mm) lower on the wall. A short video demo confirms clockwise turns raise the beam .

Safety Rules

• Federal law - FMVSS 108 controls brightness, color, and beam pattern. Adaptive-beam lamps became legal in 2022 (NHTSA).
• Inspection code - SAE J599 sets test procedures for in-use lamps (SAE Standard) .
• Crash data - Cars with "good" IIHS lights cut nighttime pedestrian crashes by 23 % .
• Glare complaints - Studies show brightness must balance visibility and comfort .

Common Problems

• Burned-out bulb - One filament fails first; replace both to keep color even (AAA Guide) .
• Blown fuse - On 2014-18 cars, the HEAD-LH and HEAD-RH 10 A fuses sit in the under-hood box; the video at the link shows exact slots .
• Moisture inside lens - Light condensation is normal and will clear once the headlights warm up . Persistent water means a cracked seal and calls for replacement .
• Cloudy lens - UV damage can be sanded and polished; Car Care Council warns haze cuts light output dramatically (Headlight Care Tips) .

Upgrades

• Projector retrofits sharpen the cutoff and reduce glare; aim must still follow the 25-ft wall test.
• LED drop-in kits run cool and white but must match reflector design to avoid scatter; check for DOT/SAE marks.
• Adaptive driving beams dynamically shade on-coming traffic, now legal in the U.S. (NHTSA).

Care Tips

• Clean lenses with mild car-wash soap, not household glass cleaner that can dull plastic.
• Keep spare bulbs and a 10 mm socket in the trunk.
• Check alignment every time you change ride height or load the trunk-incorrect aim causes glare and reduces seeing distance.
• Switch on lamps at dusk even when DRLs are lit; low beams give a wider pattern.

Eco Facts

Replacing halogen with factory-designed LEDs lowers energy draw by up to 75 % and can save about 12 lb of CO₂ per 10,000 mi, according to Department of Energy data .

Frequently Asked Questions

Q: What bulb size does my 2016 Corolla use?
A: Both low and high beams use a 9005 (HB3) halogen bulb in most trims. Always double-check the owner's manual before buying .

Q: Can I install LED bulbs in an older reflector housing?
A: Only if the complete lamp-housing plus bulb-is certified to FMVSS 108. Otherwise the glare pattern may be illegal .

Q: How long do factory LEDs last?
A: They are rated for 20,000-plus hours-often longer than the life of the car .

Q: Why do my headlights fog up after a car wash?
A: Quick temperature change makes moisture condense on the cool lens. It usually evaporates once the lamp heats up .

Q: When is condensation a real leak?
A: If water puddles in the bottom or haze stays more than 30 minutes of lamp-on time, the seal is likely cracked and the assembly should be replaced .

Q: How do I raise my beam?
A: Turn the 8 mm adjuster screw clockwise while you watch the cutoff on a wall 25 ft away - a half turn moves it about 1 in up .

Q: Are adaptive "smart" headlights available on the Corolla?
A: The 2023 GR Corolla and some overseas hybrids already use adaptive LEDs; U.S. versions can adopt them under the 2022 NHTSA rule .

Q: Do brighter bulbs guarantee safer driving?
A: No; IIHS testing shows beam focus and aim are just as important as raw brightness .

Q: Should I replace bulbs in pairs?
A: Yes. A new bulb is always brighter and whiter than an old one, so changing both keeps light color even and avoids early second failure .

Q: What fuse controls the left headlight on 2015 models?
A: In the under-hood fuse box, it's the 10 A HEAD-LH fuse located in the second row, slot 10 .

Q: Can cloudy lenses fail safety inspections?
A: Yes-haze that cuts beam intensity is a common inspection failure .

Q: Do LEDs blind other drivers more?
A: Properly aimed LEDs meet glare limits, but mis-aimed or mismatched retrofit bulbs can create excessive brightness complaints .

Q: Does using high-beam assist help?
A: Studies show most drivers under-use high beams; automatic assist switches them more often and lowers night crash rates .

Q: How often should I check my headlights?
A: Inspect aim and lens clarity at every oil change or at least twice a year, especially before winter when nights are longer .

Q: Where can I learn more about headlight law?
A: See the full NHTSA lighting regulations and IIHS headlight ratings online for free guidance (NHTSA | IIHS).
