Quick Summary

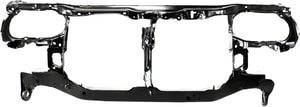

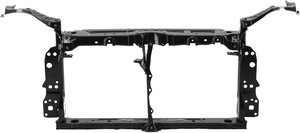

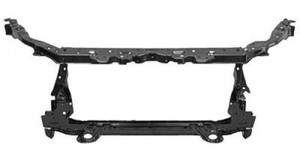

The radiator support-also called the core support, radiator cradle, rad support, or front upper tie bar-is the metal framework that links the left and right front frame rails of a Toyota Corolla. It holds the radiator, A/C condenser, cooling fans, hood latch, and often the head-lamp brackets, while also absorbing crash energy during a frontal collision. Toyota's body-repair literature states that the support must be replaced at factory seams; cutting it in the middle is not approved. (I-CAR) Modern supports are mostly stamped or hydro-formed high-strength steel, though some upper sections use aluminum or reinforced plastic to cut weight. (Wikipedia) Damage shows up as overheating, hood-latch mis-alignment, or rust holes along the lower cross-bar. (Brothers Auto Body Parts, Bavarian Workshop) Proper torque on mounting bolts and one-time-use fasteners is critical for safety after re-assembly. (I-CAR, Scribd) NHTSA crash-test data confirm that an intact support helps the Corolla earn top frontal ratings. (NHTSA)

New Section:

What It Does

The support is a structural beam that:

• Secures cooling parts so coolant can flow without leaks or vibration. (Brothers Auto Body Parts)
• Ties the front rails together, adding stiffness just like a cross-member in the vehicle frame. (Wikipedia)
• Serves as a crash box, crumpling to absorb energy in a 35 mph frontal barrier test. (NHTSA)

New Section:

Construction

• Steel stampings remain common for 1993-2025 Corolla sedans and hatchbacks.
• Hydro-formed sections appear on late-model hybrid variants to save weight while keeping strength. (Wikipedia)
• Bolted-on side brackets are designed as one-time-use parts; Toyota requires replacement if removed. (I-CAR)

New Section:

Model-Year Differences

← scroll table horizontally →

(Data summarized from Toyota body-repair manuals and I-CAR position papers.) (I-CAR)

New Section:

Symptoms

• Engine runs hot or coolant leaks because the radiator has shifted. (Brothers Auto Body Parts)
• Hood hard to close or gaps uneven. (Bavarian Workshop)
• Rust flakes or holes along the lower cross-bar. (Brothers Auto Body Parts)
• Front rattles when hitting bumps-loose cradle hardware. (Bavarian Workshop)

New Section:

Causes

• Low-speed crashes bend the thin outer flanges. (NHTSA)
• Road-salt corrosion attacks drain holes in the lower rail. (Brothers Auto Body Parts)
• Improper jack placement crushes the bar. (Wikipedia)

New Section:

DIY Checks

1. Remove the upper plastic cover and look for cracks or flaking paint.
2. Measure diagonal distances between left and right head-lamp mounts; more than 3 mm difference signals a twist.
3. Shine a light through drain slots; any perforation means replacement, not repair. (Brothers Auto Body Parts)

New Section:

Replacement

Toyota's bulletin says do not section the support except at factory seams; drill out spot-welds and install the new panel with identical weld count or approved MIG-braze. (I-CAR)

• Labor time: about 6 hours on 2014-2019 models.
• Torque tips: radiator-fan brackets 7 N·m; side-panel bolts 52 N·m. (Scribd)
• One-time-use hardware-yellow-plated bolts and hood-latch screws-must be replaced. (I-CAR)

For step-by-step weld locations, see Toyota's online Collision Repair Information Bulletin (free registration). collision repair bulletin

New Section:

Safety Rules

Driving with a bent support can let the radiator rub the fan blades, risking a coolant dump and sudden overheating. (Brothers Auto Body Parts) A mis-aligned cradle may also shift front-impact sensor angles, affecting air-bag timing. (NHTSA)

New Section:

Care Tips

• Rinse winter salt off the lower cradle after every wash.
• Spray a light coat of zinc-rich primer on exposed welds.
• Check bolt torque whenever the front bumper is removed. (I-CAR)

New Section:

Environmental Impact

Scrap steel from the old support is 100 % recyclable and typically re-enters the steel supply chain within weeks, reducing ore mining demands. (Wikipedia)

New Section:

Q: What is a radiator support?
A: It's the front frame piece that holds the radiator, condenser, and hood latch while bracing the car's nose.

Q: Is it safe to drive with a cracked core support?
A: No. Even a small crack can let the radiator shift and leak, leading to overheating. (Brothers Auto Body Parts)

Q: Are Corolla supports welded or bolted?
A: The main center section is spot-welded to the rails; side brackets are bolted on for 2014-up models. (I-CAR)

Q: Can I straighten a bent rad support?
A: Toyota forbids straightening because metal strength is lost; replace at factory seams only.

Q: What materials are used?
A: Mostly high-strength stamped steel; some hybrids add aluminum upper tie-bars. (Wikipedia)

Q: Does the support affect air-bag timing?
A: Yes-sensor alignment depends on correct structural geometry. (NHTSA)

Q: How do I spot rust early?
A: Check drain holes with a flashlight and tap for thin spots along the lower rail. (Brothers Auto Body Parts)

Q: What torque spec should I follow?
A: Use the Corolla service-manual specs; for example, side bracket bolts are 52 N·m. (Scribd)

Q: Are fasteners reusable?
A: Yellow-plated cradle bolts are one-time-use; replace them after removal. (I-CAR)

Q: Does hydro-forming make the part stronger?
A: Yes-hydro-formed sections gain higher stiffness-to-weight ratios. (Wikipedia)

Q: Why do supports corrode?
A: Road salt collects in the lower channel where paint is thin. (Brothers Auto Body Parts)

Q: How long does a new support last?
A: With proper rust protection it can exceed 15 years, matching the vehicle's service life. (Wikipedia)

Q: Will an aftermarket bull-bar protect the support?
A: It may reduce low-speed damage but can change crash-energy paths; verify local regulations first.

Q: Can I powder-coat the replacement?
A: Yes-just mask weld areas so coating thickness does not block bolt holes or grounding points.

Q: Where can I read more?
A: Toyota's Collision Repair Manual and the NHTSA safety-rating page for the 2025 Corolla provide detailed information. Corolla safety ratings
