Summary
The engine splash shield on a Toyota Prius-also called a lower engine cover, belly-pan, skid plate, or undercar shield-is a thin panel that bolts to the bottom of the front sub-frame. It blocks water, mud, salt, and gravel, helps the hybrid's smooth under-body airflow, and keeps pricey electrical parts cleaner for longer. When cracked or missing, road junk can hit the oil pan or inverter, small animals can nest above the exhaust, and fuel economy may dip a little. Below is a deep dive into everything shoppers, DIYers, and drivers ask about this part, plus links to trusted resources for extra reading.

Overview

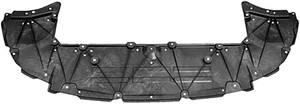

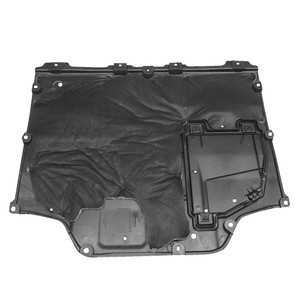

The splash shield is a molded plastic or lightweight metal plate that sits between the front wheels, right under the 1.8-liter 2ZR-FXE engine on every Prius generation since 2004. It deflects puddle spray, rocks, and sand so they do not strike wiring, the oil filter, or the hybrid transaxle (Wrench). Newer aluminum versions add strength without much weight (ASFIR 4x4).

Other Names

Toyota's repair manuals call it Engine Under-Cover No. 1 (example part 51410-12101 for many 2010-2015 models) (PriusChat). Owners and forums also say engine splash guard, belly pan, under-tray, or simply plastic shield (Reddit).

Location & Fit

Look behind the front bumper: the shield bolts to a steel cross-member and tucks under the radiator support. Ten to twelve 10 mm bolts or push-clips hold it. Prius generations (2004-2009, 2010-2015, 2016-2022, and 2023-present) share the same concept but use different mounting points, so always match the year when ordering.

Key Functions

• Debris barrier - stops rocks and ice chunks from punching the oil pan (Patsnap Eureka).
• Water guard - keeps splashes off starter-generator cables and HV connectors (ASFIR 4x4).
• Aerodynamics - smooth bottom air flow can recover a small MPG penalty if the shield is missing (Reddit).
• Noise control - plastic absorbs some engine and road noise (Patsnap Eureka).

Materials

Toyota supplies a glass-fiber-reinforced polypropylene version; aftermarket shields come in ABS, "plastic-steel" PVC blends (Wrench), or 3 mm aluminum for off-road builds (ASFIR 4x4). Aluminum resists crushing and sheds heat fast but costs more.

Signs of Damage

• Flapping or scraping noise at highway speed-often a broken oil-change access door (PriusChat).
• Pieces hanging low after parking-curb contact (PriusChat).
• Zip-ties or duct tape already in place (common quick fix) (Reddit).
• MPG drop of 1-2 mpg on the dashboard .

Why It Fails

Fastener clips loosen, the hinge on the small oil-service flap cracks, and the whole door tears away during oil changes (PriusChat). Toyota issued several redesigns, but owners still report repeated hinge breaks.

Replacement Steps

1. Park on level ground and set the parking brake.
2. Jack up the front safely and use stands.
3. Remove all plastic clips/10 mm bolts.
4. Drop the old shield; check that no wiring is snagged.
5. Lift the new shield in place; finger-start all hardware.
6. Torque small bolts to hand-tight (about 7 ft-lb).
7. Lower the car; road-test for rattles.
   Detailed illustrated steps are in Toyota's paid Techinfo manuals (https://techinfo.toyota.com).
   For video help, search the 2023+ Prius aluminum skid-plate installs on enthusiast channels.

Maintenance Tips

• Inspect at every oil change for broken clips.
• Rinse winter salt off with a garden hose to slow corrosion.
• Replace missing plastic rivets with OE-style push-pins; mismatched fasteners can fall out (PriusChat).

Aerodynamics & Efficiency

Studies on under-body panels show small but real drag-reduction benefits; Toyota enthusiasts note 1-3 % better mileage when the shield is intact (ASFIR 4x4, Reddit). For more on how airflow influences hybrid fuel economy, see the EPA's driver tips (https://www.fueleconomy.gov).

Safety & Legal Notes

Driving without the shield is not illegal, but NHTSA reminds owners that loose under-body parts can detach and create road hazards (https://www.nhtsa.gov)-one more reason to re-secure it quickly.

Environmental Impact

Keeping high-voltage wiring clean helps maintain Prius battery efficiency, reducing wasted energy (Patsnap Eureka). A working shield also stops leaking oil from dripping directly onto the pavement where rain can wash it into waterways-something the Car Care Council highlights in its pollution-prevention tips (https://www.carcare.org).

Cost & Time

• Part price - about US $70-110 for aftermarket plastic, US $250-300 for OEM plastic, and US $300-450 for aluminum.
• Labor - 0.4-0.7 hour at most shops; many DIY in 30 min (Wrench).

DIY vs. Professional

DIY is straightforward with basic tools, but if the hybrid wiring loom was hit, let a qualified technician inspect it. Mobile mechanics will replace the shield curb-side for convenience .

Outbound Resources

• Toyota official service data - https://techinfo.toyota.com
• EPA fuel-economy driving tips - https://www.fueleconomy.gov
• NHTSA vehicle safety info - https://www.nhtsa.gov
• Car Care Council maintenance guides - https://www.carcare.org
• SAE papers on vehicle aerodynamics - https://www.sae.org

Frequently Asked Questions

Q: Does the Prius need the splash shield to run?
A: The engine will run without it, but parts will face more dirt and water, and you may lose a bit of fuel efficiency (Patsnap Eureka, Reddit).

Q: Will a metal skid plate hurt MPG?
A: Tests and owner reports show no noticeable drop because plates are thin and keep airflow smooth; weight gain is under 10 lb (ASFIR 4x4).

Q: Can I drive after the oil-service flap tears off?
A: Yes for short trips, but re-secure or replace soon-spray can hit the serpentine belt or alternator (PriusChat).

Q: Why do the plastic clips fall out?
A: Heat cycles make them brittle; re-use can strip the locking ribs (PriusChat).

Q: Does the shield help cabin noise?
A: Yes, the panel dampens road splash sounds and engine whine a bit (Patsnap Eureka).

Q: Are there recalls for this part?
A: Toyota issued technical service bulletins but no federal recall; owners pay out of pocket when the hinge breaks (PriusChat).

Q: What tools do I need to replace it?
A: A 10 mm socket, trim-clip pliers, and a floor jack with stands (Wrench).

Q: How often should I inspect it?
A: Peek under the nose at every oil change or tire rotation-about every 5,000 miles.

Q: Will insurance cover damage?
A: Comprehensive policies sometimes cover impact damage; check your plan.

Q: Can I patch cracks with epoxy?
A: Small cracks can be plastic-welded, but large holes disrupt airflow; replacement is best (ASFIR 4x4).
