Quick Look

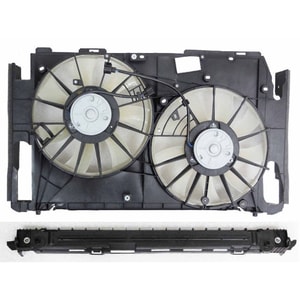

The cooling fan-also called the radiator fan, electric fan motor, engine-cooling blower, or fan assembly-pulls outside air through the RAV4's radiator and A/C condenser when vehicle speed alone cannot keep the engine cool. A healthy fan stops overheating, keeps cabin A/C cold, and protects hybrid battery parts on later models. RAV4s use dual electric fans starting in the mid-2000s, and every generation since 2013 relies on computer-controlled fan relays that switch speeds as needed. Running a bad fan risks warped cylinder heads, melted wiring, and costly roadside breakdowns.

Purpose

• Moves large airflow through the radiator to take heat away from coolant. (Free ASE Study Guides)
• Kicks on at idle, in traffic, or whenever coolant temperature or A/C pressure rises. (Wikipedia)
• Saves fuel because electric fans draw power only when needed, unlike old belt-driven fans. (Flex-A-Lite)

Main Parts

← scroll table horizontally →

Generations

1996-2000 (XA10) - One primary radiator fan; separate A/C condenser fan optional.
2001-2005 (XA20) - Two fans standard; ECM grounds relays in stages.
2006-2012 (XA30) - Larger radiator area; dual-speed brushless motors.
2013-2018 (XA40) - Fan control moves to under-hood "Cooling Fan ECU."
2019-2025 (XA50, Hybrid & Prime) - Hybrid adds a rear-seat HV battery cooling fan. Toyota issued a bulletin to clean this fan every 5,000 mi in dusty use. (NHTSA, NHTSA)

Symptoms

• Engine temp gauge rises only when stopped. (CHIN LANG AUTOPARTS CO., LTD.)
• No fan sound with A/C on full blast. (Dubizzle)
• Loud flutter or rattle from rear seat (hybrid battery fan). (NHTSA)
• Dashboard "Check Engine" light with codes P0480-P0483 (fan control) or P1CE931 (Prime charger fan). (NHTSA)

Diagnosis

1. Check the fan fuse and 30-amp relay first.
2. Jump the relay socket; if the motor spins, the relay or ECM trigger is bad. (Free ASE Study Guides)
3. With scan-tool live data, verify the coolant temperature reaches fan-on threshold (≈ 205 °F).
4. Look for cracked blades or melted connector pins.

Replacement Cost

• Full radiator fan assembly: about $2,173-$2,396 including labor. (RepairPal.com)
• Individual fan motor only: about $936-$1,122. (RepairPal.com)
  Labor is high because the bumper cover and upper radiator support must come off on late-model RAV4s. Always torque mounting bolts evenly to avoid shroud warp.

Maintenance

• Blow out leaves and bugs from the shroud at every oil change.
• Hybrid owners: clean or replace the HV battery fan filter yearly to stop dust from tripping battery-overheat warnings. (NHTSA, NHTSA)
• Spin the blades by hand (engine off); roughness means worn bearings.
• Inspect wiring near the fan ECU for melted insulation during summer heat waves.

Upgrades & Mods

Switching to a higher-flow electric performance fan can free horsepower and lift mpg because the engine no longer drags a mechanical clutch fan. (Flex-A-Lite, Black Bear Performance) Aluminum shrouds and curved-blade designs cut noise and pull more CFM. Some owners add a manual override switch for steep mountain towing.

Environment

Never pour old coolant down a drain. Waste antifreeze can contain heavy metals and is illegal to dump in many states. Recycling options include on-site machines, mobile services, or off-site processing. (US EPA) Check local household hazardous-waste days for free drop-off.

Frequently Asked Questions

Q: Why does my radiator fan stay on after I park?
A: The ECM keeps it running to cool engine parts and prevent heat-soak damage-normal for a few minutes on hot days. (Dubizzle)

Q: Can I drive with a broken cooling fan?
A: Only at highway speed where wind may cool the radiator, but one traffic light can overheat the engine. Tow or repair as soon as possible. (CHIN LANG AUTOPARTS CO., LTD.)

Q: Does a louder fan mean more airflow?
A: Not always. Bent blades or a failing motor can roar yet move less air than a healthy, quiet unit.

Q: How often should hybrids service the rear fan?
A: Toyota's bulletin for severe dust use calls for cleaning every 5,000 miles to stop battery overheating. (NHTSA)

Q: What coolant mix works best with the RAV4 fan system?
A: Toyota recommends a 50/50 antifreeze-water mix for most climates; colder regions may use 70/30. (US EPA)

Q: Will an aftermarket electric fan increase miles per gallon?
A: Tests show small mpg gains because the engine no longer turns a belt fan, especially at cruising speed. (Flex-A-Lite, Waste Advantage Magazine)

Q: How do I know if the relay is bad?
A: If jumping the relay socket makes the fan spin, replace the relay; if not, the motor or wiring is faulty. (Free ASE Study Guides)

Q: What noises point to HV battery fan trouble?
A: A flutter or rattle from the rear side panel on 2019-present hybrids signals a dirty or damaged battery fan duct. (NHTSA)

Q: Does replacing the fan require draining coolant?
A: No. The fan bolts to the radiator but does not open the coolant loop, so fluid stays inside.

Q: Where can I read Toyota's official overheating advice?
A: See the "If Your Vehicle Overheats" section of the online Toyota RAV4 owner's manual for step-by-step guidance.
