Buy Audi Q5 Engine Splash Shield

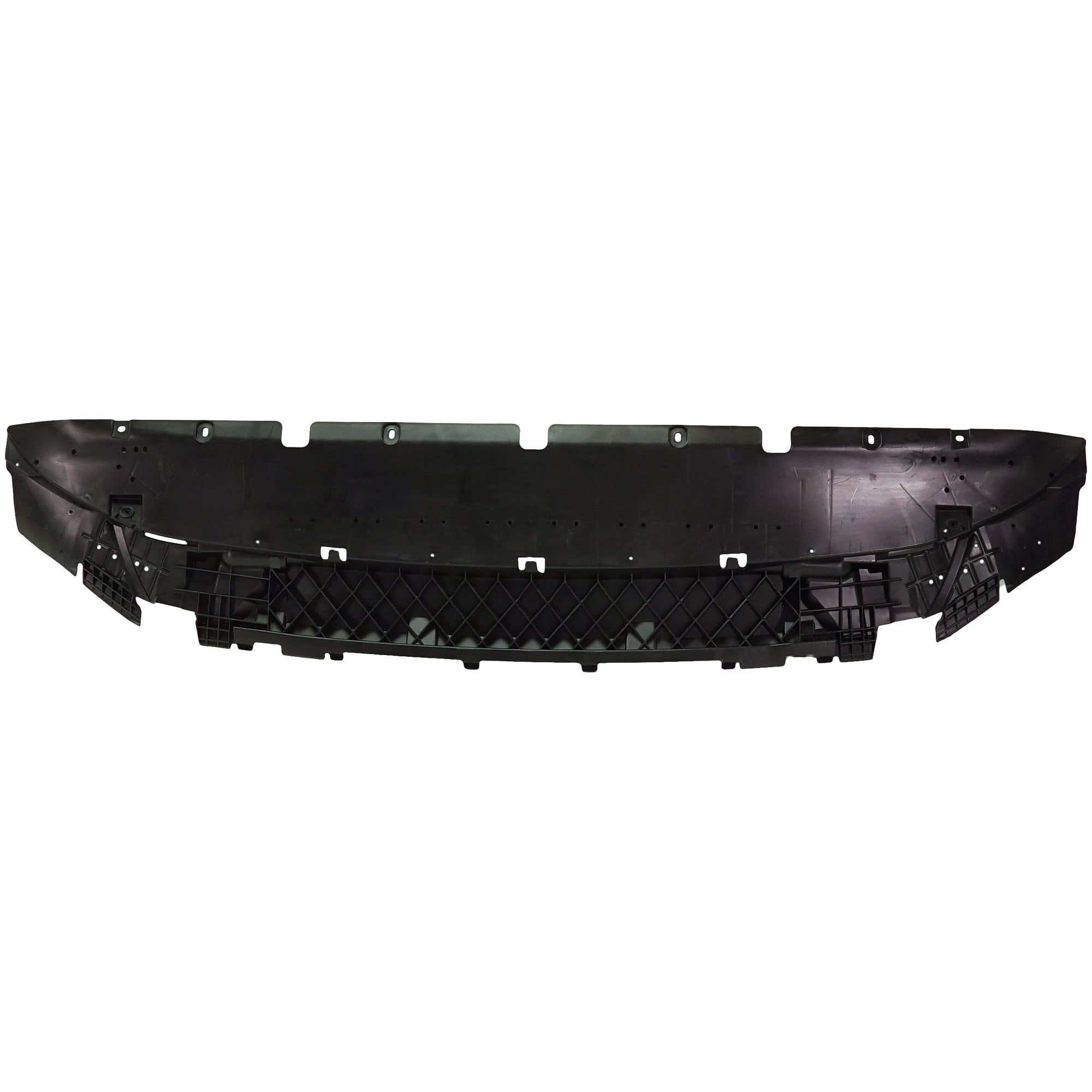

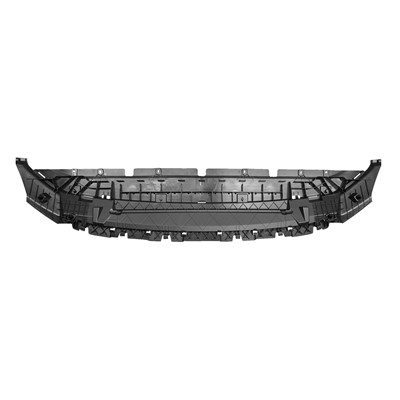

Below is a deep-dive guide to the Audi Q5 engine splash shield-also called the belly pan, skid plate, under-engine tray, lower engine cover, or under-car shield. The shield bolts to the sub-frame beneath the motor and transmission on every Q5 generation (2009-present). It guards sensitive parts, smooths airflow, and even quiets the ride.

What It Does

The splash shield blocks water, mud, salt, rocks, and wayward fast-food cups from striking the oil pan, belts, sensors, and wiring. (YourMechanic) It also catches small fluid leaks before they reach the road, making drips easier to spot. (Mechanic Base) Engineers shape the panel to guide air under the SUV, cutting drag and wind noise for better mpg and a quieter cabin. (Knauf Industries Automotive, Wikipedia)

Why You Need One

• Protection: Road debris causes more than 200,000 U.S. crashes every four years, largely from unsecured loads or loose vehicle parts. (AAA Newsroom, AAA Exchange)
• Safety: Debris-related crashes rose to 895 deaths in 2022. (San Antonio Express-News)
• Cost control: A pierced aluminum oil pan or torn wiring harness can cost thousands, far exceeding the price of a replacement tray. (CarParts.com)
• Noise & comfort: The shield's sound-deadening design helps keep engine and road roar out of the cabin. (Knauf Industries Automotive)

Materials

Most factory Q5 panels are injection-molded polypropylene (PP), a light, tough thermoplastic that resists chemicals and heat. (Wikipedia) Aftermarket upgrades may use thicker ABS, aluminum, or steel for off-road impacts. Metal skid plates add strength but also weight that can nudge fuel economy down slightly. (Wikipedia)

Aerodynamics

An unbroken under-tray lets air glide under the SUV, reducing turbulence ("drag") and lift. (Wikipedia) Audi uses full-length belly pans on many models to keep wheel-arch liners from flexing and to channel cooling air where it's needed. (The Autopian)

Fit & Compatibility

• 1st Gen 8R (2009-2017): Main shield family # 8R0-825-202/203 (front) and 8R0-825-207/208 (center/rear). Torque the M6 pan screws to 9 Nm per Audi spec.
• 2nd Gen FY (2018-2025): Redesigned two-piece composite tray plus small side deflectors that clip to the sub-frame rails.
• S-line, SQ5, hybrid, and plug-in variants share the same mounting pattern; confirm hole count before ordering.

Symptoms of Trouble

• Rattling, flapping, or scraping noises at speed.
• Tabs torn, missing Torx screws, or plastic clips sheared off.
• Visible cracks or a panel that no longer sits flush.
• Engine bay suddenly dirtier or wetter after rain.

Basic Installation

1. Park on level ground, engage parking brake, and raise the front of the Q5 on jack stands.
2. Remove nine T25 Torx screws and two quarter-turn clips at the wheel-liner edges (1st gen pattern). (CarParts.com)
3. Pull the old tray rear-ward; watch for any captive speed nuts that may fall.
4. Slide the new shield into the bumper channel first, then hand-start all fasteners.
5. Tighten to 9 Nm (M6) or 4 Nm (plastic push-pin types).
6. Lower vehicle and road-test for noise.

Maintenance Tips

• Inspect the tray at every oil change for cracks or missing clips.
• Replace rusty hardware with stainless Torx screws and wide fender washers for extra grip.
• In snowy areas, rinse the under-side to wash off salt that can embrittle plastic over time.
• Avoid curb impacts; even a "low" parking block can cave in the panel's leading edge.

Upgrades & Mods

• Metal skid plate: Ideal for gravel roads; heavier but shrugs off rock strikes.
• Quick-release fasteners: Swap plastic push-pins for D-ring quarter turns to speed oil-change access.
• Full under-tray kit: Extends coverage all the way to the rear bumper for maximum aero smoothing-borrowed from race-car practice. (Wikipedia)

Environmental Note

Recycling PP splash shields keeps plastic out of landfills. Many curbside programs accept clean #5 plastic once the steel clips are removed. (Wikipedia)

Frequently Asked Questions

Q: Can I drive without the shield if it falls off?
A: Yes, the engine will run, but road debris, water, and salt can quickly damage belts, hoses, and the oil pan. Replace the shield as soon as possible. (YourMechanic)

Q: Does the tray really improve gas mileage?
A: A smooth underbody lowers aerodynamic drag; tests on similar SUVs show up to a 2 percent fuel-economy gain. (Wikipedia)

Q: What tools do I need for a DIY swap?
A: A Torx-bit socket set (T25/T30), ¼-inch ratchet, flat-head trim tool, jack, stands, and safety goggles are usually enough. (CarParts.com)

Q: Why do plastic shields crack so often?
A: Repeated removal for oil changes, heat cycling, and impacts at mounting holes weaken the plastic over time. (The Autopian)

Q: How long does a polypropylene panel last?
A: In normal service, 5-8 years is common before UV exposure and impacts make replacement smart. (Mechanic Base)

Q: Are metal skid plates noisy?
A: Aluminum or steel can reflect more road noise, but thin rubber strips or foam tape between the plate and sub-frame dampen vibration. (Wikipedia)

Q: Will an aftermarket plate void my warranty?
A: No-under U.S. Magnuson-Moss rules, a dealer must prove the plate caused damage before denying coverage.

Q: What torque spec should I use?
A: Audi's quick-reference manual lists 9 Nm (about 80 in-lb) for the M6 bolts that secure the Q5 shield.

Q: Can the shield reduce engine-bay noise?
A: Yes, the panel absorbs and reflects sound waves, lowering cabin dB levels-especially on highways. (Knauf Industries Automotive)

Q: Are there signs I need a stronger plate?
A: If you off-road, bottom out, or see gouges deeper than ¼ inch, step up to an aluminum skid plate for extra impact resistance. (Wikipedia)

Use these sections, facts, and Q&As as building blocks for product pages, how-to guides, and blog posts targeting every phase of the Audi Q5 splash-shield life-cycle-from explanation and diagnosis to removal, upgrade, and recycling.
