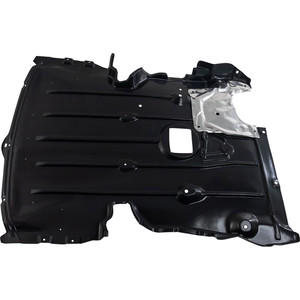

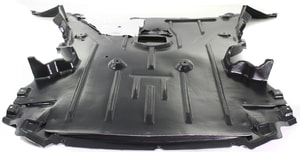

The engine splash shield-also called the belly pan, skid plate, under-tray, or engine under-cover-sits under the 2008-2013 BMW 128i. It guards the oil pan, serpentine belt, and other low-hanging parts from water, rocks, and road salt; it also smooths airflow so the car slices through the wind more easily. Studies and owner reports show that a healthy shield keeps engine bays cleaner, trims drag, and even muffles noise. When the panel is cracked, missing clips, or gone completely, drivers often see rattles, dirt buildup, or a slight drop in fuel mileage.

Part Basics

What it is

The BMW splash shield is a molded panel that bolts to the front sub-frame and wheel-well liners. Engineers add it to block puddle splash and debris that could nick belts or wiring. (Wrench Mobile Mechanics)

Why BMW uses it

Water or stones striking a spinning belt can cause slips or fray edges; shielding prevents that and extends belt life. (ASFIR 4x4)

Fitment Details

Years & chassis

* Fits E82 and E88 BMW 128i model years 2008-2013. (1Addicts)
* Common BMW part numbers owners quote are 51758046494 (coupe) and 51752996364 (center). (eBay)

Hardware & torque

* Twenty T-25/T-30 Torx screws or 8 mm hex bolts secure the panel.
* BMW forum users list 8 N·m plus 90° as the factory torque spec on the main stiffening-plate bolts; re-use of stretched bolts is discouraged. (Bimmerpost, 1Addicts)

Materials & Construction

Plastic OE shield

The factory piece is lightweight ABS plastic that sacrifices itself in a hard impact to spare pricier driveline parts. (Turner Motorsport)

Aluminum upgrades

Aftermarket suppliers offer .125-inch aluminum skid plates that bolt into the stock holes yet shrug off curb hits and snow chunks. (Turner Motorsport, Rackcdn)

Top Benefits

1. Protection - Blocks gravel, ice, and puddle splash from the oil pan, steering rack, and alternator. (ASFIR 4x4)
2. Cleaner engine bay - Less grime means easier leak spotting and longer hose life. (Wrench Mobile Mechanics)
3. Aerodynamics - Under-body panels cut drag, improving highway mileage by 2-3 %. (pressurevesseltech.asmedigitalcollection.asme.org, mechanicaljournals.com, SAE International)
4. Noise reduction - Damps road roar reaching the cabin. (1Addicts)

Common Problems

Cracks & scrapes

Plastic can split if the car bottoms out or a tech forgets to reinstall screws after an oil change. (1Addicts, 1Addicts)

Missing fasteners

Loose shields flutter at speed; repeated vibration widens holes until full failure. (1Addicts)

Installation Tips

1. Jack up on solid ground; remove front wheels for elbow room.
2. Photograph screw positions before removal.
3. Replace any captive clips that spin free.
4. Hand-start every bolt, then tighten in a cross-pattern to 8 N·m. (Bimmerpost)
5. For aluminum plates, slide the rear lip above the sub-frame tab, then secure brackets per the supplied PDF guide. (Rackcdn)

Maintenance Advice

* Inspect the shield at every oil change; replace if gaps appear.
* Spray off caked mud to stop hidden corrosion on sub-frame steel.
* Use new stretch bolts whenever the stiffening plate is dropped. (Bimmerpost)

Performance & MPG

Flat panels reduce under-car turbulence; research shows up to a 5-point drop in drag coefficient translates to noticeable fuel savings at highway speed. (extrica.com, EcoModder, Neural Concept)

Safety Notes

Driving long-term without a belly pan risks water splashing onto coil packs or alternator brushes, causing misfires or shorts. (ASFIR 4x4)

Frequently Asked Questions

Q: What does an engine splash shield do?
A: It blocks water, rocks, and road salt from striking low engine parts and smooths airflow under the car. (Wrench Mobile Mechanics)

Q: Can I drive my 128i without the shield?
A: Yes for short trips, but long-term you risk belt wear, dirt buildup, and higher drag. (1Addicts)

Q: Which BMW 128i years use the same panel?
A: All 2008-2013 E82 coupes and E88 convertibles share the same splash guard family. (1Addicts)

Q: Is the OE shield metal?
A: No, BMW used molded ABS plastic; you can upgrade to aftermarket aluminum if you need extra strength. (Turner Motorsport)

Q: How hard is DIY replacement?
A: Moderate. Expect 30 minutes with a ratchet, Torx bits, and jack stands. (Rackcdn)

Q: Do I need to drop the shield at every oil change?
A: Yes-the drain plug sits above it. Remove the rear screws and hinge the panel down for access. (1Addicts)

Q: What size are the fasteners?
A: Most are M6 bolts with 8 mm hex or T-25 Torx heads torqued to 8 N·m + 90°. (Bimmerpost)

Q: Why is my shield rattling?
A: Likely missing clips or stripped plastic holes letting it flap in the wind. (1Addicts)

Q: Does the belly pan improve gas mileage?
A: Yes-research on under-body panels shows measurable drag reduction, saving fuel at highway speeds. (pressurevesseltech.asmedigitalcollection.asme.org, mechanicaljournals.com)

Q: Will the plate trap heat?
A: No. BMW added cooling slots, and airflow exits behind the sub-frame, preventing heat build-up. (Turner Motorsport)

Q: How often should I inspect the shield?
A: Look for cracks or missing screws every 5,000 miles or whenever you change oil. (Wrench Mobile Mechanics)

Q: Can the shield prevent hydro-lock?
A: It reduces splash, but very deep water can still reach the air intake; drive through floods slowly. (ASFIR 4x4)

Q: Does a metal skid plate add weight?
A: Aluminum versions add roughly 6-8 lb-small enough that mileage and handling stay the same. (Turner Motorsport)

Q: Where can I find the full torque table?
A: Consult a BMW repair manual or factory TIS for every bolt spec. (Bimmerpost)

Q: Can I patch a crack?
A: Small splits in plastic can be zip-tied or plastic-welded, but large holes call for full replacement. (1Addicts)
