Below is an in-depth, easy-to-read guide to the Cadillac Escalade window regulator-sometimes called a window lifter, glass-lift mechanism, or power-window assembly. You'll learn what it does, how it fails, ways to fix it, safety notes, and answers to the most-searched questions. Every fact is backed by reliable sources, which you can see through the numbered footnotes.

Overview

Overview

The window regulator is the hidden hardware that moves each door glass up and down when you press the switch. On every modern Escalade, the motor, cables, rails, and scissor arms form one powered unit that slides the heavy glass smoothly and locks it in place. A working regulator keeps the cabin quiet, secure, and weather-tight. (Wikipedia, experience.gm.com)

Fits & Versions

Fits & Versions

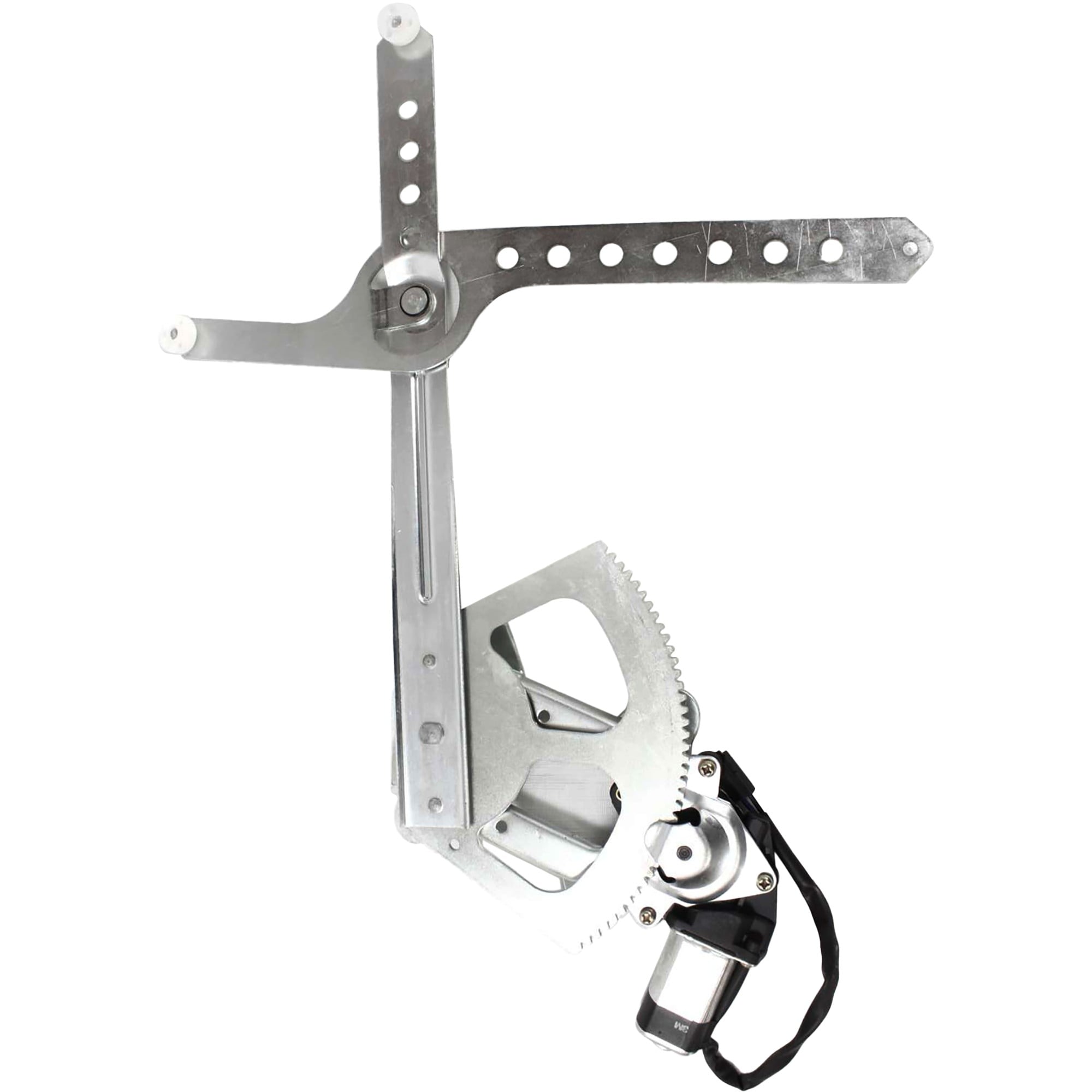

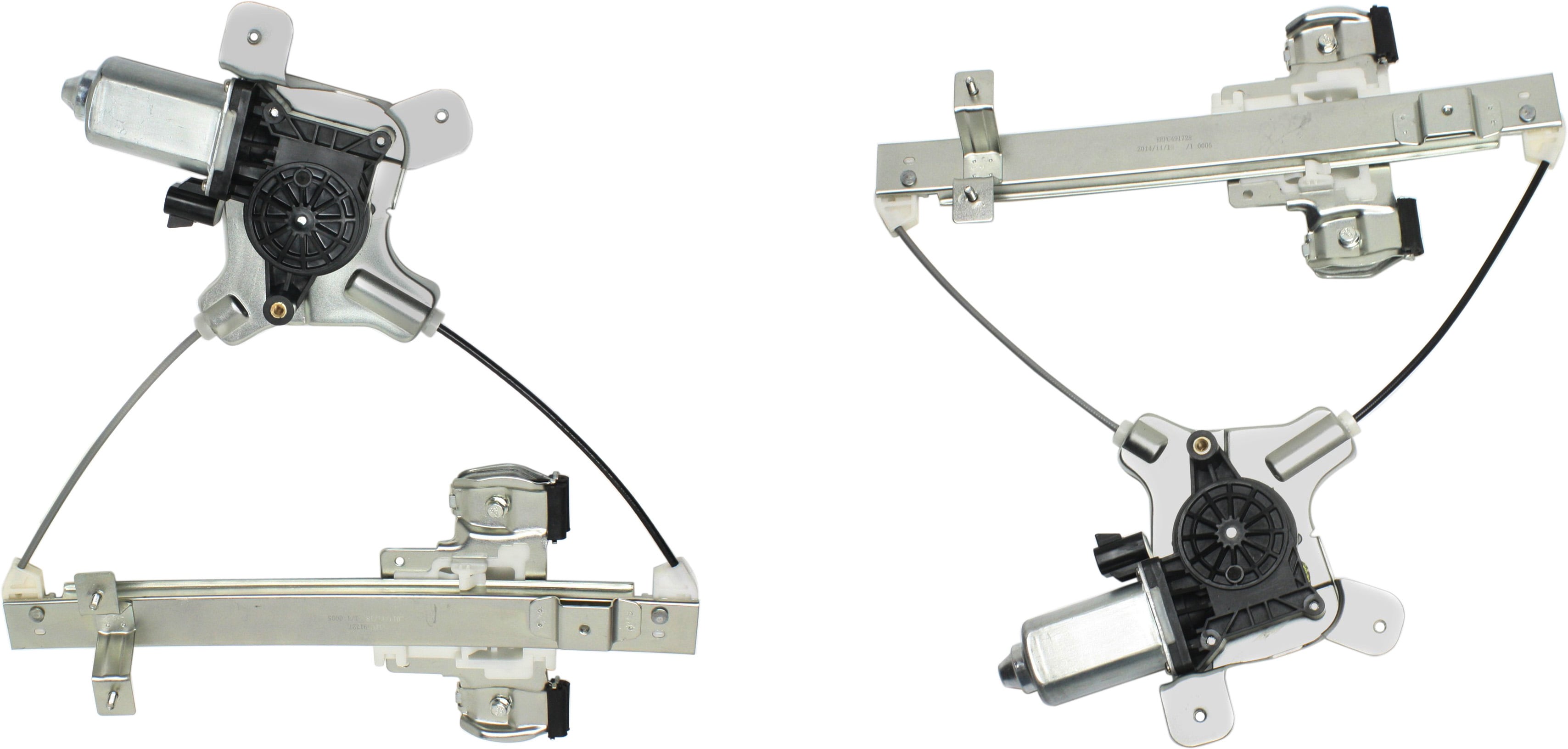

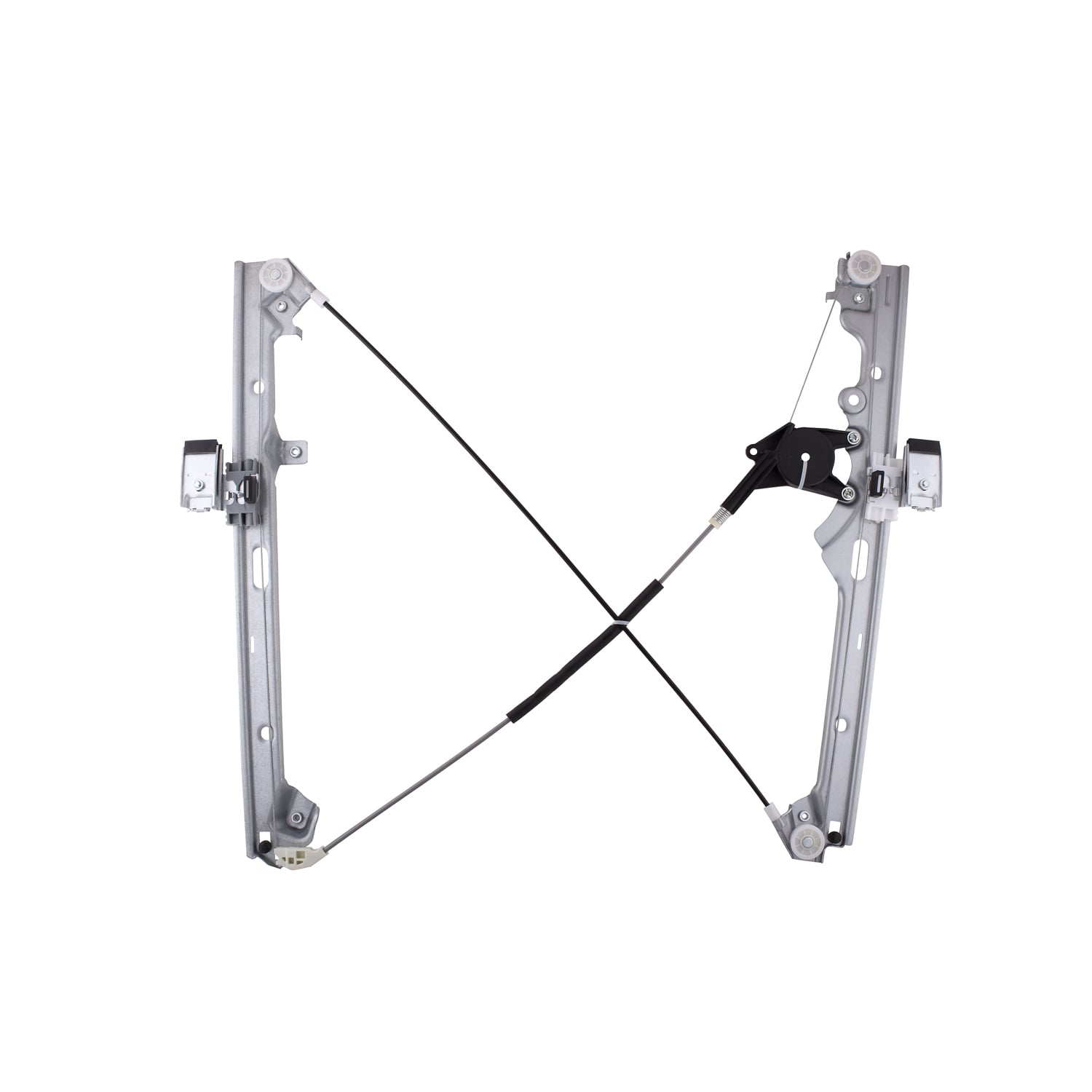

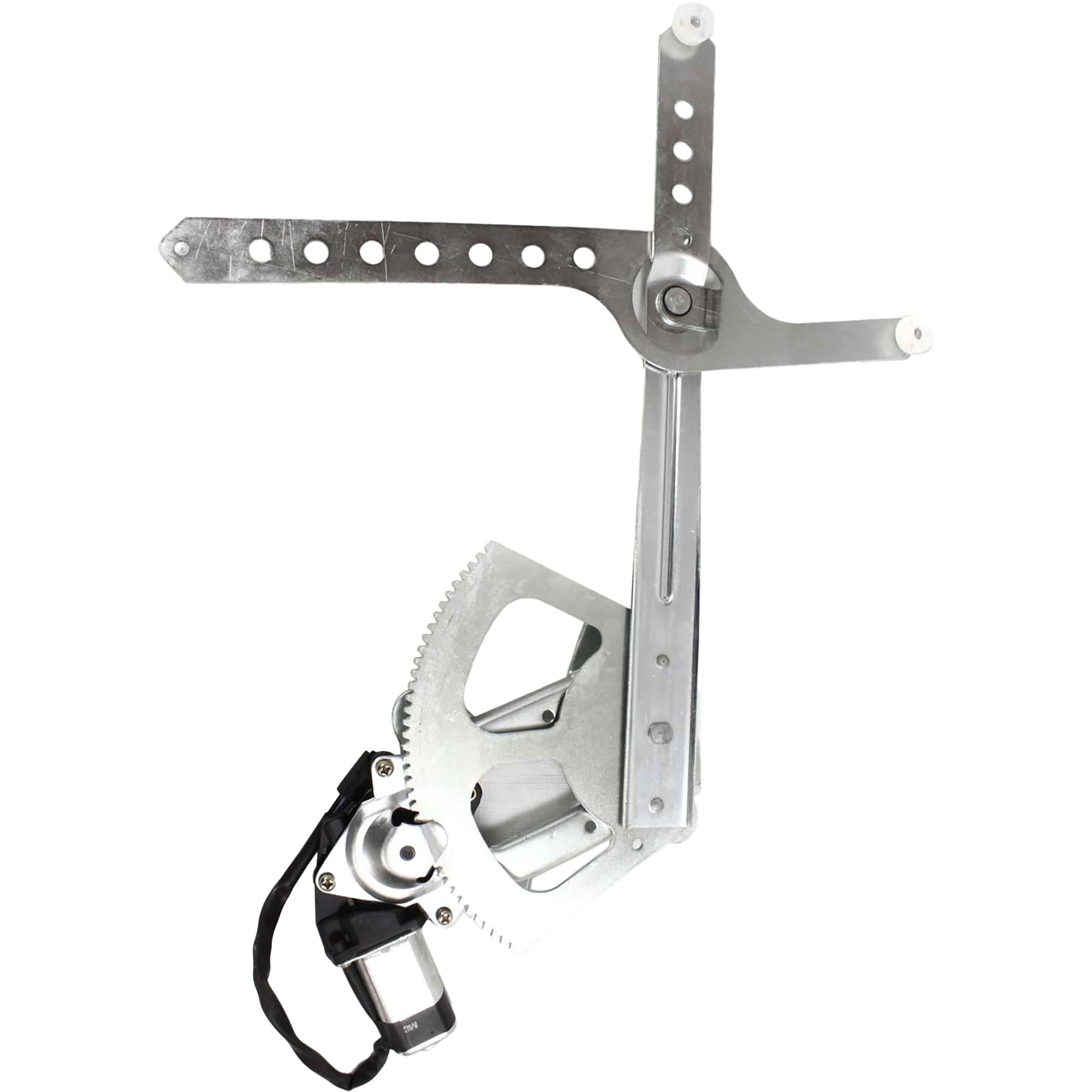

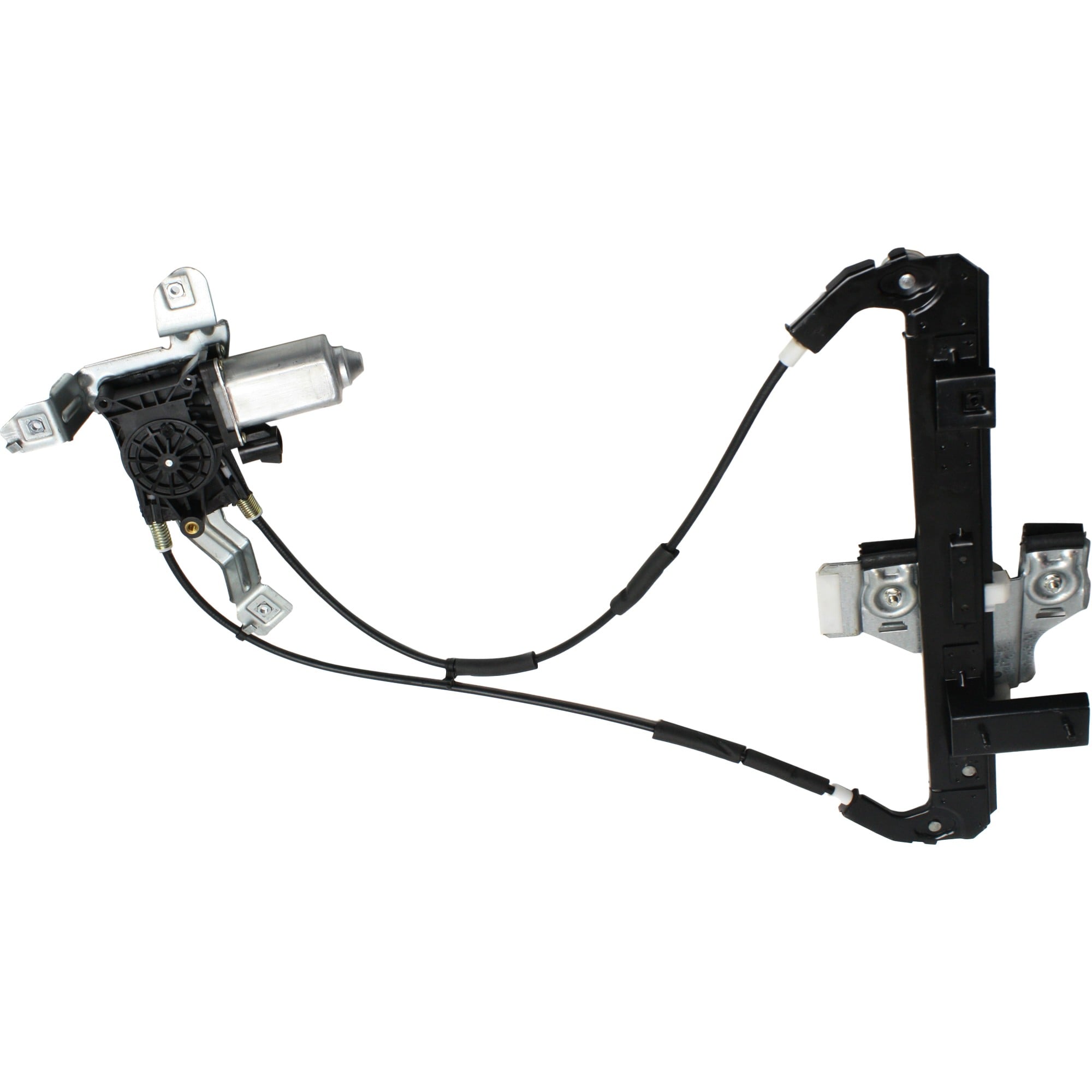

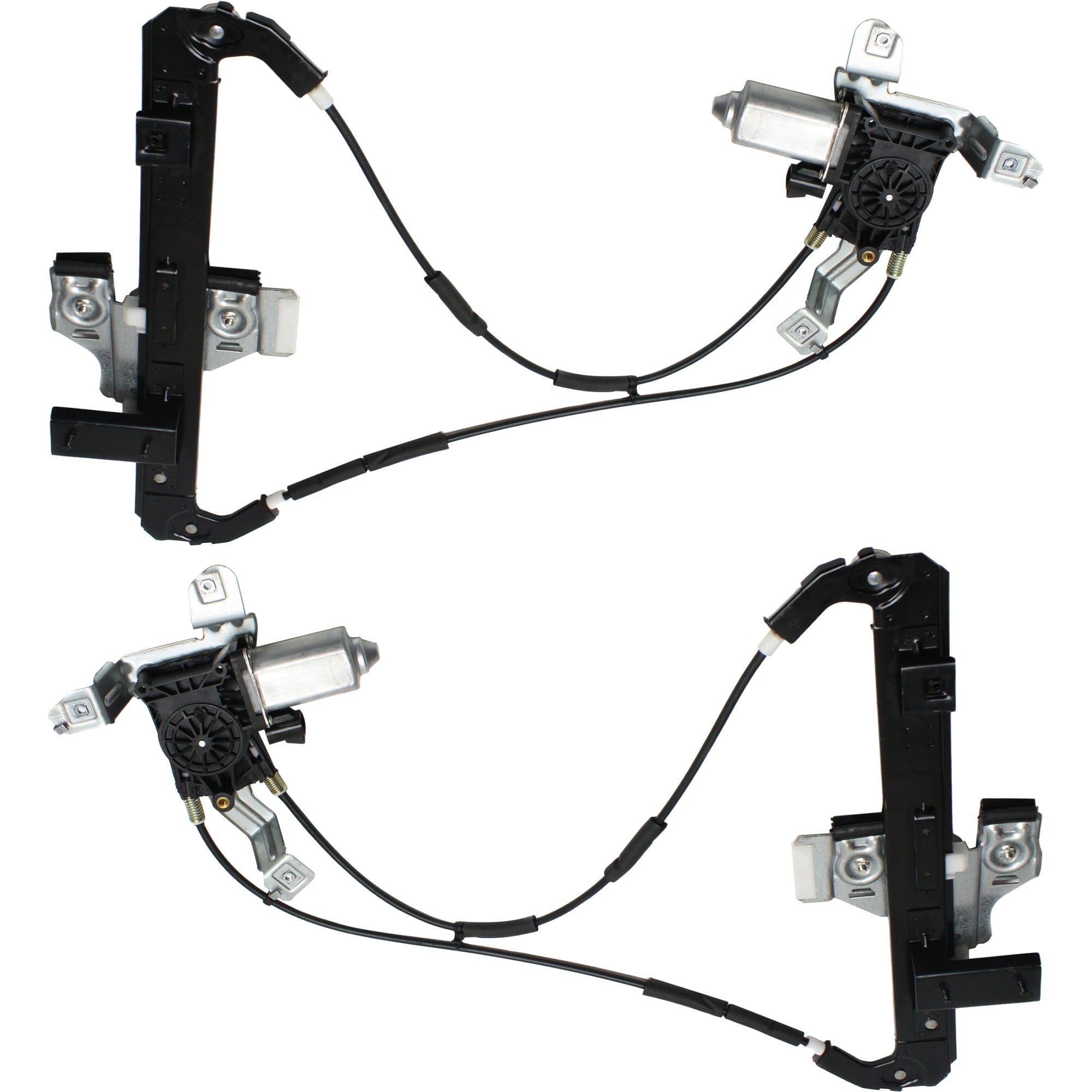

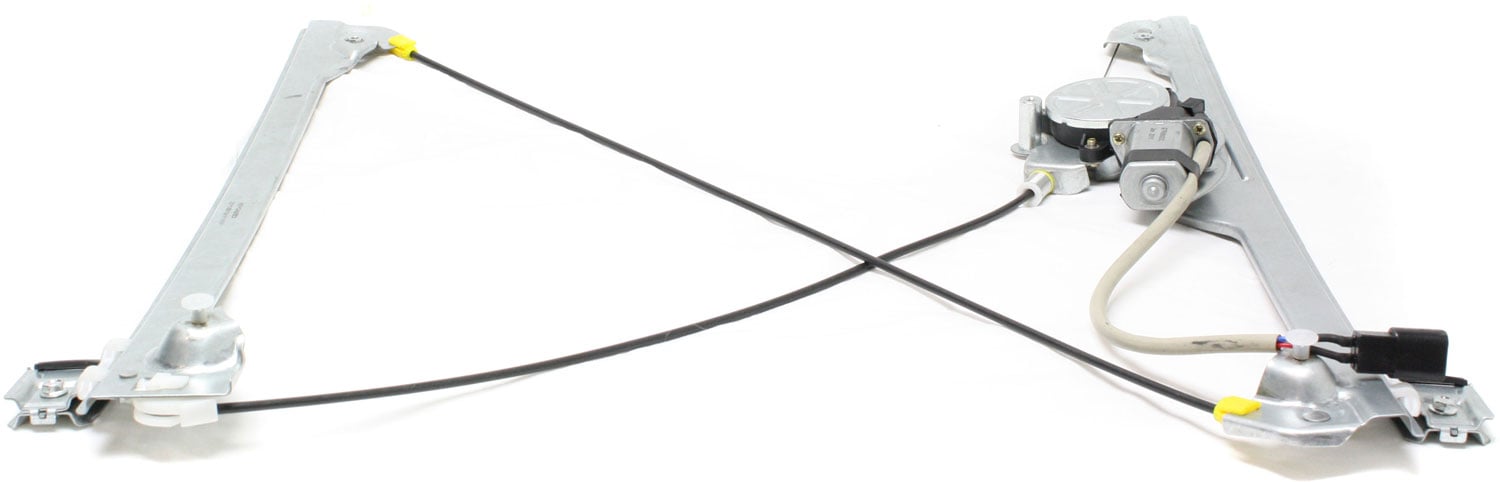

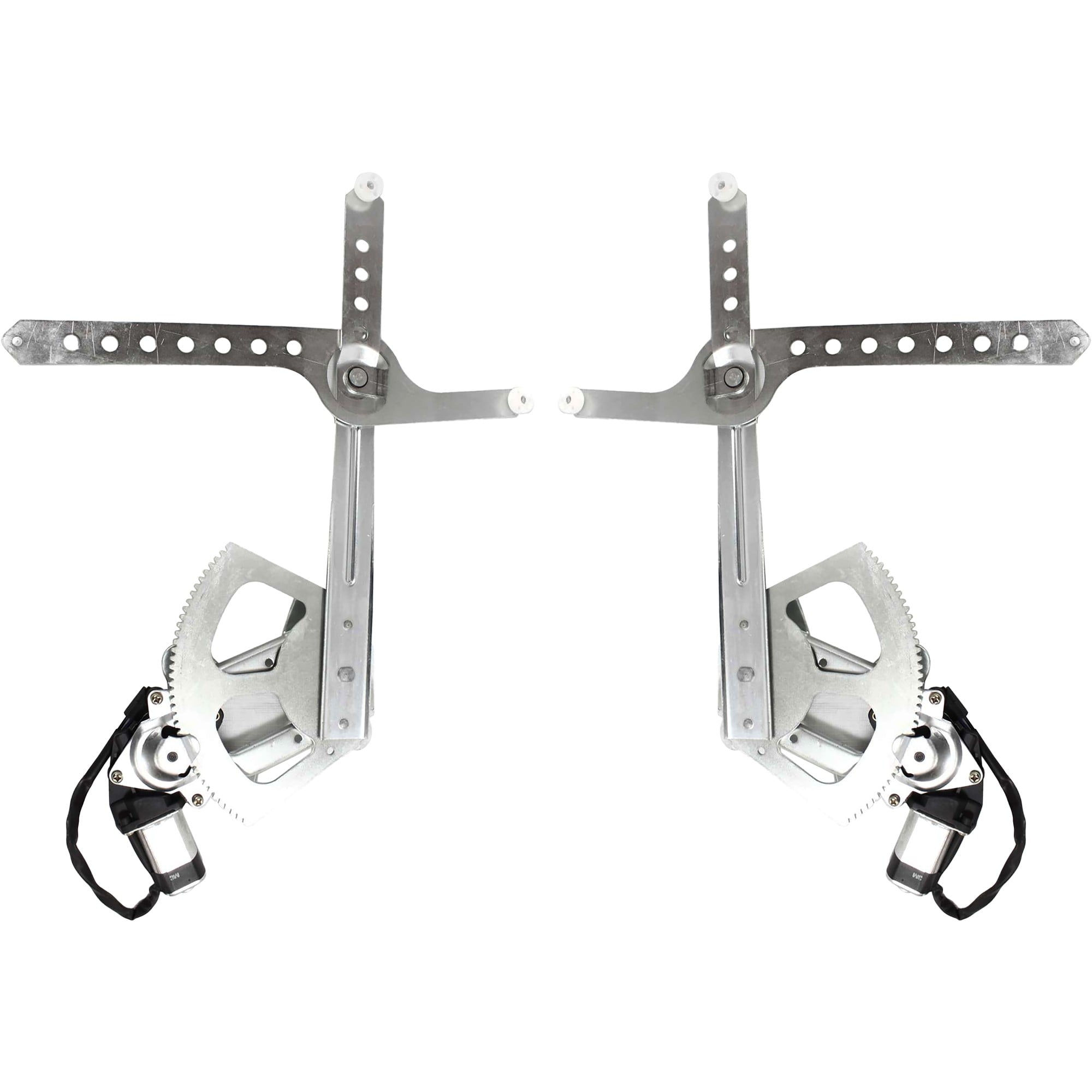

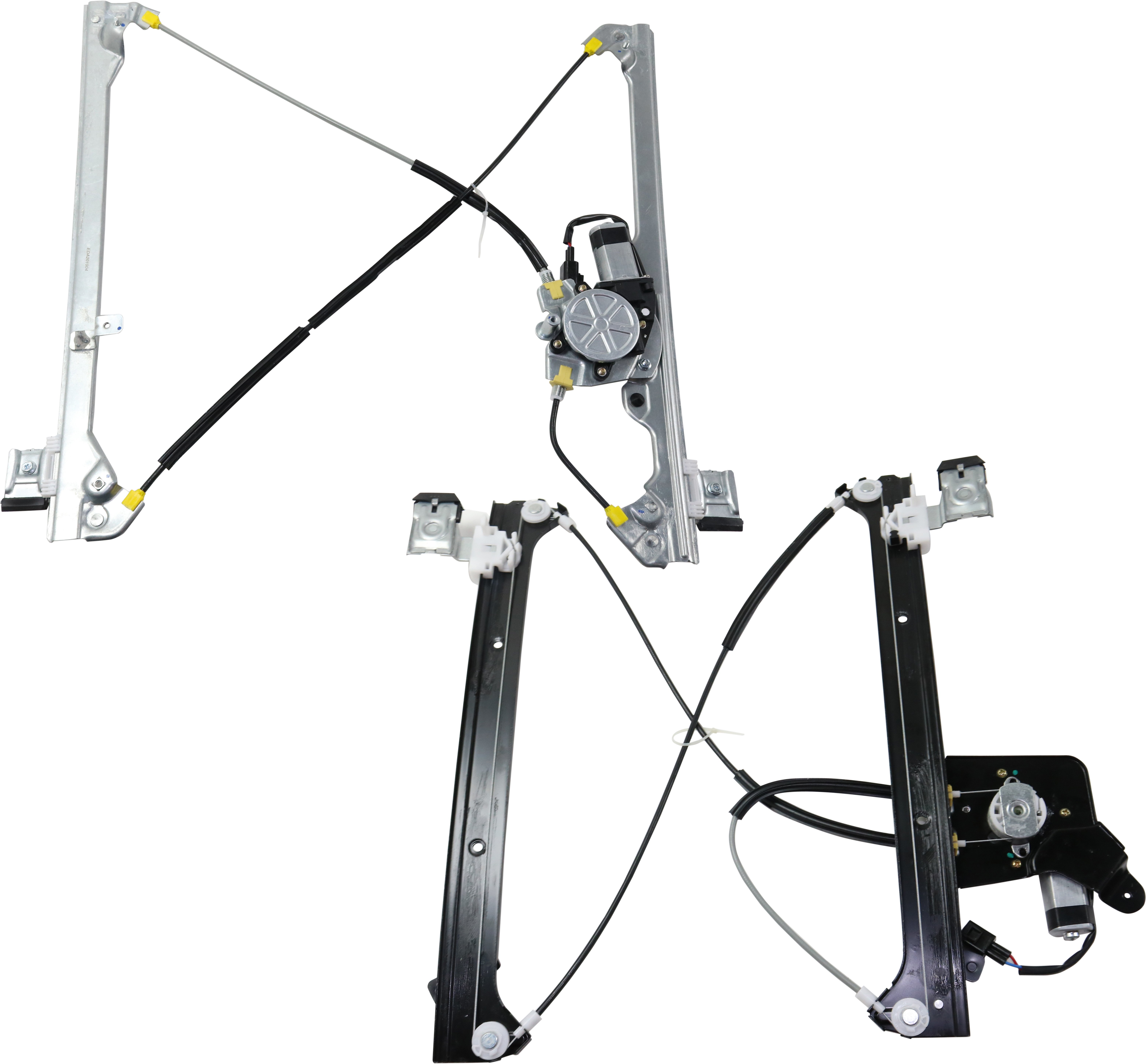

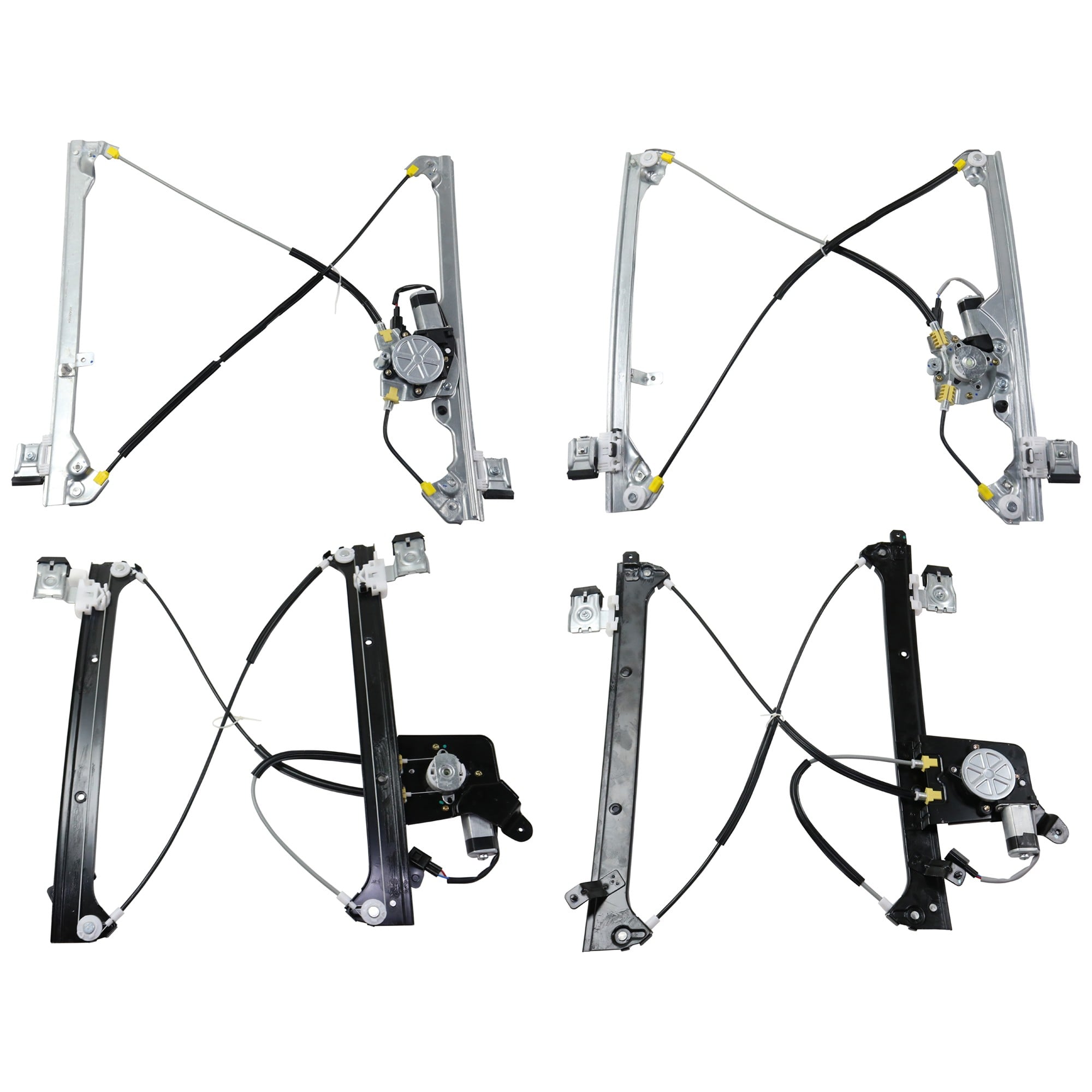

Cadillac has used the same basic power-window design on every Escalade generation (1999-present). Each door gets its own regulator, so there are four main positions-front-left (driver), front-right, rear-left, and rear-right-plus short-wheelbase and ESV long-wheelbase lengths. Regulators from 1999-2006 trucks use a large scissor arm, while 2007-2024 models rely on lighter cable-driven rails for faster travel and better crash clearance. (NHTSA, NHTSA)

Key Parts

Key Parts

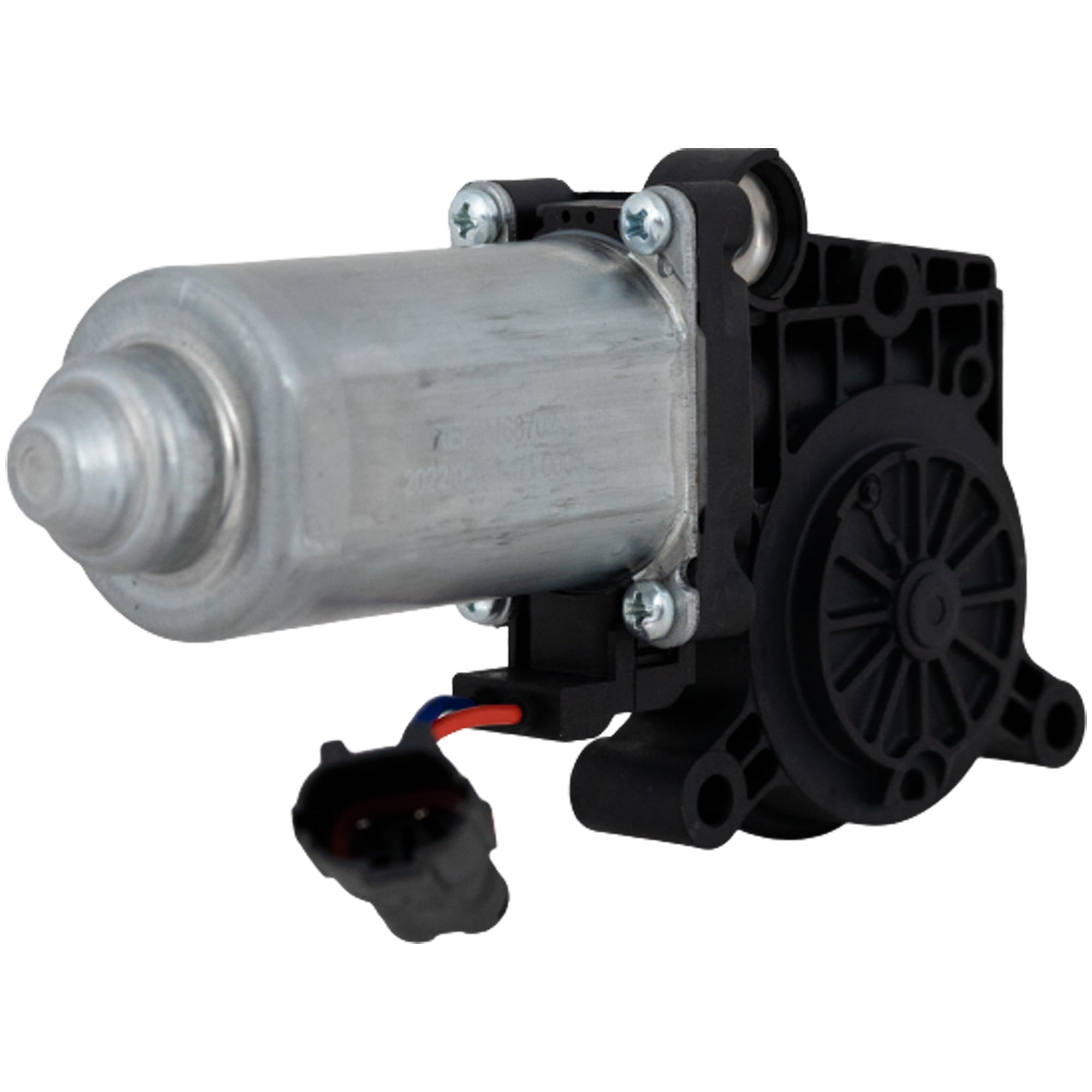

• Smart motor - senses pinch force and stops the glass to protect fingers.
• Guide rails & pulleys - keep the glass square; nylon rollers reduce noise.
• Steel cables or stamped arms - pull the glass; pre-tensioned to fight sagging.
• Glass clamps - bolt the lower edge at factory torque so the pane will not slip.

Safety Features

Safety Features

Starting in 2016, GM built an "express-up" anti-pinch algorithm into each front motor. If the motor sees anything thicker than a crayon, it stops and reverses a few inches. Parents can also shut off the rear switches with the lockout button on the driver door. (NHTSA)

Common Symptoms

Common Symptoms

• Window stalls partway or slides down by itself.
• Crunching or grinding when you press the button.
• Glass tilts forward or backward in the track.
• Switch clicks but motor stays silent (often a failed motor). (RepairPal.com, Reddit)

Failure Causes

Failure Causes

1. Frayed cable strands saw off plastic pulleys after 8-12 years. (NHTSA)
2. Door water leaks corrode the motor's circuit board.
3. Ice load in winter sticks the glass to the beltline seal and snaps the nylon clip.
4. High mileage vibration loosens the clamp screws, letting the pane slip.

DIY Diagnosis

DIY Diagnosis

• Listen for motor noise-whirring with no glass motion points to a broken cable.
• Check the door fuse (Driver-Side Fuse Block, position 39 on many models). (experience.gm.com)
• Wiggle the switch harness; intermittent power usually means chafed door wiring.
• Remove the trim panel and tug each cable-slack means the reel failed. (NHTSA)

Replacement Steps

Replacement Steps

1. Disconnect the battery so the airbag circuits stay asleep.
2. Pop off the mirror trim, pull the door panel, and unclip speakers.
3. Tape the glass up, unbolt the clamps, then lower the pane gently.
4. Remove the regulator bolts and guide pins; slide the unit out of the service hole.
5. Bench-fit the new assembly, transfer any vibration pads, and torque the fasteners in an X-pattern (spec is 9 N·m / 80 lb-in on most units).
6. Reconnect the battery and re-learn express-up: hold the switch down to bottom, hold up to top, then keep holding two seconds.
   For step-by-step visuals, see a trusted installation video for 2015-2020 models and another for 2002-2006 trucks. (YouTube, YouTube)

Professional Cost

Professional Cost

Shop data shows the average Escalade window regulator job runs $274-$510, with parts $151-$329 and labor $123-$181. A motor-only replacement averages $208-$347. (RepairPal.com, RepairPal.com)

Recalls & Bulletins

Recalls & Bulletins

• 18-NA-079 TSB - Water intrusion at motor connector; replace harness and regulator if corrosion is visible. (NHTSA)
• Cable-routing bulletin - 2015-2016 trucks built with mis-routed gray cable that binds; install revised part. (NHTSA)
• Owners can check their VIN for open campaigns at the official NHTSA portal.
  CarComplaints lists nearly 1,000 technical bulletins for late-model Escalades, many of which address power-window noises and slow operation. (CarComplaints.com)

Preventive Tips

Preventive Tips

• Spray silicone lube into the glass channels twice a year.
• Park with windows closed during heavy rain to keep the motor dry.
• Use "tap-down" instead of riding the switch-less heat inside the motor.
• Clear ice from the beltline with a plastic scraper before activating the switch.

Eco & Recycling

Eco & Recycling

Spent regulators are 90 % steel and aluminum and can be recycled with mixed-metal scrap. Many scrapyards pay by weight, and the small electric motor is accepted with e-waste. Removing plastic clips first speeds processing.

Related Parts

Related Parts

• Window switch pack
• Door latch cable set
• Inner beltline seal (keeps water out)
• Door wiring harness (often replaced with corroded motors) (NHTSA)

DIY vs. Pro

DIY vs. Pro

A patient DIYer with a screwdriver set, 10 mm socket, and painter's tape can finish the job in two hours. Still, glass can shatter and side airbags sit inches away-so first-timers may prefer a shop visit.

Frequently Asked Questions

Q: How do I know if the regulator or the switch is bad?
A: Listen when you press the button. If you hear the motor but the glass doesn't move, the regulator is broken. If there's silence on every switch position, check the fuse or the master switch first. (RepairPal.com)

Q: Can I drive with a broken regulator?
A: Yes, but the glass may slide down unexpectedly and invite water or theft. Taping the window is only a short-term fix.

Q: Does each door use the same part?
A: No. Regulators are side-specific (left/right) and position-specific (front/rear). Using the wrong one will mis-align the glass.

Q: Why does my window go down fine but inch up slowly?
A: Worn cable reels add drag lifting the heavy Escalade glass. Replace the complete assembly; grease alone won't cure the slip. (NHTSA)

Q: What is the anti-pinch override?
A: Holding the switch hard past the detent forces the window past an obstruction in emergencies (for example, thick ice). Use care-auto-reverse is disabled while you hold.

Q: How long should a new regulator last?
A: Factory units often reach 8-12 years or 120 000-150 000 miles. Keeping the tracks clean and tuned can stretch life further.

Q: Are there recalls for Escalade window regulators?
A: No safety recall so far, but GM has issued technical bulletins for cable routing and water intrusion; dealers update parts under warranty. (, NHTSA)

With this knowledge, you can spot trouble early, pick the right replacement, and keep every Escalade window gliding like new.
