Buy Chevrolet (Chevy) Malibu Bumper Reinforcement

The bumper reinforcement is the hidden steel bar bolted behind the front (and rear) bumper cover of every Malibu. In a low-speed hit it spreads crash force, keeps sensors in place, and helps the bumper meet federal low-speed impact rules. Newer Malibu bars (2016-2025) are lighter high-strength steel yet still pass crash tests, but a 2022-23 recall shows weld quality matters. Replacement parts bolt on with basic tools, cost a few hundred dollars plus paint and labor, and should always be re-torqued to factory specs. (IIHS, GM Authority, GM Parts Warehouse)

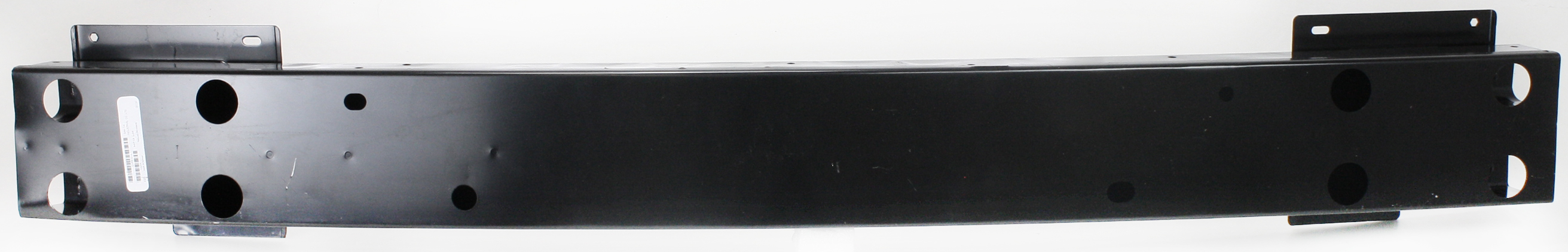

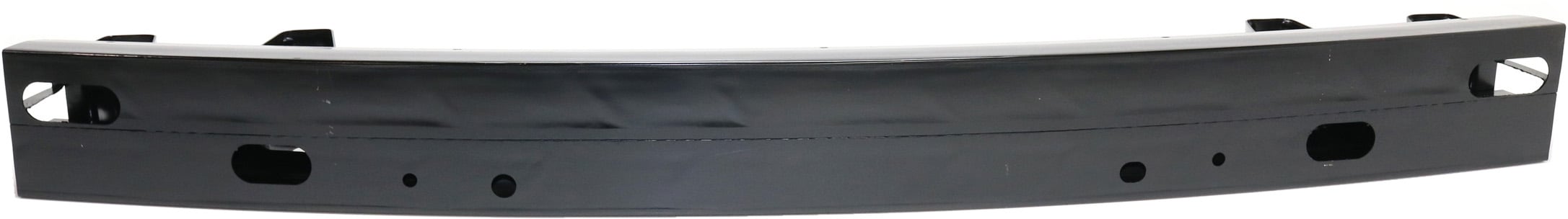

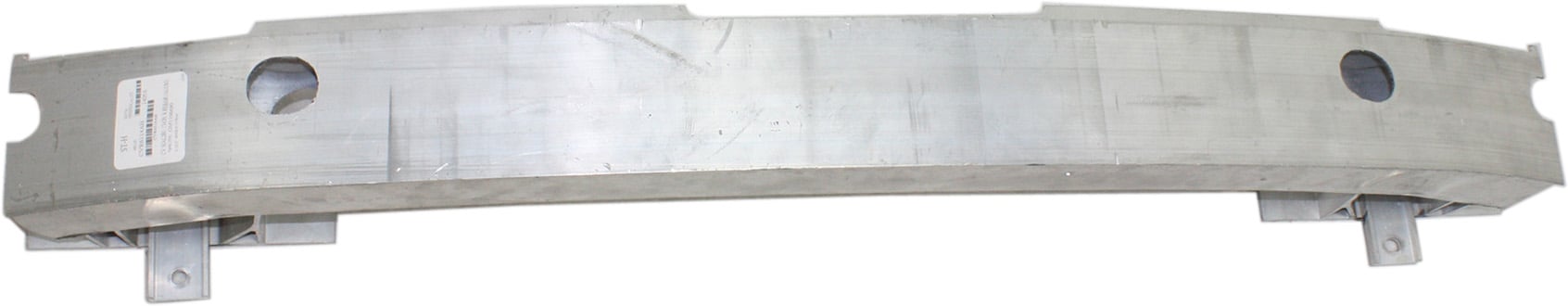

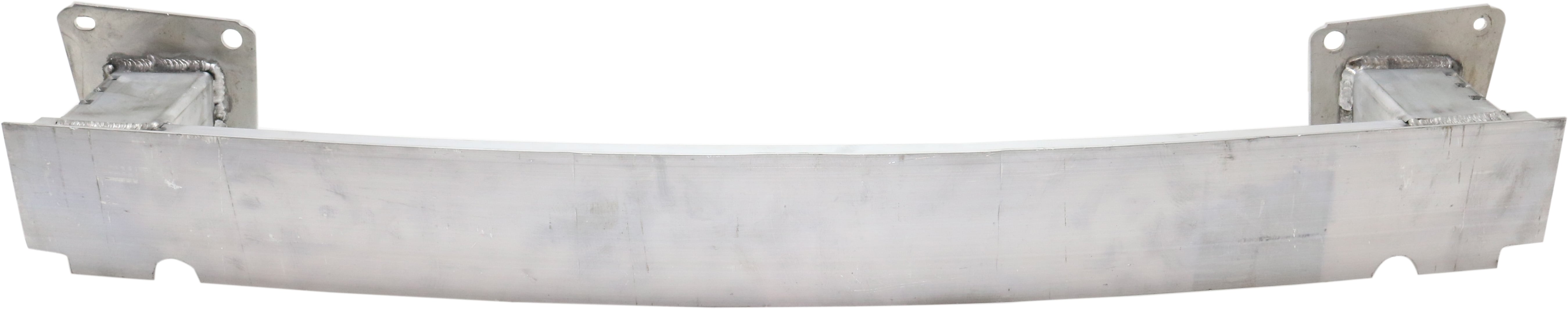

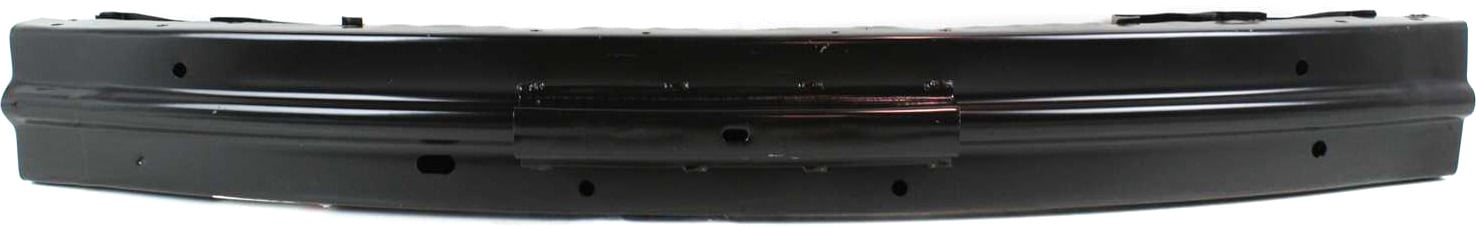

Behind each plastic bumper skin sits a layer of crush foam (energy absorber) and then the metal reinforcement bar. The bar spans the width of the car and bolts to both frame rails with brackets or crash boxes.

Modern styling hides the beam for aerodynamics and looks, so the painted cover can be replaced without disturbing the heavy steel bar after a parking-lot scrape. (MotorTrend)

• High-strength & ultra-high-strength steel (AHSS/UHSS) make up about 70 % of today's impact bars because they're four-to-six times stronger than aluminum at similar weight. (American Iron and Steel Institute, American Iron and Steel Institute, American Iron and Steel Institute)
• Foam energy absorber in front of the bar is usually molded expanded polypropylene (EPP), chosen for its spring-back and cold-weather toughness. (SAE International, SAE International)
• Malibu specifics: GM lists part #23399197 for 2016-2025 front bars; it weighs about 14 lb and replaces older #22943337. (GM Parts Warehouse)

← scroll table horizontally →

A GM safety recall (22V923000) covers some 2022-23 cars for incomplete welds between the bar and frame rail. Dealers inspect welds and buy back vehicles that fail. (Cars.com, NHTSA)

• U.S. Federal Motor Vehicle Safety Standard (FMVSS) 571 Part 581 says cars must survive 1.5-2.5 mph pendulum tests with no major damage beyond the bumper system. The impact bar is the key load path that lets Malibu meet that rule.
• IIHS small-overlap and moderate-overlap tests on 2016-2024 Malibus show a "Good" structure rating, proving the beam and rails stay intact in 40 mph crashes. (IIHS, IIHS)

1. Bumper sits uneven or gaps near fender.
2. Crash sensors show fault codes.
3. Hood won't latch square.
4. Visible bend or rust once fascia is removed.
5. Air-bag light after even a low-speed nose tap.

A bent bar should always be replaced-straightening can change metal strength and sensor mounting points. (GM Authority)

(Simplified from the GM service bulletin; torque specs rounded for clarity.)

1. Remove bumper fascia - eight upper bolts (22 lb-in), wheel-liner screws, and lower splash-shield bolts.
2. Disconnect fog-lamp/sensor plugs.
3. Pop out foam absorber.
4. Unbolt reinforcement - four to six frame-rail bolts (~74 lb-ft on most models).
5. Swap bar; torque bolts to spec; install new one-time-use crash nuts if equipped.
6. Re-install fascia and run a sensor calibration if adaptive cruise is fitted.

DIY tip: use two helpers-the bar is wide and sharp. Always wear eye protection when drilling plastic rivets.

← scroll table horizontally →

*Industry example: an impact bar alone cost $827 on a recent midsize-car repair invoice. (MotorTrend) Prices vary by region and paint color.

• Keep bumper cover clips tight-loose covers let water corrode the bar.
• After a curb bump, pull the cover and inspect the beam.
• Wash road salt off in winter.
• Fix rust spots early with rust-converter primer.
• Use parking sensors or cameras to avoid nose taps.

IIHS Malibu 2024 crash ratings. GM Authority - weight savings & high-strength steel. GM parts catalog #23399197 listing. GM bumper fascia removal manual. GM/NHTSA Recall N222380601 (front impact bar weld). U.S. FMVSS 49 CFR Part 581 bumper standard. MotorTrend - why modern bumpers hide steel beams. Steel.org technical brief on ultra-high-strength bumper beams. Steel.org webinar quote on material choice. Steel.org article on safety trends favoring steel bars. SAE paper on thermoplastic energy absorbers. SAE paper on foam geometry & load spreading. Cars.com recall summary 22V923000. NHTSA recall PDF details. IIHS Malibu 2022 ratings. MotorTrend repair-cost breakdown with $827 impact bar.
