Quick Summary

The Chevrolet Silverado 2500 HD headlight-also called a headlamp, front lamp, or light assembly-has evolved from simple halogen reflectors to smart, projector-style LED units with automatic high-beam control. Today's truck uses H11 low-beam and H9 high-beam bulbs (2020-2025) while older generations rely on 9006/9005 or sealed-beam styles. Keeping the lamps clear, correctly aimed, and dry is vital for road safety and to meet Federal Motor Vehicle Safety Standard 108. (Silverado Sierra, eCFR, Chevrolet)

Compatibility

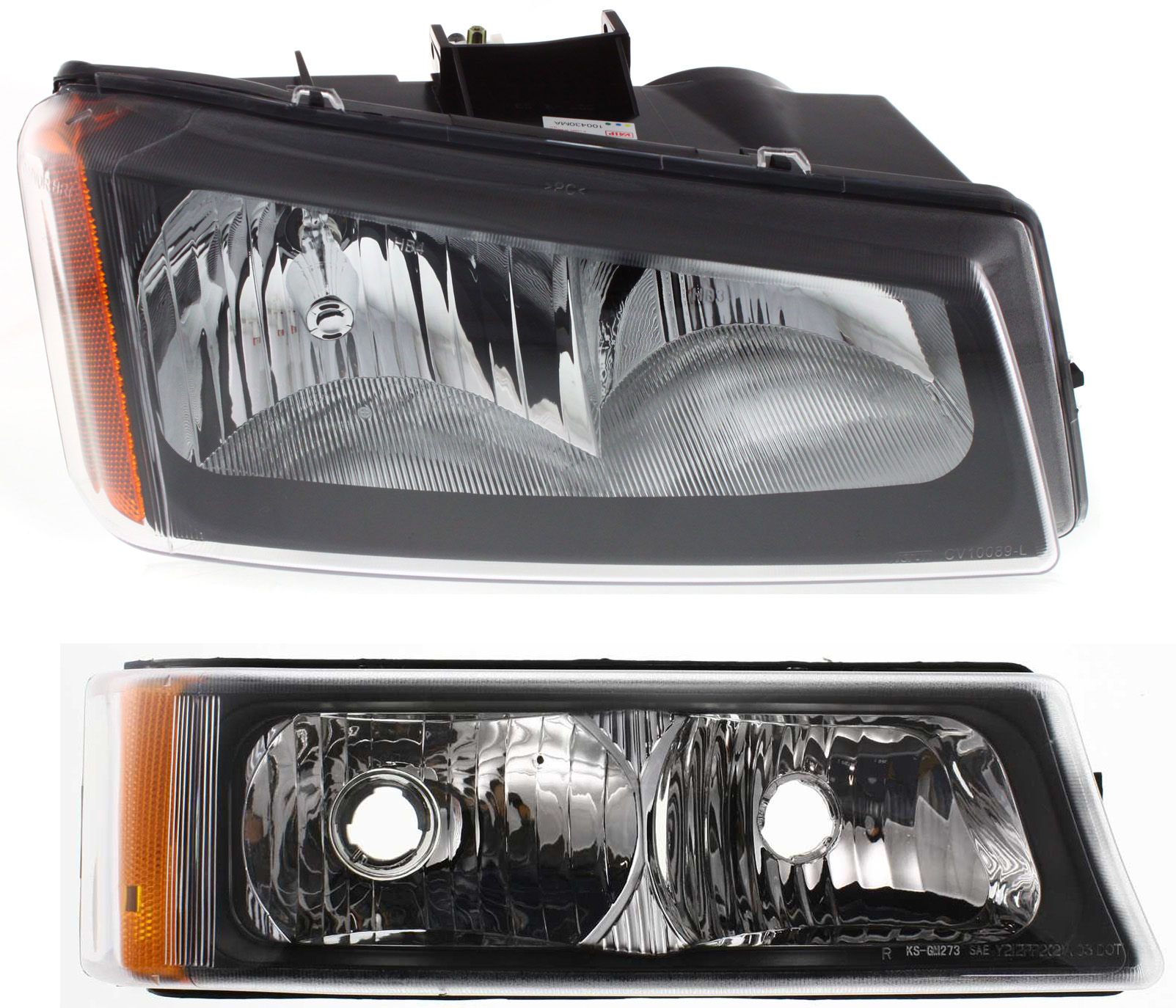

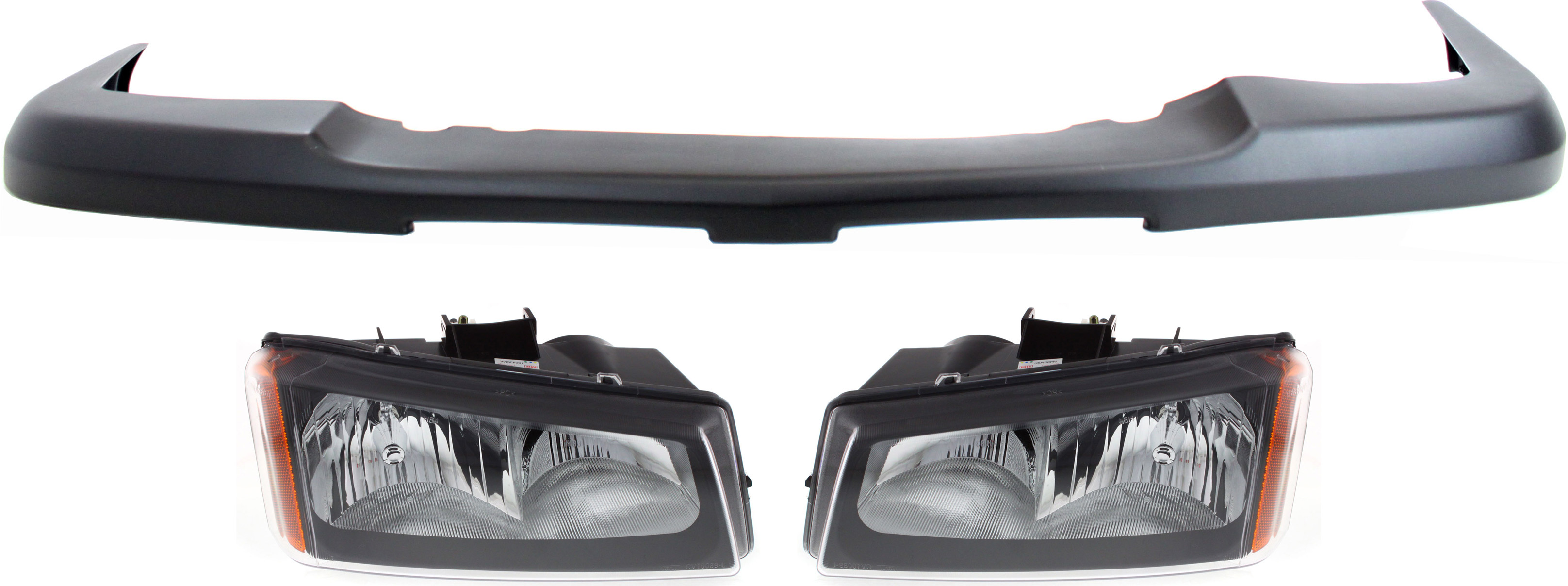

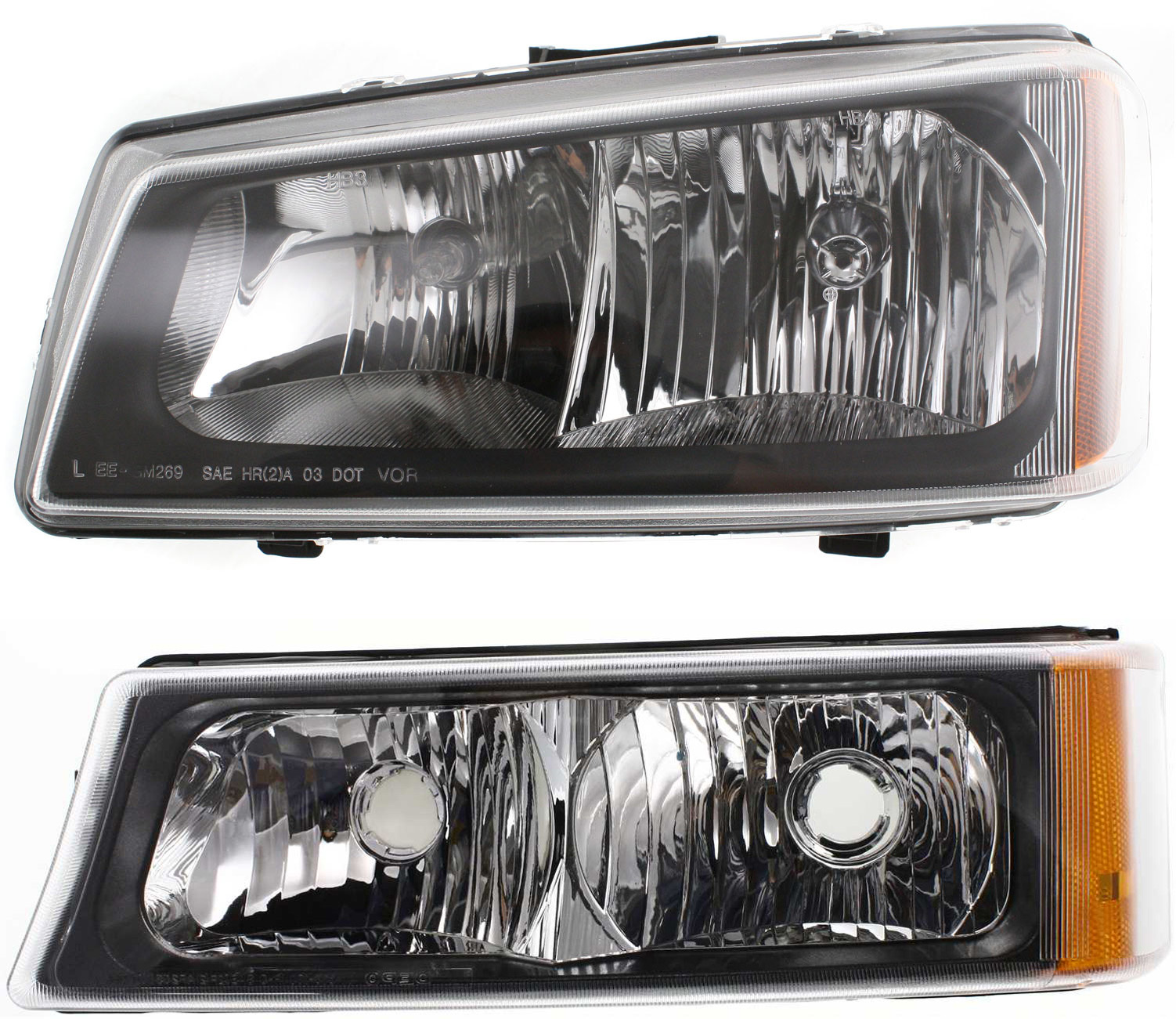

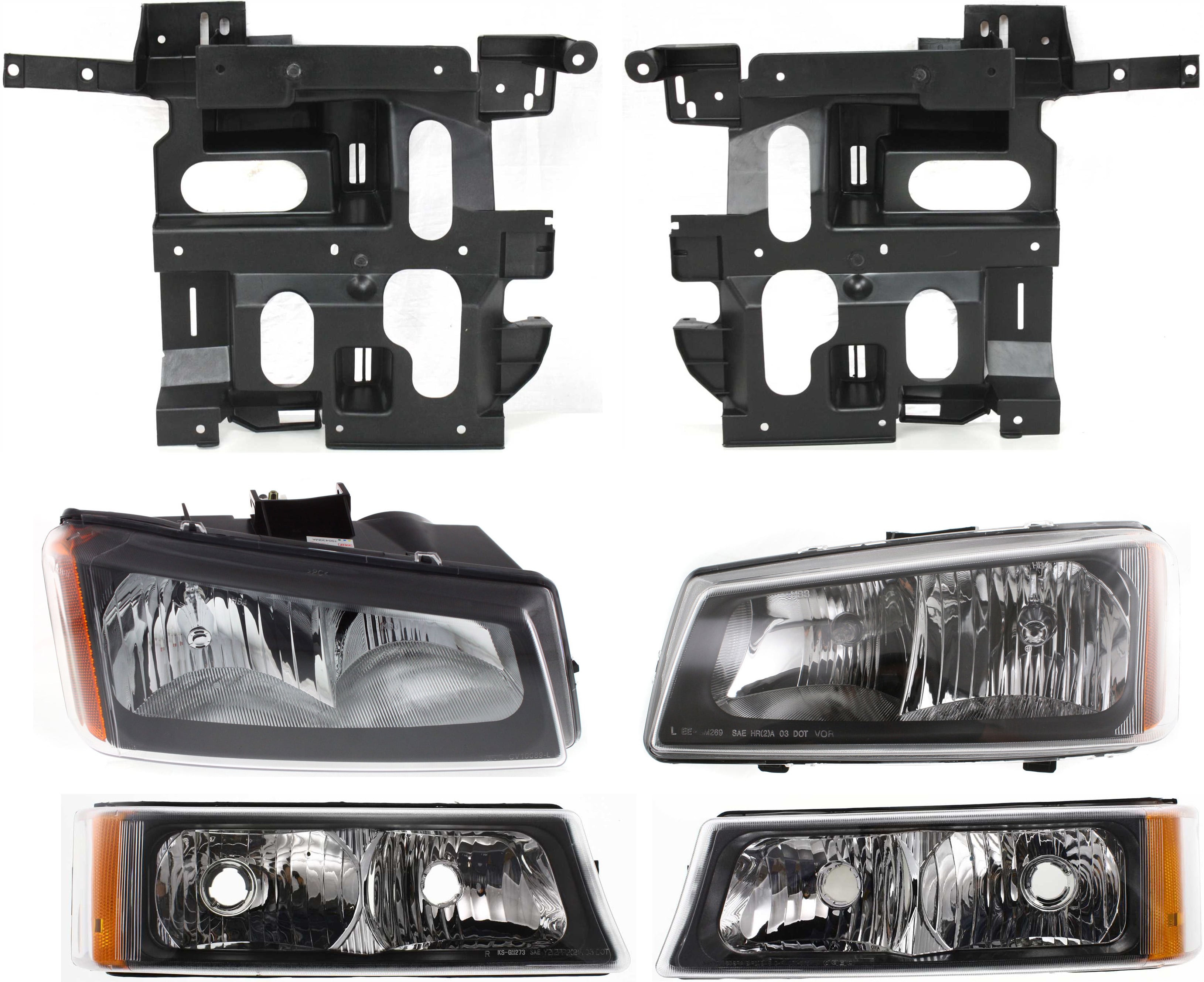

1999-2007 (Classic)

• Uses twin composite lamps; low beam 9006, high beam 9005. (Chevrolet Forum)

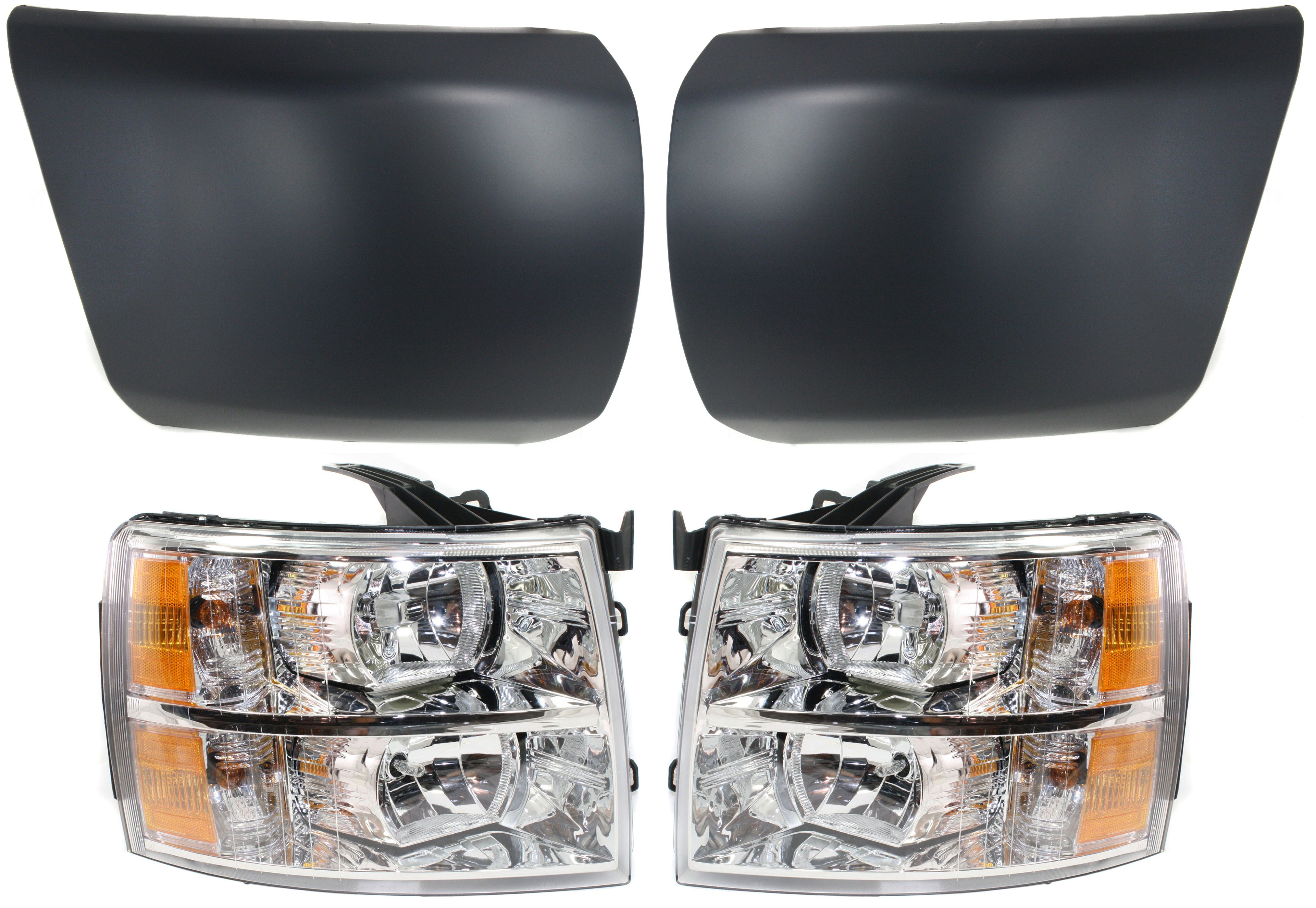

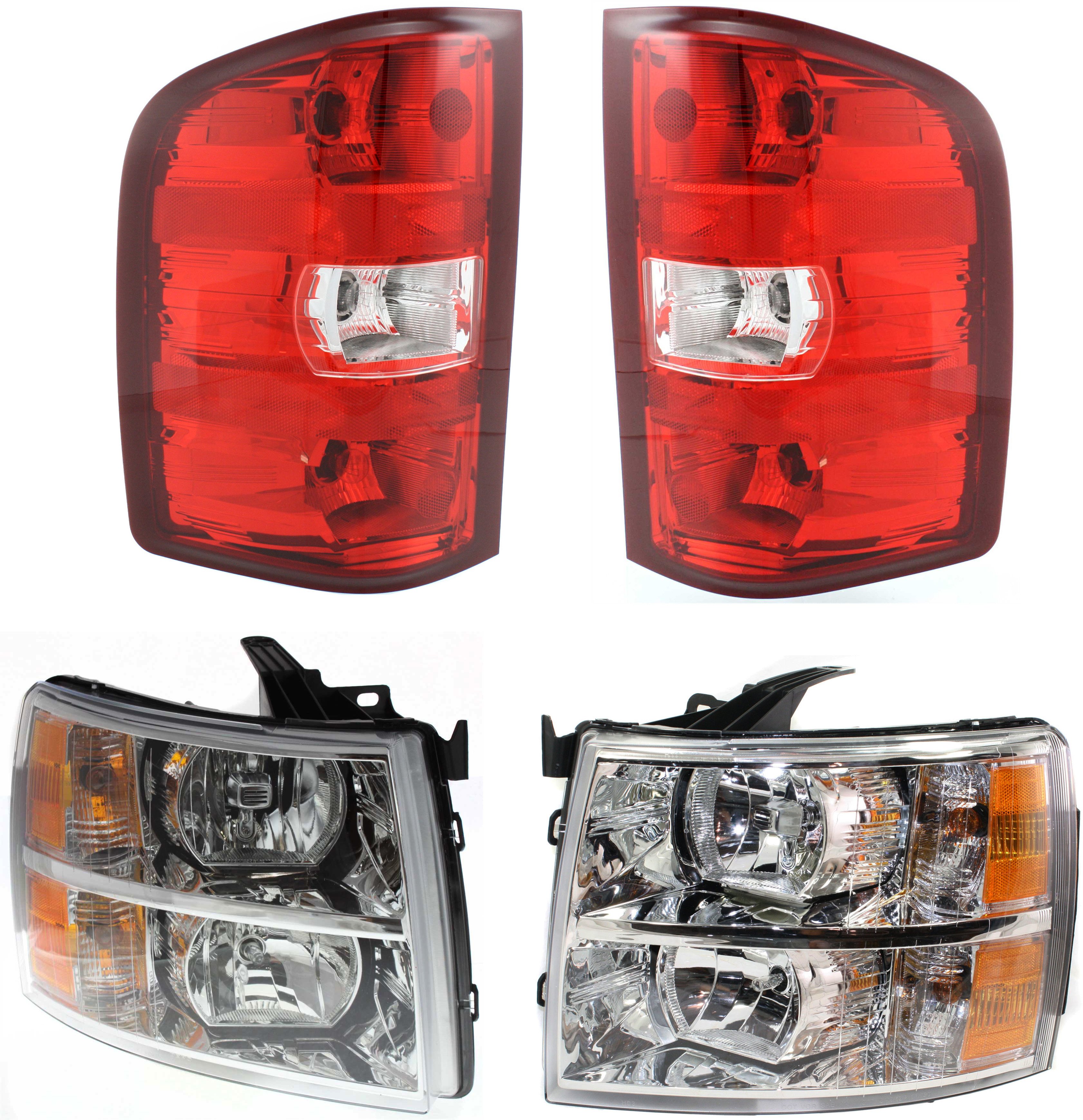

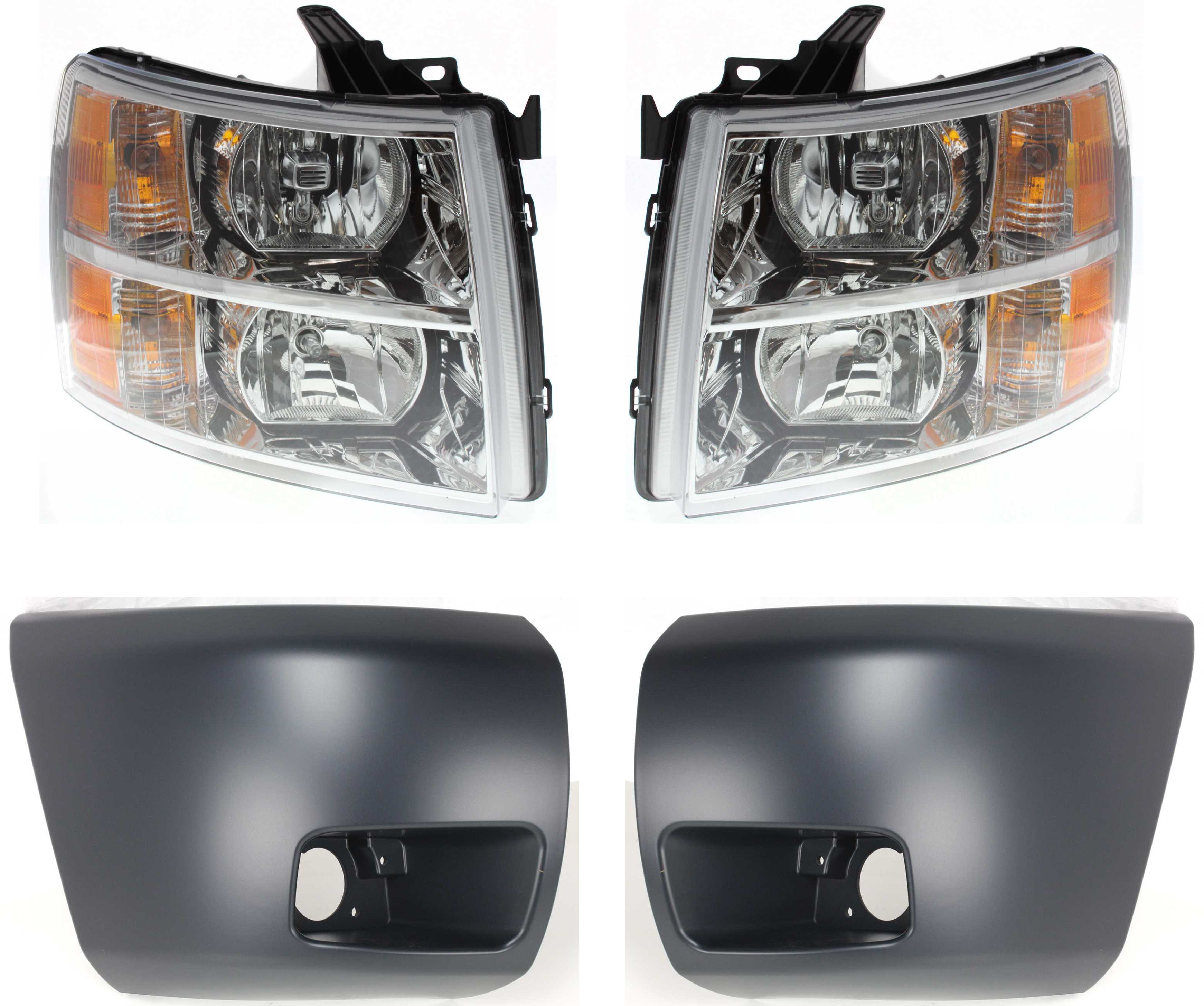

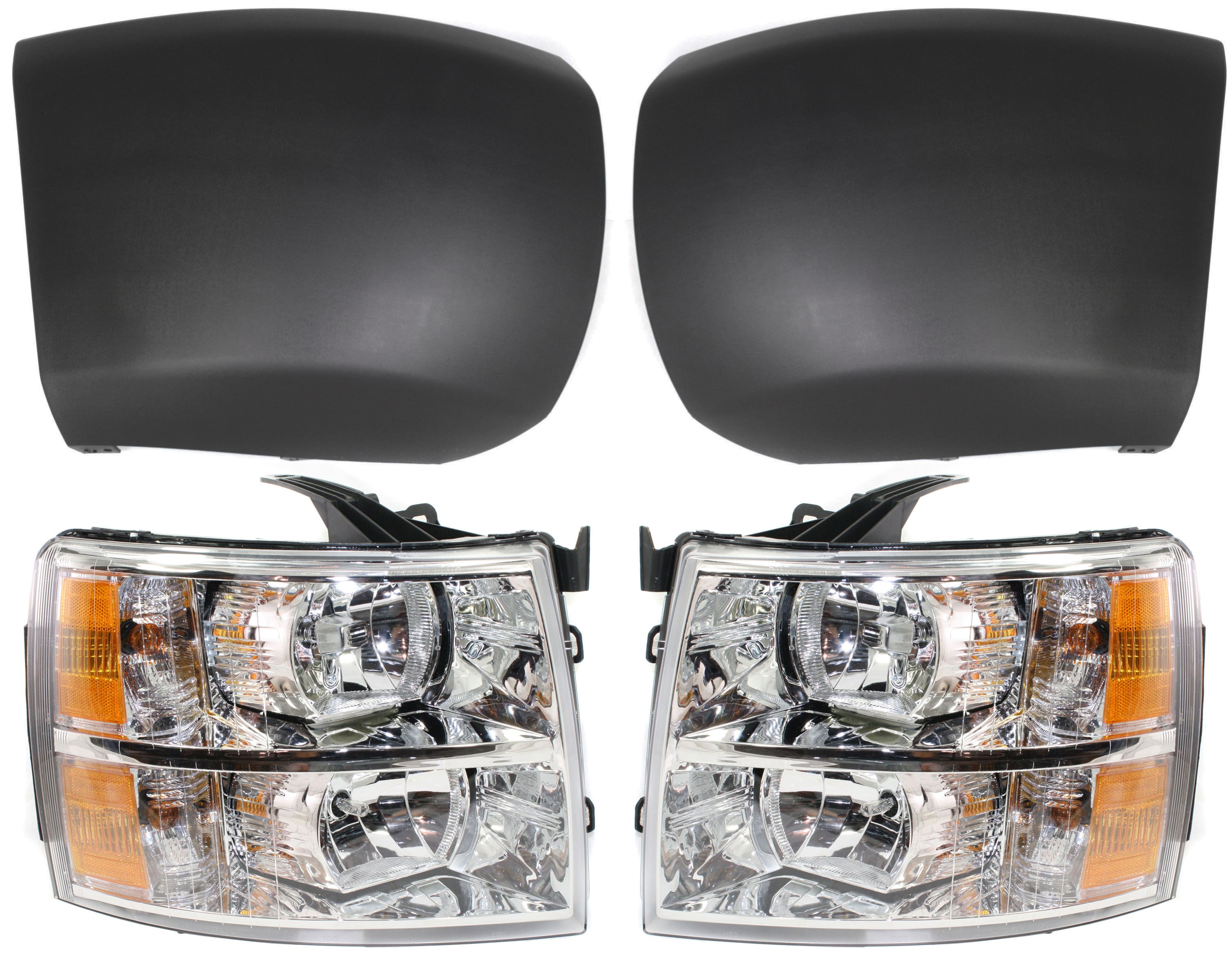

2008-2014 (GMT900)

• Retains halogen reflectors but adds Daytime Running Lamps (DRL). (Chevrolet)

2015-2019

• Optional IntelliBeam® auto high-beam; some trims introduce projector housings. (Chevrolet)

2020-2025 (T1 HD)

• Stock bulbs: H11 low, H9 high; premium trims switch to full LED units with an animated welcome sequence. (Silverado Sierra, Chevrolet Newsroom)

Bulb Types

← scroll table horizontally →

Always confirm bulb sizes with a trusted bulb finder before purchase. (Sylvania Automotive)

Design Features

• LED Projectors-Sharper cutoff and longer reach than old halogen lamps. (Chevrolet Newsroom)
• Automatic High-Beam (IntelliBeam)-Camera-based system turns high beams on and off for you. (Chevrolet)
• C-Shape Signature DRL-Distinctive "C" outline doubles as a safety marker and styling cue. (Chevrolet Newsroom)

Regulations & Safety

• U.S. headlamps must follow FMVSS 108 for brightness, color, and beam pattern. (eCFR)
• Large pickups like Silverado earn separate IIHS headlight scores-proper aim can move a rating from "Poor" to "Good." (IIHS Crash Testing)
• GM issued a software recall after some DRLs failed to dim when the main lights were on, violating the same rule. (NHTSA)

Maintenance Tips

• Clean lenses with mild car soap to remove road film; plastic polish fixes haze. (Popular Mechanics)
• Check aim every 12 months or after lifting the truck-park 25 ft. from a wall and use the vertical adjuster until the cutoff sits just below headlight center. (Chevrolet Forum, NHTSA)
• Replace both bulbs together so color stays even and voltage draw is balanced.

Common Problems

← scroll table horizontally →

Upgrade Options

• LED retrofit bulbs can triple lumen output but must stay under 5-°K color temp and respect beam cutoff. (Silverado Sierra)
• Projector swap kits add clear lenses for a sharp cutoff and less glare.
• Wiring harness relays deliver full battery voltage to older halogen lights, reducing dimming.

Installation Steps (2007-2019)

1. Pop the hood, remove two 10 mm bolts and the retaining pin.
2. Pull the lamp straight out; unplug the harness.
3. Twist the bulb cap counter-clockwise, swap bulbs, avoid touching the glass.
4. Re-seal, reinstall, and torque bolts to 27 lb-in. (Chevrolet Forum)

Troubleshooting

Dim on both sides
Check ground G102 at the radiator support; rust adds resistance. (Chevrolet Forum)

Light flickers on bumps
Look for a loose H11 socket or worn lamp retaining clip. (NHTSA)

Frequently Asked Questions

Q: What bulb size does a 2024 Silverado 2500 HD use?
A: H11 for low beam and H9 for high beam. (Silverado Sierra)

Q: How far should the beam hit the wall?
A: About 2 inches below lamp center at 25 feet. (Chevrolet Forum, NHTSA)

Q: Can I run LED bulbs in the stock reflector?
A: Yes, but only if their beam stays within the cutoff; otherwise they cause glare and may fail inspection. (eCFR)

Q: Why do my lights fog up after rain?
A: Small mist is normal condensation; it clears once the lamps warm. Persistent water means a bad seal. (NHTSA)

Q: Does the truck have auto high beams?
A: Many 2015-up trims include IntelliBeam, which switches high beams for you. (Chevrolet)

Q: Are these headlights street-legal?
A: Any replacement must meet FMVSS 108 and carry DOT or SAE markings. (eCFR)

Q: How often should I polish the lens?
A: Inspect yearly; polish when haze first appears to keep brightness. (Popular Mechanics)

Q: My DRL won't turn off with headlights-what's wrong?
A: A BCM software bug caused a recall; dealers update the module free. (NHTSA)

Q: What's the torque for headlight bolts?
A: 27 lb-in on 2007-2019 models. (Chevrolet Forum)

Q: Can condensation damage the bulb?
A: If moisture pools at the bottom, it can short the socket-fix the leak fast. (NHTSA)
