Overview

A side mirror-also called a side-view, door, wing, or exterior mirror-lets a Dodge Ram 2500 driver see traffic beside and behind the truck. On modern Ram HD pickups, the mirror housing doubles as a platform for power adjustment, heating, turn-signal repeaters, puddle lamps, cameras, and blind-spot sensors. Larger towing mirrors can flip out to stretch the truck's total width to about 103 inches, giving a clear view around wide trailers. When a mirror breaks, owners can usually swap it with basic hand tools in under an hour, and replacement costs range from a few hundred dollars for a manual unit to well over a thousand for a fully loaded power-folding assembly.

Fitment & Compatibility

• Mirrors bolt to the front doors with three 10 mm nuts and plug into the door harness; Ram has kept this pattern on 1994-2025 2500 models, so year-specific mirrors are easy to match by VIN .

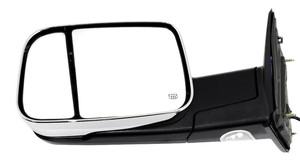

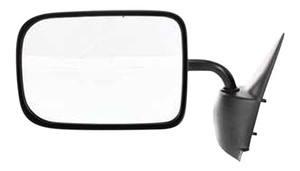

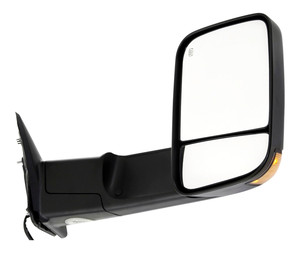

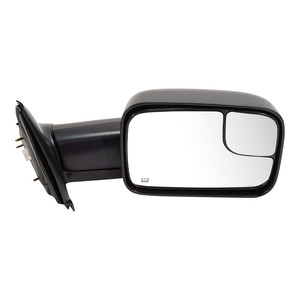

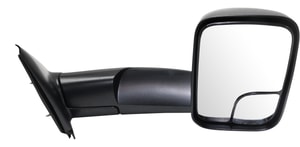

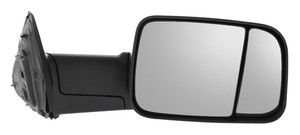

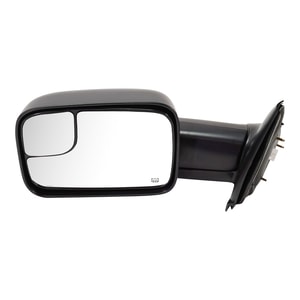

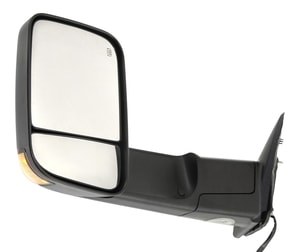

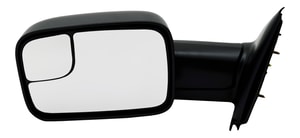

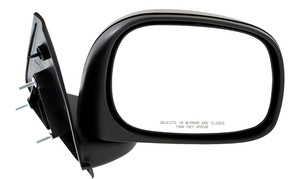

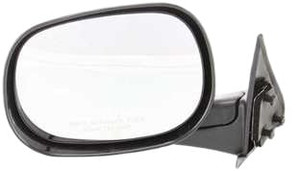

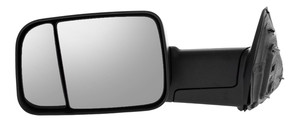

• Standard mirrors suit daily driving; towing mirrors extend outward or flip up for a wider field of view. With mirrors extended, body width reaches roughly 103 in (2.62 m) .
• Option groups-Tradesman, Big Horn, Laramie, Rebel, Limited, etc.-determine wiring for power adjust, heat, memory, puddle lights, camera, and blind-spot monitor .

Key Features

• Power adjustment moves the glass with a thumb switch-handy for multiple drivers .

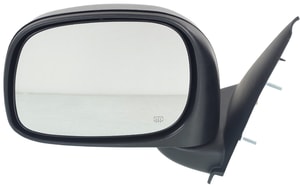

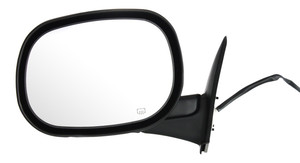

• Heated glass clears frost quickly by using the rear-defrost circuit .
• Turn-signal repeaters on the cap help alert passing traffic .
• Puddle lamps light the ground when you unlock the truck at night .
• Blind-spot monitoring (BSM) scans zones beside the truck and even the length of a trailer .
• Power-fold and auto-retract protect the mirror in tight spaces; new HD models add joystick-controlled telescoping .

Common Problems

• Glass vibration or blur-often traced to loose spring clips or a worn actuator motor .
• Hard-to-extend tow mirrors on 2024+ trucks may need a lubrication or warranty motor swap .
• Heated mirror light does not come on after HVAC control replacement; a 2019 technical bulletin describes a BCM software flash to fix it .
• Power adjustment dead-check the 10-amp mirror fuse, then the door-jamb boot for broken wires .

Safety & Law

• Federal rule FMVSS 111 says each outer mirror on a truck over 10,000 lb GVWR must show a 50-ft view of a 12-ft wide road lane, and the reflective area must be at least 50 in² .
• Many states require towing mirrors when a trailer is wider than the tow vehicle; police can ticket drivers who rely on rear-camera views alone.
• Blind-spot sensors with Trailer Detection on 2025 models auto-calibrate to trailer length, reducing lane-change crashes .

Installation Tips

1. Disconnect the negative battery terminal on trucks with power mirrors.
2. Pry off the interior sail panel; unplug the mirror connector.
3. Remove the three 10 mm nuts, support the mirror, and lift it away .
4. Seat the new mirror, torque nuts to 11 N·m (97 in-lb), and test every function before replacing trim.

Care & Maintenance

• Wash the housing with mild car-wash soap; harsh detergents dull the paint.
• Clean the glass with a 50/50 mix of distilled water and isopropyl alcohol for streak-free results .
• Cycle power-fold or telescoping functions monthly to keep gears lubricated.
• Spray a light silicone lube on the flip-up hinge of towing mirrors each oil change.

Upgrades & Accessories

• Spotter convex disks stick onto the corner of the main mirror to widen the field of view and cut blind spots .
• Auto-dimming glass reduces night-time glare and plugs into the factory harness on Laramie and above .
• Digital camera mirrors stream a rear camera feed to the mirror surface; available on 2022+ trucks or as an overhead retrofit kit .

Cost & Value

← scroll table horizontally →

Insurance often covers mirror damage from collisions minus your deductible. Ordering painted caps separately can save money if the shell is intact.

Frequently Asked Questions

Q: What size socket removes a Ram 2500 mirror?
A: A 10 mm socket fits the three mirror nuts behind the sail panel .

Q: Do I need towing mirrors for a 102-inch-wide trailer?
A: Yes. Standard mirrors do not meet FMVSS 111 coverage with a 102-inch trailer; use flip-out towing mirrors .

Q: Why does my heated mirror glass stay cold?
A: A failed HVAC control or BCM update can disable the heat circuit-see service bulletin 24-005-19 .

Q: The mirror glass shakes at highway speed. Can I fix it?
A: Usually you can reseat loose spring clips or replace the glass actuator; many owners solved vibration that way .

Q: How wide is a Ram 2500 with mirrors flipped out?
A: About 103 inches from tip to tip .

Q: Can I retrofit blind-spot monitoring to my 2017 truck?
A: Yes. Aftermarket kits with BSM sensors and matching mirrors can integrate with OE wiring but require calibration .

Q: Will a 2024 mirror fit a 2018 truck?
A: The bolt pattern is the same, but wiring differs; you would lose functions unless you swap door modules and add wiring.

Q: How do I reset a power-folding mirror that stopped halfway?
A: Fold the mirror in by hand, hold the fold button for 10 seconds, then cycle it out-this re-syncs the motor gears .

Q: What's the best cleaner for mirror glass?
A: A 50/50 distilled water and alcohol mix removes grease without streaks .

Q: Can I paint the mirror caps?
A: Yes-sand lightly, spray plastic-adhesion promoter, then color-coat and clear-coat to match the body.

Q: Do larger mirrors hurt fuel economy?
A: The drag increase is small; SAE tests show only a minor MPG drop at highway speeds.

Q: How long does a swap take for a DIYer?
A: Most owners finish in 30-60 minutes with basic tools .

Q: Will towing mirrors fit through car-wash brushes?
A: Yes if folded; always fold power mirrors before entering a wash to avoid damage.

Q: Why does the mirror beep when I signal?
A: That is the blind-spot warning buzzer telling you something is in your lane .

Q: My mirror puddle lights stay on. What causes that?
A: A stuck door-ajar switch can keep courtesy lamps, including mirror puddle lights, from timing out .
