Summary

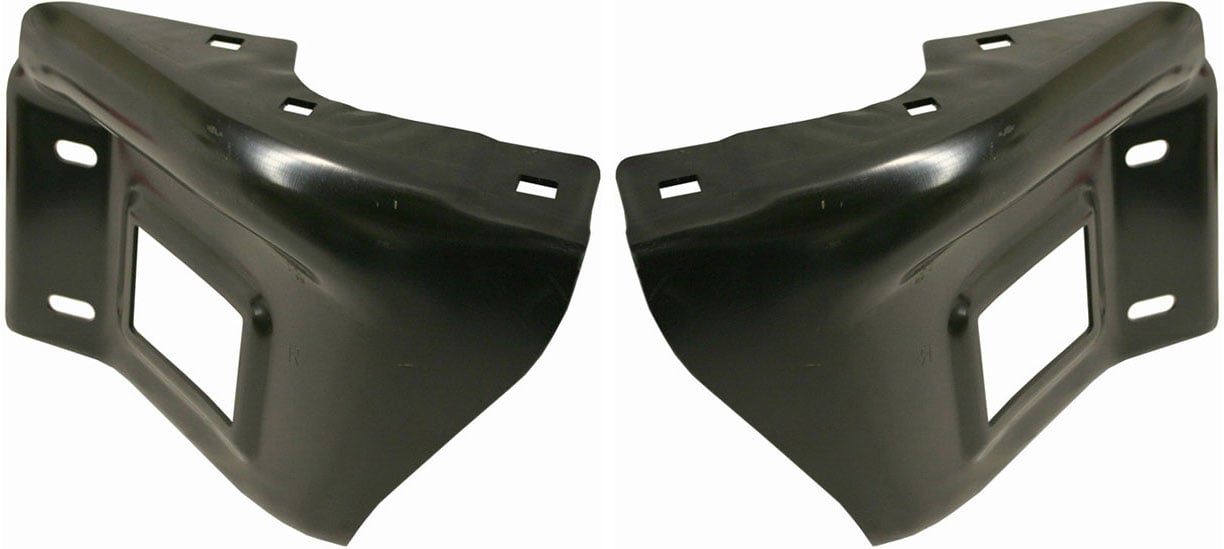

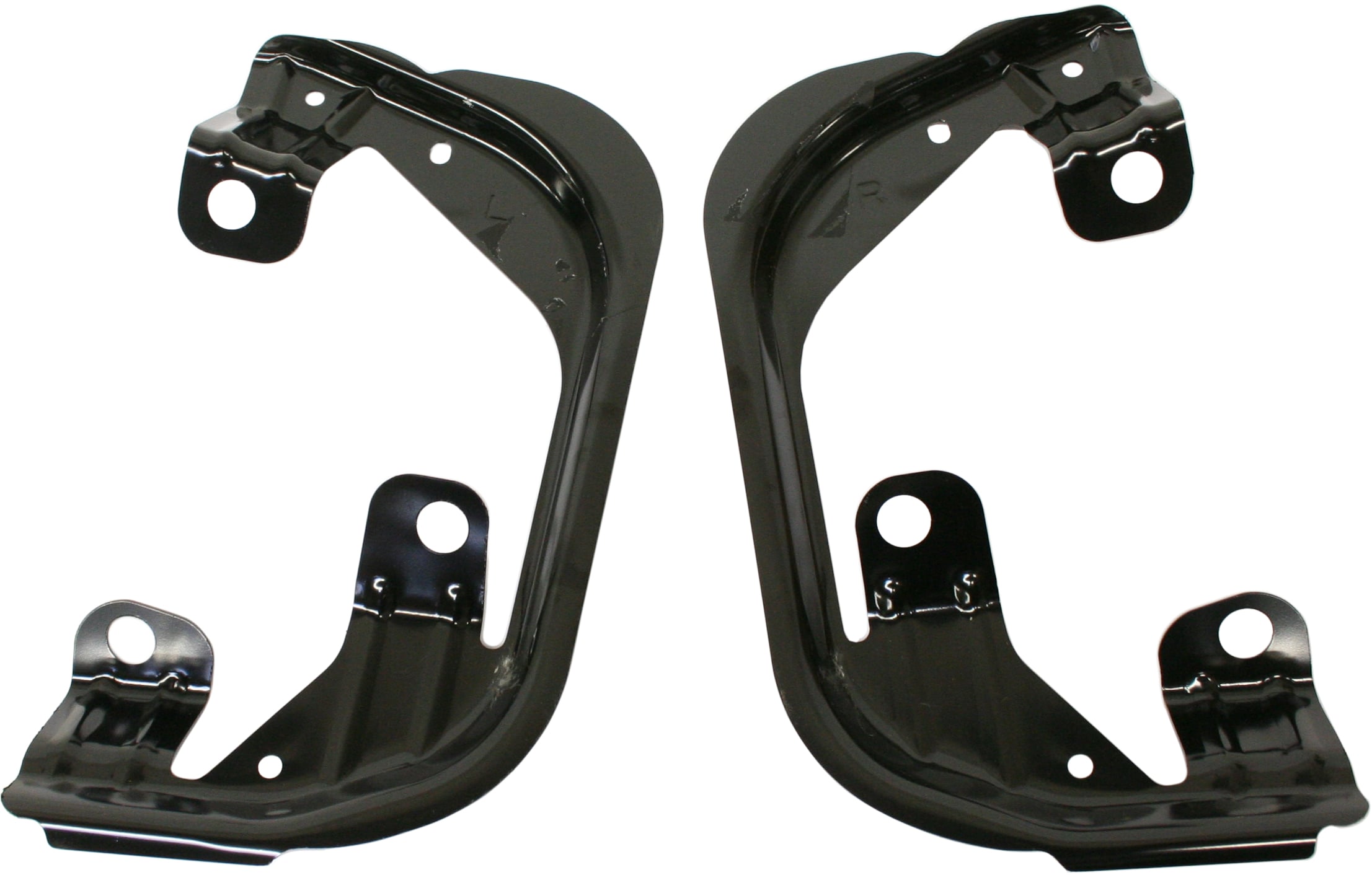

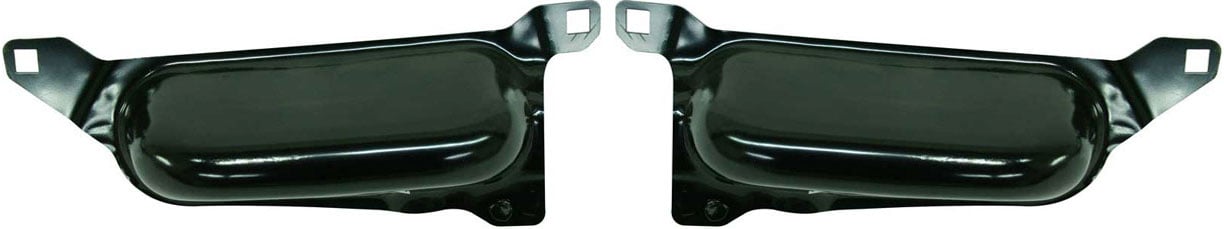

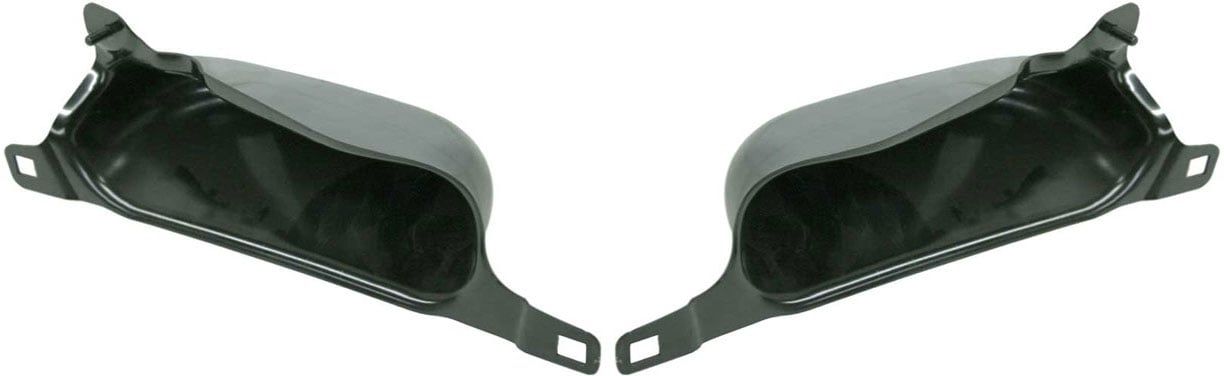

The bumper bracket on a Dodge Ram 3500 is the small but very strong metal brace that bolts the bumper to the truck's frame. It keeps the big bumper lined up, so it can absorb hits, hold lights and sensors, and protect the cooling system behind it. Because the Ram 3500 is a heavy-duty work truck, the bracket is built from high-strength steel and coated to fight rust.

What It Does

• The bracket (also called a bumper support, mounting brace, or stay) locks the bumper shell to the frame horns so the bumper won't sag or shift on rough roads .
• It lines the bumper up within factory gap specs-about 30 mm between bumper and box outer at the rear on 2010-present 3500s .
• In a crash the brace funnels impact energy into the frame rails, away from the cab .
• Modern brackets also carry parking-sensor bezels and tow-hook points on many trims .

Materials & Coatings

• OEM and quality aftermarket brackets use stamped or welded high-strength steel so they can flex without cracking .
• Builders apply an e-coat primer plus textured powder coat for 500-plus hour salt-spray resistance .
• Some heavy off-road bumpers add 3/16-inch plate brackets for winch loads up to 12,000 lb .

Fitment Guide

← scroll table horizontally →

• Always match cab style and trim when ordering; Power Wagon winch trays need a shorter bracket .

Installation Steps

1. Remove the grille and fog-lamp plugs .
2. Unbolt four 18 mm nuts per side to free the old support .
3. Slide the new brace onto the frame horn and hand-start the bolts .
4. Torque to 100 ft-lb (M12 bolts) or 150 ft-lb (½-inch Grade 8), then re-hang the bumper .
5. Check gaps-the bumper should sit about ⅜-inch below the headlamps on 4th-gen trucks .

Tip: support the bumper on a floor jack so you can line up the holes alone .

Tools & Torque

← scroll table horizontally →

*Always follow the fastener grade stamped on the bolt head.

Common Problems

• Rust at weld seams if the e-coat is chipped-wash winter salt and touch-up chips early .
• Loose bumper after light impacts; retorque or replace bent brackets before the bumper rubs the grille .
• Broken welds on frame-mounted brackets can affect steering and should be repaired at once .
• Sensor errors if a 2019-up radar plate is bent; swap the plate that is welded to the support .

Safety & Compliance

• FCA warns against heating any high-strength bumper brace during straightening, because heat weakens the steel .
• Brackets must stay within factory alignment to keep airbags timing correctly in a crash .
• Many states require damaged bumpers to be repaired before annual inspection; a bent brace counts as damage.

Upgrade Paths

• Heavy-duty winch bumpers come with thicker mounting arms that reuse factory frame holes for easy swap-in .
• Off-road bumpers with clevis mounts include crush sleeves so recovery loads do not twist the brace .
• Paintable braces let custom builders match body color; just scuff the e-coat first .

Frequently Asked Questions

Q: What does a Ram 3500 front bumper bracket weigh?
A: The stock steel brace is about 5 lb; with the bumper shell and plastic trim the full assembly is roughly 43 lb .

Q: Will a 2018 bracket fit a 2020 truck?
A: No. Fifth-generation frames are wider, and the newer support has radar and sensor cut-outs .

Q: Can I drive with a cracked bumper brace?
A: It's not safe; steering can feel loose and airbags may mis-time. Replace the brace right away .

Q: Do I need special tools?
A: Just basic metric and SAE sockets, a breaker bar, and a torque wrench up to 150 ft-lb .

Q: How do I rust-proof the new bracket?
A: Wash road salt off weekly, spray wax-oil inside the hollow frame horns, and touch-up chips with enamel .

Q: Why does my new off-road bumper include extra "frame brackets"?
A: They spread winch and tow-strap loads across more frame bolts and prevent twisting .

Q: Do parking sensors pop right into the support?
A: Yes-late-model braces have snap-in plastic bezels that transfer from the old bumper .

Q: What torque should I use on sensor bracket screws?
A: 45 inch-pounds-just snug, because overtightening can crack the plastic housing .

Q: Is the bracket aluminum or steel?
A: It is stamped or boxed high-strength steel for toughness; aluminum would dent too easily on a work truck .

Q: Can heating a bent bracket help straighten it?
A: No. Heat weakens high-strength steel; use cold straightening or replace the part .
