Below is a deep-dive guide to the Ford F-150 cooling fan-also called the radiator fan, engine fan, or cooling blower. It explains what the fan does, the parts that work with it, common problems, fixes, safety notes, and answers to lots of real-world questions.

Overview

The cooling fan pulls air through the truck's radiator so hot coolant can give off heat. On newer F-150s the fan is a dual-motor electric assembly, while older models use a belt-driven fan clutch. When everything works, engine temperature stays near 195 °F and the A/C blows cold even at idle (YouTube).

How It Works

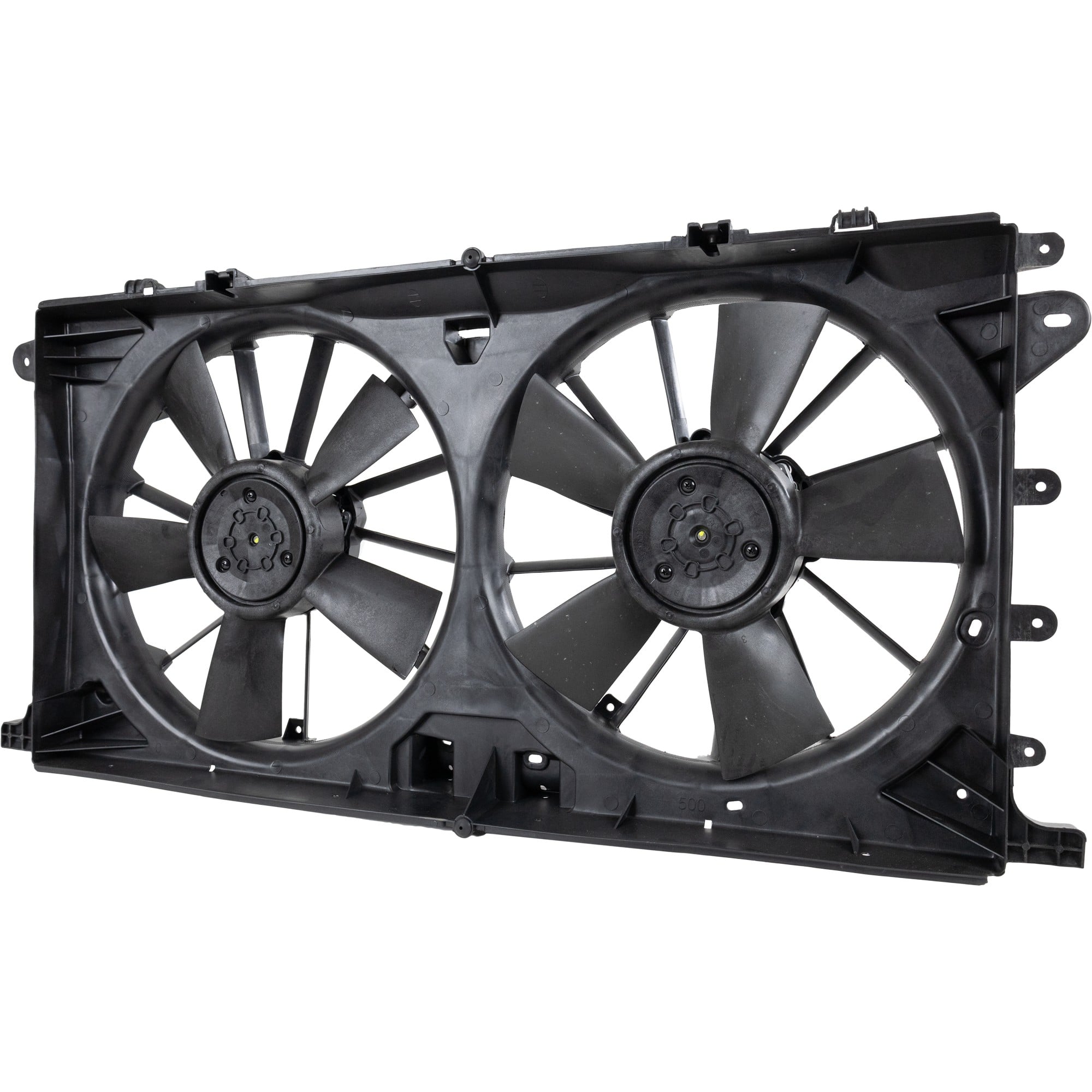

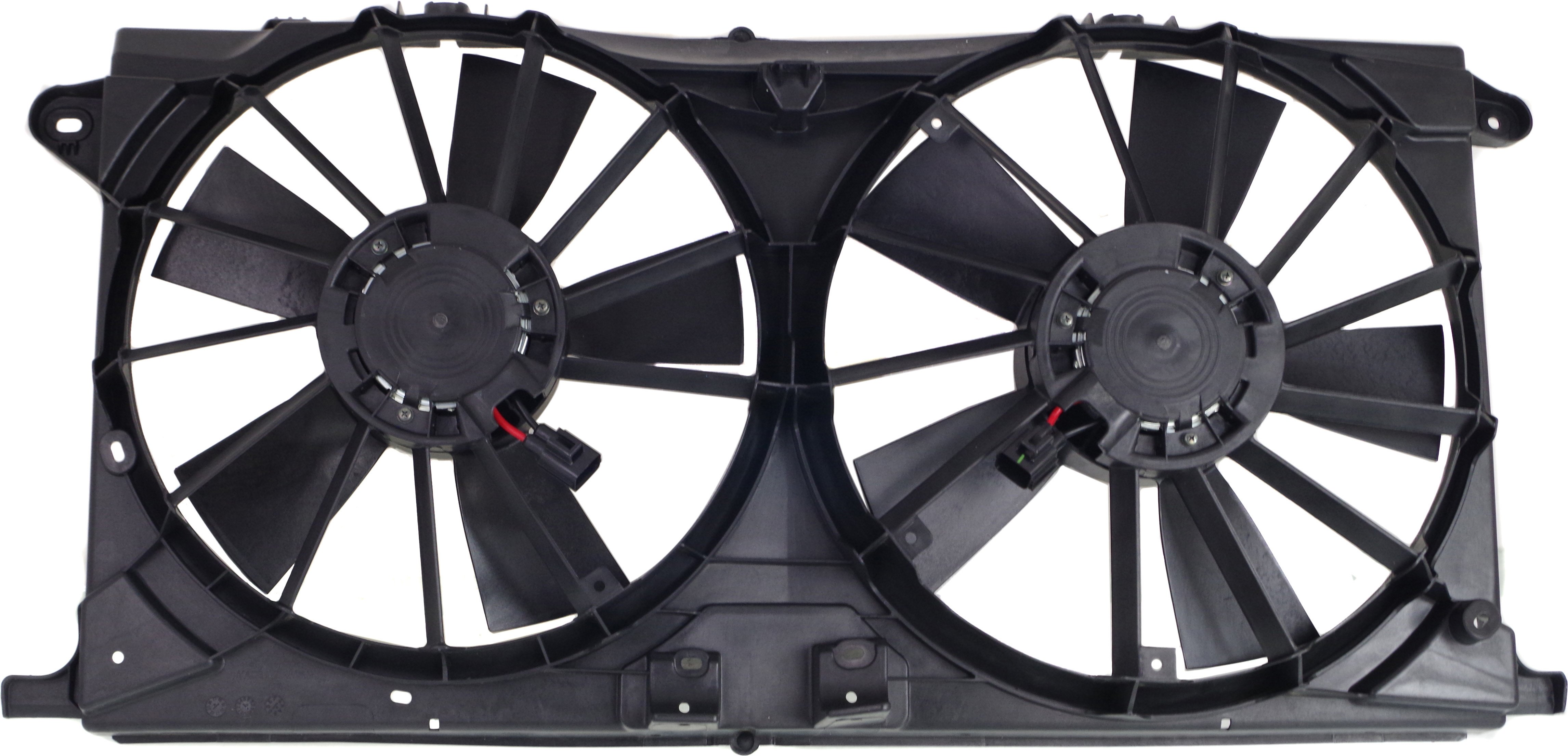

* Electric setup (2015-present): Two brushless motors spin composite blades. The power-train control module (PCM) changes speed based on coolant, A/C, and ambient temps (NHTSA Static).

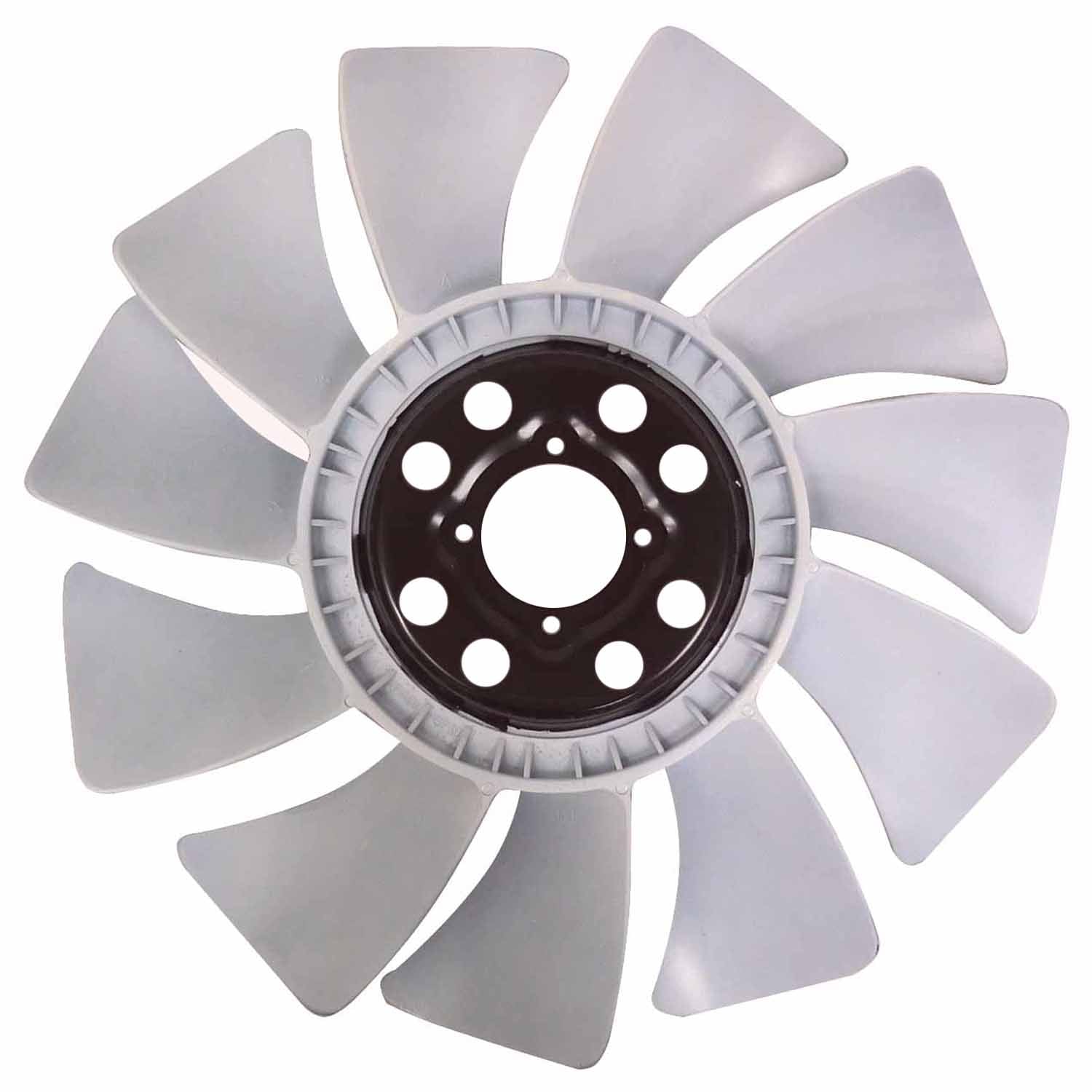

* Fan clutch setup (1997-2014): A thermostatic clutch unlocks the fan when the engine is cool and locks it as the radiator gets hot. Ford's service spec for the clutch-to-water-pump nut is about 41 lb-ft (F150 Forum).

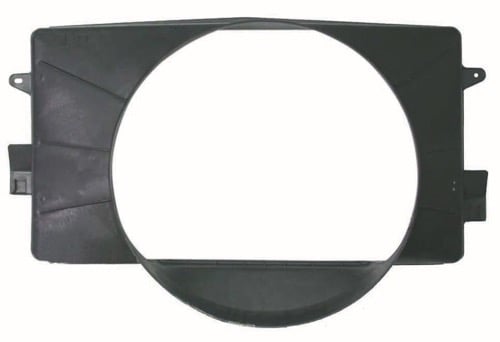

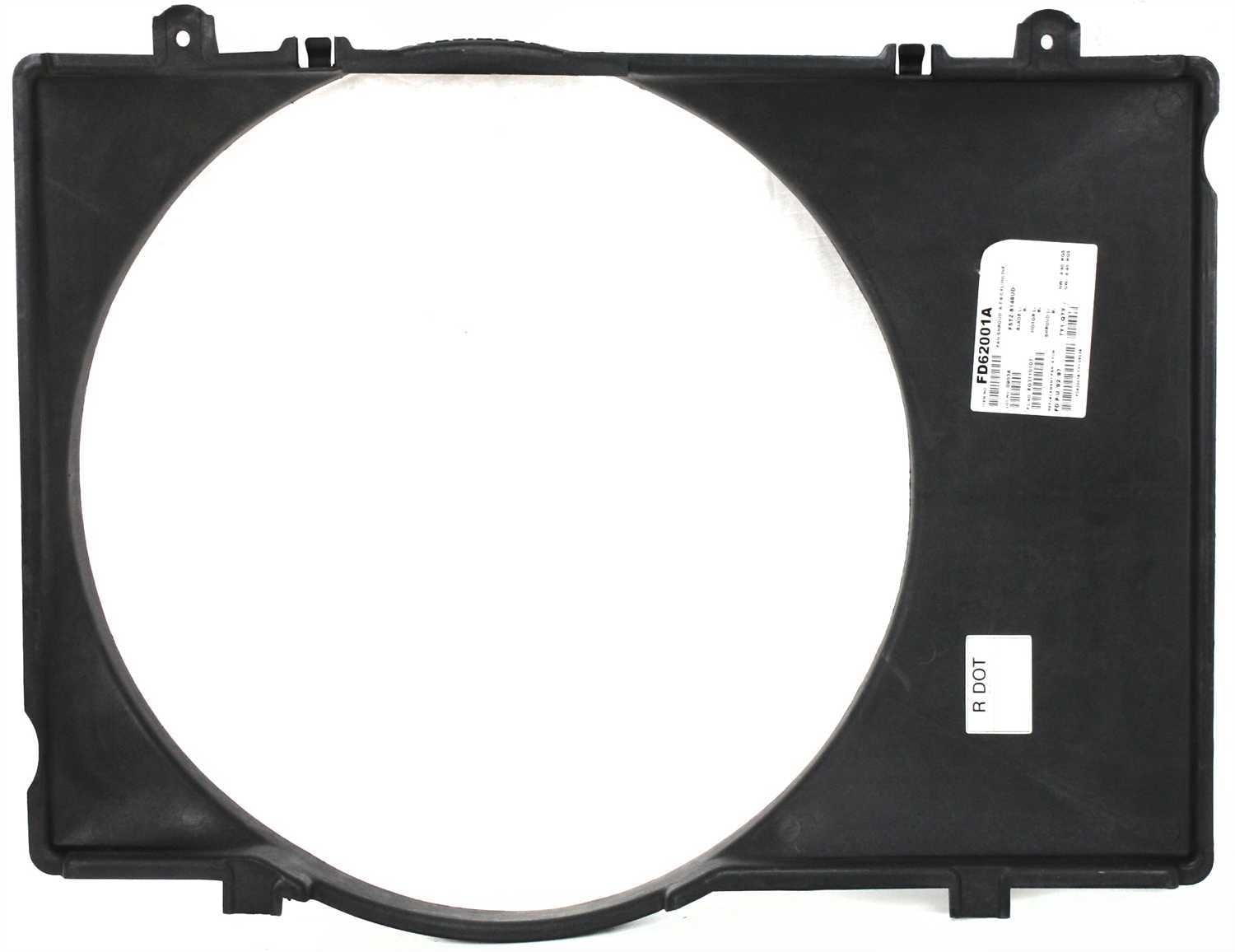

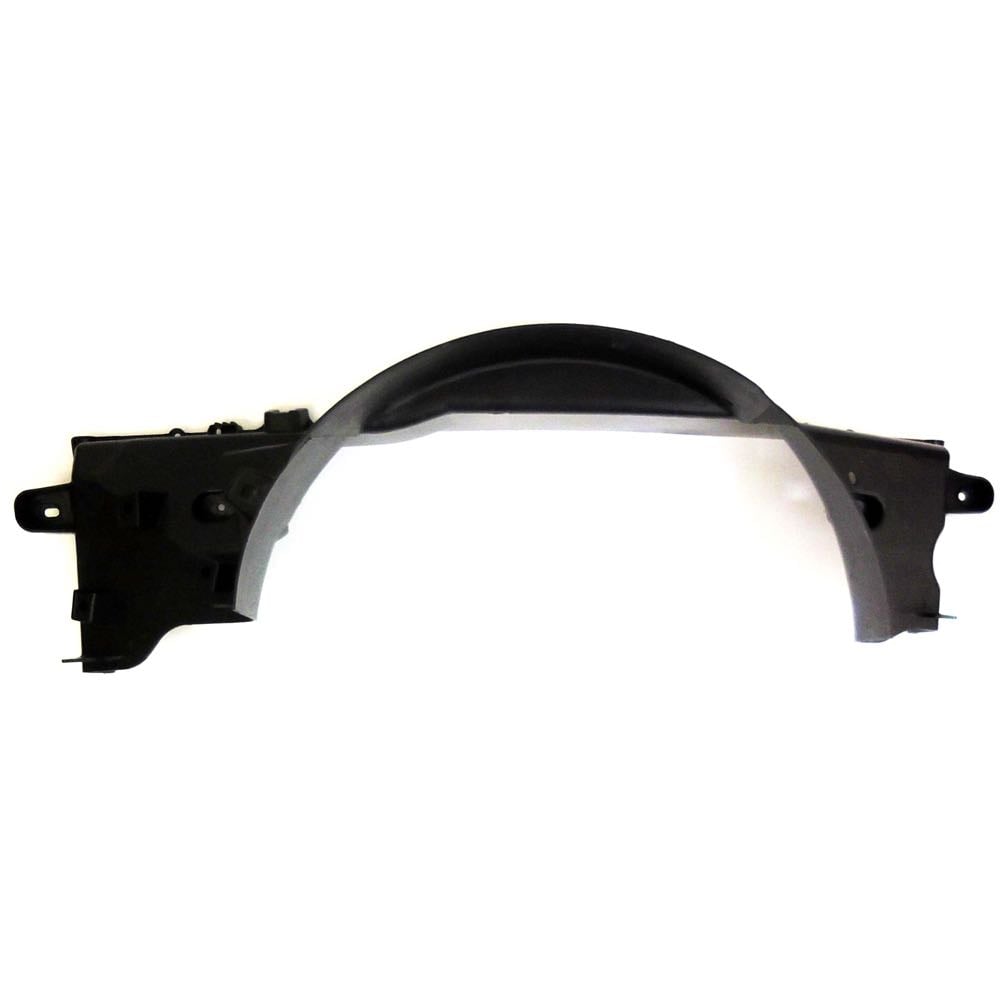

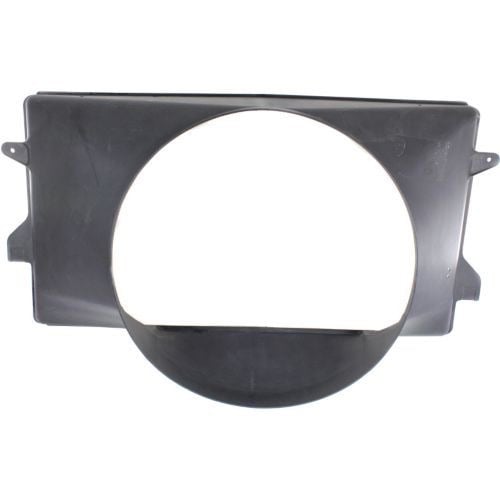

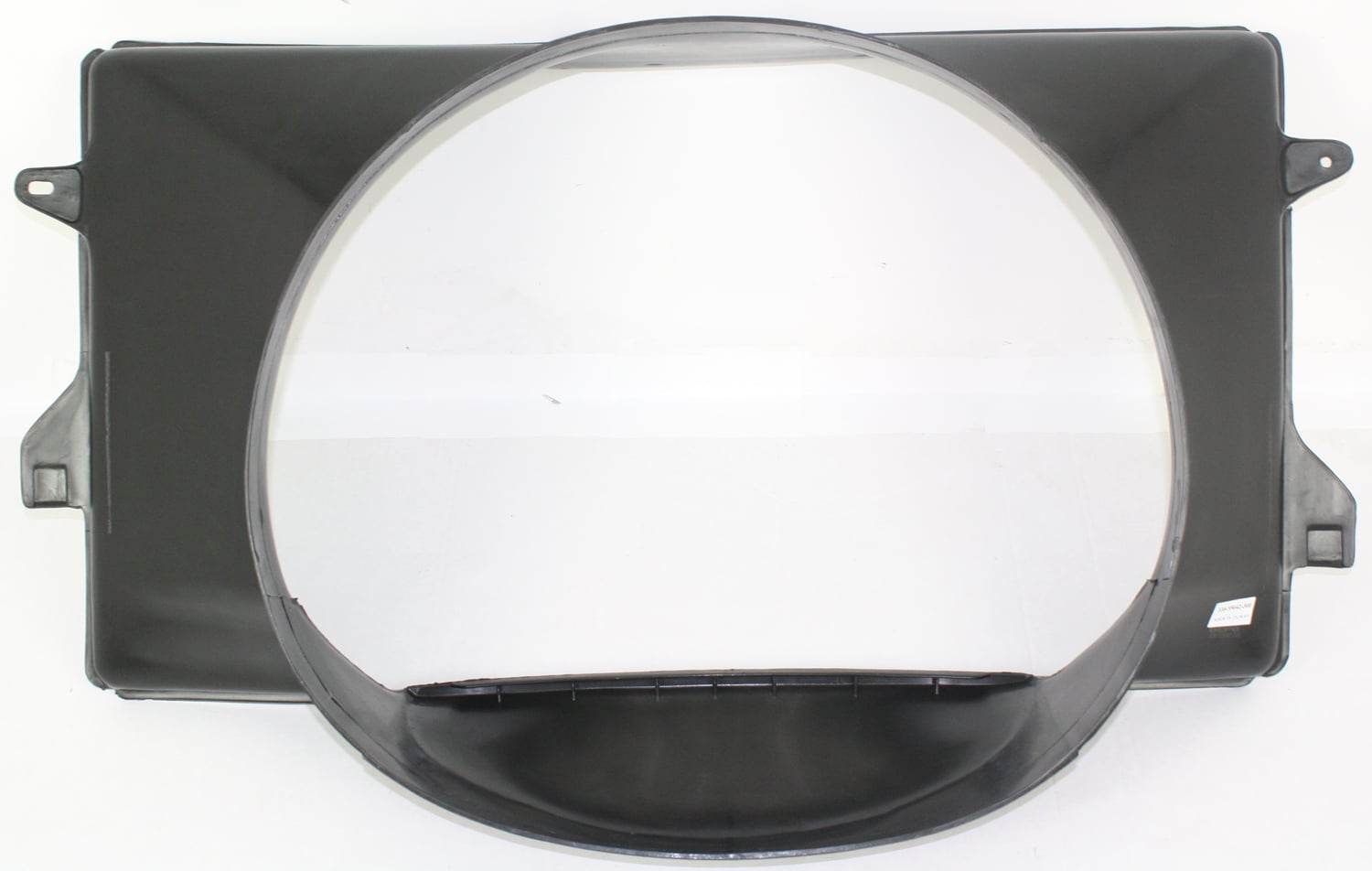

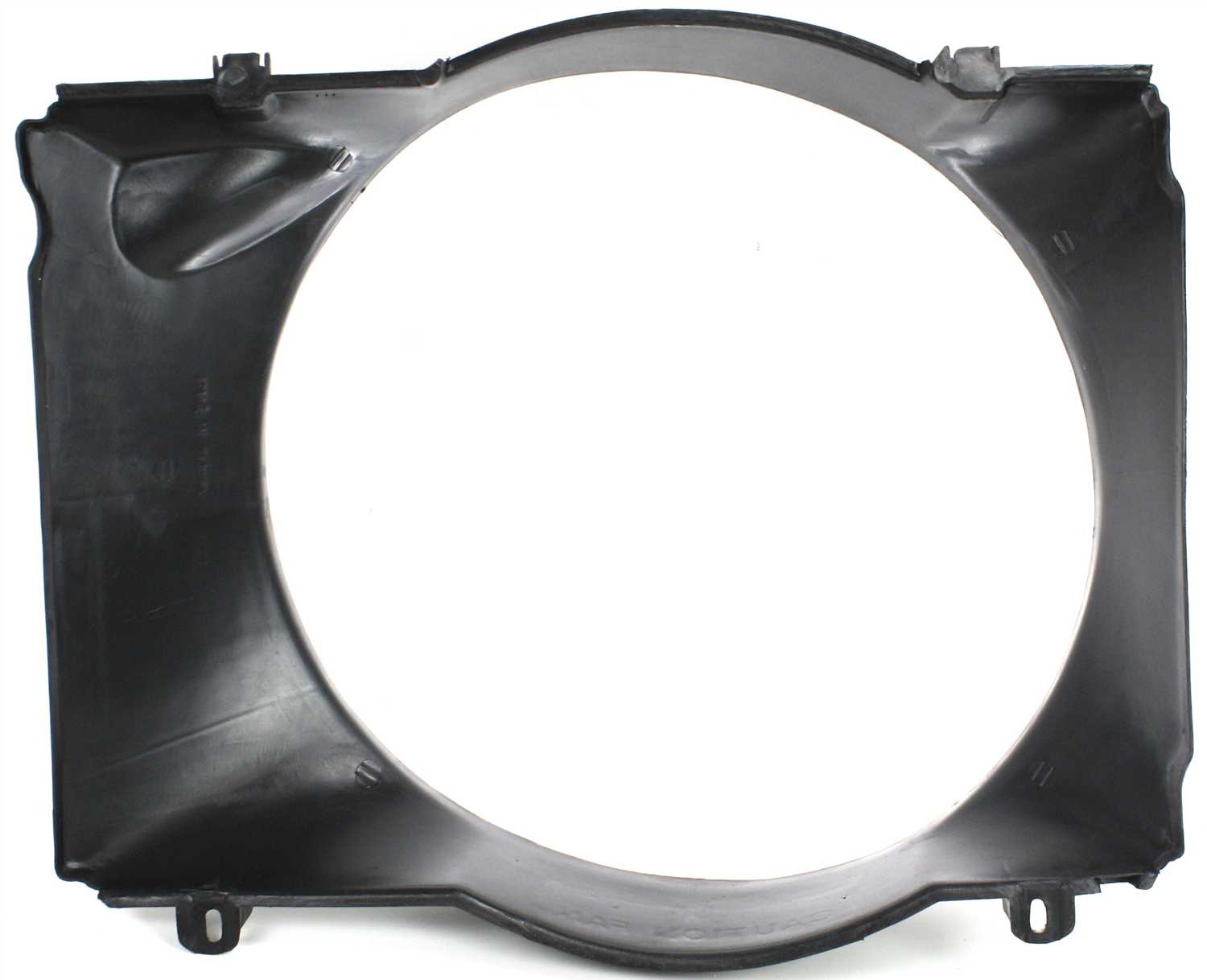

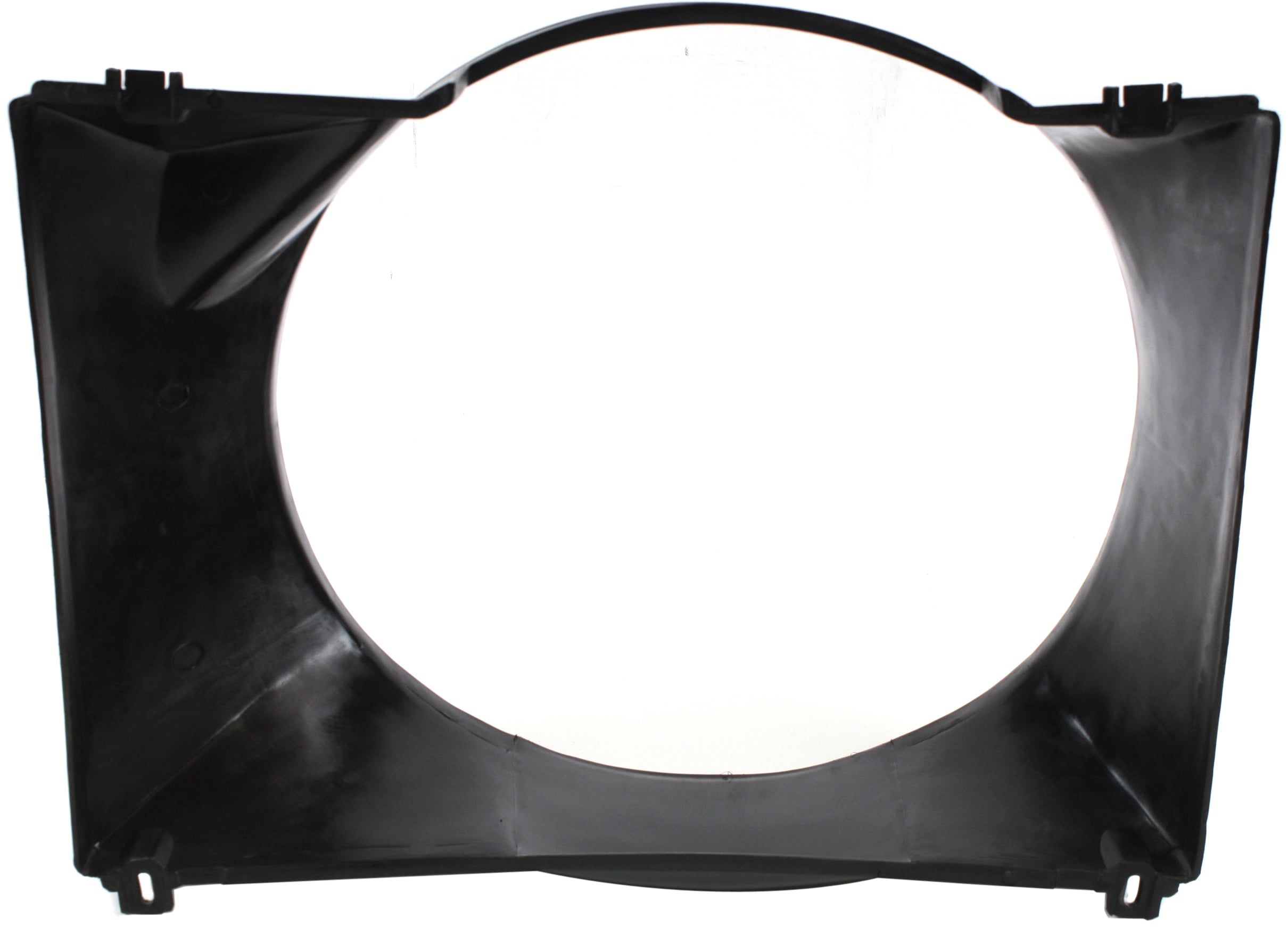

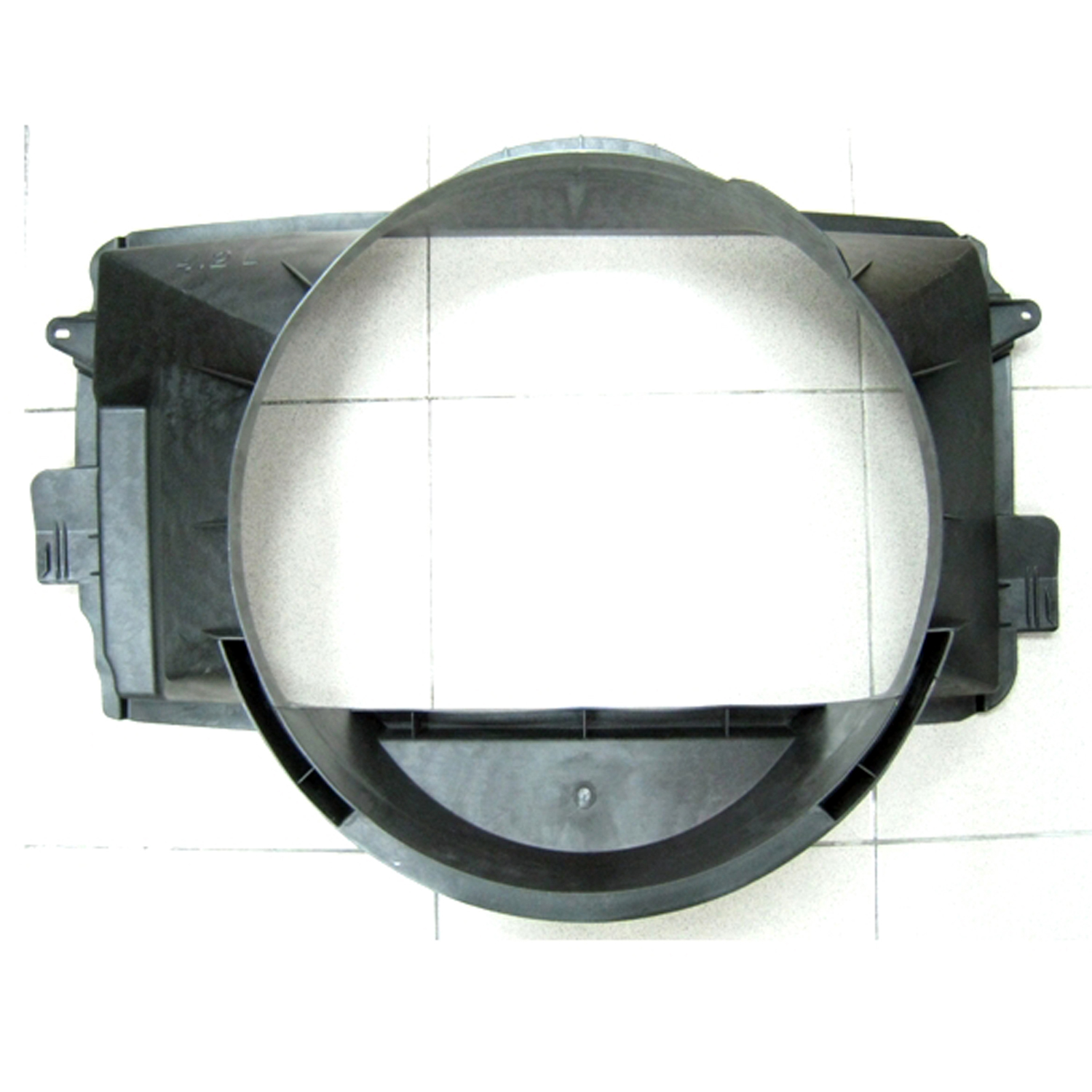

* Air path: Shroud → fan blades → radiator core → condenser → intercooler (EcoBoost) → engine bay. Smooth shroud edges stop hot air from recirculating.
* Controls: Three relays feed low, medium, and high speeds on 2015-up trucks (F150 Forum).

Common Problems

1. Fan stuck on high: Often a biased A/C evaporator temp sensor; Ford TSB 22-2089 covers the fix .
2. Over-temperature warning but normal fan: 2024 2.7 L EcoBoost trucks need a PCM flash per TSB 24-2441 (NHTSA Static).
3. Fan never turns on: Look for blown 50 A fuse, bad temperature sensor, or relay failure (JustAnswer).
4. Noisy clutch fan: Worn silicone fluid makes the fan roar at all speeds, stealing power and mileage (F150 EcoBoost).
5. Overheating at idle only: Blocked radiator fins or weak fan motor can't move enough air (JustAnswer).

Maintenance Tips

• Check coolant every oil change; low coolant makes the fan run harder.
• Spray bugs and dirt out of the radiator with a garden hose, not a pressure washer.
• Spin an old clutch fan by hand; if it free-wheels more than ¼ turn, replace it.
• Listen for clicking or grinding from electric fan motors.
• Use the Ford scan tool's fan test to confirm all three speed commands (F150 EcoBoost).

Replacement Basics

A DIYer with common tools can swap a 2015-up dual electric fan in 90 minutes-bumper and coolant hoses stay in place (YouTube). Older clutch-fan trucks need a special 36 mm fan wrench; hold the pulley and break the fan nut loose, then remove the shroud as one piece (YouTube). Always torque the new clutch to 41 lb-ft and refill with 50/50 coolant.

Upgrades & Mods

• Low-temp fan kits: Aftermarket controllers kick fans on sooner for towing or turbo builds (F150 EcoBoost).
• Electric conversions: Swapping a clutch fan for an electric setup frees a few horsepower and may improve fuel economy by 1-2 MPG (MotorTrend).
• Aluminum radiators with high-CFM fans keep engine and transmission temps steadier when off-roading.

Safety & Recalls

While no broad recall targets the fan itself, recent F-150 Lightning trucks were recalled for a short-circuit fire risk that could involve the battery cooling loop (Kbb.com). Separately, Ford recalled 90,000+ 2021-22 F-150s for possible valve breakage that could lead to overheating (Reuters). Owners can search their VIN at the NHTSA site for open campaigns.

Environmental Notes

Modern brushless fan motors draw less current and cut parasitic drag, trimming tailpipe CO₂ compared with old belt-driven fans (MotorTrend). Proper cooling also lets the power-train run at peak combustion efficiency, lowering smog-forming emissions.

Compatibility & Specs

← scroll table horizontally →

Frequently Asked Questions

Q: What does the cooling fan do?
A: It pulls cool air through the radiator so the engine and A/C stay at safe temperatures (YouTube).

Q: When should the fan turn on?
A: On most 2015-up F-150s it starts at low speed near 200 °F and hits high speed around 220 °F or when the A/C pressure rises (NHTSA Static).

Q: Why is my fan always loud?
A: A stuck clutch or a PCM that sees an overheating signal will lock the fan at full speed .

Q: Can I drive with a broken fan?
A: Only for a short distance and only in cool weather-otherwise the engine can overheat in minutes.

Q: How hard is it to replace the fan at home?
A: An electric fan assembly is one of the easier F-150 jobs: unplug two connectors, remove four bolts, and lift it out (YouTube).

Q: Do I need to bleed the cooling system after fan work?
A: Yes. Trapped air can cause overheating and make the new fan run constantly (JustAnswer).

Q: What's the torque for the clutch-fan nut?
A: About 41 lb-ft on most 4.6 L, 5.4 L, and 5.0 L engines (F150 Forum).

Q: Will an electric conversion save gas?
A: Owners report 1-2 MPG gains because the belt no longer spins a heavy fan (MotorTrend).

Q: Is there a recall for overheating fans?
A: Not for the fan itself, but related engine or battery recalls can affect cooling, so check your VIN at NHTSA (Reuters).

Q: Can a bad fan harm the A/C?
A: Yes. Without airflow, condenser pressure spikes and the A/C blows warm, triggering high-speed fan operation .

Key Points

• Keep coolant clean and full.
• Watch for fan noise changes.
• Follow torque specs and TSB updates.
• Upgrades exist for towing and off-road use.
  A healthy cooling fan means a healthy Ford F-150.
