C0035 on 2007-2014 Chevrolet Suburban: Left Front Wheel Speed Sensor Causes and Fixes

What's Unique About the 2007-2014 Chevrolet Suburban

On this generation of Suburban (GMT900 platform), the front wheel speed sensor is not a separate, bolt-on part. It is an active sensor permanently integrated into the sealed wheel hub and bearing assembly. This design means that if the sensor itself or its internal magnetic encoder ring fails, the entire hub assembly must be replaced. Unlike older GM trucks which used passive sensors, this active sensor requires a supply voltage from the EBCM to function and produces a digital square-wave signal. While some generic code readers cause confusion, GM-specific documents and scan tools confirm C0035 is for the left front wheel on this platform.

Symptoms You May Notice

• ABS warning light is on
• StabiliTrak and/or Traction Control warning light is on
• "Service StabiliTrak" or "Service Traction Control" message on the Driver Information Center (DIC)
• ABS system is inactive (wheels may lock up during hard braking)
• Traction control is inactive (wheels may spin on slippery surfaces)
• Uncommanded, low-speed ABS activation or brake pedal pulsation before the warning lights appear.
• Cruise control may be disabled.

Most Likely Causes

1. Failed Left Front Wheel Hub & Bearing Assembly 🔴 High Probability → Shop Hub Assembly The active wheel speed sensor and its magnetic encoder ring are integrated into the hub assembly. Corrosion, moisture intrusion, or bearing wear can damage these non-serviceable components, leading to signal failure. Rust jacking out the reluctor ring is a common failure mode.
   How to confirm: With the wiring confirmed to be good, use an ABS-capable scan tool to monitor live data. If the left front wheel speed reads 0 MPH or is erratic while the other wheels show speed, the hub assembly has failed. A grinding or humming noise from the wheel while driving is also a strong indicator of bearing failure. A C0035 with symptom byte 0F (Signal Erratic) often points to a failing bearing or contaminated encoder ring.
   Typical fix: Replace the entire left front wheel hub and bearing assembly. Always use a new axle nut and torque it to the manufacturer's specification (typically 177 lb-ft for this platform).
   Est. part cost: $120-$400
2. Damaged Wheel Speed Sensor Wiring Harness 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The harness is exposed to wheel movement and road debris. Wires can chafe, break internally from repeated flexing, or get damaged by corrosion at the connector. This is especially common on vehicles with leveling kits that stretch the harness. A specific chafe point has been noted where the harness can rub through on the A/C accumulator.
   How to confirm: Visually inspect the entire length of the harness from the hub to the main connector on the frame for chafing, cuts, or swollen insulation. Perform a continuity and resistance check on the two wires between the sensor connector and the EBCM connector. A C0035 with symptom byte 18 (Signal Circuit Open/Shorted) strongly suggests a wiring issue.
   Typical fix: Replace the damaged wiring harness pigtail. Splicing in a new connector and section of wire is a common repair. Dorman part 695-902 is a common replacement. 🎬 Watch: How to fix C0035 and C0040 wiring issues
   Est. part cost: $25-$60
3. Debris on Magnetic Encoder Ring ⚪ Low Probability The magnetic ring on the inboard side of the hub can attract ferrous metallic debris (like rust flakes or metal shavings), which disrupts the sensor's reading.
   How to confirm: This is addressed in GM TSB PIC5428G and its successors. If scan tool data shows an erratic signal (symptom byte 0F) or low signal amplitude (symptom byte 5A), and the wiring is intact, the hub must be removed to visually inspect the magnetic ring for debris.
   Typical fix: Carefully clean the debris from the magnetic encoder ring using a cloth or soft brush. Reinstall the hub and clear the codes. This can often fix the issue without replacing the entire hub.
   Est. part cost: $0

Rare But Worth Checking

• Failed Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is uncommon. Before condemning the EBCM, all other possibilities (hub, wiring, connectors) must be exhaustively ruled out. An EBCM failure will typically set other codes as well. Manufacturer Bulletin #PIT5499B notes that technicians should specifically inspect the EBCM connector for water intrusion if C0035 is present alongside other communication codes.
• Loose or Corroded EBCM Ground: The main EBCM ground (G110) is located on the frame rail under the driver's door. Corrosion at this point can cause a variety of strange ABS issues and codes. It's a simple and important check; remove the bolt, clean the frame and terminal to bare metal, apply dielectric grease, and re-secure to 9 N·m (79 lb-in).
🎬 See how to clean and maintain GM electrical grounds

Diagnosis Steps

1. Connect an ABS-capable scan tool (e.g., GM Tech2/GDS2) and confirm the presence of code C0035. Note any symptom bytes (e.g., 0F - Erratic, 18 - Open/Shorted, 5A - Not Plausible) if your scanner can read them. Manufacturer Bulletin #22-NA-089 notes that C0035 may set intermittently and deactivate systems for an ignition cycle.
2. View live data from all four wheel speed sensors while driving slowly (5-10 MPH). Confirm that the Left Front (LF) sensor reads 0 MPH or is erratic compared to the other three.
3. Safely raise and support the front of the vehicle. Visually inspect the wheel speed sensor harness from the back of the hub up to the frame for any signs of chafing, stretching, or damage. Pay close attention to where it might rub against the A/C accumulator or suspension components.
4. Disconnect the harness connector at the frame. With the key on, use a multimeter to check for supply voltage (typically 5V or 12V, depending on the specific EBCM) on one of the pins from the EBCM side of the harness. Check the other pin for a good ground.
5. If supply voltage or ground is missing, the problem is in the wiring to the EBCM or the EBCM itself. If present, the wiring and hub are suspect. Check the EBCM ground (G110) on the frame under the driver's door for corrosion. Clean and tighten to 9 N·m (79 lb-in) as necessary.
6. If wiring appears damaged, repair or replace the harness pigtail (e.g., Dorman 695-902).
7. If wiring, supply voltage, and ground are intact, the fault is most likely the integrated active sensor within the wheel hub. Proceed with replacing the left front wheel hub assembly.

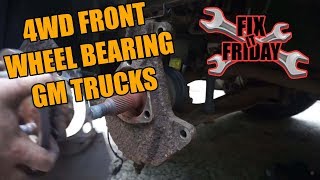

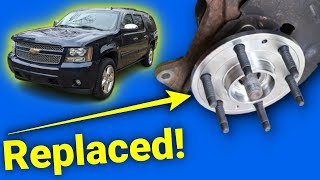

🎬 Watch: Step-by-step 4WD wheel bearing and hub replacement guide
8. As per TSB PIC5428G, you can opt to first remove the hub to inspect and clean the magnetic encoder ring on the inboard side for any metallic debris before replacing the entire unit.
9. After repair or replacement, clear the codes with the scan tool and perform a test drive to ensure the warning lights do not return.

Parts You'll Likely Need

• Front Wheel Hub and Bearing Assembly (Left) (OEM #25998179 (ACDelco Gold FW409)) — This is the most common failure. The non-serviceable active wheel speed sensor is integrated into this assembly.
  Trusted brands: ACDelco, Timken, MOOG, SKF
  OEM price range: $250-$400
  Aftermarket price range: $120-$250
• Front Wheel Speed Sensor Harness (Pigtail) (OEM #19300584 (ACDelco PT2813)) — The wiring is a common point of failure due to damage from flexing, rubbing, or corrosion.
  Trusted brands: ACDelco, Dorman (p/n 695-902 or 970-040)
  OEM price range: $40-$70
  Aftermarket price range: $25-$50

Related Codes That Often Appear With This One

• C0040 — C0040 is the code for the Right Front Wheel Speed Sensor. Seeing both codes together could indicate a systemic issue like a problem with the EBCM, its power/ground supply, or widespread corrosion affecting both front hubs. NHTSA ODI #10440851 describes a vehicle where both C0035 and C0040 were present simultaneously with the ABS and Brake lights illuminated.
• U0415 — On vehicles with Electric Power Steering, a loss of a wheel speed sensor signal can cause the Power Steering Control Module to set a U0415 (Invalid Data Received From EBCM) code and increase steering effort as a default action.

Technical Service Bulletins (TSBs) & Recalls

• PIC5428G: Addresses ABS/Traction/Stabilitrak lights with codes C0035-C0050 (symptom bytes 0F, 18, 5A), often caused by metallic debris on the magnetic encoder ring of the wheel hub. Recommends cleaning the ring as a first step. Note: This TSB has been superseded multiple times, with the latest version being 17-NA-047 as of Feb 2017.
• Bulletin #22-NA-089: Notes that ABS, Traction Control, and Stabilitrak lamps may illuminate intermittently and deactivate for an ignition cycle when C0035 is set.
• Bulletin #PIT5499B: Informs technicians that if C0035 is found alongside a "Service Trailer Brake" message, they should inspect the Electronic Brake Control Module connector for water.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Internal Resistance — expected: 800 - 2,000 Ohms (Ω). Failure: A reading of zero, infinite (OL), or significantly outside this range indicates a failed internal sensor coil.
• Wheel Speed Sensor Supply Voltage — expected: 4.5V - 12V DC (Varies by EBCM, check service manual). Failure: No voltage or low voltage at the harness connector (EBCM side) with key-on indicates a wiring or EBCM issue, not a hub/sensor issue.
• EBCM Ground (G110) Tightening Torque — expected: 9 N·m (79 lb-in). Failure: A loose ground bolt can cause intermittent codes and ABS/Stabilitrak malfunction.

Hidden / Shadow Codes Worth Checking

• C0035 with symptom byte 0F: Signal Erratic. The EBCM receives a signal, but it's unstable or jumping. This strongly points to a failing wheel bearing causing wobble, a physically damaged/contaminated encoder ring, or a loose connection. (see via GM-specific scan tool (Tech 2, GDS2) or high-end aftermarket scanner.)
• C0035 with symptom byte 18: Signal Circuit Open/Shorted. This points directly to a wiring problem like a complete break, a short to ground/power, or a sensor that has failed internally with an open circuit. (see via GM-specific scan tool (Tech 2, GDS2) or high-end aftermarket scanner.)
• C0035 with symptom byte 5A: Signal Not Plausible. The signal's reading doesn't make sense compared to the other three wheels. This often indicates a severely damaged or rusted-out reluctor ring, or an incorrect/incompatible aftermarket hub assembly was installed. (see via GM-specific scan tool (Tech 2, GDS2) or high-end aftermarket scanner.)

Wiring & Ground Locations

• G110 — On the outside of the frame rail, directly under the driver's door.. This is the primary ground for the Electronic Brake Control Module (EBCM). Corrosion or looseness here is a very common and often overlooked cause of C0035 and other ABS/Stabilitrak communication codes. Cleaning this ground should be a primary diagnostic step.
• LF WSS Harness Chafe Point — Inspect the wiring harness where it routes near the A/C Accumulator in the engine bay.. A documented failure point is the wheel speed sensor harness rubbing through its insulation on the A/C accumulator, causing a short or open in the circuit.

Real Owner Repair Stories

• Reddit user mittyatta in r/chevycolorado (Chevy Colorado (similar GM platform and failure mode)) — ABS activating at low speeds, code C0035.
  ❌ Tried (didn't work) Replacing only the ABS sensor., Replacing ABS-related fuses.
  ✅ What actually fixed it The reluctor rings on the hubs were rusted out, tricking the sensor. Replacing the entire wheel hub assembly, which includes the integrated sensor and reluctor ring, resolved the issue.
• NHTSA ODI #11228687 — An owner reported multiple service indicators illuminated. A diagnostic scan revealed C0035 along with C0040, C0050, and several communication codes (U0126, U0415, U0422), illustrating how a wheel speed fault often cascades into other system warnings.

Model Year Variations Within This Range

• 2007-2014 (GMT900 Platform): This platform uses a two-wire ACTIVE wheel speed sensor that requires a DC supply voltage and outputs a digital square wave. This is a critical difference from the prior GMT800 platform (1999-2007 Classic) which used PASSIVE sensors that generated their own AC voltage. Generic diagnostic advice that suggests testing for AC voltage is incorrect for this Suburban and will lead to misdiagnosis.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Active Fuel Management (AFM) Lifter Failure 🔴 High — Common, especially on 5.3L and 6.0L V8 engines. Can occur at various mileages, often preceded by excessive oil consumption. (Ref: Multiple TSBs exist related to oil consumption and AFM diagnosis, but no widespread recall for lifter failure itself.)
• Cracked Dashboard 🟠 Medium — Extremely common across all GMT900 trucks and SUVs, often starting as early as a few years into the vehicle's life. Cracks typically appear near the passenger airbag and instrument cluster. (Ref: No recall was ever issued. A class-action lawsuit was filed but ultimately dismissed.)
• Excessive Oil Consumption 🔴 High — Widespread on 2007-2014 models with the 5.3L V8, often linked to the AFM system's PCV design and piston rings. (Ref: GM faced lawsuits and issued technical service bulletins to address the issue, but many owners still report problems.)
• 4L60-E Transmission Failures 🟠 Medium — The 4L60-E can be prone to failure, particularly the 3-4 clutch pack and sun shell. Issues like harsh shifts, slipping, or loss of gears are reported, sometimes before 150,000 miles. (Ref: Numerous TSBs exist for specific shifting issues, but no single recall for overall failure.)
• Interior Door Handle Flaking/Breakage 🟡 Low — The chrome plating on the interior door handles frequently peels, leaving sharp edges. The plastic handles can also become brittle and break.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness pigtail from a non-corroded, low-mileage donor is a good option. A used EBCM can also be a cost-effective repair, but it MUST be from an identical vehicle and may require programming to the vehicle's VIN.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For wiring, inspect for any signs of cracking, previous repairs, or corrosion in the connector pins.
• For an EBCM, check for external corrosion or damage to the case and connectors. Avoid parts from flood-damaged or front-end collision vehicles.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a reputable, high-quality brand for the wheel hub assembly is critical. Cheap, no-name hubs are the #1 cause of the code returning shortly after repair due to poor quality bearings or inaccurate sensor signals.

Aftermarket brands forum-validated for this vehicle:

• Timken
• MOOG
• SKF
• ACDelco (OEM supplier)

Brands owners have reported issues with on this vehicle:

• Unbranded 'economy' or 'value' line hubs from chain auto parts stores. Forum and mechanic reviews frequently report these parts having dead-on-arrival sensors or failing within a few months.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0036 — Right front wheel speed sensor circuit; follows the same failure logic and diagnostic path as the C0035 left front sensor.
• C0040 — Right front wheel speed sensor circuit; often grouped with C0035 in TSB PIC5428G regarding debris on the magnetic encoder ring.
• C0045 — Left rear wheel speed sensor circuit; listed alongside C0035 in TSB PIC5428G as a code potentially caused by magnetic ring contamination.
• C0050 — Right rear wheel speed sensor circuit; identified in TSB PIC5428G as sharing the same root cause of metallic debris disruption as C0035.
