C0035 on 2006-2010 Hummer H3: Left Front Wheel Speed Sensor Circuit Causes and Fixes

What's Unique About the 2006-2010 Hummer H3

On the 2006-2010 Hummer H3 and its GMT345 platform mates (Chevy Colorado, GMC Canyon), the front wheel speed sensor is not a separate, standalone part that can be easily unbolted. Instead, it is integrated into the sealed wheel hub and bearing assembly. This means that if the sensor itself or the magnetic tone ring it reads from fails, the entire front wheel hub assembly must be replaced. 🎬 Watch: Step-by-step guide to replacing the front wheel hub assembly. This design is common on many GM trucks and SUVs from this era and makes the repair more involved and costly than replacing a simple bolt-in sensor.

Symptoms You May Notice

• ABS light is on
• Traction Control (TC) or StabiliTrak light is on
• "Service ABS System" or "Service Traction Control" message on the Driver Information Center (DIC)
• ABS and traction control systems are inoperative
• Intermittent grinding or ratchet noise from the front of the vehicle at low speeds as the EBCM briefly primes the ABS pump due to an erratic signal.

Most Likely Causes

1. Failed Left Front Wheel Hub Assembly 🔴 High Probability → Shop Hub Assembly The internal wheel speed sensor is exposed to heat, vibration, and potential moisture intrusion over time, leading to failure. The sensor is integrated into the hub, making it the most common replacement part for this code. The magnetic reluctor ring on the hub can also rust or accumulate metallic debris, causing an erratic signal.
   How to confirm: Use a scan tool to monitor live data. The left front wheel speed should read 0 MPH or be erratic while the other wheels show the correct speed. If the wiring tests good, the hub assembly is faulty. 🎬 See this breakdown of C0035 causes and how to fix them. A visual inspection may reveal rust or debris on the hub's magnetic ring.
   Typical fix: Replace the entire left front wheel hub and bearing assembly. It is recommended to use a high-quality OEM or aftermarket part (e.g., ACDelco, Timken) as some cheaper units can cause the code to persist.
   Est. part cost: $150-$300
2. Damaged Wiring Harness or Connector 🟡 Medium Probability The wiring harness runs down the suspension and is exposed to road debris, moisture, and constant movement from steering and suspension travel. Wires can break, chafe against the frame or suspension components, or corrode, especially at the connector pins.
   How to confirm: Visually inspect the wiring from the frame to the wheel hub for any signs of damage, chafing, or corrosion. Unplug the connector and check for bent or corroded pins. Perform a continuity and resistance test on the wires between the EBCM and the hub connector.
   Typical fix: Repair the damaged section of wire or replace the pigtail connector. A common replacement pigtail is Dorman 645-134 or equivalent. In severe cases, a new harness section may be needed.
   Est. part cost: $20-$60

Rare But Worth Checking

• Faulty Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is the least likely cause. It should only be considered after the wheel hub assembly and wiring have been thoroughly tested and confirmed to be good. A faulty EBCM will often present with multiple wheel speed sensor codes or communication errors.

Diagnosis Steps

1. Connect a scan tool capable of reading ABS codes to confirm C0035 is the active or stored code.
2. Use the scan tool's live data function to monitor the speeds of all four wheels while driving slowly (above 6 mph). Observe if the Left Front (LF) wheel speed reads 0 MPH, is erratic, or is significantly different from the other three.
3. If the LF sensor is not reading correctly, raise and secure the front of the vehicle on jack stands and remove the left front wheel.
4. Visually inspect the wiring harness leading to the left front wheel hub. Look for any cuts, chafing, melting, or signs of corrosion, paying close attention to the connector at the hub and where the harness flexes with suspension travel.
5. Disconnect the harness at the wheel hub. Inspect the connector pins for corrosion, moisture, or damage. Clean with electrical contact cleaner if necessary.
6. For advanced diagnosis, use a multimeter to test the wiring harness. With the EBCM and hub disconnected, check for continuity on the two wires running to the hub. Resistance should be less than 2 ohms. Then check for a short to ground or short to voltage on each wire.
7. If wiring and connectors are good, the most probable cause is a failed sensor inside the wheel hub assembly or debris on the magnetic ring.
8. Before replacing, you can try cleaning the area where the hub meets the knuckle, as rust buildup can increase the air gap and weaken the signal.
9. If all other tests pass, replace the left front wheel hub assembly.
🎬 Watch: Replacing the front wheel bearing on the GMT345 platform.

Parts You'll Likely Need

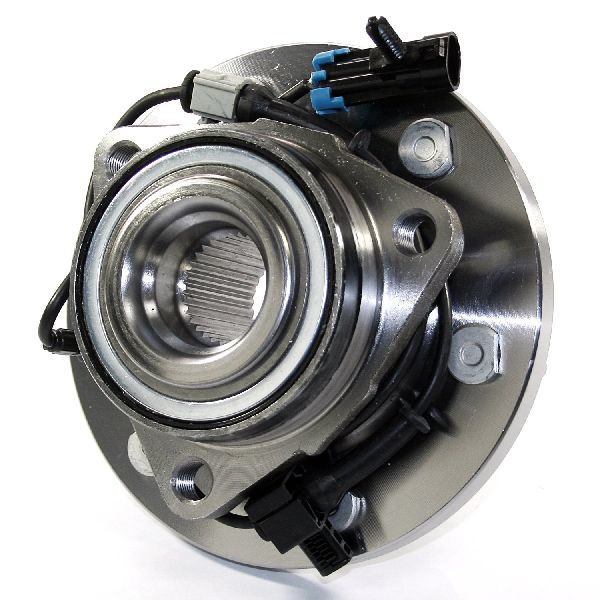

• Front Wheel Hub and Bearing Assembly (OEM #GM 15882082 (Superseded by other numbers)) — This is the primary fix for code C0035, as the wheel speed sensor is integrated into this assembly for the Hummer H3.
  Trusted brands: ACDelco (OEM Brand, P/N: FW293), Timken (P/N: HA590248), MOOG (P/N: 515096), SKF, Detroit Axle
  OEM price range: $200-$300
  Aftermarket price range: $120-$250
• ABS Wheel Speed Sensor Pigtail Connector (OEM #ACDelco PT2700 (Replaces 10340314)) — If the wiring is damaged at the connector, replacing the pigtail is a common repair.
  Trusted brands: ACDelco, Dorman (P/N: 645-134), Michigan Motorsports
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Technical Service Bulletins (TSBs) & Recalls

• GM TSB PIC5428G: This technical service bulletin addresses ABS activation at low speeds and intermittent codes. It advises technicians to inspect the magnetic encoder ring on the wheel bearing hub for metallic debris or rust contamination before replacing parts. Cleaning the ring can sometimes resolve the issue without part replacement.

Platform-Specific Known Issues

• Intermittent activation of the ABS/TCS lights, especially in wet conditions, can point to water intrusion in the wheel speed sensor connector or a chafed wire that only shorts when wet. The factory service manual suggests spraying the area with a 5% saltwater solution to replicate the issue for diagnosis.
• Rust buildup on the magnetic reluctor ring, which is part of the hub assembly, is a very common failure mode on this platform, leading to erratic signals that trigger the C0035 code. This is especially prevalent in regions that use road salt.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Internal Resistance — expected: 800 - 1400 Ohms (Ω). Failure: A reading outside this range, or an open circuit (OL), indicates a failed sensor inside the hub.
• Wheel Speed Sensor Circuit Continuity — expected: < 2.0 Ohms (Ω). Failure: Resistance greater than 2.0 Ohms indicates high resistance or an open in the wiring harness between the EBCM and the hub connector.
• Wheel Speed Sensor AC Voltage Output (Analog Test) — expected: > 100mV AC while spinning the wheel by hand. Failure: A reading below 100mV AC or no reading suggests a weak or dead sensor, or excessive air gap due to rust.

Hidden / Shadow Codes Worth Checking

• C0035 with symptom byte: Professional scan tools like the GM Tech2 can display a two-digit symptom byte after the main code (e.g., C0035 0F). This provides more specific information. Common bytes for C0035 include: '00' (Signal Amplitude Less Than Minimum), '0F' (Erratic Signal), '18' (Signal Above Maximum), or '5A' (Plausibility Failure). (see via GM Tech2, GDS2, or a high-end professional scan tool with manufacturer-specific data capabilities.)

Scan Tool Commands That Help

• GM Tech2 / GDS2: Live Data - Wheel Speed Sensors — This is the primary diagnostic step. Graphing all four wheel speeds while driving allows a technician to instantly see if the left front sensor is dropping out, reading erratically, or not matching the other three wheels, confirming the fault is active.
• GM Tech2 / GDS2: Clear DTCs — After the repair is completed, the code must be cleared from the EBCM. While the light may go out after a number of drive cycles confirm the fix, clearing the code allows for immediate verification that the repair was successful.

Wiring & Ground Locations

• G103 / G104 — On the frame rail on the lower left side of the engine block, often near the front body mount under the driver's side.. This is a primary ground point for the Electronic Brake Control Module (EBCM). Corrosion at this exposed location is common and can cause a variety of ABS faults, including C0035, by creating a poor ground connection for the entire system. This should be inspected and cleaned before replacing expensive modules.
• EBCM Connector — The EBCM is located on the driver's side of the engine bay, attached to the ABS hydraulic block, near the master cylinder.. This is the termination point for the wheel speed sensor harness. End-to-end continuity and resistance tests must be performed between this connector and the wheel hub connector to rule out wiring issues. The Left Front WSS wires are typically found at pins 18 and 19 of the main EBCM connector.

Real Owner Repair Stories

• Reddit user on r/chevycolorado (Chevy Colorado (GMT345 platform mate)) — ABS light on, code C0035.
  ❌ Tried (didn't work) Replacing just the ABS sensor (not possible on front), checking fuses.
  ✅ What actually fixed it The reluctor rings on the wheel hubs were rusted out, causing an incorrect signal. Replacing the entire front wheel hub assembly resolved the code.
• Hummer4x4Offroad.com forum member (Hummer H3) — ABS and Traction Control lights on, intermittent ABS pump activation.
  ❌ Tried (didn't work) Replaced rear ABS sensor, Replaced both front wheel hub assemblies
  ✅ What actually fixed it After replacing multiple parts, the dealership diagnosed a bad Electronic Brake Control Module (EBCM), and replacement fixed the issue. This highlights a rare but possible cause when all other components check out.

OEM Part Supersession History

• GM 15882082 → GM 19256670, which was then superseded by ACDelco FW293. — Standard part lifecycle updates, potential improvements in sealing or bearing design.

Model Year Variations Within This Range

• 2008-2010: The Electronic Brake Control Module (EBCM) part number may differ for 2008-2010 models compared to 2006-2007 due to the introduction of the StabiliTrak stability control system. While this does not change the C0035 diagnostic process, it is critical when sourcing a replacement EBCM.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used part is almost never a smart choice. The wheel hub is a wear-and-tear item with a finite lifespan. Installing a used hub from a junkyard is risky as its remaining life is unknown, and it could fail shortly after installation, forcing you to do the labor twice. The only exception might be sourcing a used EBCM, but this should be done with caution and from a reputable source.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a used EBCM, ensure the part number matches exactly.
• For a used hub (not recommended), check for any signs of play, roughness when spinning, or corrosion on the magnetic encoder ring.

OEM-only on this vehicle (don't cheap out):

• Electronic Brake Control Module (EBCM) - Aftermarket or rebuilt modules can have high failure rates. A new OEM unit or a used one with a matching part number is the safest bet.

Aftermarket brands forum-validated for this vehicle:

• Timken
• SKF
• MOOG
• ACDelco (OEM supplier)

Brands owners have reported issues with on this vehicle:

• No-name 'white box' parts from eBay or Amazon. Forum users frequently report these cheap hubs failing within a year or being dead-on-arrival.
• Detroit Axle receives mixed reviews; some users report success while others experience premature failure.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0040 — Indicates the same fault (Wheel Speed Sensor Circuit) as C0035, but for the Right Front wheel. The common causes, such as a failed integrated hub assembly or damaged wiring, are identical for this location.
• C0045 — Indicates the same fault (Wheel Speed Sensor Circuit) as C0035, but for the Left Rear wheel. The diagnostic process is similar, focusing on the hub and wiring at that specific corner of the vehicle.
• C0050 — Indicates the same fault (Wheel Speed Sensor Circuit) as C0035, but for the Right Rear wheel. The root causes of hub failure or wiring damage described for the front apply to the rear as well.
• C0036 — This code is for 'Left Front Wheel Speed Sensor Circuit Range/Performance'. While C0035 often indicates a complete signal loss, C0036 points to an erratic or implausible signal, which can be caused by the same issues like a rust-contaminated reluctor ring or chafed wiring mentioned in the article.
