C0035 on 2008-2010 Saturn Vue: ABS & StabiliTrak Light Causes and Fixes

What's Unique About the 2008-2010 Saturn Vue

The 2008-2010 Saturn Vue is a GM Theta platform vehicle, sharing its basic ABS and hub design with models like the Chevrolet Equinox, Pontiac Torrent, and Suzuki XL-7. On this platform, the wheel speed sensor is not a separate part; it is integrated into the wheel hub and bearing assembly. This means that if the sensor itself fails, the entire hub assembly must be replaced. These vehicles, especially when operated in regions with road salt, are prone to corrosion affecting the sensor's wiring connector and the hub's magnetic reluctor ring, which can become contaminated with metallic debris.

Symptoms You May Notice

• ABS warning light is on.
• Traction Control (TCS) or StabiliTrak warning light is on.
• "Service StabiliTrak" or "Service Traction Control" message on the driver information center.
• Cruise control may be disabled.
• ABS system may activate incorrectly at very low speeds, causing a grinding or pulsating feeling in the brake pedal.
• In some cases with platform mates, a "Service Brake System" message may appear.

Most Likely Causes

1. Failed Left Front Wheel Hub & Bearing Assembly 🔴 High Probability → Shop Hub Assembly The wheel speed sensor is integrated into the hub assembly and cannot be replaced separately. The internal sensor electronics or the magnetic reluctor ring on the hub can fail from age, wear, or water intrusion. A worn bearing can also cause excessive play, leading to an erratic signal.
   How to confirm: Use a scan tool capable of reading ABS live data. 🎬 Watch: Using a scan tool to identify sensor problems. Observe the wheel speed signal from the left front wheel while driving or spinning the wheel by hand. If the reading is zero, erratic, or doesn't match the other wheels, the hub assembly is the likely culprit, assuming wiring is intact. You can also check for physical play by grabbing the wheel at the top and bottom and trying to wiggle it.

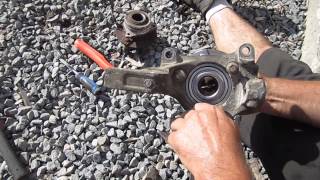

   Typical fix: Replace the entire left front wheel hub and bearing assembly. The axle nut torque spec is critical and is approximately 136 ft-lbs (184 Nm), but always verify for your specific model year. 🎬 See this walkthrough for changing the front wheel bearing.
   Est. part cost: $100-$250
2. Damaged or Corroded Wiring/Connector 🟡 Medium Probability The wiring harness and connector are exposed to the elements, road debris, and constant suspension movement. Corrosion from road salt is a very common issue in northern climates, leading to poor connections, broken wires inside the insulation, or rotted connector housings.
   How to confirm: Visually inspect the wiring harness from the wheel hub up into the engine bay for any signs of chafing, breaks, or green/white corrosion inside the connector plugs. A key diagnostic trick for GM vehicles is to gently pull on the wires near the connector; if a wire stretches like a rubber band, the copper inside is broken while the insulation remains intact. Perform a continuity test on the wires between the sensor connector and the EBCM connector.
   Typical fix: Repair the damaged section of wire or replace the pigtail connector. Clean corroded terminals and apply dielectric grease. A common ACDelco pigtail part number for related GM applications is PT2298.
   Est. part cost: $15-$50 for a pigtail connector
3. Debris on Magnetic Encoder Ring ⚪ Low Probability The magnetic ring on the back of the hub can attract metallic debris (like rust flakes from the brake components or backing plate), which interferes with the sensor's ability to get a clean reading. GM has a technical service bulletin (PIC5428G) for related platforms that specifically addresses cleaning this debris.
   How to confirm: This is difficult to inspect without removing the hub but is a known issue on related GM platforms. Sometimes cleaning the area with brake cleaner and a soft brush can be attempted before part replacement. This is often the first step recommended by GM TSBs for this code.
   Typical fix: Clean the magnetic encoder ring on the hub. However, if the hub is already removed for inspection, replacement is often more practical given the labor involved.
   Est. part cost: $0 if cleaning is successful

Rare But Worth Checking

• Low System Voltage on Startup: A forum member with a 2008 Vue reported that C0035 would appear intermittently on startup. Fully charging an aging battery resolved the problem, suggesting the ABS module's self-test is sensitive to low voltage during ignition. If the code only appears when starting the vehicle and not while driving, check the battery's health and charge level.
• Failed Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is the least likely cause. The ABS computer itself can fail, but this is rare. It should only be considered after the hub, wiring, and connectors have been thoroughly tested and confirmed to be good. A failure here might also be accompanied by other codes or communication faults.

Diagnosis Steps

1. Connect an ABS-capable scan tool to read the code and confirm it is C0035. Note any symptom bytes (e.g., 0F, 18, 5A) if your tool displays them, as they can provide more specific details about the fault (e.g., erratic signal, open circuit, not plausible).
2. Use the scan tool to monitor live data for all four wheel speed sensors. Drive the vehicle slowly or raise the front wheels and spin them by hand.
3. Observe the reading for the 'Left Front Wheel Speed Sensor'. It should increase smoothly and match the speed of the right front wheel. If it reads 0 mph, is erratic, or drops out, the problem is in that circuit. A graphing multimeter or oscilloscope can be used to visualize the square wave signal from the sensor to spot dropouts or noise.
4. Perform a thorough visual inspection of the left front wheel area. Look closely at the wiring harness that runs from the hub assembly up the suspension and into the engine bay. Check for chafed wires, melted plastic, or signs of impact damage.
5. Disconnect the wheel speed sensor connector. Inspect the terminals on both the harness side and the hub side for corrosion (green/white powder), moisture, or bent pins. A rotted connector is a very common cause in salt-belt states.
6. If the wiring and connector look good, the most likely failure is the integrated sensor within the wheel hub assembly. Replacing the left front wheel hub is the next step.
7. If a new hub assembly does not fix the issue, you will need to perform advanced electrical checks, such as testing for continuity and shorts on the wiring between the sensor connector and the EBCM. 🎬 Watch: How to diagnose and repair the C0035 circuit. Check for the 12V power feed and signal wire integrity at the connector.

Parts You'll Likely Need

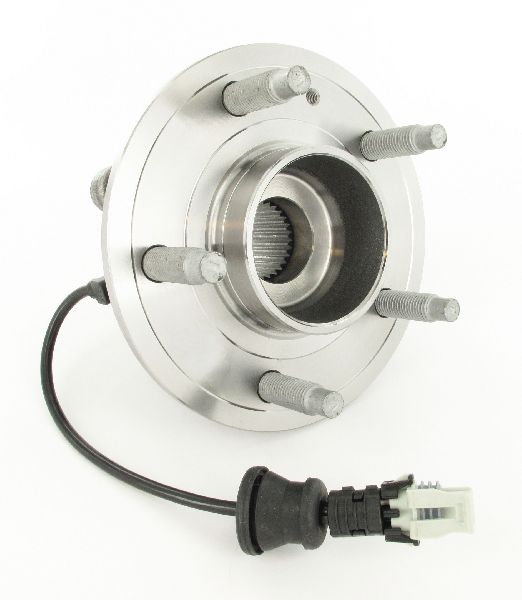

• Left Front Wheel Hub and Bearing Assembly (OEM #ACDelco FW304) — This assembly contains the integrated wheel speed sensor that is the primary cause of code C0035. The sensor is not sold separately.
  Trusted brands: ACDelco, Timken, MOOG, SKF, Detroit Axle
  OEM price range: $180-$250
  Aftermarket price range: $80-$180

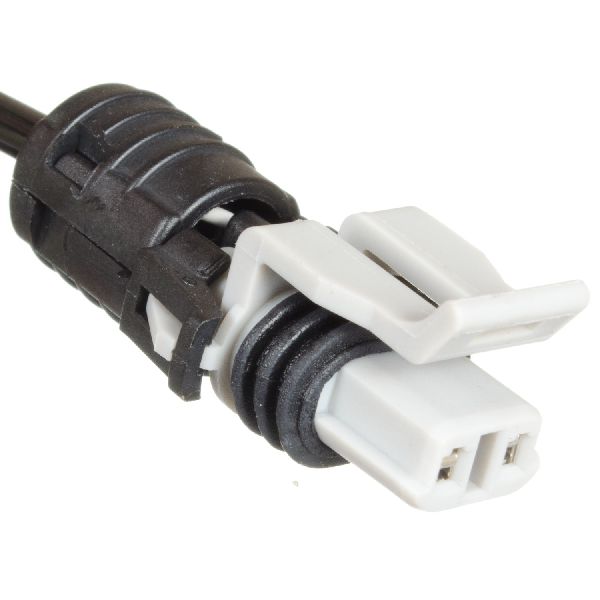

• Wheel Speed Sensor Connector Pigtail (OEM #ACDelco PT2298 (verify fitment)) — If the wiring connector is corroded or damaged, replacing the pigtail is necessary to ensure a solid connection to the new hub.
  Trusted brands: Dorman, ACDelco
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• C0040 (Right Front Wheel Speed Sensor Circuit): If both front sensor codes appear, it could point to a common wiring issue, a problem with the EBCM, or a systemic issue like low tire pressure on both sides.
• C0035-0F (Signal Erratic): This symptom byte indicates the signal is unstable, often due to a damaged magnetic ring or an intermittent wiring break.
• C0035-5A (Signal Not Plausible): This symptom byte suggests the signal doesn't make sense compared to other vehicle data, often pointing to a wiring or magnetic ring issue.
• U0415: On vehicles with electric power steering, a loss of a wheel speed sensor signal can cause the Power Steering Control Module to set this code ('Invalid Data Received From EBCM'), which may result in a heavier steering feel at low speeds.

Technical Service Bulletins (TSBs) & Recalls

• GM TSB PIC5428G: While not directly for the Vue, this TSB for platform mates discusses ABS activation at low speeds and codes like C0035. It points to metallic debris accumulating on the magnetic encoder of the wheel bearing hub. The fix is to clean the hub's magnetic ring. This confirms that debris is a known issue for this platform design.
• Bulletin #PIC5428G (Cross-Manufacturer Reference): This manufacturer bulletin notes that the Electronic Brake Control Module may have codes C0035-C0050 with specifically symptom 18, 5A, or 0F. It advises technicians to gain access to the correct wheel bearing per the diagnostic trouble code that is set to inspect for issues.

Platform-Specific Known Issues

• Corrosion of Connector and Mounting Point: Owners in salt-belt regions report that the plastic connector for the wheel speed sensor, and the metal tab it mounts to, can completely rot away. This leaves the connector loose and susceptible to damage and moisture intrusion, directly causing code C0035.
• Axle Nut Torque Specification: When replacing the hub assembly, it is critical to torque the new axle nut to the correct specification to properly preload the bearing. For the 2009 Vue, the spec is approximately 136 ft-lbs (184 Nm). Failure to do so can lead to premature bearing failure.

Mechanic-Grade Diagnostic Values

• Digital Sensor Current Signal — expected: Switches between 7mA (Low) and 14mA (High) DC.. Failure: A signal that is stuck high, low, or is non-existent indicates a fault in the sensor or wiring.
• Sensor Power Supply Voltage (at harness connector, key on) — expected: 10-12+ Volts (near battery voltage).. Failure: No voltage indicates a wiring or EBCM power feed problem.
• Sensor Signal Wire Voltage (at harness connector, key on, sensor connected) — expected: A toggling voltage, often around 1.8V or 0.7V depending on the position of the magnetic ring.. Failure: Voltage stuck high, low, or at 0V points to a sensor or wiring fault.
• Sensor Internal Resistance — expected: Not a reliable test for this type of digital sensor.. Failure: Unlike older analog sensors with a specific ohm range (e.g., 800-2500 Ohms), digital sensors may not give a meaningful resistance reading. A forum user with a 2009 Vue noted getting no reading on the 2k Ohm scale.

Hidden / Shadow Codes Worth Checking

• C0035 0F: Indicates the signal is 'Erratic'. The EBCM sees the signal dropping in and out. This strongly suggests an intermittent wiring break, a loose connector, or debris on the magnetic ring causing periodic signal loss. (see via A professional scan tool like the GM Tech2 or GDS2 is required to read these symptom bytes.)
• C0035 18: Indicates the sensor circuit is 'Open or Shorted to Ground'. This points directly to a wiring failure, a completely dead sensor, or a fully corroded connector. (see via A professional scan tool like the GM Tech2 or GDS2 is required to read these symptom bytes.)
• C0035 5A: Indicates the signal is 'Not Plausible'. The EBCM is receiving a signal, but its value doesn't make sense compared to the other wheel sensors (e.g., one wheel reads 5 mph while others read 30 mph). This often points to debris on the encoder ring causing a distorted but present signal. (see via A professional scan tool like the GM Tech2 or GDS2 is required to read these symptom bytes.)

Scan Tool Commands That Help

• GM Tech2 / GDS2 or equivalent professional scanner: Live Data - Wheel Speed Sensors — This is the primary diagnostic function. It allows you to view the speed reported by each of the four wheel sensors in real-time while driving or spinning the wheels. The faulty sensor will show 0, an erratic reading, or a speed that doesn't match the others.
• GM Tech2 / GDS2 or equivalent professional scanner: Read DTC with Symptom Byte — Used to get more specific information about the nature of the fault (e.g., 'Erratic Signal' vs. 'Open Circuit'). This helps narrow the diagnosis between a wiring issue, debris, or a failed sensor.

Wiring & Ground Locations

• Wiring Harness Chafe Point — On some GM vehicles, the ABS sensor harness can rub against the A/C accumulator in the engine bay.. A diagnostic video on a similar GM vehicle showed the wires for the wheel speed sensor had rubbed through their insulation at this point, causing a short to ground and triggering the ABS light. While not specific to the Vue, it's a plausible location to check for harness routing issues.
• EBCM Connector — The Electronic Brake Control Module is typically located on the ABS hydraulic unit in the engine bay.. This is the termination point for the wheel speed sensor circuit. Advanced diagnosis requires checking for continuity, shorts, and correct voltage on the specific pins for the left front sensor at this connector to rule out a wiring problem between the wheel and the module.

Real Owner Repair Stories

• SaturnFans.com Forum (2009 Saturn Vue XE 2.4L) — ABS light, traction control light, and 'StabiliTrak' message on the dash, with code C0035.
  ❌ Tried (didn't work) Testing the sensor with a multimeter on the 2k Ohm setting showed no reading, leading to confusion about whether the sensor was bad or the test was invalid.
  ✅ What actually fixed it The user was informed that these are digital sensors and an Ohm test is not reliable. They were pointed to GM TSB PIC5428G, which covers C0035 with symptom bytes 18, 5A, or 0F on related GM platforms. The TSB identifies metallic debris on the magnetic encoder as a primary cause to be checked before part replacement. The implication is that cleaning or replacement of the hub would be the fix.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used part is generally a poor choice for the hub assembly itself, but a smart choice for the wiring pigtail. The hub contains a bearing which is a wear item, and its remaining life is unknown. However, a used pigtail connector from a junkyard vehicle in good condition is an excellent, low-cost alternative to a new one if the original is corroded.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a used hub: Check for zero play by wiggling the hub flange.
• Spin the bearing by hand; it should be completely silent and smooth with no roughness or grinding.
• Inspect the magnetic encoder ring on the back for any cracks, chips, or heavy rust.
• For a used pigtail: Ensure the plastic is not brittle, the locking tab is intact, and the wire insulation is flexible and not cracked.

OEM-only on this vehicle (don't cheap out):

• Electronic Brake Control Module (EBCM) - While rarely the cause, if the EBCM does fail, a new or professionally remanufactured OEM unit is highly recommended over a used one due to programming and reliability concerns.

Aftermarket brands forum-validated for this vehicle:

• Timken
• SKF
• MOOG
• FAG

Brands owners have reported issues with on this vehicle:

• Unbranded 'house brand' or 'white box' parts from major auto parts chains or online marketplaces. While some may have warranties, forum discussions frequently cite premature failure, with some lasting less than 20,000-30,000 miles.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0040 — Indicates the same wheel speed sensor circuit fault but for the Right Front wheel. It often appears with C0035 on platform mates if both front hubs are failing due to similar age and wear.
• C0045 — This code points to a fault in the Left Rear wheel speed sensor circuit. The diagnostic process of checking live data, wiring, and the hub assembly is identical to C0035.
• C0050 — This code points to a fault in the Right Rear wheel speed sensor circuit, the final corner of the vehicle. It is diagnosed using the same methods as C0035.
• C0036 — A companion code for the Left Front wheel speed sensor indicating a 'Range/Performance' issue. This can be set if the signal is erratic or implausible (e.g., due to a worn bearing causing wobble or debris on the encoder ring) rather than completely absent.
