C0045 on 2014-2023 Jeep Cherokee: Left Rear Wheel Speed Sensor Circuit Fault Guide

What's Unique About the 2014-2023 Jeep Cherokee

For the 2014-2023 Jeep Cherokee (KL generation), the C0045 code is a straightforward wheel speed sensor circuit fault, consistent with the standard SAE definition. 🎬 Watch: Understanding the C0045 fault code and its causes. Unlike some other vehicles where this code can point to complex module communication issues, on the Cherokee it almost always relates directly to the sensor, its wiring, or the wheel hub assembly. The primary challenge is often physical access and dealing with corrosion around the sensor and its mounting bolt, which can seize in the steering knuckle.

Generation note: The 2014-2023 model years cover the entire Jeep Cherokee 'KL' generation, which ended production in February 2023. This includes the pre-facelift models (2014-2018) and the facelifted models (2019-2023). The function, location, and common failures of the wheel speed sensors are consistent across these years.

Symptoms You May Notice

• ABS warning light is on
• Traction Control or Electronic Stability Control (ESC) warning light is on
• "Service ESC System" or similar message on the instrument cluster
• Cruise control may be disabled
• 4WD system may be disabled or show a service message

Most Likely Causes

1. Failed Left Rear Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensor is exposed to harsh conditions like water, road salt, heat, and vibration, which can lead to internal failure over time. Corrosion can also cause the sensor to seize in its mounting hole in the knuckle, making removal difficult.
   How to confirm: Use a scan tool with live data to monitor all four wheel speeds while driving. If the left rear sensor reads 0 MPH or shows an erratic signal while the others read correctly, the sensor is likely bad. Resistance for a good sensor is typically between 850-1350 ohms when measured with a multimeter.
   Typical fix: Replace the left rear wheel speed sensor. This involves removing the wheel, unbolting the old sensor from the hub 🎬 See this step-by-step rear wheel speed sensor replacement guide. (often a single 10mm bolt), and plugging in the new one.
   Est. part cost: $40-$85
2. Damaged or Corroded Wiring/Connector 🟡 Medium Probability The wiring harness runs along the suspension and is susceptible to damage from road debris, chafing against components, or corrosion from moisture and salt, especially at the connector. A user on a Jeep forum with a 2020 model had recurring sensor replacements, with others suggesting the wiring was the more likely culprit.
   How to confirm: Visually inspect the wiring harness from the sensor to where it enters the vehicle body. Look for breaks, chafing, or green/white corrosion on the connector pins. Use a multimeter to check for continuity and shorts in the wiring between the sensor connector and the ABS module connector.
   Typical fix: Repair the damaged section of wire or replace the connector pigtail. Ensure the repair is sealed against moisture.
   Est. part cost: $15-$40
3. Damaged Tone Ring / Wheel Hub Assembly ⚪ Low Probability → Shop Hub Assembly The tone ring (or magnetic encoder) is integrated into the wheel hub assembly. Rust can build up, or the ring can crack or get contaminated with metallic debris, disrupting the signal the sensor reads. While less common than on older Jeep models like the Patriot, hub failure is still a possibility.
   How to confirm: After removing the sensor, inspect the tone ring through the sensor mounting hole. Look for rust jacking, cracks, missing teeth, or heavy debris. Excessive play in the wheel bearing can also cause this issue.
   Typical fix: The tone ring is not serviced separately. The entire wheel hub and bearing assembly must be replaced. 🎬 Watch: How to replace the rear wheel hub and bearing.
   Est. part cost: $100-$200

Rare But Worth Checking

• Faulty ABS Control Module: → Shop ABS Control Module This is the least likely cause. The ABS module should only be suspected after the sensor, wiring, and hub assembly have all been confirmed to be good. A module failure often triggers multiple wheel speed sensor codes or communication codes simultaneously.

Diagnosis Steps

1. Connect a professional-grade OBD-II scanner capable of reading ABS codes and live data.
2. Confirm C0045 is the active code. Note any other ABS or communication codes.
3. Access the live data stream and monitor the speeds of all four wheels while driving or spinning the wheels by hand.
4. If the Left Rear wheel speed reads 0 or is erratic while the others show speed, the problem is isolated to that corner.
5. Safely raise and support the vehicle. Remove the left rear wheel.
6. Visually inspect the wheel speed sensor and its wiring harness for any obvious signs of damage, chafing, or corrosion.
7. Disconnect the sensor and inspect the connector pins for corrosion or damage.
8. If the visual inspection is clear, use a multimeter to test the sensor and wiring according to the factory service manual procedure. This may involve checking for voltage, ground, and signal at the connector. A simple resistance check across the sensor pins should yield a reading, typically in the 850-1350 ohm range.
9. If the sensor and wiring test good, inspect the wheel bearing for excessive play and inspect the tone ring (part of the hub) for damage or debris.
10. If all other components are confirmed good, the final step would be to diagnose the ABS control module itself, which is best left to a professional.

Parts You'll Likely Need

• ABS Wheel Speed Sensor (Left Rear) (OEM #68291949AC (replaces 68291949AA, 68291949AB)) — This is the most common component to fail, causing the C0045 code. The same part is used for the left and right rear positions.
  Trusted brands: Mopar, Bosch, NTK, Standard Motor Products (SMP), Holstein
  OEM price range: $60-$85
  Aftermarket price range: $40-$60

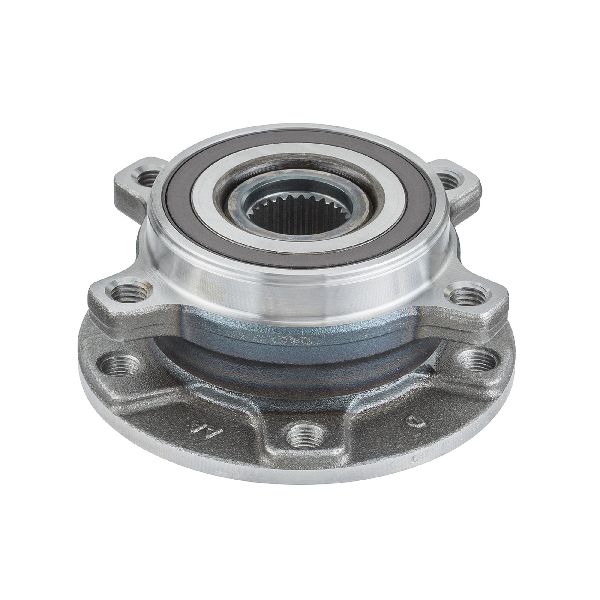

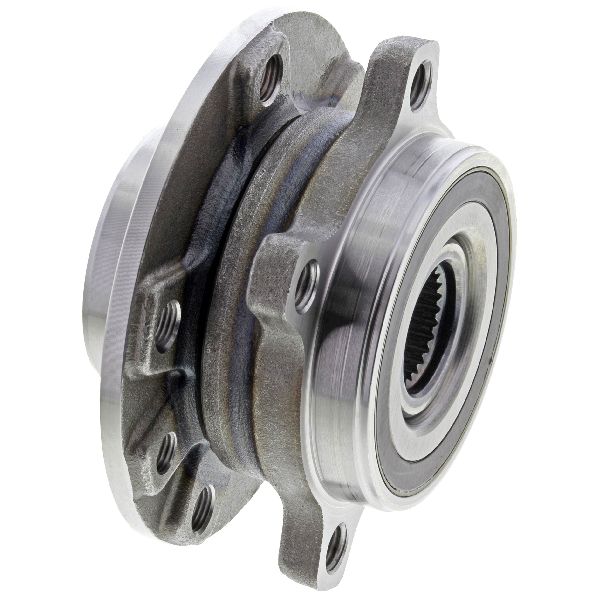

• Wheel Hub and Bearing Assembly (Left Rear) — Required if the integrated magnetic tone ring is damaged or if the wheel bearing has failed, causing an incorrect air gap for the sensor.
  Trusted brands: Mopar, Timken, SKF, MOOG
  OEM price range: $180-$250
  Aftermarket price range: $100-$170

Related Codes That Often Appear With This One

• C0046 — This code indicates an erratic signal from the same sensor, often pointing towards a damaged tone ring or a loose sensor rather than a complete electrical open/short.
• C1041 / C1043 — These are more specific codes for 'Left Rear Tone Wheel Performance', which strongly suggest the issue is with the physical tone ring on the hub, not the sensor's electrical circuit.

Technical Service Bulletins (TSBs) & Recalls

• TSB 08-019-17 Rev. B: While not directly for the ABS system, this TSB addresses software updates for the Uconnect radio system in 2015 KL Cherokees, which can sometimes cause seemingly unrelated electrical issues or CAN bus network problems, such as battery drain.
• TSB 08-097-15: This bulletin from October 2015 involves a software update for the ABS module on 2014-2015 Cherokee models to optimize Advanced Brake Assist (ABA) performance. While not a direct fix for C0045, it indicates that the ABS module software can be updated.

Documented NHTSA Reports

While the C0045 code is standard for the Jeep Cherokee, reports from other manufacturers highlight how this code can sometimes interact with other systems or point to specific mechanical failures. For instance, NHTSA ODI #11219167 describes a case where C0045 was triggered by a broken left rear wheel speed sensor encoder ring, requiring both the sensor and hub assembly replacement. In another cross-manufacturer instance, NHTSA ODI #11165895 notes that a service center reported C0045 and recommended replacing the left rear hub bearing assembly, though the owner noted solutions for this code can vary. Additionally, NHTSA ODI #10382746 records an event where C0045 appeared alongside several other codes (C0057, C0231, C0232, C0282) and was initially addressed via a software re-program. Finally, NHTSA ODI #11399819 shows C0045 appearing in conjunction with fuel system codes P0463 and P069E, illustrating how electrical faults can sometimes cluster.

Platform-Specific Known Issues

• Corrosion can cause the single bolt holding the sensor to seize or break off in the knuckle, requiring drilling and tapping.
• The wiring harness can sometimes chafe against suspension components or the inner fender liner; inspect the harness carefully at all mounting points.

Mechanic-Grade Diagnostic Values

• Sensor Supply Voltage — expected: Approximately 11-12V (Battery Voltage) with key on, sensor unplugged.. Failure: Low or no voltage points to a wiring issue between the ABS module and the sensor connector.
• Sensor Signal Voltage (Backprobed) — expected: A digital square wave that switches between a high state (near battery voltage) and a low state as the wheel turns. One source on a similar system specified a switch between ~1.6V and ~0.8V.. Failure: A flat line, no voltage change when spinning the wheel, or a very noisy signal indicates a bad sensor, tone ring, or wiring fault.
• Sensor Ground Circuit — expected: Near 0 ohms of resistance to a known good chassis ground.. Failure: High resistance or an open circuit indicates a compromised ground wire or a bad ground connection point.

Scan Tool Commands That Help

• Witech 2.0 (Dealer Tool): ABS Service Bleed — This is a mandatory procedure if the hydraulic control unit (HCU) of the ABS module is replaced or if air is introduced into the system. It cycles the internal ABS pump and valves to purge trapped air.
• Witech 2.0 (Dealer Tool): PROXI Alignment (Proxy Configuration Alignment) — This is required any time the ABS control module is replaced. It synchronizes the new module with the vehicle's other computers, like the BCM and PCM. Failure to perform this will result in a non-functional ABS system and a flashing odometer.
• Witech 2.0 / High-End Bidirectional Scanners: Actuator Tests — Allows a technician to command individual ABS solenoids and the pump motor to verify the functionality of the hydraulic unit, helping to differentiate a module failure from a wiring or sensor issue.

Wiring & Ground Locations

• ABS Module Connector C3 (Pins 11 & 12) — At the main ABS control module, located in the engine bay.. According to a wiring diagram for a similar Grand Cherokee, Pin 11 (DK GRN/BLU) is the signal wire for the Right Rear sensor, and Pin 12 is for the Right Rear sensor ground. The Left Rear sensor will have a similar dedicated pair of pins at this connector, making it the primary test point for checking continuity back from the wheel.
• G904A / G905A / G906A — These are primary engine compartment ground points. G904A is on the left front of the engine, G905A is on the left side of the engine compartment, and G906A is on the lower right front of the engine compartment.. The Anti-lock Brakes Module relies on a solid chassis ground to function correctly. A wiring diagram shows the ABS module is grounded at one of these engine bay locations. A loose or corroded ground here can cause erratic behavior and fault codes.
• G300 — Under the front passenger seat, accessible by removing the trim piece.. While primarily for interior components, major chassis grounds like this can sometimes cause difficult-to-diagnose network or module communication issues if they become corroded or loose, which could potentially manifest as ABS faults.

Real Owner Repair Stories

• Pine Hollow Auto Diagnostics / YouTube (Jeep with a persistent ABS sensor code (similar system)) — ABS light on, code for wheel speed sensor circuit would not clear despite multiple part replacements.
  ❌ Tried (didn't work) Replaced wheel speed sensor (twice, including an OEM part), Replaced wheel hub assembly
  ✅ What actually fixed it The wiring harness was found to have high resistance. The technician identified a section of the harness where the twisted pair of wires ran near the firewall, poked test holes, and found good voltage on the module side but low voltage on the sensor side. The final fix was to run a new pair of wires (an overlay) from a known-good section of the harness to the sensor connector, bypassing the damaged internal section.

OEM Part Supersession History

• 68291949AA, 68291949AB → 68291949AC — Standard part revision by the manufacturer to improve reliability or address a minor design flaw.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• ZF 9-Speed Automatic Transmission Problems 🔴 High → Shop Transmission Assembly — Very common, especially in 2014-2016 models. Symptoms include harsh shifting, lurching, hesitation, and premature failure. (Ref: Multiple software update TSBs were released, but many owners report issues persist.)
• 2.4L Tigershark Engine Excessive Oil Consumption 🔴 High — Widespread issue affecting 2.4L engines, potentially leading to low oil levels and engine stalling or failure. (Ref: Subject of class-action lawsuits and covered by TSB 09-003-23 / XB1 warranty extension, which may provide for an engine replacement if consumption is verified by a dealer.)
• Electronic Parking Brake (EPB) Malfunction 🔴 High — NHTSA has investigated numerous complaints of the EPB activating unexpectedly while driving, potentially caused by water intrusion into the control module located near the spare tire. (Ref: NHTSA Preliminary Evaluation PE22-012.)
• Power Transfer Unit (PTU) Failure 🔴 High — Common in AWD models, failure can lead to a loss of drive power and a rollaway risk when in Park. (Ref: Recalls have been issued for certain model years (e.g., 2019-2023) to address the issue, but a final fix was not immediately available.)
• V6 Oil Cooler Housing Leaks 🟠 Medium — The oil filter housing/cooler assembly on the 3.2L V6 engine is made of plastic and is prone to cracking and leaking oil, a common issue shared with other Pentastar V6 engines.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part is generally not recommended for the sensor itself due to its low cost new and high failure rate. However, sourcing a used connector pigtail with several inches of wire from a junkyard can be a smart and cost-effective way to repair a damaged connector without replacing the entire harness.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring pigtail, ensure the connector is free of any green or white corrosion.
• Check that the locking tab on the connector is intact and clicks firmly.
• Inspect the wires for any signs of brittleness, cracking, or previous repairs.

OEM-only on this vehicle (don't cheap out):

• ABS Control Module: Due to the mandatory PROXI alignment and software flashing required, using a new or professionally remanufactured OEM module is highly recommended to avoid compatibility and programming headaches.

Aftermarket brands forum-validated for this vehicle:

• Bosch
• NTK
• Standard Motor Products (SMP)
• Holstein

Brands owners have reported issues with on this vehicle:

• Unbranded, ultra-low-cost sensors from online marketplaces are frequently reported on forums as being dead-on-arrival or failing within a few months.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0037 — Left Rear Wheel Speed Sensor circuit fault; similar to C0045, this code relates to the same wheel location and shared failure modes like sensor corrosion or wiring damage.
• U0121 — Lost Communication with Anti-Lock Brake System (ABS) Control Module; may appear if wiring harness chafing or CAN bus issues mentioned in TSB 08-019-17 Rev. B affect module communication.
• C107C — Brake Switch 1/2 Stickiness; often appears alongside ABS/ESC codes when the module detects inconsistent signals across the braking system.
• C0049 — Brake Fluid code; can be triggered alongside wheel speed faults when the ABS/ESC system enters a fail-safe mode and disables traction control.

Frequently Asked Questions
