C0045 on 2008-2011 Mercury Mariner: Left Rear Wheel Speed Sensor Circuit Fixes

What's Unique About the 2008-2011 Mercury Mariner

The 2008-2011 Mercury Mariner is a mechanical twin to the second-generation Ford Escape and Mazda Tribute. For this code, the key platform detail is that the sensor reads a magnetic encoder ring. On rear-wheel-drive models, this ring is integrated into the wheel hub and bearing assembly. On front-wheel-drive models, the tone ring is often part of the CV axle. While the sensor itself is a common failure point, the underlying cause can sometimes be rust or damage to this ring, which can crack from age and corrosion. A cracked ring will spin loosely on its mount, providing an erratic signal. This requires replacing either the entire hub assembly or the CV axle, depending on the drivetrain configuration. Aftermarket heavy-duty tone rings are available, which are thicker and wider than the brittle factory rings.

Symptoms You May Notice

• ABS warning light is on
• Traction control or stability control (AdvanceTrac) warning light is on
• ABS and traction control systems are disabled and will not function
• In some cases, a grinding or pulsing sensation from the brakes at low speeds if the signal is erratic
• Brake drag or hesitation on acceleration if the system is falsely activating.

Most Likely Causes

1. Failed Left Rear Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensor is exposed to harsh conditions like water, road salt, and debris, leading to internal failure or corrosion over time. It's a common electronic failure point on most vehicles.
   How to confirm: Use a scan tool with live data to see if the Left Rear wheel speed reads '0' or erratically while the other wheels show speed. You can also test the sensor's internal resistance with a multimeter; passive sensors on this platform typically have a resistance between 800-2000 Ohms. An open circuit (infinite resistance) or short (zero resistance) indicates a bad sensor.
   Typical fix: Replace the left rear wheel speed sensor. This usually involves removing one 8mm bolt and an electrical connector. 🎬 See this step-by-step wheel speed sensor replacement walkthrough
   Est. part cost: $25-$60
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness runs near moving suspension parts and is exposed to the elements. Wires can chafe, break, or the connector pins can corrode. A protective sleeve is used, but can be compromised over time.
   How to confirm: Visually inspect the entire wiring harness from the sensor up into the wheel well for chafing, breaks, or heat damage. Tug gently on the wires at the connector to check for internal breaks. Check for corrosion, moisture, or bent/pushed-back pins inside the connector.
   Typical fix: Repair the broken section of wire or replace the sensor's pigtail connector if it is corroded. In some cases, a complete replacement harness section is available.
   Est. part cost: $15-$40 for a pigtail/harness section
3. Cracked or Damaged Tone Ring 🟡 Medium Probability The magnetic encoder ring is a thin metal ring pressed onto the hub or CV axle. It is highly susceptible to rust buildup underneath it, which causes the ring to expand and eventually crack. Once cracked, it can spin loosely or fall out of position, creating an erratic or nonexistent signal.
   How to confirm: After removing the wheel speed sensor, visually inspect the tone ring through the sensor mounting hole if possible. Spin the hub and look for a visible crack or wobble in the ring. If not visible, remove the brake rotor (and potentially the CV axle nut) to directly inspect the ring for cracks, missing chunks, or significant rust jacking.
   Typical fix: If the ring is on the hub, replace the entire wheel hub and bearing assembly. If the ring is on the CV axle, the official fix is to replace the CV axle. However, some owners have successfully glued a cracked ring back together with strong epoxy as a temporary fix, while aftermarket heavy-duty rings are also available. 🎬 Watch: How to replace a cracked ABS tone ring
   Est. part cost: $70-$150 for a hub, or $20 for an aftermarket ring

Rare But Worth Checking

• Failed ABS Control Module: → Shop ABS Control Module This is a very uncommon cause. The ABS module should only be considered after definitively ruling out the sensor, wiring, and hub assembly as the source of the problem. A failure here often presents with multiple wheel speed sensor codes, not just one.
• Metallic Debris on Magnetic Encoder Ring: The magnetic encoder ring can attract metallic particles (like brake dust or bearing debris). This contamination can interfere with the sensor's ability to read the magnetic poles of the ring, causing an erratic signal. Cleaning the face of the ring with a rag or brush can sometimes resolve the issue without replacing parts.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading ABS codes to confirm C0045 is the active code.
🎬 Watch: Understanding the causes and fixes for code C0045
2. Using the scanner's live data function, monitor the speed of all four wheels while driving slowly or spinning the left rear wheel by hand (with the vehicle safely supported). Confirm the left rear sensor reads 0 MPH or has an erratic reading compared to the others.
3. Raise and safely support the rear of the vehicle. Remove the left rear wheel.
4. Visually inspect the wheel speed sensor and its wiring harness for any obvious damage, corrosion, or improper routing. Pay close attention to where the wire flexes with suspension travel.
5. Disconnect the sensor and inspect the connector pins for corrosion or damage.
6. If the visual inspection is clear, test the sensor. These are often passive sensors. Set a multimeter to Ohms (Ω) and measure the resistance across the two pins of the sensor. A reading between 800-2000 Ohms is typical; infinite resistance (OL) or zero indicates a failed sensor.
7. If the sensor tests good, inspect the tone ring. Remove the brake caliper and rotor. Visually inspect the magnetic ring on the hub assembly (or CV axle) for cracks, heavy rust, or missing sections. A cracked ring is a very common failure on this platform.
8. If no physical damage is found, check for a small AC voltage signal while spinning the wheel (for passive sensors). This can help rule out a wiring break between the module and the sensor.
9. If the sensor is bad, replace it. If the tone ring is cracked, replace the component it is mounted on (hub assembly or CV axle).

Parts You'll Likely Need

• Left Rear Wheel Speed Sensor (OEM #8L8Z-2C190-A (Note: This part number often specifies Right Rear, but is listed as compatible for both sides by many vendors; confirm with dealer. Replaces 5L8Z-2C190-AA)) — This is the most frequent failure point for this code, as the sensor is an electronic component exposed to harsh environmental conditions.
  Trusted brands: Motorcraft, Delphi, Bosch, Standard Motor Products (SMP), Dorman
  OEM price range: $50-$90
  Aftermarket price range: $25-$60

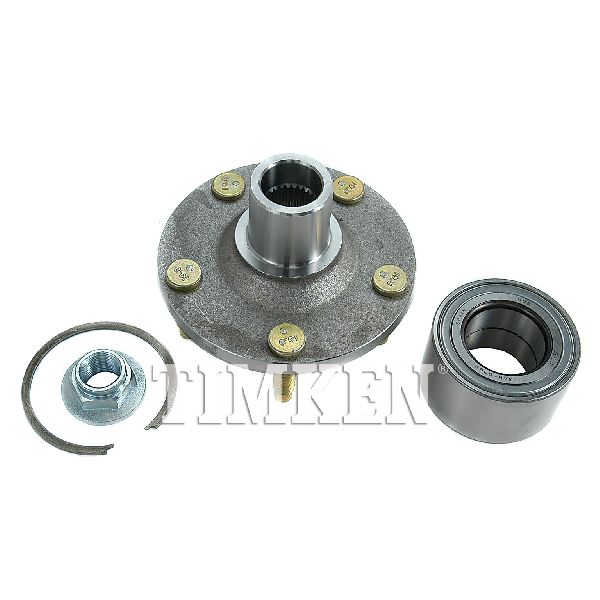

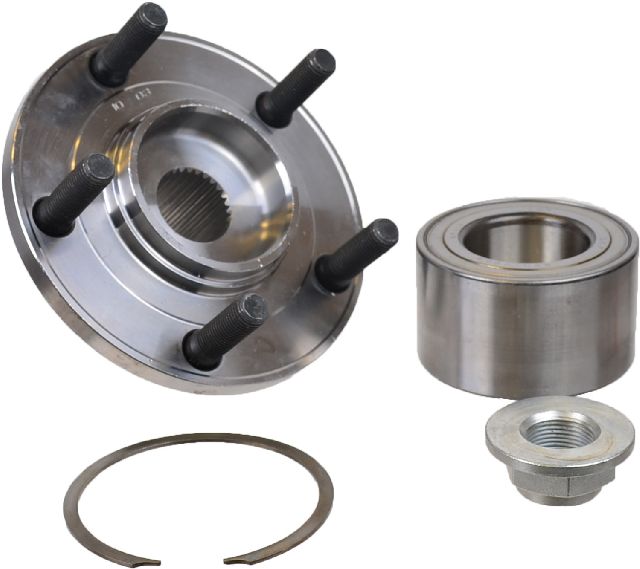

• Left Rear Wheel Hub and Bearing Assembly (OEM #8L8Z-1104-A (For models with rear disc brakes)) — Required if the integrated magnetic encoder ring is cracked or damaged, which is the second most likely hardware failure on this platform.
  Trusted brands: Motorcraft, Timken, SKF, MOOG
  OEM price range: $150-$250
  Aftermarket price range: $70-$150
• ABS Wheel Speed Sensor Wiring Harness (Pigtail) (OEM #DV6Z2C055A (Interchange part)) — Needed if the connector or wiring right at the sensor is corroded, broken, or damaged.
  Trusted brands: Dorman, Standard Motor Products (SMP)
  OEM price range: N/A
  Aftermarket price range: $15-$40

Related Codes That Often Appear With This One

• C0046 — This code for 'Left Rear Wheel Speed Sensor Circuit Range/Performance' can appear if the sensor signal is erratic (due to a damaged tone ring or debris) rather than completely absent.
• C0050 — This is the identical code for the right rear wheel. If seen with C0045, it could suggest a wiring issue common to both rear sensors (like a shared ground or connector) or a problem within the ABS module, rather than two simultaneous sensor failures.

Technical Service Bulletins (TSBs) & Recalls

• NHTSA ID: #10024845 (TSB #20213) - Dated April 1, 2008, this TSB provides an update to the workshop manual for the procedure on replacing the wheel speed sensor ring for 2005-2008 Escape/Mariner models, indicating this is a known service item.

Platform-Specific Known Issues

• The tone ring on the 2008-2012 Escape/Mariner platform is known to be a weak point. It is a thin metal ring that can easily rust, causing it to expand and crack. A cracked ring will give the same symptoms as a bad sensor. Many DIY repairs on forums involve replacing these rings, with

Mechanic-Grade Diagnostic Values

• Passive Wheel Speed Sensor Resistance — expected: 800 - 2000 Ω. Failure: Infinite resistance (OL) indicates an open circuit; near-zero resistance indicates a short circuit.
• Passive Wheel Speed Sensor AC Voltage Output — expected: Greater than 100mV AC when spinning the wheel by hand, increasing with speed.. Failure: No voltage or an erratic, inconsistent voltage signal points to a failed sensor.

Hidden / Shadow Codes Worth Checking

• C0045:06: Left Rear Wheel Speed Sensor Circuit Low Voltage/Open. This points directly to a break in the wiring or a completely failed sensor. (see via Ford IDS or high-level scanners like FORScan.)
• C0045:0F: Left Rear Wheel Speed Sensor Circuit Signal Erratic. This strongly suggests a mechanical issue like a cracked tone ring, debris on the sensor, or a failing wheel bearing causing runout. (see via Ford IDS or high-level scanners like FORScan.)
• C0045:18: Left Rear Wheel Speed Sensor Circuit Low Signal Amplitude. This can indicate a weak sensor, excessive air gap between the sensor and ring, or contamination. (see via Ford IDS or high-level scanners like FORScan.)
• C0045:5A: Left Rear Wheel Speed Sensor Circuit Not Plausible. The signal doesn't match what the module expects based on other vehicle sensors, often pointing to a damaged tone ring or incorrect part. (see via Ford IDS or high-level scanners like FORScan.)

Scan Tool Commands That Help

• Ford IDS (Integrated Diagnostic System): ABS Module Self-Test — This command runs an internal check of the ABS module and can help confirm if the module itself is faulty, often flagging internal errors with codes like B1342.
• Ford IDS (Integrated Diagnostic System): Programmable Module Installation (PMI) — This is a mandatory procedure after replacing the ABS control module. It configures the new module with the vehicle's VIN and specific 'As-Built' data to ensure it communicates correctly with other systems.
• Ford IDS / FORScan: Live Data Graphing — Graphing all four wheel speeds simultaneously during a test drive is the most effective way to diagnose an erratic signal from a cracked tone ring. The faulty wheel's graph will show sharp dropouts or jagged patterns compared to the smooth lines of the good sensors.

Wiring & Ground Locations

• G104 — Left front of the engine compartment.. This is a primary ground point for the ABS control module. A corroded or loose connection at G104 can cause intermittent and difficult-to-diagnose ABS faults, including phantom speed sensor codes.
• C135 — The main electrical connector at the ABS control module, located on the left rear of the engine compartment.. This is the termination point for the wheel speed sensor circuits. Technicians can back-probe pins here to test for signal continuity from the sensor without having to trace the entire harness. A pinout is required to identify the correct wires for the left rear sensor.
• LR Wheel Speed Sensor Wires (at C135) — Pins 14 (Signal +) and 15 (Signal -) on connector C135 for a 2009 model. Note: Pin positions can vary by year, always verify with a model-year specific diagram.. Knowing these specific pin numbers allows a technician to perform a continuity and resistance check of the entire circuit from the module to the wheel, definitively isolating a wiring fault from a sensor or module fault.

Real Owner Repair Stories

• YouTube user 'Valley Mobile Automotive' (2012 Ford Escape (mechanically identical)) — ABS and traction control lights on.
  ❌ Tried (didn't work) The technician suspected a bad wheel speed sensor initially.
  ✅ What actually fixed it Upon inspection, the front tone ring was found to be cracked and loose on the CV axle. As a temporary/DIY fix, the technician applied two-part epoxy to the cracks to secure the ring back onto the axle. A test drive confirmed this restored a proper wheel speed signal and resolved the code.
• YouTube user 'ADD is multitasking' (Ford Escape / Mercury Mariner (2002-2012 generation)) — ABS light on.
  ❌ Tried (didn't work) Replacing the ABS sensor alone when the tone ring is the actual problem.
  ✅ What actually fixed it The factory tone ring was found to be broken. The fix involved removing the CV axle from the knuckle, cleaning the rust from the mounting shoulder on the axle, and installing a new, heavy-duty aftermarket tone ring. The video notes the factory rings are thin and brittle, while the aftermarket ones are thicker and more durable.
• NHTSA ODI #11219167 — An owner reported the ABS stability code C0045 was caused by a broken left rear wheel speed sensor encoder ring. The repair required replacing both the speed sensor and the rear hub assembly.
• NHTSA ODI #11165895 — A service center reported that resolving code C0045 required replacing the L/R hub bearing assembly, noting that the duration of the warning message varied before lights would extinguish.

OEM Part Supersession History

• 5L8Z-2C190-AA → 8L8Z-2C190-A — Standard part revision and update by Ford.
  Heads up: The part is listed for the Right Rear, but many vendors and dealer catalogs show it is used for both left and right rear sides on this platform. Always confirm fitment with VIN.

Model Year Variations Within This Range

• 2009+: The ABS control module was reportedly improved for the 2009 model year to be less prone to internal corrosion and failure. While a module failure is still rare for a C0045 code, earlier 2008 models may have a slightly higher chance of the module being the root cause compared to 2009-2011 models.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness pigtail from a junkyard is an excellent choice if your connector is damaged, as it's a simple, non-wear item. A used wheel speed sensor can be a cost-effective gamble if it comes from a low-mileage, non-corroded donor vehicle. Avoid used wheel hub/bearing assemblies entirely.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a harness/pigtail: Check for flexible, non-brittle insulation and clean, corrosion-free connector pins.
• For a sensor: Inspect the plastic housing for cracks and the mounting bolt hole for damage. Ensure the wiring lead isn't frayed.
• If considering a used CV axle for its tone ring: Inspect the ring meticulously for any cracks, no matter how small, and ensure it is firmly seated on the axle shaft with no movement.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', it is highly recommended to use reputable brands for the wheel hub and bearing assembly. Cheap, unbranded hubs are notorious for premature bearing failure.

Aftermarket brands forum-validated for this vehicle:

• Hub/Bearing Assembly: Timken, SKF, MOOG
• Wheel Speed Sensor: Motorcraft (OEM), Bosch, Delphi, Standard Motor Products (SMP)
• Tone Ring: Dorman (offers a heavy-duty version, part #917-532)

Brands owners have reported issues with on this vehicle:

• Avoid unbranded, 'white-box' wheel hub assemblies and wheel speed sensors from online marketplaces, as their quality control and longevity are often poor.

Documented NHTSA Reports

While the C0045 code is standard across many manufacturers, its application can vary. NHTSA ODI #11399819 describes a case where C0045 appeared alongside fuel level sensor codes P0463 and P069E on a different make, suggesting that in some electrical architectures, sensor circuit faults can be clustered. Additionally, NHTSA ODI #10382746 notes an instance where C0045 was recorded with several other codes (C0057, C0231, C0232, C0282) and the manufacturer recommended a software re-program as part of the diagnostic path.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0035 — Points to a fault in the Left Front Wheel Speed Sensor Circuit. The sensors and wiring on all four corners are of the same age and exposed to similar harsh conditions, making failures on other wheels common.
• C0040 — Points to a fault in the Right Front Wheel Speed Sensor Circuit. Like C0035, this suggests a similar failure mode may be occurring on other wheels of the vehicle.
• C0050 — Points to a fault in the Right Rear Wheel Speed Sensor Circuit. A common pattern is for one sensor or tone ring to fail, followed by others over time due to age and corrosion.
• C1297 — This is a more specific Ford-family code for 'Left Rear Wheel Speed Sensor Signal Erratic'. It often appears alongside C0045 and strongly points towards a physically damaged or cracked tone ring, which is a known weak point on the Mariner.
• U0121 — Indicates 'Lost Communication With Anti-Lock Brake System (ABS) Control Module'. If this code is present with C0045, it could suggest a larger problem with the ABS module or its main power/ground wiring, rather than just the individual sensor circuit.

Frequently Asked Questions
