C0050 on 2008-2012 Ford Escape: Right Rear Wheel Speed Sensor Fault Causes and Fixes

What's Unique About the 2008-2012 Ford Escape

Unlike many modern vehicles that integrate the magnetic encoder into a bolt-on wheel hub assembly, the second-generation Ford Escape (2008-2012) and its cousins, the Mercury Mariner and Mazda Tribute, use a separate, toothed metal 'tone ring' that is press-fit onto the axle shaft. These rings are notoriously prone to cracking from rust jacking (corrosion forming underneath), becoming loose, or accumulating metallic debris, which causes an erratic signal that the sensor reads as a fault. This design means that the tone ring itself is the most common point of failure and should be inspected carefully before the wheel speed sensor is condemned.

Symptoms You May Notice

• ABS warning light is on
• Traction control or AdvanceTrac warning light is on
• "Service AdvanceTrac" message on the information display
• ABS system does not activate during hard braking (wheels may lock and skid)
• Traction control does not activate on slippery surfaces (wheels may spin)

Most Likely Causes

1. Cracked, Loose, or Debris-Covered ABS Tone Ring 🔴 High Probability The separate, press-fit metal tone ring is exposed to the elements and can easily rust. Rust buildup underneath the ring exerts pressure, causing it to expand, crack, and lose its grip on the axle shaft, leading to an erratic signal.
   How to confirm: After removing the wheel speed sensor, visually inspect the toothed ring through the sensor mounting hole. Look for visible cracks, rust jacking, or looseness. Try to move it with a screwdriver; it should not move independently of the axle. An erratic signal on a scan tool that jumps around while the wheel is spinning at a steady speed is a strong indicator.
   Typical fix: The tone ring must be replaced. This requires removing the knuckle from the strut, popping the axle out of the hub, cutting off the old ring, cleaning the axle surface thoroughly with a wire brush or sandpaper, and pressing/tapping a new ring on. 🎬 Watch this step-by-step guide to replacing a cracked tone ring. The OEM part number for the rear ring is 7L8Z-2C182-A.
   Est. part cost: $25-$80
2. Failed Right Rear Wheel Speed Sensor 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The sensor is located in a harsh environment behind the wheel, exposed to water, salt, and road debris, which can lead to internal electronic failure or corrosion over time.
   How to confirm: If the tone ring is in perfect condition and the wiring tests good, the sensor is the likely culprit. A scan tool showing the wheel speed dropping to zero and staying there (an open circuit) points more toward a failed sensor or wiring than an erratic tone ring.
   Typical fix: Replace the right rear wheel speed sensor. This is typically held in by a single 8mm or 10mm bolt and is relatively easy to access after removing the wheel. 🎬 See how to quickly swap out the wheel speed sensor. The OEM part number is 9L8Z-2C191-A.
   Est. part cost: $30-$90
3. Damaged Wiring or Corroded Connector ⚪ Low Probability The wiring harness leading to the sensor can be damaged by road debris, improper servicing, or corrosion from water intrusion, especially at the connector pins. The harness can also chafe against suspension components.
   How to confirm: Perform a visual inspection of the harness from the sensor to where it enters the cabin. Unplug the connector and check for green or white corrosion on the pins. Use a multimeter to check for continuity and for shorts to ground or power along the harness.
   Typical fix: Repair the broken section of wire using solder and heat-shrink tubing or replace the corroded connector pigtail.
   Est. part cost: $15-$40

Rare But Worth Checking

• Failed Rear Wheel Bearing: While less common to cause the code directly, a worn and failing press-in wheel bearing can create excessive movement (play), altering the air gap between the sensor and tone ring and causing an erratic signal. If the bearing is noisy or has play, it should be replaced.
• ABS Control Module Failure: → Shop ABS Control Module This is very rare. This should only be considered after all other possibilities (tone ring, sensor, wiring) have been exhaustively tested and ruled out. This would likely be accompanied by other trouble codes or communication faults.

Diagnosis Steps

1. Connect an ABS-capable scan tool to the OBD-II port.
2. Confirm that C0050 is the active code. Note any other codes present.
3. Use the scan tool's live data function to monitor the speed of all four wheels while driving in a straight line above 5 mph.
4. Observe the 'Right Rear' wheel speed reading. If it is erratic, jumps around, or reads differently than the other three, the fault is confirmed. If it reads zero, it points more to a sensor or wiring failure.
5. Safely raise and secure the rear of the vehicle on jack stands and remove the right rear wheel.
6. Locate the wheel speed sensor bolted into the rear knuckle. Unplug its electrical connector and inspect for corrosion or damage.
7. Remove the single bolt (typically 8mm or 10mm) holding the sensor in place and carefully wiggle and pull the sensor out. It may be seized with rust.
8. Thoroughly inspect the wiring harness leading to the sensor for any signs of chafing, melting, or physical damage.
9. Peer through the sensor mounting hole at the toothed tone ring. Use a light to inspect it for visible cracks, missing teeth, or heavy rust/debris buildup. A broken ring will often be visibly separated.
10. Use a small screwdriver to gently poke the tone ring to see if it is loose on the axle. It should be completely solid. If it moves or spins, it has failed.
🎬 Watch: How to identify and repair a loose ABS ring.
11. If the tone ring is cracked, loose, or damaged, it is the cause of the fault and must be replaced.
12. If the tone ring appears perfect, the next step is to test the sensor and wiring with a multimeter or replace the sensor as it is the next most likely cause.
13. When replacing the tone ring, thoroughly clean all rust from the mounting surface on the axle with a wire brush or sandpaper before installing the new ring. Some DIYers recommend heating the new ring slightly with a torch to ease installation.
14. When reassembling the strut bolts, use blue Loctite and torque to spec (approx. 85 ft-lbs).

Parts You'll Likely Need

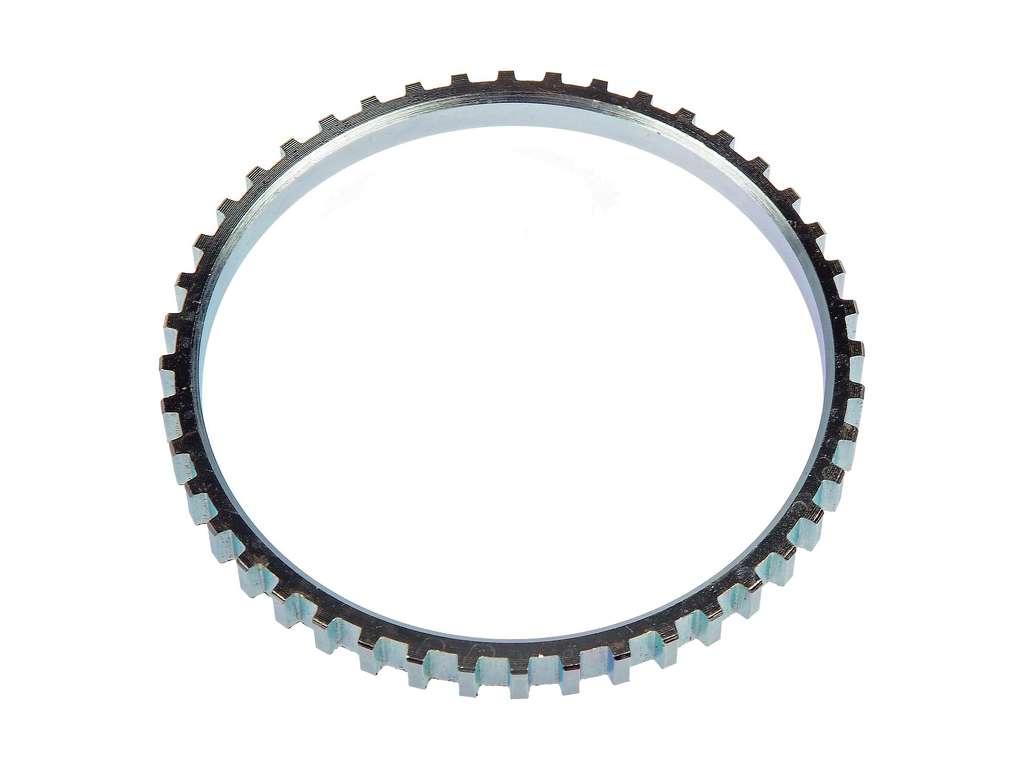

• ABS Wheel Speed Sensor Tone Ring (Rear) (OEM #7L8Z-2C182-A) — This is the most common point of failure on this specific vehicle due to its design and susceptibility to cracking from rust.
  Trusted brands: Dorman (p/n 917-538), Motorcraft, TechSmart
  OEM price range: $60-$85
  Aftermarket price range: $25-$50

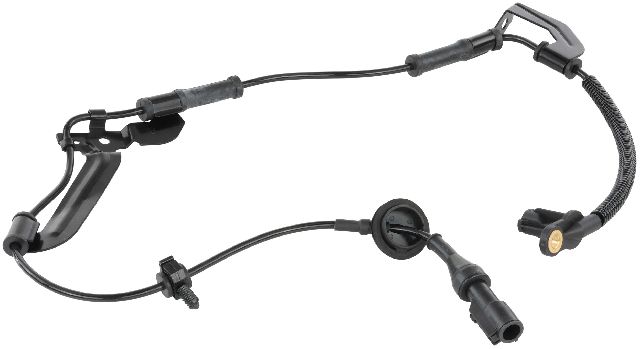

• ABS Wheel Speed Sensor (Rear) (OEM #9L8Z-2C191-A) — If the tone ring and wiring are confirmed to be in good condition, the sensor itself is the next most likely part to have failed due to age and exposure to the elements.
  Trusted brands: Motorcraft, Bosch, Standard Motor Products (SMP)
  OEM price range: $70-$110
  Aftermarket price range: $30-$90

Related Codes That Often Appear With This One

• C0045 — This is the code for the Left Rear Wheel Speed Sensor Circuit. If both appear, it could indicate a common wiring issue or that both tone rings/sensors have failed due to age and similar environmental conditions.
• U-series codes (e.g., U0415, U2023) — U-codes indicate a loss of communication or invalid data. An invalid signal from the ABS module (caused by the C0050 fault) can cause other modules on the network to log a fault code indicating they received invalid data from the brake control module.

Technical Service Bulletins (TSBs) & Recalls

• TSB 20-2302: While for a newer generation (2020), this TSB addresses ABS wheel speed sensor codes (C0031, C0034, C0051) caused by the sensor harness rubbing on the front wheels. This highlights that wiring chafe is a known failure

Platform-Specific Known Issues

• The press-fit rear ABS tone rings are a well-documented failure point on 2008-2012 Escapes and Mercury Mariners. They commonly crack due to corrosion building up between the ring and the axle/hub surface, causing an expanded diameter and eventual failure.
• Owner Experience: Many owners report the ABS and AdvanceTrac lights activating under normal driving. Upon inspection, they find the rear tone ring has a hairline crack or is completely broken and spinning freely on the axle shaft. The repair is a frequent topic in owner forums and on YouTube, with many successful DIY repairs documented.

Mechanic-Grade Diagnostic Values

• Rear Wheel Speed Sensor Resistance (Passive 2-wire VRS) — expected: 800 - 2,700 Ohms. The key is that both rear sensors should have similar resistance.. Failure: A reading of infinite Ohms (open circuit), zero Ohms (short circuit), or a value significantly different from the opposing wheel's sensor indicates a failed sensor.
• Rear Wheel Speed Sensor AC Voltage Output — expected: Minimum of 0.25 Volts AC (250mV AC) when the wheel is spun by hand at about one revolution per second.. Failure: Little to no AC voltage produced while the wheel is spinning points to a failed sensor or an issue with the tone ring (e.g., excessive air gap, missing teeth).

Hidden / Shadow Codes Worth Checking

• C0050:0F: Signal Erratic. This sub-code strongly suggests an issue with the tone ring (cracked, loose, debris) or an intermittent wiring connection, as the module is seeing a signal that is physically implausible or inconsistent. (see via Ford IDS, FORScan, or a high-end professional scan tool (Autel, Snap-on) capable of reading Ford-specific symptom bytes.)
• C0050:18: Signal Amplitude Less Than Minimum. This indicates the signal from the sensor is too weak. This is often caused by an excessive air gap between the sensor and tone ring, a failing sensor, or severe rust/debris on the ring. (see via Ford IDS, FORScan, or a high-end professional scan tool.)

Scan Tool Commands That Help

• Ford IDS / FORScan: Datalogger / Live Data — This is the most critical diagnostic step. Graphing all four wheel speed sensors simultaneously while driving allows the technician to visually confirm if the right rear sensor signal is erratic (jumping wildly, indicating a tone ring issue) or drops to zero (indicating a sensor or wiring open circuit).
• Ford IDS: Module Programming > Programmable Module Installation (PMI) — In the very rare event the ABS module itself fails and requires replacement, this function must be used. It captures the as-built configuration data from the old module before removal and installs it onto the new module. Failure to do this will result in a non-functional new module.

Wiring & Ground Locations

• ABS Fuses — Under-hood fuse box (Battery Junction Box).. Before condemning the module, check Fuse #9 (50A, Main), Fuse #18 (20A, Solenoid), and Fuse #25 (5A, Controller Power). A loss of power can cause various ABS codes.
• G104 / G105 — On the chassis at the left front of the engine compartment.. These are the main grounds for the ABS control module. A corroded or loose ground at this location can cause erratic behavior, communication issues, and codes for multiple sensors, not just C0050.
• C135 (ABS Module Connector) — At the ABS hydraulic control unit (HCU) in the engine bay, typically below the master cylinder.. This is the main connector where the wheel speed sensor circuits terminate. Probing for signal, power, and ground here can test the entire wiring harness from the wheel to the module. Inspecting for corrosion inside this connector is a key step if sensor and wiring at the wheel test good.

Real Owner Repair Stories

• Valley Mobile Automotive, YouTube (2012 Ford Escape) — ABS and Traction Control lights on, code for right front wheel speed sensor (analogous to C0050 for the rear).
  ❌ Tried (didn't work) Initially assumed it was a bad wheel speed sensor.
  ✅ What actually fixed it Upon inspection, the technician found the tone ring was loose on the CV axle due to a crack. He noted the proper fix is replacing the CV axle or pressing on a new tone ring. As a temporary, field-expedient repair often seen on forums, he cleaned the ring and axle surface and applied JB Weld two-part epoxy to secure the cracked ring back to the axle shaft, which resolved the erratic signal.
• escape-city.com / ford-trucks.com forums (composite) (2008-2012 Ford Escape, typically in rust-belt states) — ABS and Service AdvanceTrac lights on, code C0050 or C0045.
  ❌ Tried (didn't work) Replacing the wheel speed sensor, sometimes multiple times., Cleaning the sensor tip.
  Note on Cross-Manufacturer Diagnostics: While diagnosing C0050, it is worth noting that on other platforms, this code can represent different mechanical failures. For instance, NHTSA ODI #11693418 and #11649367 describe C0050 appearing on Jeep vehicles in relation to rear brake pads, rotors, and caliper piston contact issues. Additionally, NHTSA ODI #10763888 notes that on some Chevrolet models, C0050 has been used to identify a faulty power steering control module (PSCM) requiring steering column replacement.
  ✅ What actually fixed it The definitive fix was identifying a cracked or completely separated rear tone ring. Owners report cutting the old ring off with a Dremel or chisel, thoroughly cleaning the rust off the axle shaft with a wire wheel or sandpaper, and tapping a new Dorman 917-538 ring into place. Some recommend heating the new ring slightly to make it slide on easier. This almost universally resolves the issue when the scan tool shows an erratic signal.

OEM Part Supersession History

• 7L8Z-2C182-A → 7L8Z-2C182-A (current) — This OEM part number for the rear tone ring has remained stable. It is a known high-failure part.
  Heads up: The aftermarket Dorman 917-538 is a widely used and accepted direct replacement.
• 9L8Z-2C191-A → 9L8Z-2C191-A (current) — This OEM part number for the rear wheel speed sensor has remained stable for the 2009-2012 model years.
  Heads up: This part is listed for the Left Rear, but is physically identical and used for both rear sides; the difference is in harness length/mounting which is negligible in this application. Ensure any aftermarket replacement is specified for the 2008-2012 generation.

Model Year Variations Within This Range

• 2008-2012: While the 2008 model year carried over the engine and transmission from the first generation Escape, and the 2009-2012 models received updated powertrains, the underlying chassis, rear suspension design, and ABS component setup (separate press-fit tone ring on the rear axle) are the same across this entire range. Therefore, the cause and diagnosis for code C0050 are identical for all 2008-2012 Escapes.

Documented NHTSA Reports

• An owner reported in NHTSA ODI #11228687 that C0050 appeared alongside several other codes including C0035, C0040, and various U-codes (U0077, U0126, U0415) during a diagnostic check at an independent mechanic.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Electric Power Steering (EPAS) Failure 🔴 High — Very common. A recall (14S05) was issued, but failures are still reported even after the recall fix. The torque sensor within the steering column is a frequent failure point. (Ref: Recall 14S05)
• 6F35 Transmission Failure 🔴 High — Common, particularly in earlier models of this generation (2008-2009). Issues include harsh shifting, shuddering, and complete failure, often before 100,000 miles.
• Rear Shock Tower Rust 🔴 High — Extremely common in regions that use road salt. The upper shock mount area in the rear wheel wells rusts through, allowing the shock to detach. The passenger side often fails first.
• Body Rust 🟠 Medium — Common in the Rust Belt. Areas like rear quarter panels (wheel arches) and the tailgate are particularly susceptible to corrosion.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A complete, used knuckle/axle assembly from a junkyard can be a cost-effective choice IF it comes from a low-mileage, dry-climate (non-rust-belt) vehicle. This avoids the labor of pressing in a new bearing or tone ring.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Spin the hub by hand; the bearing must be perfectly smooth with no noise or grinding.
• Attempt to wiggle the hub flange; there should be zero perceptible play.
• Visually inspect the tone ring on the axle shaft for any hairline cracks. If it's cracked on the donor, the part is useless.
• Check for heavy rust scaling on the knuckle and backing plate, which indicates a harsh life.

OEM-only on this vehicle (don't cheap out):

• None for this repair. High-quality aftermarket parts are widely available and trusted.

Aftermarket brands forum-validated for this vehicle:

• Tone Ring: Dorman (p/n 917-538) is the most cited and trusted aftermarket solution.
• Sensor: Motorcraft (OEM), Bosch, Standard Motor Products (SMP), NTK.

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name wheel speed sensors from online marketplaces. Forum users frequently report these are dead-on-arrival, have incorrect fitment, or fail within a few months.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0031 — Related wheel speed sensor code mentioned in TSB 20-2302 regarding harness chafing issues.
• C0034 — Related wheel speed sensor code mentioned in TSB 20-2302 regarding harness chafing issues.
• C0051 — Companion wheel speed sensor code (Left Rear) that often occurs due to the same tone ring corrosion and cracking issues on the CD2 platform.

Frequently Asked Questions
