P0202 on 2007-2015 Mazda CX-9 3.7L: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2007-2015 Mazda CX-9

The 3.7L V6 in the CX-9 is a Ford-derived 'Cyclone' engine, also known as the Mazda MZI 3.7. A key issue on this platform is that accessing the rear bank of cylinders (1, 2, and 3) for any service, including replacing the #2 injector, requires removing the entire upper intake manifold. This significantly increases labor time and cost compared to a similar repair on an engine with easier access. Additionally, across the Ford/Mazda platform, there are documented cases where a failing or shorted ignition coil can damage the PCM's internal driver circuit, leading to injector codes like P0202. This makes it crucial to investigate the health of the ignition system when diagnosing injector circuit faults.

Symptoms You May Notice

• Rough or shaky idle
• Engine hesitation or stumbling during acceleration
• Noticeable loss of power
• Check Engine Light is on (may be flashing if misfire is severe)
• Poor fuel economy
• A smell of raw fuel in some cases
• Engine running poorly enough that it is barely drivable

Most Likely Causes

1. Failed Fuel Injector 🔴 High Probability → Shop Fuel Injector Injectors can fail electrically (open or shorted coil) or mechanically over time. Heat cycling, especially for the rear bank near the firewall, can contribute to the degradation of the injector's internal windings.
   How to confirm: After gaining access, check the resistance of the injector with a multimeter. A good injector should have a resistance of around 11-13 ohms. An open circuit (infinite resistance) or a reading significantly different from the other injectors indicates a bad injector. The most definitive test is to swap the suspect injector with another cylinder (e.g., cylinder 5 in the front bank) and see if the code follows (e.g., changes to P0205).
   Typical fix: Replace the failed fuel injector. 🎬 Watch this step-by-step guide on replacing the CX-9 fuel injectors. Since the intake manifold must be removed, it is highly recommended to replace all three rear injectors (or all six) at the same time, along with the upper and lower intake manifold gaskets and injector O-rings.
   Est. part cost: $50-$110 per injector
2. Wiring Harness or Connector Issue 🟡 Medium Probability The wiring harness, particularly the section running to the rear bank, is exposed to significant heat and vibration. This can cause wires to become brittle and break or the plastic connector to degrade. Rodent damage is also a common cause of open or shorted wires.
   How to confirm: Visually inspect the wiring going to the cylinder 2 injector for any signs of damage, melting, or corrosion. Use a 'noid light' to test for a pulse signal at the injector connector while cranking the engine. If the noid light flashes, the wiring and PCM driver are likely okay. If it doesn't, check for 12V power on one wire of the connector with the key on. Then, check for continuity on the trigger wire (the ground signal from the PCM) from the injector connector back to the PCM connector.
   Typical fix: Repair the damaged section of the wiring harness or replace the injector pigtail connector. Ensure any repairs are properly soldered and heat-shrunk to prevent future moisture intrusion.
   Est. part cost: $15-$40 for a pigtail connector

Rare But Worth Checking

• Failed Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) While less common for a single injector code, a failed ignition coil on the CX-9's 3.7L V6 is known to short out and send a voltage spike back to the PCM, damaging the internal driver circuits that control the fuel injectors. If the injector and wiring test good (especially if a noid light test fails), the PCM is the next suspect. This is particularly true if you have recently had an ignition coil fail or have multiple injector codes simultaneously. A Reddit user with a 2012 CX-9 experienced this, where after replacing the injector, coil, and plug, the issue persisted, pointing towards a wiring or PCM fault, though no final resolution was posted.

Diagnosis Steps

1. Confirm the presence of code P0202 with an OBD-II scanner. Note any other codes, especially P0302 or other P020x codes.
2. Locate cylinder 2. On the 3.7L V6, the cylinders against the firewall are 1-2-3 from passenger to driver side. The front cylinders are 4-5-6. Cylinder 2 is the middle cylinder on the rear bank.

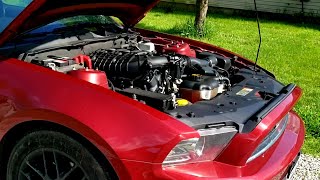

3. Due to access, the following steps require removing the upper intake manifold. This is a complex job detailed in many YouTube repair videos. 🎬 See a detailed walkthrough of the upper intake manifold removal. Before starting, disconnect the negative battery terminal.
4. Once the intake is removed, inspect the wiring harness for cylinder 2's injector. Look for any chafing, melting, breaks, or rodent chew marks. Check the connector for corrosion or loose pins.
5. Disconnect the injector and measure its resistance with a multimeter set to Ohms. It should be between 11 and 13 Ohms. Compare it to an adjacent injector. If the reading is infinite (open) or zero (shorted), the injector is bad.
6. If the injector resistance is good, use a noid light to test the electrical connector. Plug the noid light into the harness connector for cylinder 2 and have a helper crank the engine. The light should flash steadily. If it does not flash, there is a problem with the wiring or the PCM.
7. If the noid light does not flash, use a multimeter to check for constant 12V power on one wire of the connector with the key in the 'ON' position. The other wire is the ground-side trigger from the PCM. Check for continuity on this trigger wire from the injector connector back to the PCM's main connector (requires a vehicle-specific wiring diagram). Also check the trigger wire for a short to ground.
8. If the injector and wiring are confirmed to be good, but the noid light test fails, the fault likely lies within the Powertrain Control Module (PCM), which may require professional diagnosis and replacement/reprogramming.

Parts You'll Likely Need

• Fuel Injector (OEM #ZZJ1-13-250A) — This is the most common component to fail for a P0202 code. The internal coil windings can break, causing an open circuit. This part number supersedes CY01-13-250 and ZZJ1-13-250.
  Trusted brands: Mazda (OEM), Bosch (OEM supplier, P/N 0280158091), Motorcraft
  OEM price range: $80-$110
  Aftermarket price range: $50-$75
• Upper Intake Manifold Gasket Set (OEM #CY01-13-135 (Plenum Gasket)) — These gaskets are single-use and must be replaced anytime the intake manifold is removed to prevent vacuum leaks. 🎬 Watch how to properly replace the intake and valve cover gaskets. The V6 uses an upper (plenum) gasket and a set of lower runner gaskets.
  Trusted brands: Mazda (OEM), Fel-Pro (MS 97118, MS 97120), Mahle (MS19559)
  OEM price range: $30-$50
  Aftermarket price range: $20-$40
• Lower Intake Manifold Gasket Set (OEM #ZZJ1-13-111A) — Required when removing the intake manifold to access the fuel rail and injectors. These seal the lower intake runners to the cylinder heads.
  Trusted brands: Mazda (OEM), Fel-Pro, Victor Reinz
  OEM price range: $25-$40
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0302 — This code means 'Cylinder 2 Misfire Detected.' Since P0202 indicates the injector isn't firing, the cylinder won't have proper combustion, which the PCM detects as a misfire. P0202 is the electrical cause, and P0302 is the mechanical effect.
• P0300 — This indicates a 'Random/Multiple Cylinder Misfire.' If the fuel system is compromised by the faulty injector, it can sometimes affect overall engine stability, fuel pressure, or air-fuel calculations, leading to misfires on other cylinders.
• P0201, P0203, P0204, P0205, P0206 — If multiple injector circuit codes appear at once, it strongly suggests a systemic problem rather than a single failed injector. This could be a damaged wiring harness common to all injectors, a blown fuse, or a failed PCM. A user on Mazdas247 reported all six injector codes at once, pointing to a widespread electrical issue.

Technical Service Bulletins (TSBs) & Recalls

• While no TSBs directly address P0202 on the CX-9 3.7L, TSB #01-017/16 and #01-004/17 for other Mazda models (Mazda3, Mazda6, CX-5) with DENSO PCMs establish a precedent for internal PCM failure causing paired injector codes (e.g., P0202 and P0203). This is useful diagnostic context, even if not directly applicable to the CX-9.
• Manufacturer TSB Bulletin #01-004-17-3317a notes that some vehicles may experience an engine that runs rough with the check engine light on and DTCs P0202 and P0203 stored, often accompanied by misfire codes like P0302.
• Manufacturer TSB Bulletin #01-004-17 further confirms a multi-model issue where the engine runs rough and the check engine light illuminates with paired codes such as P0202 and P0203.

Platform-Specific Known Issues

• Accessing the rear bank of fuel injectors requires the removal of the upper intake manifold, making this a significantly more labor-intensive job than replacing a front-bank injector.
• A failed ignition coil can cause a voltage spike that damages the PCM, leading to injector circuit codes. It is critical to inspect or replace all ignition coils if a PCM is found to be faulty due to a coil failure.

Mechanic-Grade Diagnostic Values

• Fuel Injector Coil Resistance — expected: 11 - 13 Ohms. Failure: A reading of infinite resistance (Open Loop) or near-zero resistance (Short) indicates a failed injector.
• Injector Connector Voltage (Key On, Engine Off) — expected: ~12 Volts (Battery Voltage). Failure: With the injector connector unplugged and key on, one of the two pins should have battery voltage. If not, there is a fault in the power supply circuit (fuse, relay, or wiring) to the injector.
• Injector Connector Signal (Engine Cranking/Running) — expected: Flashing light on a noid light, or a square wave on an oscilloscope.. Failure: A noid light that does not flash indicates a lack of signal from the PCM, pointing to a wiring continuity issue or a failed PCM driver.

Hidden / Shadow Codes Worth Checking

• P0202:00: This is the standard code with a Failure Type Code (:00) suffix, as seen in Mazda Technical Service Bulletins. While not a 'hidden' code, its presence alongside another injector code like P0203:00 on other Mazda platforms is a strong indicator of a PCM failure as described in TSB 01-017/16. Though the CX-9 is not listed on that specific TSB, the diagnostic pattern of paired injector codes pointing to the PCM is a valuable mechanic-grade insight. (see via Professional grade scan tools may display the code with the :00 suffix.)

Scan Tool Commands That Help

• Mazda IDS (or equivalent professional scanner): Power Balance Test — To functionally confirm the misfire on cylinder 2. This test allows the technician to disable one cylinder at a time and observe the RPM drop. A cylinder with a non-functioning injector (P0202) will produce little to no change in RPM when disabled, confirming it was not contributing.
• Mazda IDS: Fuel Injector Correction Factors — After replacing fuel injectors. This function allows the technician to input the specific calibration code printed on a new injector into the PCM. While more critical for direct injection or diesel systems, it is a known service function in the Mazda software.

Wiring & Ground Locations

• Injector Circuit Logic — At the injector connector for cylinder 2 (middle cylinder, rear bank).. Understanding the circuit is key to diagnosis. One wire in the connector is a 12V+ power feed, often shared with other injectors and live when the key is on. The other wire is the control wire, which the PCM pulses to ground to activate the injector. A failure of either the power feed or the pulsed ground will set P0202.
• PCM Location — Typically located in the engine bay, under the battery and battery tray.. Final wiring checks for continuity or shorts must be performed between the injector connector and the main PCM connector. Accessing the PCM is required for this step and for PCM replacement if it is found to be faulty.

Real Owner Repair Stories

• Mazdas247 Forum User 'beefski' (2013 Mazda CX-9 GT AWD) — P0202 Injector Circuit Malfunction code.
  ❌ Tried (didn't work) Initial diagnosis pointed to the typical causes: faulty injector, wiring, or PCM.
  ✅ What actually fixed it Replacement of the ignition coil pack and spark plug for cylinder 2 resolved the P0202 code.

When the Usual Fixes Don't Work

• While P0202 is an electrical circuit code for the fuel injector, there is a documented case on a Mazdas247 forum where the confirmed fix for a 2013 CX-9 was replacing the cylinder 2 ignition coil and spark plug. This is highly unusual and contradicts the standard diagnostic procedure, which separates ignition faults (P030x codes) from injector circuit faults (P020x codes). This suggests a rare possibility of an electrical fault in the ignition system somehow interfering with the PCM's monitoring of the injector circuit, or that the act of replacing the coil inadvertently fixed a wiring issue.

OEM Part Supersession History

• CY01-13-250, ZZJ1-13-250 → ZZJ1-13-250A — Standard part revision and consolidation by the manufacturer.
• ZZJ1-13-250A (Mazda OEM) → 0280158091 (Bosch) — This is the part number for the OEM supplier, Bosch. It is an alternative to the Mazda-branded part.
  Heads up: While a direct cross-reference, always verify fitment with the supplier for the specific vehicle VIN. Aftermarket parts should not be mixed with original injectors on the same engine bank due to potential minor differences in flow rate.

Model Year Variations Within This Range

• 2007 vs 2008-2015: The 2007 model year used a 3.5L V6, while the 2008-2015 models used a 3.7L V6. While both are from the same Ford Cyclone engine family, some parts including injectors and wiring may differ.
• 2008-2015: While the 3.7L long block is generally the same across these years, minor differences in wiring harnesses, fittings, and clips may exist. When sourcing used parts like an engine harness, it is best to match the donor year as closely as possible.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using a used fuel injector is NOT recommended. The labor to access the rear bank injectors is significant, and the risk of a used part failing prematurely outweighs the cost savings. Used parts may make sense for external components like the wiring harness connector (pigtail) if the original is damaged.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring pigtail, ensure the plastic is not brittle or cracked.
• Check for any signs of melting or heat damage on the connector.
• Ensure the locking tab is intact and functional.
• Verify there are at least 4-6 inches of wire attached to allow for proper splicing.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - While remanufactured units are available, an OEM PCM (new or from a reputable rebuilder) programmed to the vehicle's VIN is critical for proper function.

Aftermarket brands forum-validated for this vehicle:

• Injectors: Bosch (OEM Supplier)
• Gaskets: Fel-Pro, Mahle, Victor Reinz

Brands owners have reported issues with on this vehicle:

• Unnamed, no-brand 'cheap' fuel injectors from online marketplaces. The quality control is often poor, and they can have incorrect flow rates, leading to persistent performance issues.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0302 — Cylinder 2 Misfire Detected. This is a direct consequence of the P0202 fault, as an injector circuit malfunction prevents fuel delivery, causing the cylinder to misfire. They almost always appear together.
• P0201 — Injector Circuit Malfunction - Cylinder 1. Often appears with P0202 and other P020x codes if there is a widespread wiring harness issue or a PCM failure affecting multiple injector drivers.
• P0203 — Injector Circuit Malfunction - Cylinder 3. TSBs on other Mazda models suggest that internal PCM faults can cause paired injector codes for adjacent cylinders, such as P0202 and P0203.
• P0204 — Injector Circuit Malfunction - Cylinder 4. Can appear with P0202 in cases of a major electrical fault, such as rodent damage to the main engine harness or a PCM failure.
• P0205 — Injector Circuit Malfunction - Cylinder 5. This code is useful diagnostically. If you swap the suspect cylinder 2 injector with the cylinder 5 injector and the code moves to P0205, it confirms the injector itself is faulty.
• P0206 — Injector Circuit Malfunction - Cylinder 6. Like other P020x codes, its appearance alongside P0202 points towards a systemic issue like the wiring harness or PCM rather than an isolated injector failure.

Frequently Asked Questions
