P0418 on 2003-2009 Lexus GX470: Secondary Air Injection Circuit Fault, Causes, and Fixes

What's Unique About the 2003-2009 Lexus GX470

The key issue for the GX470's 2UZ-FE engine is a systemic design flaw. The open-cell foam filter for the air pump is known to disintegrate over time, get sucked into the pump's turbine, and destroy it. This plastic and foam debris then travels downstream, jamming the air switching valves (check valves) open or closed. What makes this a particularly difficult job on the GX470 is the location of the air pump: it is buried deep in the engine valley, beneath the entire intake manifold. This location turns a simple component failure into a significant and costly repair. On sibling vehicles like the Toyota Tundra and Sequoia with the same 2UZ-FE engine, the pump is located in the passenger-side fender well and can be replaced in under an hour.

Symptoms You May Notice

• Check Engine Light is on
• VSC TRAC and VSC OFF lights may also illuminate (often called the 'Christmas tree' of lights)
• Loud whining or vacuum cleaner-like noise from the engine bay for about a minute on cold starts, which may cease abruptly when the pump fails completely.
• Vehicle may enter 'limp mode', resulting in reduced power and sluggish acceleration.

Most Likely Causes

1. Failed Secondary Air Injection Pump 🔴 High Probability → Shop Secondary Air Injection Pump The pump's internal foam filter degrades and is ingested, destroying the pump's plastic turbine blades. This is a very common failure on the 2UZ-FE engine in the GX470 and 4Runner.
   How to confirm: Command the pump on with a bidirectional scan tool. If it does not run, or makes a loud grinding/whining noise, it has likely failed. Test for power and ground at the pump connector; if power is present but the pump doesn't run, it is faulty. This requires removing the intake manifold for access.
   Typical fix: Replace the air pump. Due to its location under the intake manifold, this is a labor-intensive job (4-6 hours). 🎬 Watch this DIY vlog for a complete pump replacement walkthrough. It is highly recommended to also replace both air switching valves and all associated intake manifold gaskets at the same time.
   Est. part cost: $150-$600
2. Stuck/Failed Air Switching Valves 🟡 Medium Probability These valves get clogged with plastic and foam debris from the disintegrated air pump. They rarely fail on their own.
   How to confirm: Often diagnosed alongside a failed pump. Codes like P2440, P2442, or P1442 will be present. The valves can be removed and inspected for debris or tested for operation with a vacuum pump or scan tool. Visually, you may see chunks of plastic holding the valve open.
   Typical fix: Replace both air switching valves. This is typically done during the air pump replacement as they are located on the back of the engine, near the firewall.
   Est. part cost: $70-$150 per valve
3. Failed Air Pump Relay or Blown Fuse ⚪ Low Probability → Shop Secondary Air Injection Pump A seized air pump can draw excessive current, blowing the 50A 'AIR' fuse or burning out the 'AIR' relay, both typically located in the main fuse box in the engine compartment.
   How to confirm: Check the 50A AIR fuse and the AIR relay in the engine bay fuse box. Swap the relay with an identical one from a different system (like the horn) to quickly test if it's the cause. If the fuse is blown, the pump motor is almost certainly seized.
   Typical fix: Replace the blown fuse or faulty relay. If the fuse blows again, it confirms the air pump motor is seized and drawing too much current, necessitating pump replacement.
   Est. part cost: $5-$30

Rare But Worth Checking

• Wiring or Connector Damage: The wiring to the pump is located under the intake manifold and can be damaged by rodents or improper service, though it is uncommon.
• Failed Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare and should only be considered after all other possibilities have been exhaustively ruled out.

Diagnosis Steps

1. Scan for all fault codes. Note if P0418 appears with P2445, P2440, or P2442, which points to the common systemic failure.
2. Inspect the fuses for the SAI system (typically a 50A main fuse labeled 'AIR' and sometimes a smaller 7.5A control fuse) in the engine compartment fuse box.
3. Locate the SAI relay in the fuse box and swap it with a known-good, identical relay (e.g., horn relay) to rule it out.
4. Using a bidirectional scan tool, command the SAI pump to activate during a cold start. Listen for it to run. No sound or a loud grinding noise indicates a failed pump.
5. If the pump does not run, you must gain access to its electrical connector under the intake manifold to test for power and ground when commanded on. This requires significant disassembly.
6. If power and ground are present at the connector but the pump doesn't run, the pump has failed.
7. If the pump runs but codes for the valves (P2440/P2442) are present, the valves are likely stuck and require replacement. They should be replaced along with the pump to prevent a repeat failure.
8. If opting for a bypass kit, follow the manufacturer's instructions carefully, which involves installing block-off plates on the valve ports and wiring in an electronic module to satisfy the ECM.

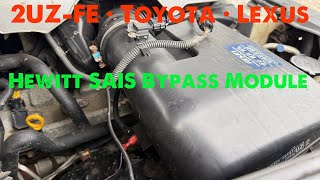

🎬 See how to install a bypass kit to solve the issue.

Parts You'll Likely Need

• Secondary Air Injection Pump (OEM #17610-0C010) — This is the primary point of failure due to the disintegration of its internal foam filter.
  Trusted brands: Genuine Toyota/Lexus, Dorman (911-633), Standard Motor Products (AIP2)
  OEM price range: $550-$700
  Aftermarket price range: $150-$320
• Air Switching Valve (Bank 1) (OEM #25710-50022) — These get clogged with debris from the failed pump and should be replaced as a set with the pump. Bank 1 is the passenger side. Replaces 25710-50020, 25710-50021.
  Trusted brands: Genuine Toyota/Lexus, Dorman (911-643)
  OEM price range: $200-$250 each
  Aftermarket price range: $70-$150 each
• Air Switching Valve (Bank 2) (OEM #25720-50011) — These get clogged with debris from the failed pump and should be replaced as a set with the pump. Bank 2 is the driver side.
  Trusted brands: Genuine Toyota/Lexus, Dorman
  OEM price range: $200-$250 each
  Aftermarket price range: $70-$150 each
• Intake Manifold Gasket Set — The intake manifold must be removed to access the air pump. The gaskets must be replaced. A common aftermarket set is Fel-Pro MS 96672.
  Trusted brands: Fel-Pro (MS 96672), Genuine Toyota/Lexus
  OEM price range: $50-$80
  Aftermarket price range: $30-$50

Related Codes That Often Appear With This One

• P2445 — This code means 'Secondary Air Injection System Pump Stuck Off' and is frequently triggered along with P0418, confirming the pump motor has failed 🎬 Watch this video series for diagnosing P2445 and P0418 codes. or is seized.
• P2440 / P2442 — These codes indicate an air switching valve is stuck open (P2440 Bank 1, P2442 Bank 2). This is a direct result of debris from the failed pump jamming the valve.
• P1442 / P1445 — These are older or manufacturer-specific codes for valves stuck open/closed, serving the same purpose as the P244x series codes.

Technical Service Bulletins (TSBs) & Recalls

• No specific TSBs or Recalls for the Secondary Air Injection system were found for the 2003-2009 GX470. A Special Service Campaign (SSC JLG) exists for the *next generation* GX460 for the same issue, but it does not apply to this vehicle. Some related TSBs like EG010-07 exist for other issues on 2UZ-FE engines but are not for the SAI system.

Platform-Specific Known Issues

• The location of the air pump under the intake manifold is the single biggest issue, making a common failure an expensive, high-labor repair.
• An increasingly popular and cost-effective alternative to the full mechanical repair is an electronic bypass kit (e.g., from Hewitt Technologies) that tricks the ECM into thinking the system is working correctly. This is a viable option for owners in areas without stringent emissions testing.
• The Hewitt-Tech bypass kits come in different versions; some are simple plug-and-play modules for the engine bay, while more comprehensive versions require tapping wires at the ECU inside the cabin for a more robust emulation of the system.

Mechanic-Grade Diagnostic Values

• VSV (for Air Injection System) Coil Resistance — expected: 33 to 39 Ω at 20°C (68°F). Failure: Resistance outside of this range indicates a faulty VSV.
• VSV (for Air Injection System) to Body Ground Resistance — expected: 10 MΩ or higher. Failure: A lower resistance reading indicates a short to ground.

Scan Tool Commands That Help

• Toyota Techstream: Active Test: Secondary Air Injection Check — This function runs a full system check to help identify which component (pump, valves) has failed or to validate a repair. It can be run in an automatic or manual mode.
• Toyota Techstream: Active Test: Control the Injection Mode — Allows a technician to manually command the air injection pump and valves ON or OFF to listen for pump activation and check for pressure changes in the system, helping to isolate a failed component.

Wiring & Ground Locations

• ECM (Engine Control Module) — Behind the glove box in the passenger side of the cabin.. This is the connection point for more advanced SAIS bypass kits (like the Hewitt-Tech Gen-II) which require tapping into specific wires at the ECM connector to fully emulate the system and prevent codes.
• Air Injection Control Driver — On the driver's side inner fender well in the engine bay.. This driver module controls the air pump. Some bypass kits, particularly those designed to clear the P0418/P0419 electrical codes, install here. For vehicles with two pumps, there will be two drivers (Bank 1 and Bank 2).
• VSV (Vacuum Switching Valve) Connectors — On the top passenger side of the intake manifold.. The Gen-II Hewitt-Tech bypass kit harness plugs into the two brown VSV connectors to control the valve emulation part of the bypass.
• Firewall Pass-Through — A large rubber grommet for the main body electrical harness, or a smaller unused nipple, in the passenger-side firewall.. When installing a bypass kit that requires ECU connections, wires must be routed from the engine bay into the cabin through this point. A common method is using a coat hanger to fish the wires through.

Real Owner Repair Stories

• ClubLexus Forum User (2009 Lexus GX470, 165,000 miles) — Check engine light, VSC lights ('Christmas tree'), vehicle in LIMP MODE, code P0418 'Relay Circuit Bank 1'.
  ❌ Tried (didn't work) Replacing the gas cap (twice), Disconnecting the battery to clear codes
  ✅ What actually fixed it The owner installed a Hewitt Technologies Gen-II SAIS Bypass Kit. This involved installing block-off plates on the exhaust manifolds and wiring the electronic module into the engine bay and tapping three wires into the ECU behind the glove box. The owner soldered the connections instead of using the supplied connectors for a more robust repair. This resolved the codes and limp mode.
• YouTube user DIY VL OG (Lexus GX470 (year not specified)) — Check engine light with codes P0418 & P2445 after incorrectly jump-starting another vehicle.
  ✅ What actually fixed it A complete replacement of the secondary air injection system. The owner replaced the air pump (with an aftermarket 'OKAY MOTOR' unit), both air switching valves (check valves), all associated hoses, and intake manifold gaskets. The video shows the destroyed original pump and debris in the valves, confirming the systemic failure.
• NHTSA ODI #11184806 — An owner reported their vehicle entered limp mode due to what they described as the "dreaded secondary air injection system defect." The failure triggered a cascade of codes including P0418, P2440, P2445, and P1442, noting that the replacement process is a "nightmare."

OEM Part Supersession History

• 25710-50020, 25710-50021 → 25710-50022 — Standard revision and consolidation of the part number for the Bank 1 (passenger side) Air Switching Valve.

Model Year Variations Within This Range

• 2005-2009: In 2005, the 2UZ-FE engine was updated with Variable Valve Timing with intelligence (VVT-i). While the fundamental design and failure mode of the Secondary Air Injection system remained the same, some bypass kit manufacturers have different instructions or slightly different kit versions for the 2005+ models to account for potential ECM logic changes. For example, Hewitt-Tech offers specific instructions for the 2005-2009 GX470.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Cracked Dashboard and Interior Panels 🟠 Medium — Extremely common, especially in warmer climates. Cracks can appear regardless of mileage. (Ref: Lexus issued a Warranty Enhancement Program (ZLZ) to cover replacement, but the program has since expired.)
• Seized Front Brake Calipers 🟠 Medium — Common, particularly after 100,000 miles. The lower pistons are prone to seizing, especially in regions with road salt.
• Cracked Exhaust Manifolds 🟠 Medium — A very common issue on the 2UZ-FE, causing an audible 'ticking' sound from the engine bay, especially when cold, that may quiet down as the engine warms up.
• KDSS (Kinetic Dynamic Suspension System) Malfunctions 🔴 High — Occurs on Sport Package models. Failures can include leaking hydraulic lines, accumulator solenoid failure, or a noticeable lean. Repairs are very expensive. (Ref: Codes C1777 and C1832 are common for KDSS faults.)
• Rear Air Suspension Failure 🟠 Medium — The rear air springs are prone to dry rotting and leaking over time, causing the rear of the vehicle to sag. Height control sensors can also fail. Many owners convert to a standard coil spring setup.
• Driveshaft 'Clunk' or 'Thump' 🟡 Low — Commonly reported issue where a 'clunk' is felt from the driveline when stopping. It is often caused by the slip yoke needing lubrication. (Ref: A TSB exists for this issue, recommending re-lubrication of the propeller shaft slip yoke with special grease.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific P0418 repair, using used parts is highly discouraged for the core components. The only parts where a used component might be acceptable are ancillary items like mounting brackets or undamaged sections of the metal air tubes, but the savings are minimal compared to the risk.

Donor-vehicle mileage cap: roughly under 10000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For the air pump: DO NOT BUY USED. The failure is due to an internal foam filter that degrades with age, not mileage. A used pump is highly likely to fail in the exact same way as the original.
• For the air switching valves: DO NOT BUY USED. These valves are almost always contaminated with debris from the failed pump. A used valve from a junkyard vehicle likely has the same contamination or is seized.
• If you absolutely must inspect a used part, demand to see the inside of the air pump. If there is any sign of orange/yellow foam debris or broken plastic impeller blades, it is junk.
• For valves, look into the ports for any black or plastic debris holding the valve open.

OEM-only on this vehicle (don't cheap out):

• Intake Manifold Gaskets: While quality aftermarket gaskets like Fel-Pro are widely used and accepted, using genuine Toyota/Lexus gaskets provides the highest assurance of fit and seal for such a labor-intensive job.

Aftermarket brands forum-validated for this vehicle:

• Dorman: Offers replacement pumps and valves that are a common, lower-cost alternative to OEM.
• Standard Motor Products (SMP): Another reputable aftermarket source for the air pump.
• Hewitt Technologies: The most frequently cited and recommended brand for electronic bypass kits, considered a permanent solution by many owners.

Brands owners have reported issues with on this vehicle:

• Unbranded, ultra-cheap parts from online marketplaces should be avoided. A failed aftermarket pump or valve will require the entire 4-6 hour labor job to be repeated.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P2440 — Secondary Air Injection System Switching Valve Stuck Open (Bank 1). This code is frequently seen with P0418 because debris from the disintegrating air pump travels downstream and physically jams this valve open.
• P2442 — Secondary Air Injection System Switching Valve Stuck Open (Bank 2). This is the companion code to P2440 for the opposite engine bank and is caused by the exact same failure mode: debris from the failed pump lodging in the valve.
• P2445 — Secondary Air Injection System Pump Stuck Off. While P0418 indicates a circuit malfunction, P2445 more specifically points to the pump itself being inoperative. Both are typically caused by the same internal pump failure from ingested foam filter material.
• P1442 — Secondary Air Injection System Switching Valve Stuck Open (Bank 1). This is a manufacturer-specific code that points to the same stuck valve issue as P2440, which is a common consequence of the primary air pump failure that causes P0418.
